15.6-inch multi-touch high-quality nano-touch film
- $53.50 / 1 - 49 pieces
$45.50 / >=50 pieces - 1 piece
- Shenzhen Wivitouch Technology Co., Ltd.
- Guangdong, China
- Ms Jun Lily
PRODUCT DETAIL
| place of origin; place of origin: | Guangdong, China | Interface Type: | USB |
| custom made: | yes | After-sales service: | Call center and online technical support, on-site training and inspection, free spare parts, returns and exchanges, repairs |
| Packaging Details: | Cylinder: Includes 1 touch foil, 1 touch foil controller, 1 touch foil USB cable | series: | business use |
| port: | Shenzhen | Warranty (year): | 1 year |
| Touch sensor: | TX28 RX48 | Certification: | FCC |
| Contact point: | 20 points can be upgraded to 40 points | Warranty: | 1 year |
| color: | many | Supply capacity: | 3000 pieces per month |
| aspect ratio: | 16:9 | Types of: | Capacitive |
| size: | 15.6 inches (15-32 inches) | Scan speed: | 8 ms/frame |
| product status: | new | pack: | yes |
| brand: | Vivi Touch | product name: | 15.6-inch multi-touch high-quality nano-touch film |
| thickness: | ≤200um | operating system: | Win7/8/8.1/10, Android, Linux |
Product Description
What is WiViTouch touch film?

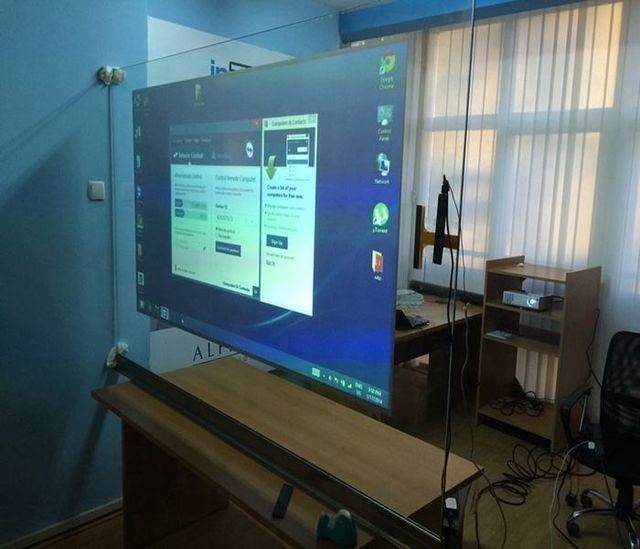

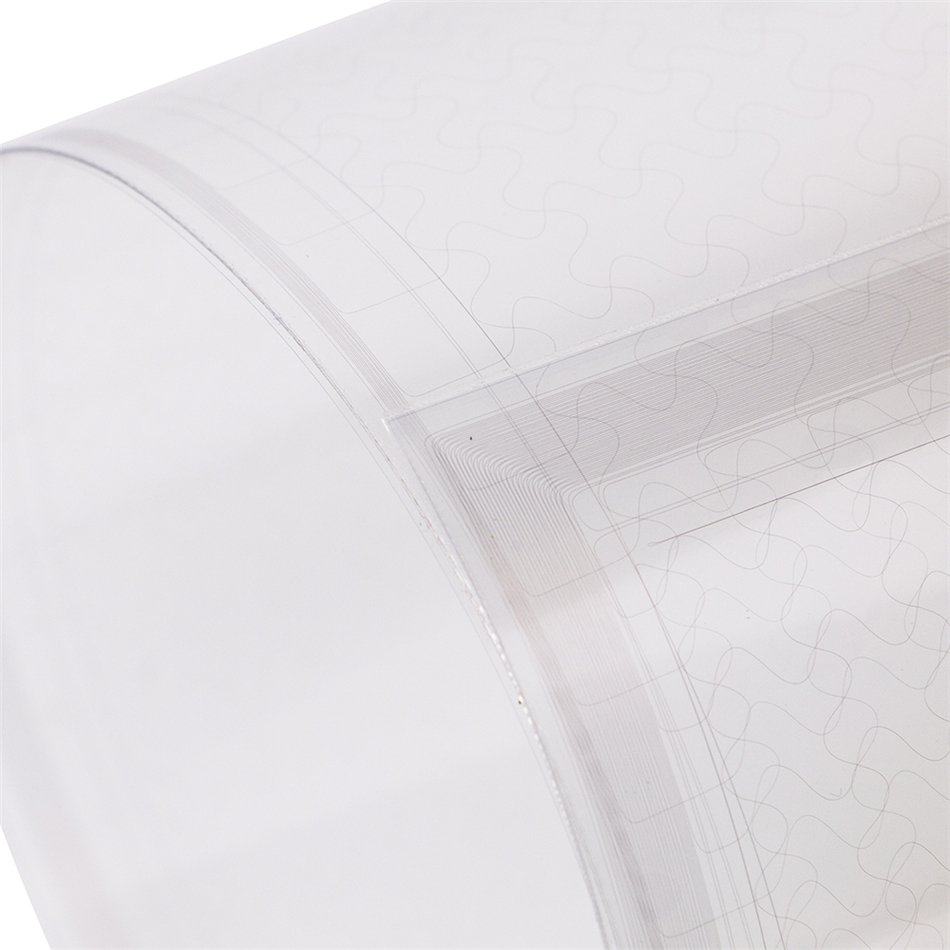

WiVi uses a unique transparent touch film that can be controlled through the glass.
Everything is mounted on the inside of the shop window.WiVi Touch Foil can be combined with projection or LCD screens to create interactive shop windows, outdoor/indoor kiosks, digital signage, touch screen tables, LCD displays and more.
The WiVi Touch Foil acts as an eye-catcher, creating instant interactivity.

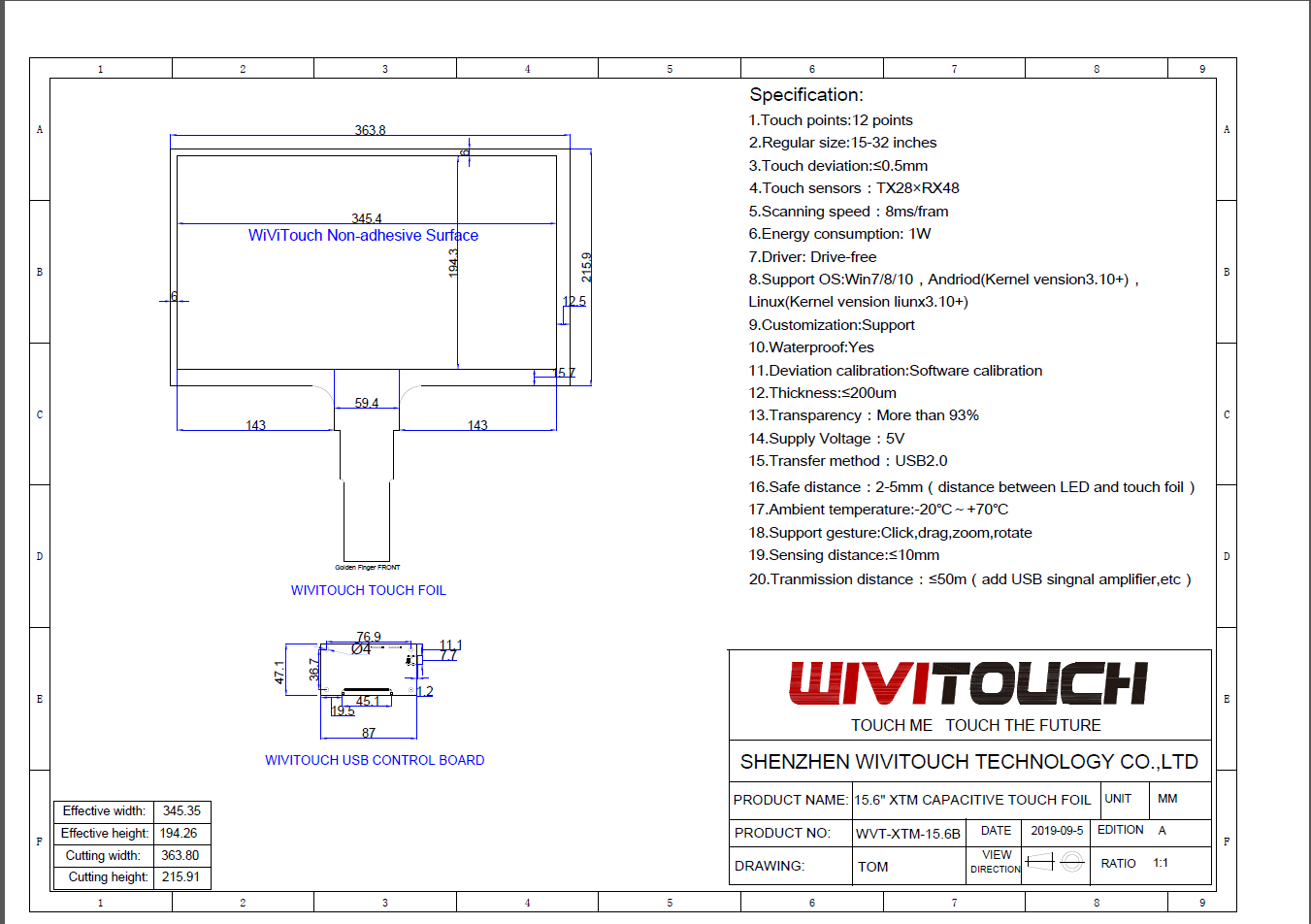

parameter name | WiViTouch XT Series Capacitive Touch Film Specifications | ||||||
Product Series | WVT-XTM | WVT-XTA | WVT-XTB | WVT to XTC | |||
Contact point | 12 points | 20 points (can be upgraded to 40 points) | 30 points (can be upgraded to 40 points) | 40 marks | |||
Regular size | 15-43 inches | 30-65 inches | 55-98 inches | 43-180 inches | |||
touch bias | ≤0.5mm | ≤0.5mm | ≤0.5mm | ≤0.5mm | |||
touch sensor | TX28 RX48 | TX56 RX96 | TX80 RX142 | TX136 RX240 | |||
flexible circuit board | 130 | 120 | 120 | ||||
scanning speed | 8 ms/frame | 8 ms/frame | 8 ms/frame | 8 ms/frame | |||
driver | drive free | ||||||
Windows | Win7/8/8.1/10 | ||||||
android | Kernel version 3.10+ or higher | ||||||
Linux | Kernel version liunx3.10+ or higher | ||||||
customized | support | ||||||
waterproof | yes | ||||||
Offset Calibration | software calibration | ||||||
Certificate | CE, ilac-MRA, CNAS, CAL, CMA, FCC, ROHS, ISO | ||||||

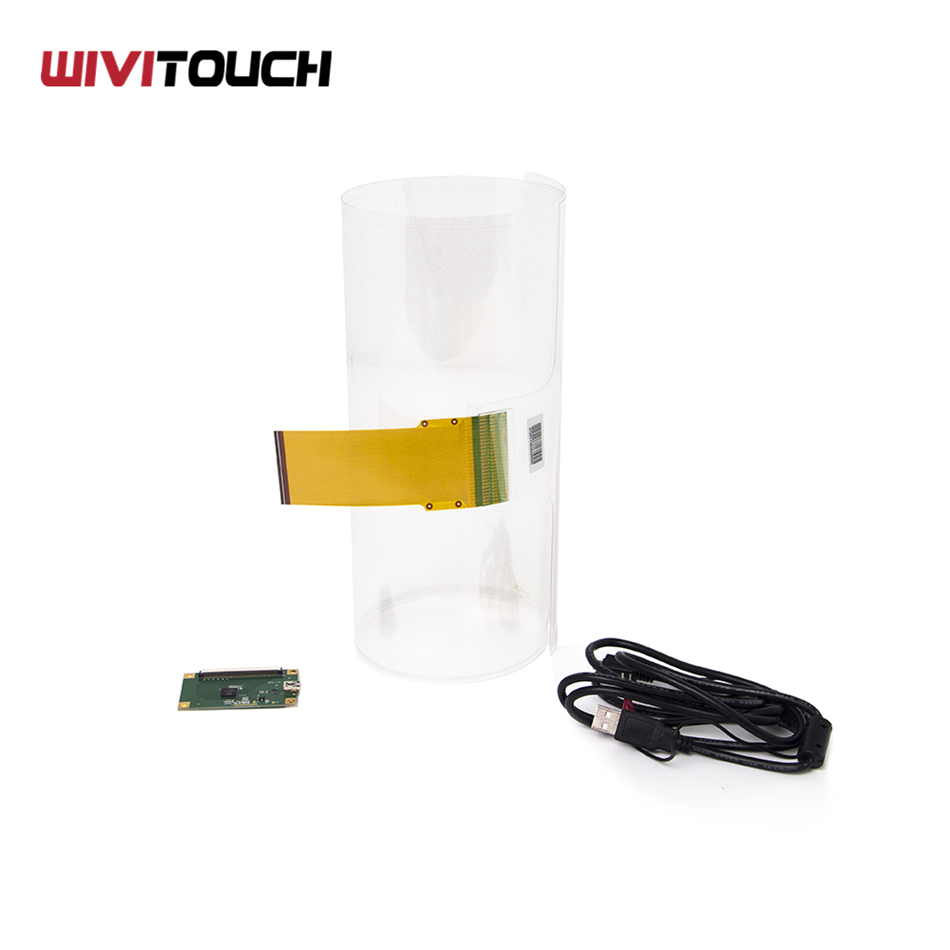

package list | Touch film*1, controller*1, 1.5m USB cable*1 | ||||||

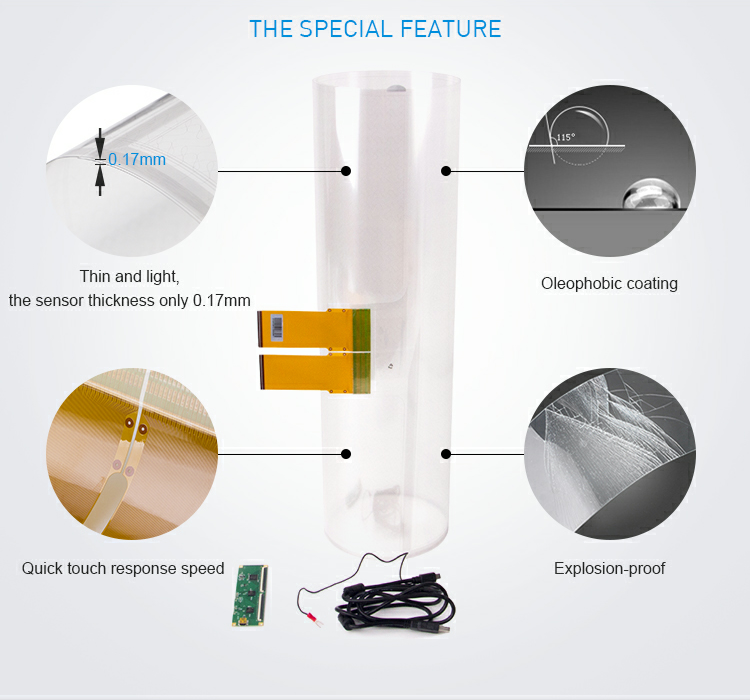

thickness | ≤200um | ||||||
transparency | More than 93% | ||||||
voltage | 5V | ||||||
transfer method | USB2.0 | ||||||
safe distance | 2-5mm (distance between LED and touch film) | ||||||
Transmission distance | ≤50m (plus USB signal amplifier, etc.) | ||||||
support gesture | Click, drag, scale, rotate | ||||||
ambient light | Full point anti-glare | ||||||
Sensing distance | ≤10mm | ||||||
Why is touch foil more and more popular?
1. Lightweight film, easy to stick on windows, glass, acrylic and rear projection screens. 2. No need for any external wires or devices as all touch screen components are safely behind glass. 3. High-quality transparent multi-touch film (up to 40 touch points), multi-touch function – glass thickness up to 12 mm. 4. Compatible with all existing multimedia applications PowerPoint, Macromedia Flash, websites, etc.
5. It is not sensitive to external light and will not be affected by light changes. 6. Available in a wide range of regular screen sizes up to 100" 4:3 or 16:9 formats. 7. Includes complete installation kit – touch foil, control board and USB cable. 8. No mechanical or pressure sensitive components, Durable and stable 9. Easy to install software.
10. Accurate positioning. 11. High resolution controller.
>>>Back to Category
>>> Contact us now
>>> Contact us now
Please note:
WVT-XTM-xxB is the bottom tail;
WVT-XTM-xxS is for the tail protruding from the short side.

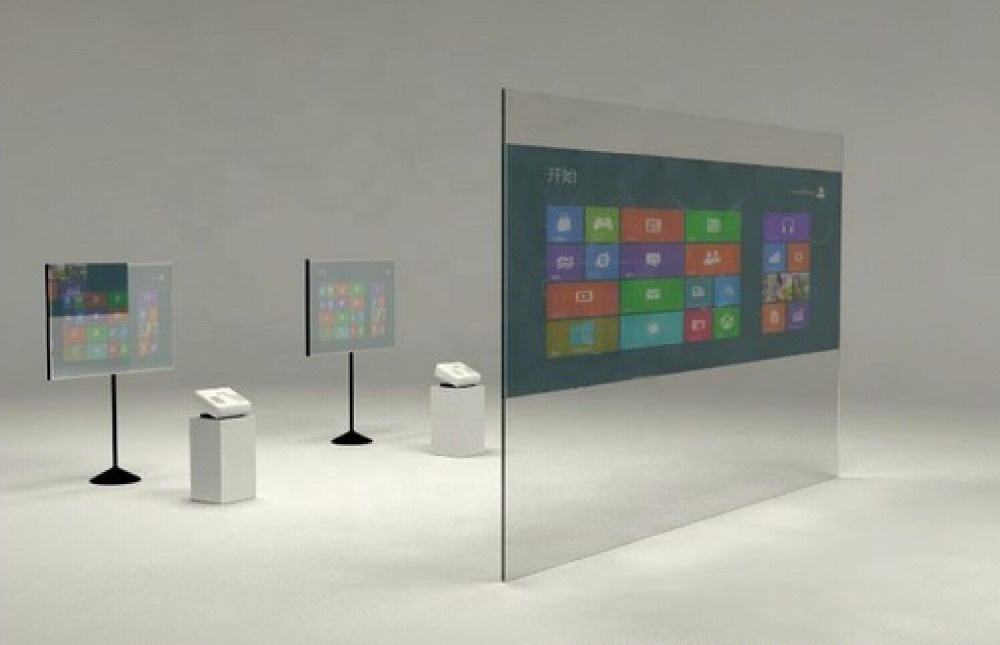

What applications are touch films suitable for?
Integrated nano-touch film can realize interactive projection system, touch all-in-one machine, touch coffee table/desk, touch wall, touch TV, etc. These system integration products or solutions can be applied in exhibition/hotel/airport/government/home/teaching/shop window display/indoor/outdoor kiosk glass partition/company office/training/meeting room/exhibition/conference museum/tourist attraction
How do touch wraps work?
Our thin-film displays are only a few microns thick and can transform any surface into a high-definition multimedia display surface. Display rear-projection images, video and dynamic media content anywhere, in any format. Mounting: attached to glass, LCD or other media

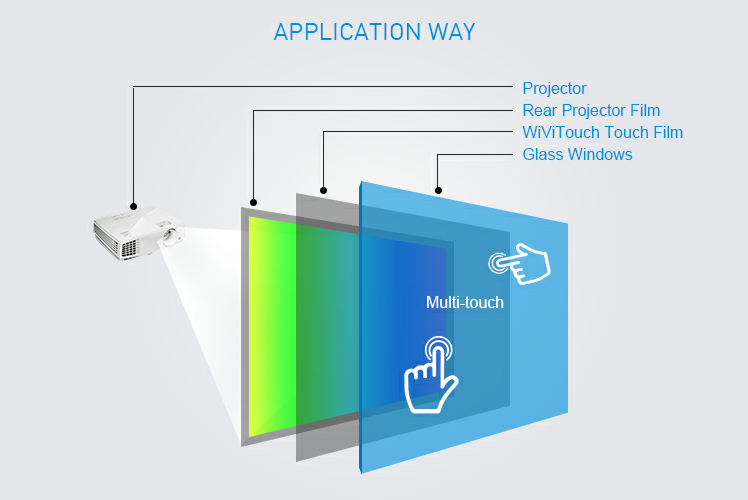

Model A
Touch film + rear projection film + projector + PC
Such mounting solutions can be used for glazing, shop window displays, indoor, outdoor kiosk glass partitions, training, meeting rooms

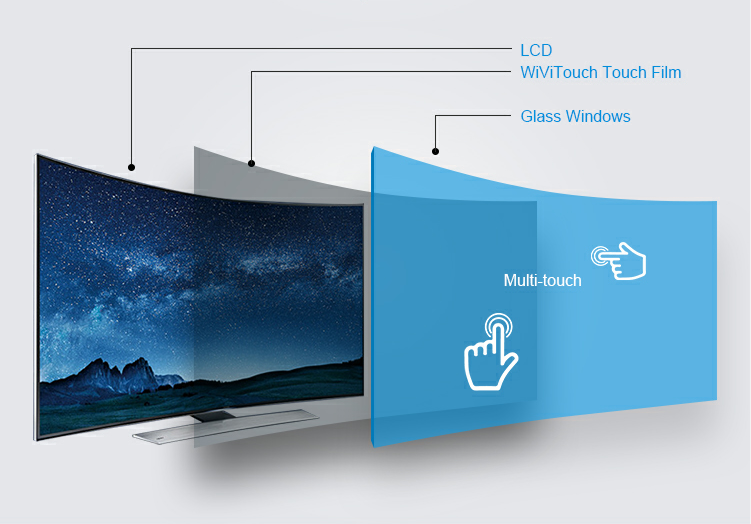

Mode B
Touch Film + LCD Display + PC
This type of mounting solution can be used in touch kiosks, LCD displays, LCD advertising displays, ATMs, vending machines, etc.
>>>Back to Category
>>> Contact us now
Advantages of WiViTouch Touch Film
1. You bought it from the factory! Price, quality and delivery time guaranteed!
China's first touch film manufacturer integrating R&D, production and sales, with more than 10 years of experience in touch film

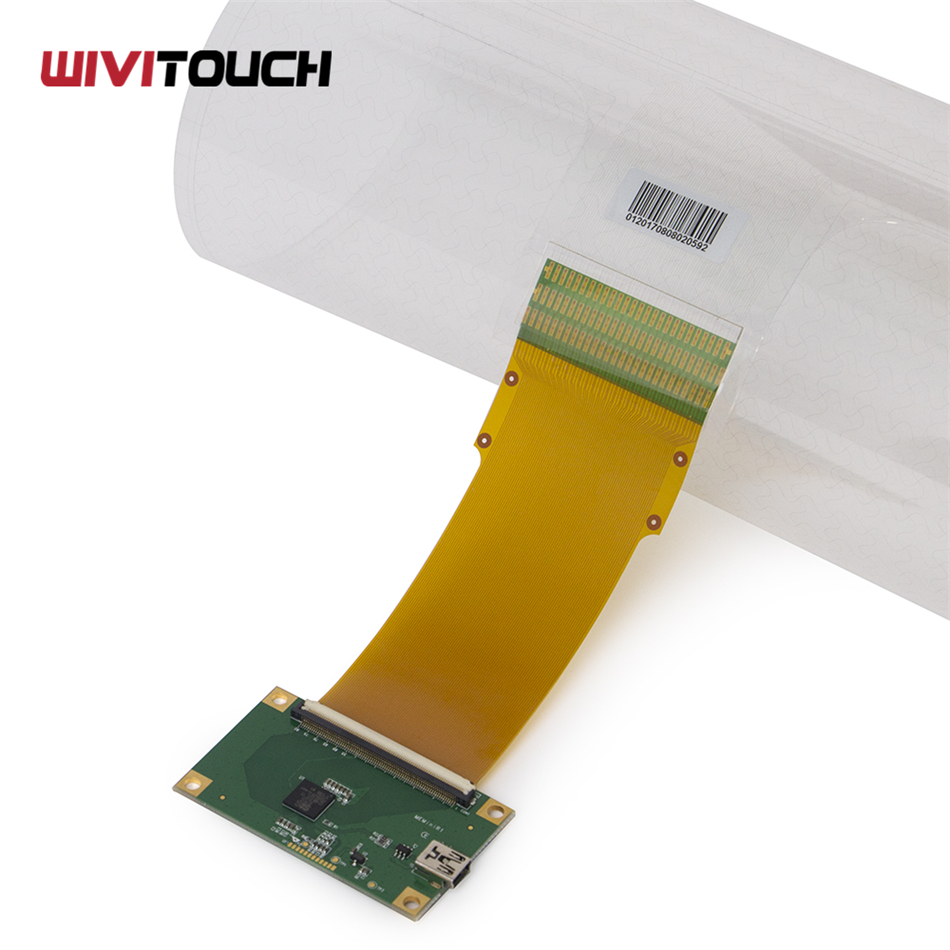

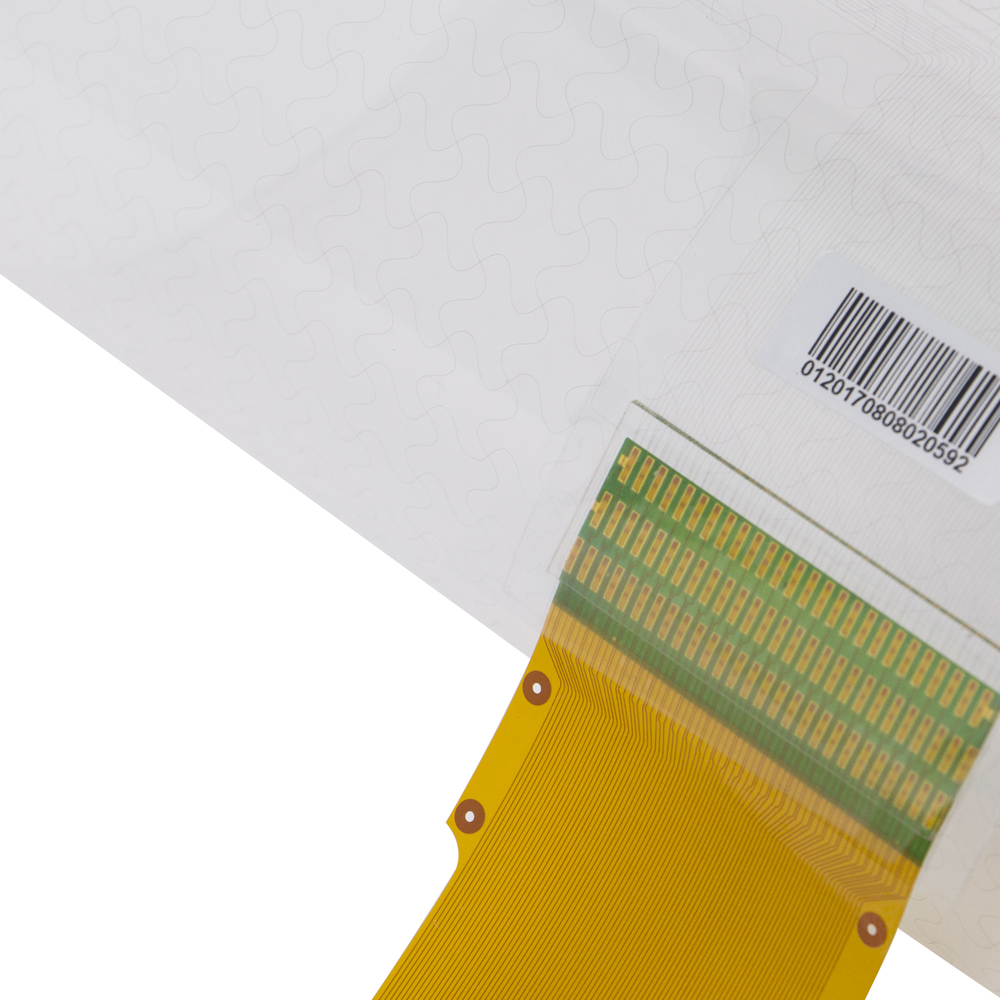

FPC double laser welding
Foil Quality Inspection
Control panel QC inspection

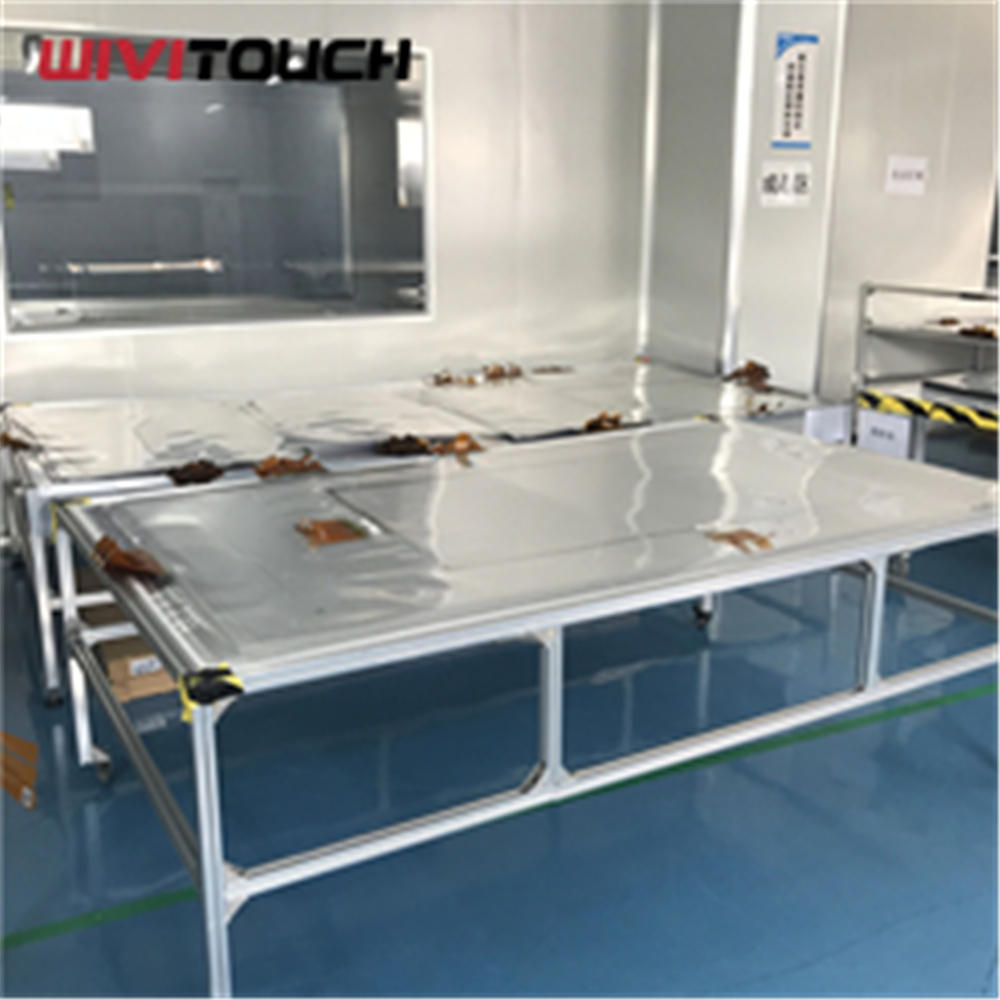

workshop
stock
Qualified
2. Touch film certificates: CE, ilac-MRA, CNAS, CAL, CMA, FCC, ROHS, ISO
3. Strong R&D department, the world's leading touch film technology!
*The software is easy to operate and easy to maintain. Even a novice can complete the calibration within 1 minute.
* High signal-to-noise ratio makes it strong anti-interference ability.
* Can work under glass up to 12mm (please inform in advance if the glass thickness exceeds 8mm).
* Support manually adjusting the threshold to adjust its sensitivity.
* FPGA algorithm realizes object recognition.
* If any cable is damaged, automatically amplifies the signal of adjacent cables, so as long as the damaged wire is separated by other good wires, the foil will work normally.
* Touch without dead angle.
4. Professional equipment, customized service can be provided.
*Accept customization: 10''-240'', format ratio (optional): 16:9, 16:10, 4:3, contacts: 12-40 points
* The maximum size that can be made is 5850*1400mm.

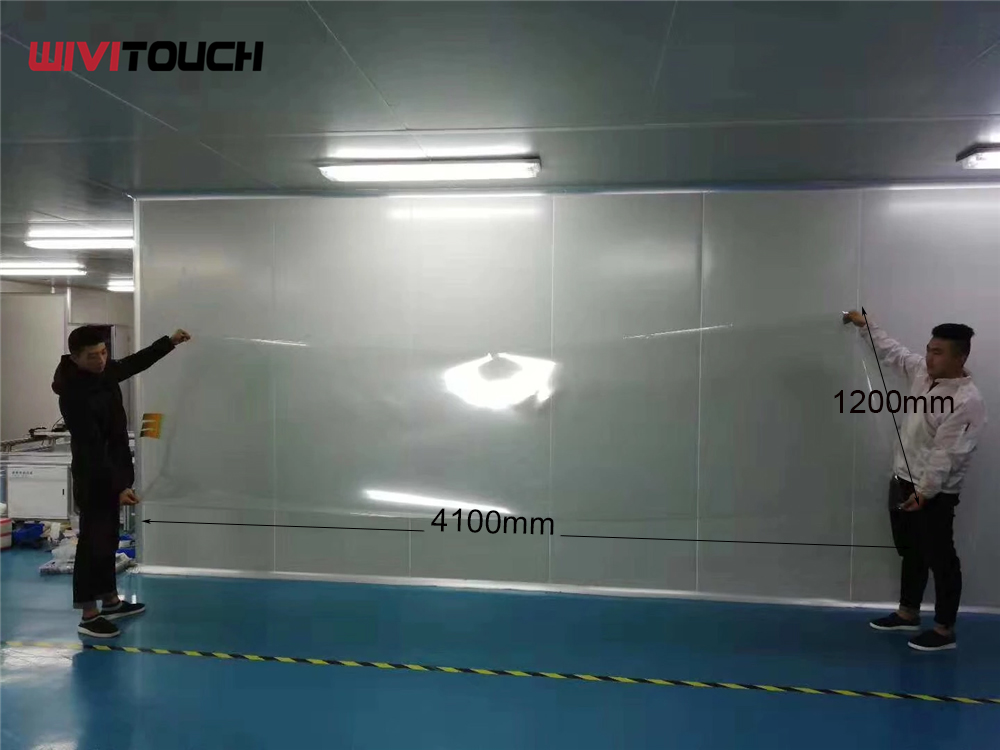

* So far, the largest size we have produced is 4100*1200mm.
5. Our team has 2-10 years of sales experience, professional and efficient.
6.1 year comprehensive free warranty.
7. Fast delivery.
XTM series/dimensions | 1 item | 50 pieces | 200 pieces | 500 pieces and above |
15.6 inches | 5 working days | 7 working days | 8-10 working days | 10-15 working days |
17.1 inches | 5 working days | 7 working days | 8-10 working days |
10-15 working days
|
18.5 inches | 5 working days | 7 working days | 8-10 working days |
10-15 working days
|
19 inches | 5 working days | 7 working days | 8-10 working days |
10-15 working days
|
21.5 inches | 5 working days | 7 working days | 8-10 working days |
10-15 working days
|
22 inches | 5 working days | 7 working days | 8-10 working days |
10-15 working days
|
24 inches | 5 working days | 7 working days | 8-10 working days |
10-15 working days
|
27 inches | 5 working days | 7 working days | 8-10 working days |
10-15 working days
|
32 inches | 5 working days | 7 working days | 8-10 working days |
10-15 working days
|
43 inches | 5 working days | 7 working days | 8-10 working days |
10-15 working days
|
>>>Back to category
>>> Contact us now
>>> Contact us now

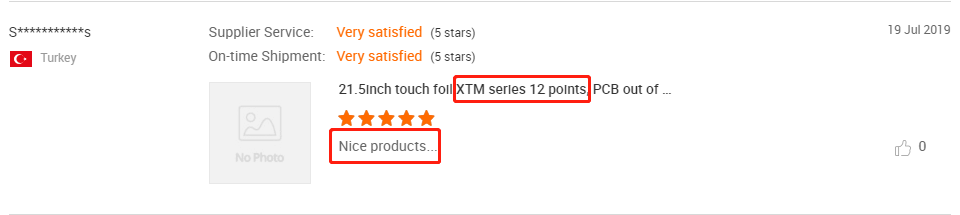

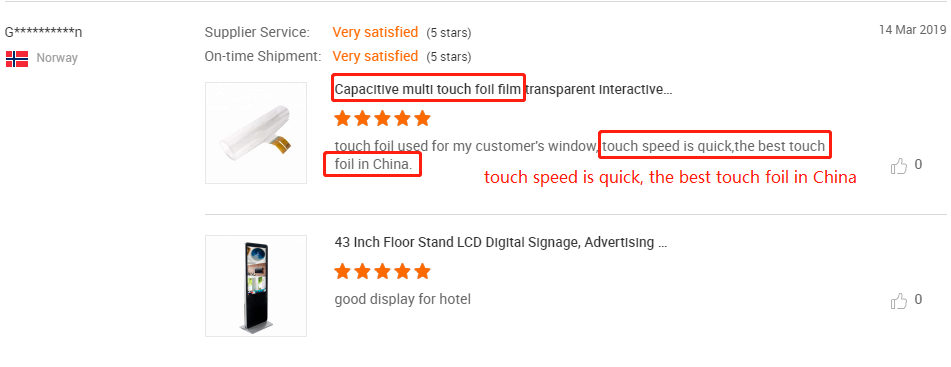

Customer Feedback
