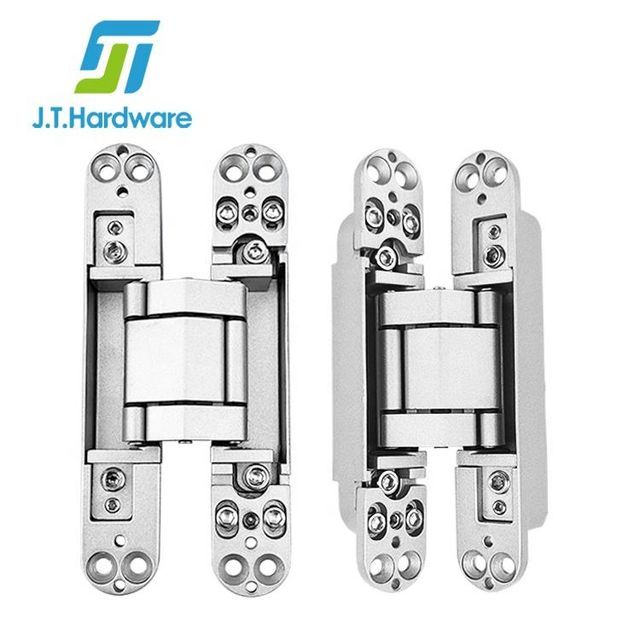

180-degree opening 3D three-way adjustable hidden invisible hinge
- $7.40 / 100 - 499 pieces
$7.10 / 500 - 999 pieces
$6.80 / 1000 - 1999 pieces
$6.50 / >=2000 pieces - 100 pieces
- Jietai Hardware Limited
- Guangdong, China
- Ms JieTai Hardware
PRODUCT DETAIL
| Maximum door width: | 850 mm | Warranty: | 1 year |
| Adjustment: | Vertical +3mm-3mm, horizontal +2mm-2mm, depth +1mm-1mm | Package preview: | |
| model: | ZA-CC150 | Origin: | Guangdong, China |
| size: | 150*25mm | Packaging Details: | 100 pieces/carton |
| Supply capacity: | 5,000,000 pieces per month | Project Solution Capabilities: | Graphic design, 3D model design |
| Material: | Zinc Alloy/Alum | Opening angle: | 180 degree |
| port: | Jiangmen | After-sales service: | Online technical support, on-site training |
| Minimum door thickness: | 35 mm | Bearing: | Two pieces of 40 kg |
| Finish: | Chrome, Nickel, Brass and Paint | application: | Wooden door/swing door,Wooden door/swing door |
| design style: | modern | brand: | Jetai Hardware |
| payment terms: | wire transfer | product name: | concealed door hinge |
180-degree opening 3D three-way adjustable hidden invisible hinge

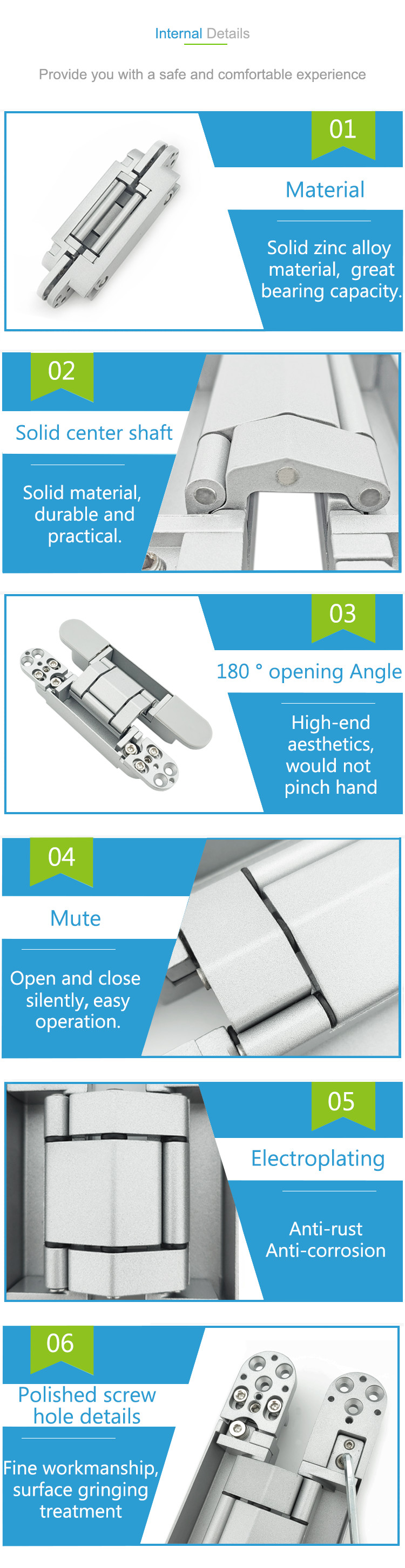

feature
- Fingers are protected due to the small gap between the door and the door frame.

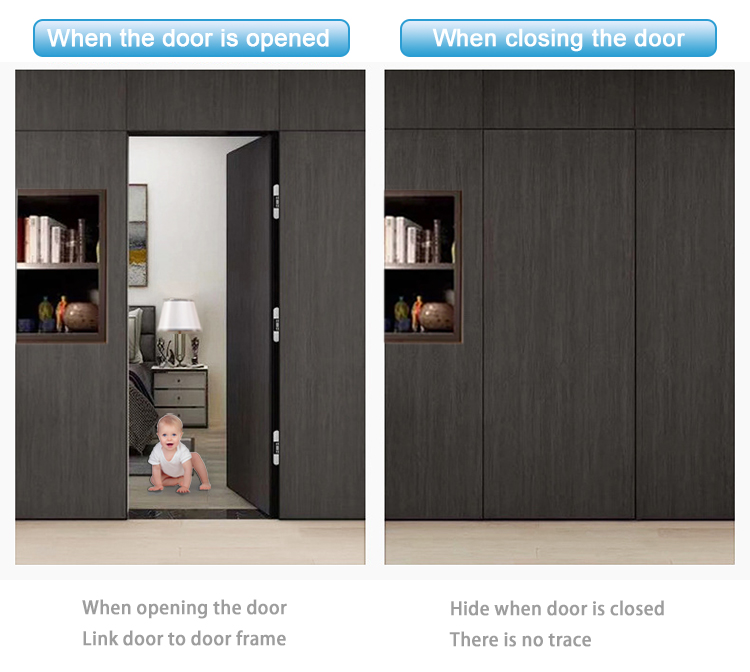

- Completely concealed, suitable for hinged doors with wooden steel or aluminum frames.

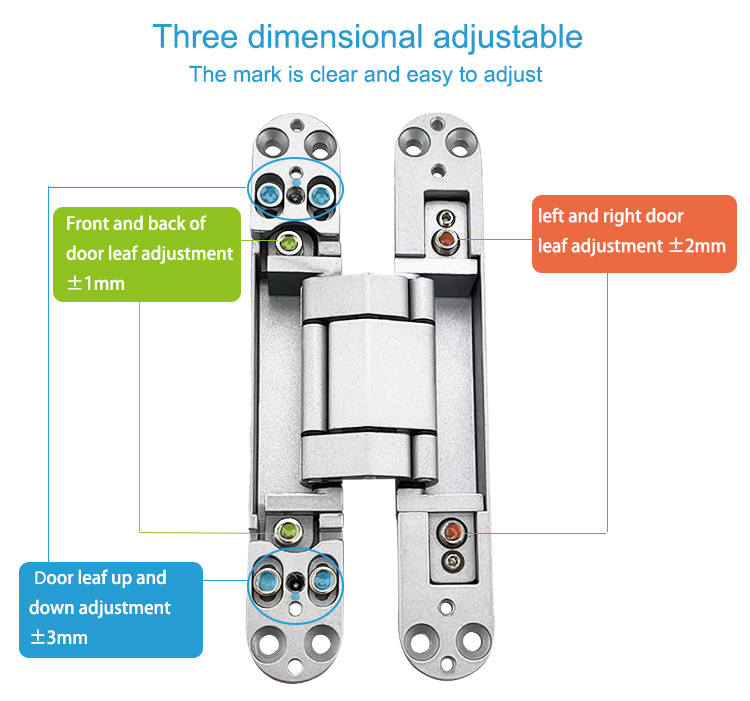

- Easy installation - 180-degree hidden door hinge can be used inward or outward according to needs, three-dimensional adjustable range: vertical ±3.0mm, horizontal ±2.0mm, depth ±1.0mm, no need to remove the door when adjustment is required.

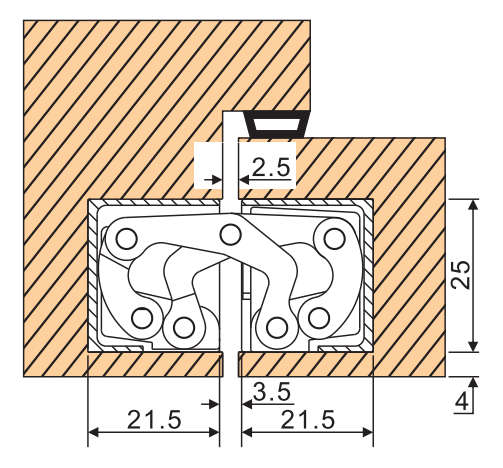

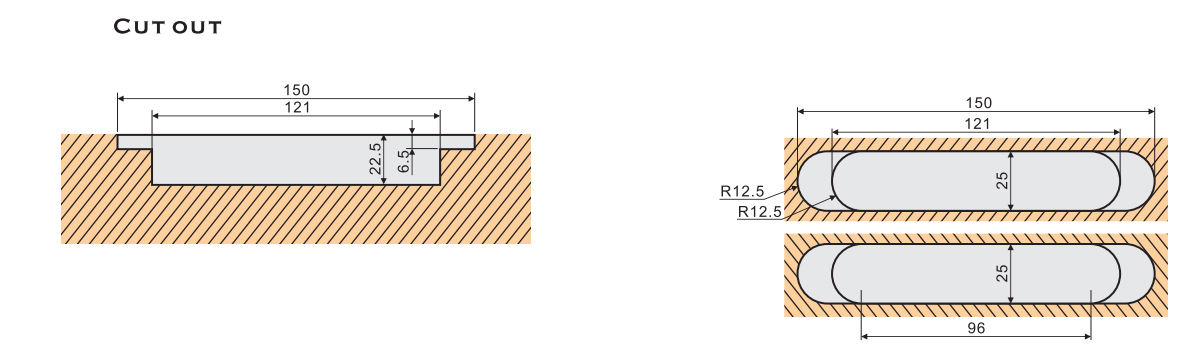

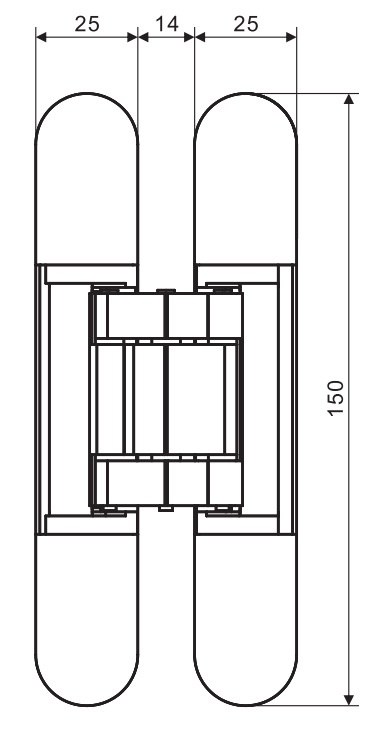

Product Size

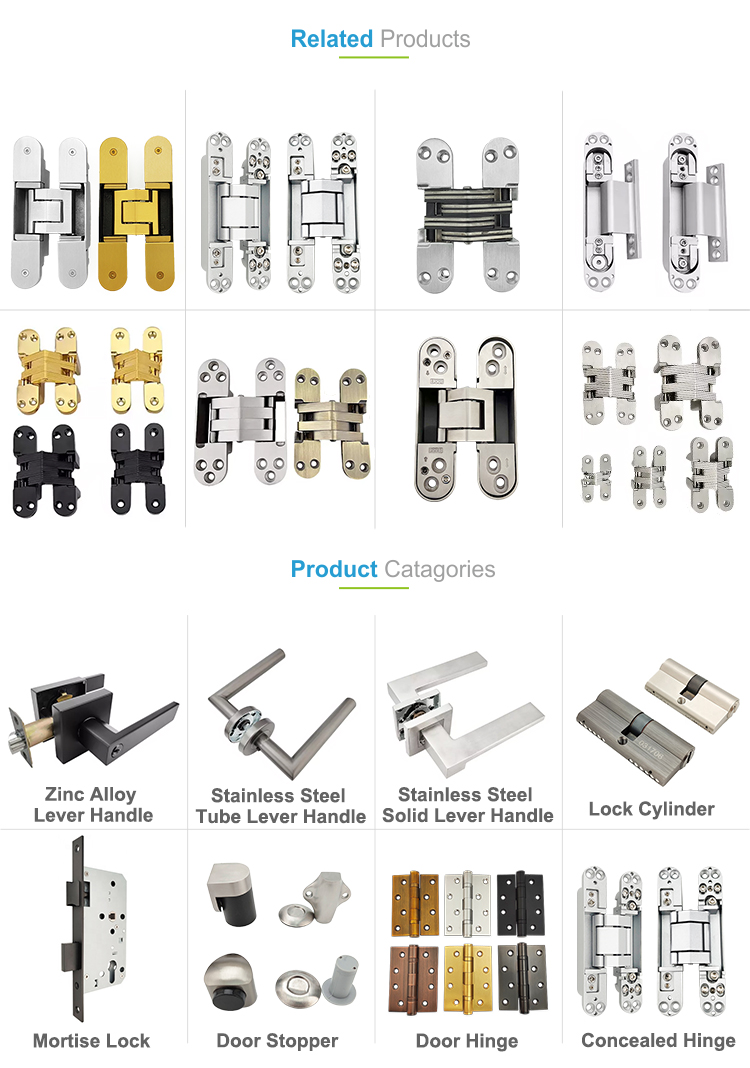

Product Category
optional finishes
