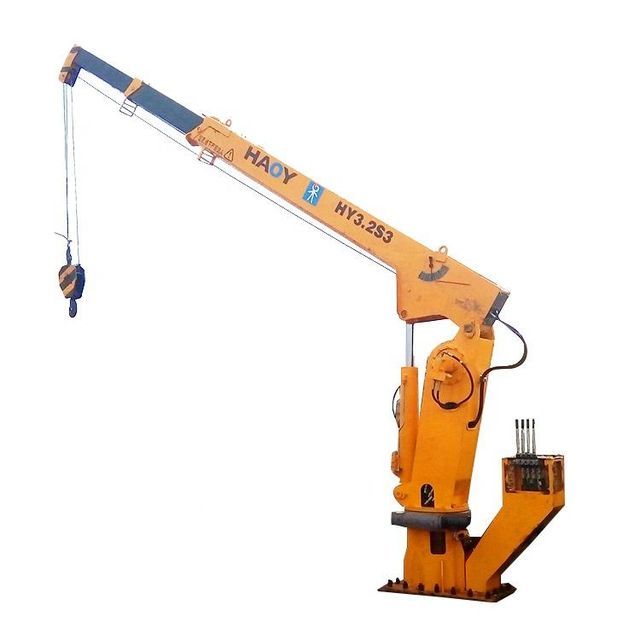

2 Tons Telescopic Boom Marine Crane Base Electro-Hydraulic Price
- $6000.00 / 1 - 1 sets
$5900.00 / 2 - 4 sets
$5800.00 / >=5 sets - 1 set
- Xuzhou Haoyi Construction Machinery Technology Co., Ltd.
- Jiangsu, China
- Ms sunny ji
PRODUCT DETAIL
| port: | Shanghai/Lianyungang/Qingdao | Working temperature: | -20℃~50℃ |
| application: | Marine/Port/Wharf/Ship Lifting | Core components: | Motors, pressure vessels, gears |
| Origin: | Jiangsu, China | feature: | floating crane |
| maximum. Lifting height: | 20m | Video outbound inspection: | if |
| color: | chosen | Marketing Type: | 2020 New Products |
| Steel structure: | high strength board | After-sales service provided: | Video technical support, online support |
| Rated load capacity: | 2000 kg | Certification: | CCS/ISO9001 |
| Wire Rope Type: | non-rotating galvanized | Applicable industries: | Farm, Retail, Marine/Ship/Boat/Port/Dock |
| Packaging Details: | Hydraulic telescopic boom marine crane: 1. 20' GP: 2 units (approx.) 2. Standard packing for export, container transportation. 3. Waterproof and moisture-proof | Working conditions: | Vertical 5°; Horizontal 3° |
| Package preview: | Topcoat: | polyurethane topcoat | |
| Supply capacity: | 50 sets per month | The connection form between the crane and the deck: | flange |
| Security system: | Anti-overload valve/balance valve/winch brake | Local service locations: | not any |
| brand: | luxury | Showroom location: | not any |
| Core component warranty: | 1 year | Mechanical test report: | if |
| After Warranty Service: | Video technical support, online support, spare parts | Primer: Epoxy Zinc Rich Primer: | 80μ*2 |
| Rated lifting moment: | 4.2 tons of rice | span: | no |
| Warranty: | 1 year | Health status: | new |
| payment terms: | L/C, Western Union, T/T, Alibaba payment, credit card payment |
2 Tons Telescopic Boom Marine Crane Base Electro-Hydraulic Price
Product Description

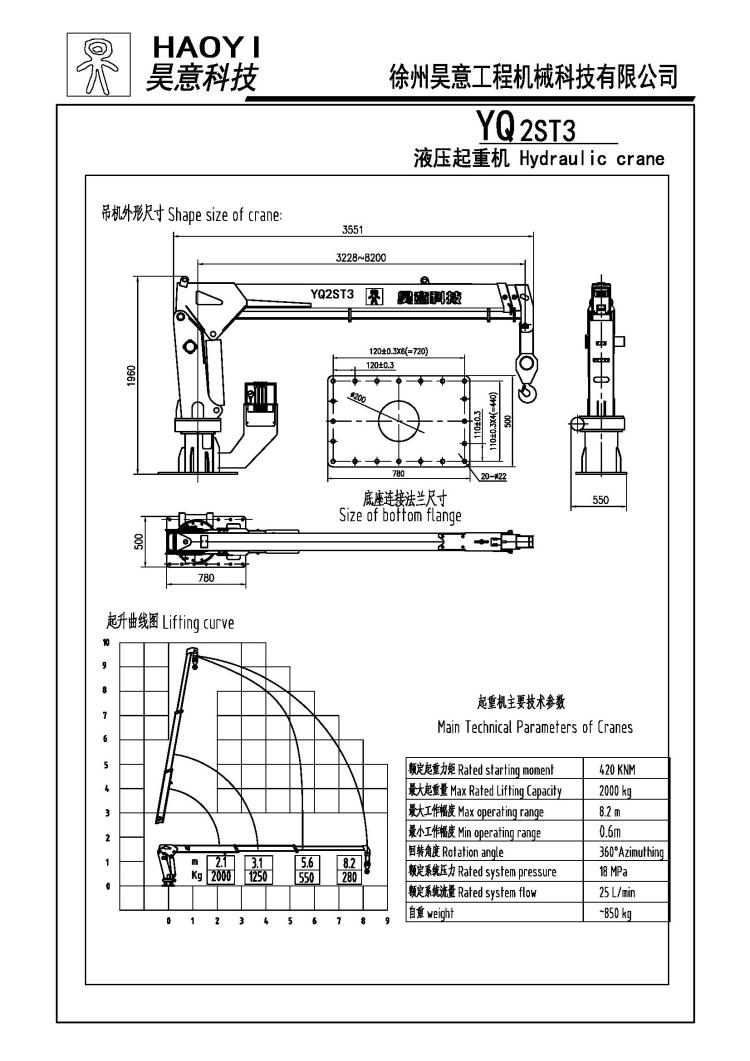

thing | unit | YQ2S3 |
lifting torque | T. M | 4.2 |
working radius | Medium | 8.2 |
Minimum working radius | rice | 0.4 |
maximum. Hoist height | Medium | 25 |
Rotation angle | . | 360° omnidirectional |
Rated system flow | l/min | 25 |
Rated system pressure | MPa | 18 |
crane weight | Kilogram | 850 |

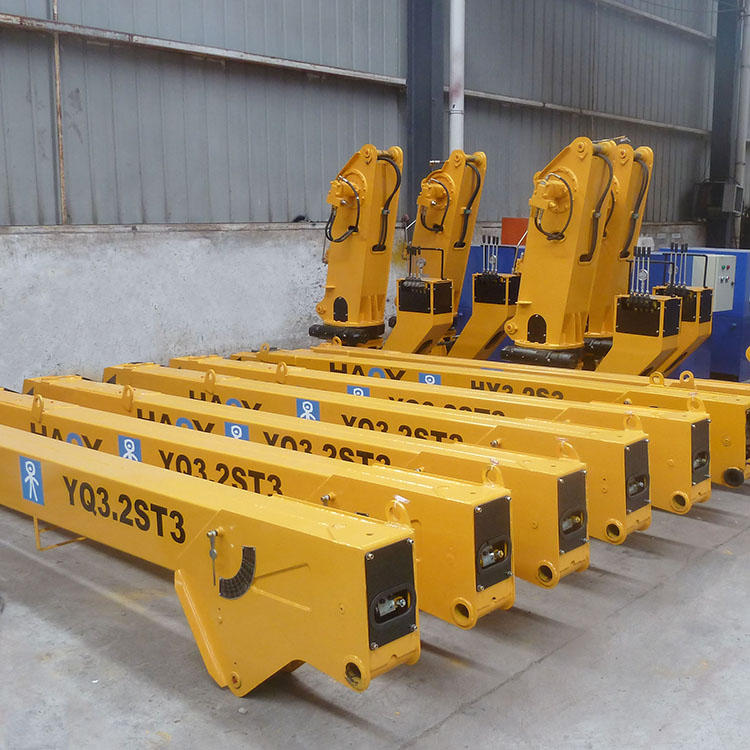

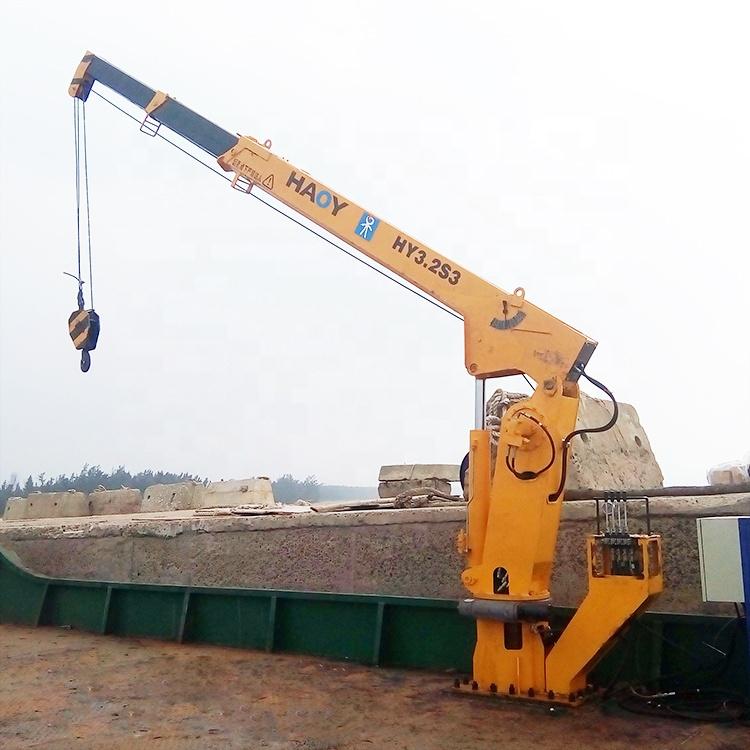

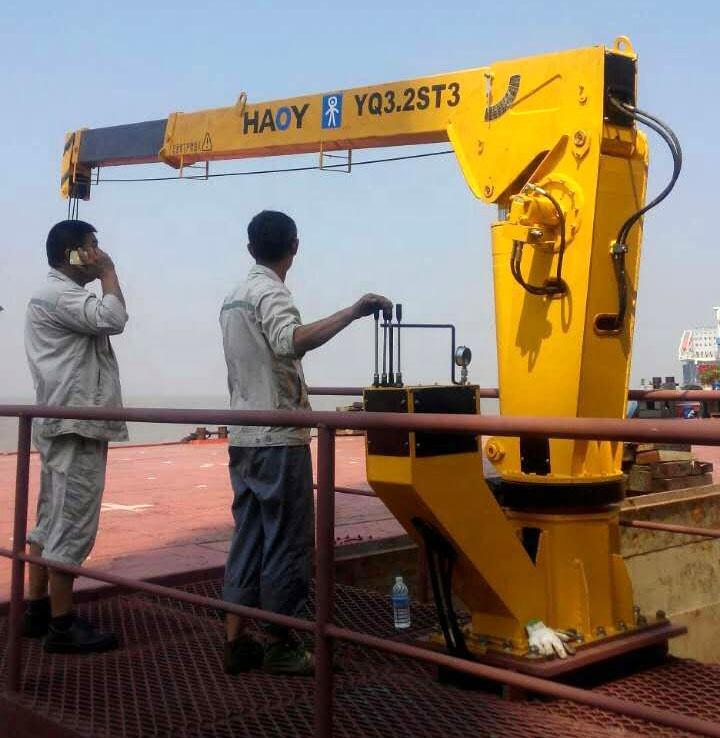

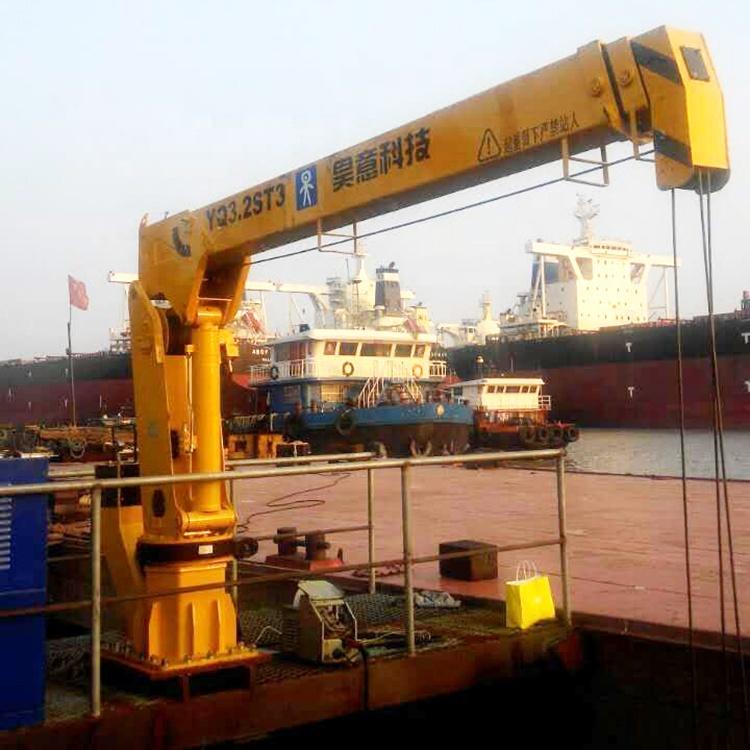

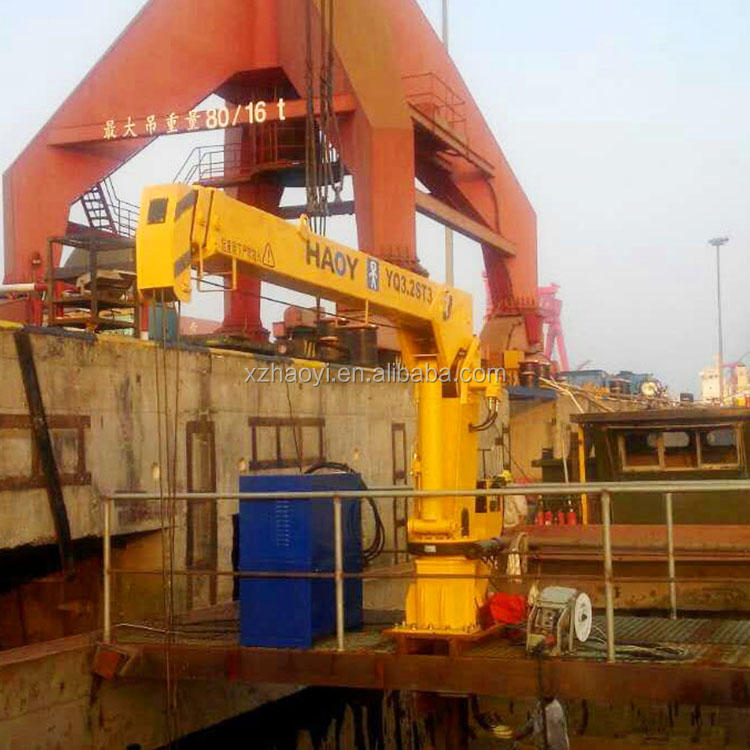

physical photos
Our advantage

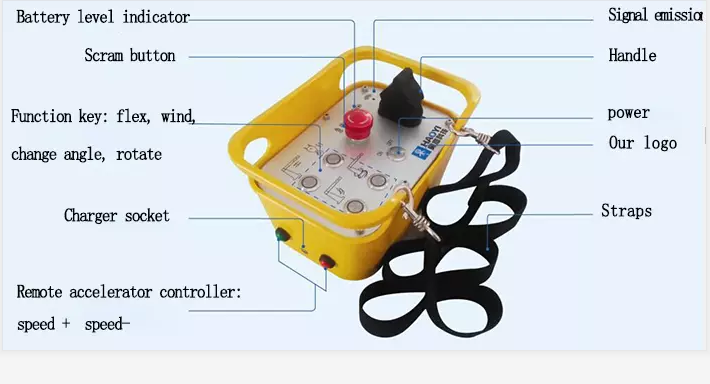

remote control
Can operate a truck craneWireless remote control, safe, convenient and efficient. In addition to lifting operations, you can also install an aerial work platform to realize the function of aerial work, one machine with multiple functions!
