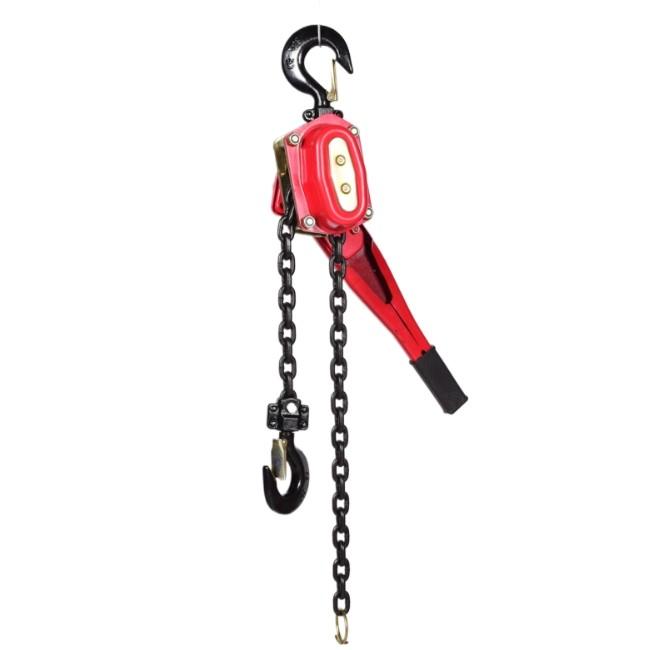

2 ton pull lift chain block lever manual manual chain hoist with hook
- $22.77 /set
- 1 set
- Qingyuan County Dongchen Hoisting Machinery Factory
- Hebei, China
- Mr HONGXING SU
PRODUCT DETAIL
| Packaging Details: | wooden box | place of origin; place of origin: | Hebei china |
| Lifting chain line number: | 1 | Standard lifting height: | 1.5m |
| payment terms: | L/C,D/P,T/T | Hand pull when fully loaded: | 140n |
| Lifting chain diameter: | 6m | Rated lifting weight: | 0.75 tons |
| net weight: | 7.7kg | Package dimensions: | 35.5X14X16.5cm |
| Test load: | 11kn | Model: | HSH-0.75A |
| Supply capacity: | 10000 sets per month | Warranty: | 3 years |
Product Description
Model | HSH-0.75A | HSH-1.5A | HSH-3A | HSH-6A | HSH-9A | ||
Rated lifting capacity | Ton | 0.75 | 1.5 | 3 | 6 | 9 | |
Standard lifting height | Meter | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
test load | kn | 11.0 | 22.5 | 37.5 | 75.0 | 112.5 | |
Hand drawn when fully loaded | n | 140 | 240 | 320 | 340 | 360 | |
Lifting chain line number | 1 | 1 | 1 | 2 | 3 | ||
Lifting chain diameter | mm | 6 | 8 | 10 | 10 | 10 | |
Main dimensions mm | One | 155 | 180 | 215 | 215 | 215 | |
Second | 95 | 105 | 130 | 130 | 130 | ||
C | 135 | 155 | 211 | 254 | 330 | ||
D | 37 | 45 | 50 | 64 | 85 | ||
H | 320 | 380 | 480 | 600 | 700 | ||
large | 285 | 370 | 410 | 410 | 410 | ||
K | 26 | 45 | 50 | 64 | 85 | ||
net weight | Kilogram | 7.7 | 11.8 | twenty one | 32 | 47 | |
Package dimensions | centimeter | 35.5X14X16.5 | 46.5X15.5X19 | 51X19X21.5 | 53X22X21.5 | 82X32X21.5 | |
Weight gain per 1 meter increase in height | Kilogram | 0.8 | 1.4 | 2.2 | 4.4 | 6.6 | |
