2020 Hot Sell Ftth Fiber Optic 3M Sc Apc Fast Connector Sc Optic Quick Connector With Fiber Optic Equipment
- $0.41 / 50 - 499 pieces
$0.40 / 500 - 999 pieces
$0.39 / 1000 - 9999 pieces
$0.21 / >=10000 pieces - 50 pieces
- Guangzhou Pingtong Optical Cable Co., Ltd.
- Guangdong, China
- Mr xu jinping
| Application: | FTTH FTTB FTTX Network; | Color: | Customized; |
| Product name: | Fiber optic fast connector; | Use: | FTTH; |
| No. of Fiber: | 1.; | Place of Origin: | Guangdong, China; |
| Ferrule: | Ceramic Ferrule; | Tension Test: | ≥100N; |
| Brand Name: | Pingtong; | Packaging Detail: | Fiber optic fast connector's packing way is: 10pcs in a Blister box, 100pcs in a gift box, 2000pcs in a carton with a data sheet.; |
| Model Number: | Fast Connector; | Insertion Loss: | ≤0.2 dB; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,2020 Hot Sell Ftth Fiber Optic 3M Sc Apc Fast Connector Sc Optic Quick Connector With Fiber Optic Equipment; | Port: | Guangzhou; |
| Durability(dB): | <0.2 Typical Change, 1000 Times; | Fiber Mode: | SM/MM; |
| Supply Ability: | 50000 Pieces per Week; | Wavelength: | 1310nm/1550nm; |
| Type: | Fiber Optic Transceivers; | Return Loss: | >55dB; |
2020 Hot Sell Ftth Fiber Optic 3M Sc Apc Fast Connector Sc Optic Quick Connector With Fiber Optic Equipment.
| Items | SC/APC SC/UPC | |
| Applicable Cable | X 2 Rubber-insulated wire | Φ3.0 Fiber |
| Fiber Diameter | 125μm | 125μm |
| Coating Diameter | 250μm | 250μm |
| Fiber Mode | SM OR MM | SM OR MM |
| Installation Time | ≤40S | ≤40S |
| Construction Site Installation Rate | ≥99% | ≥99% |
| Insertion Loss |
≤0.5dB(typical value≤ 0.8dB) (1310nm or 1550nm) |
≤0.5dB(typical value≤ 0.8dB) (1310nm or 1550nm) |
| Return Loss | 45dB(average 50dB) | 45dB(average 50dB) |
| Tensile Strength | >30 | >20 |
| Reusability | ≥50 | ≥50 |
| Normal Life | 30 years | 30 years |

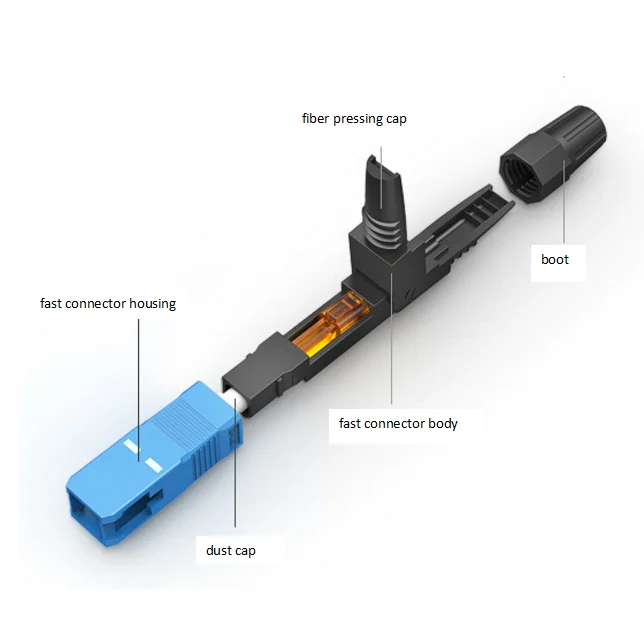

Fiber optic fast connector designed for FTTH. It is a new generation of fiber connector used in assembly. It can provide open flow and precast type, which optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high eddiciency for installation, the structure of crimping position is a unique design.

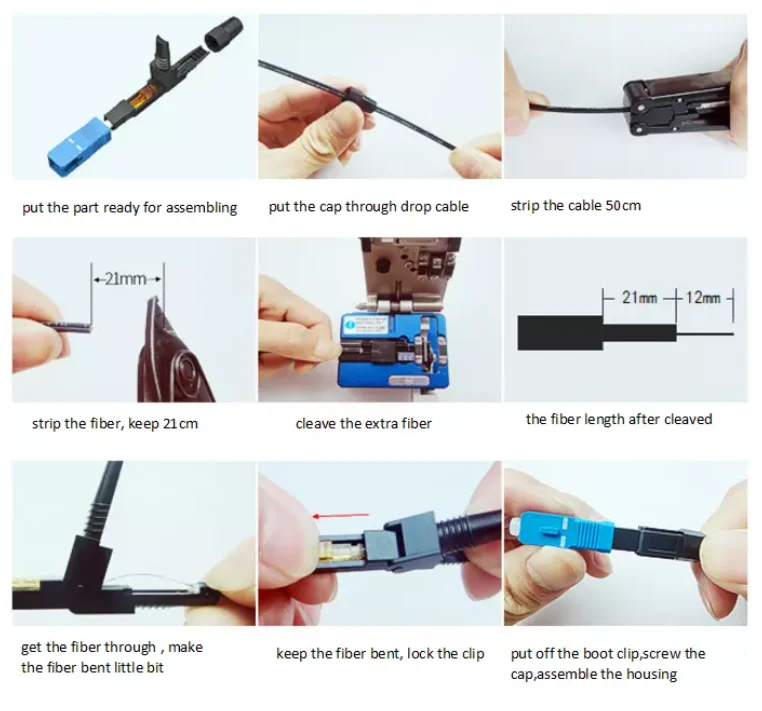

Installation:
Features:
• Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.
Parameters:
| Items | Unit | FC,SC,LC | ST,MU | MT-RJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss | dB | ≤ 0.3 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.2 |
| Return loss | dB | ≥ 45 | ≥ 50 | ≥ 60 | ≥ 30 | ≥ 50 | ≥ 50 | ≥30 | ≥ 45 | ≥50 | ≥35 |
| Operating wavelength | nm | 1310, 1550 | 1310, 1550 | 1310, 1550 | |||||||
| Exchangeability | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | |||||||
| Vibration | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | |||||||
| Operating temperature | °C | -40~+75 | -40~+75 | -40~+75 | |||||||
| Storage temperature | °C | -40~+85 | -40~+85 | -40~+85 | |||||||
| Cable diameter | mm | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | |||||||

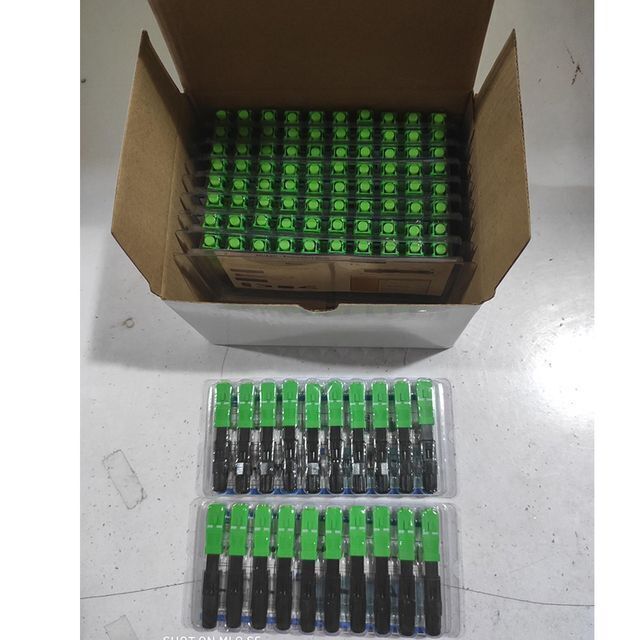

Standard Package details as below:
1) 10PCS into a plastic box with 1PC user manual
2) 100PCS into a small box 16*16*10cm with 2pcs tool
3) 3000PCS into a big carton box 48*48*35cm

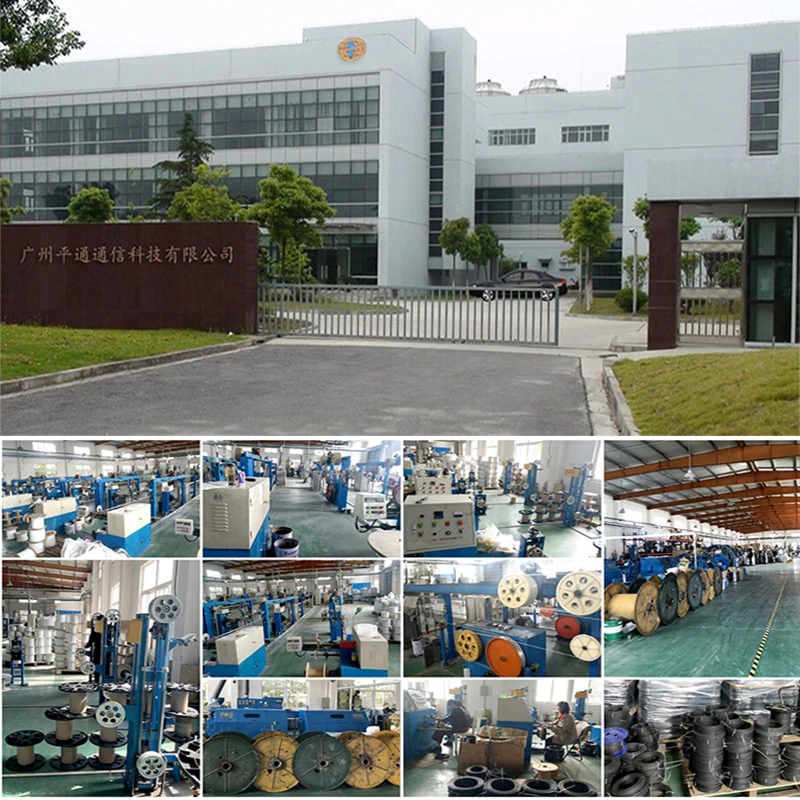

Guangzhou Pingtong communication optic fiber cable Co. Ltd is a large-scale fiber cable manufacturing enterprises. Our company is a market- oriented high-tech private enterprise, founded in 2002, covering an area of 17000 square meters in Guangzhou economic development zone. Which professions in fiber cable studying and relies on the development of communication technology.
Q1:Are you trading company or manufacturer ?
A1: We are factory, and has more than 15 years experience.
Q2: How much will the shipping cost be?
A2: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
Q3: Can you supply OEM products under our brand?
A3: Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.
Q4: What if there is quality problem when we get the goods?
A4: If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
Our Services
1.24hours one-to-one online services ensure efficient support.
2.Considerate customer reception from hotel booking to factory visiting.
3.Excellent care from order confirmation to product shipment.
