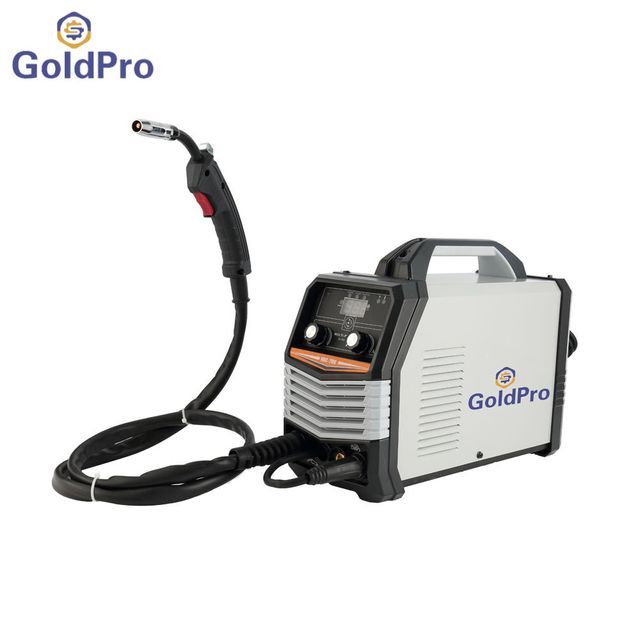

220v mig mag welder gas gasless mig welder mini portable mig welder
- $50.00 /piece
- 1 piece
- Taizhou Lingba Electromechanical Equipment Co., Ltd.
- Zhejiang, China
- Mr Jason Chen
PRODUCT DETAIL
| Rated output voltage (MIG): | 50 volts | Supply capacity: | 15000 pieces per month |
| Rated output current (MIG): | 200A | Packaging Details: | Carton/Pallet |
| aspect: | 39*16*33CM | Customs code: | 8515390000 |
| Nominal Duty Cycle (MIG) at 40°C: | 60% | Weight (kg): | 7 kg |
| maximum. Load power capacity: | 11.72KVA | color: | custom color |
| Rated input voltage: | 220 volts | model. : | MIG-130S |
| Health status: | new | brand: | Campbell |
| Certificate: | CE RoHS | Main selling points: | portable |
| Fuse Type: | global transfer | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Warranty: | 1 year | Origin: | Zhejiang, China |
| Processing: | accept | port: | Ningbo/Shanghai port |
| feature: | inverter | Wire feeding speed: | 22 m/min |
| Material/Metal Processing: | Carbon steel | Gas or no gas: | no gas |
| Applicable industries: | Mechanical repair shops, building supplies stores, manufacturing plants, household, retail, construction, energy and mining | frequency: | 50-60 Hz |
Product Description
feature:
| Adopt advanced IGBT inverter technology, suitable for MIG/MMA function, stable quality. | |||||||
| Closed-loop feedback, constant voltage output, strong ability to resist grid voltage fluctuations (±15%) | |||||||
| Reactor control, stable welding process, small spatter, deep molten pool, good forming | |||||||
| Slow wire feeding and ball cutting after welding to ensure the success rate of arc ignition | |||||||
| Suitable for welding medium and thin plates with a thickness greater than 0.8mm | |||||||
| Small size, light weight, simple operation, economical and applicable | |||||||
| 0.6mm diameter welding wire can achieve 30A stable welding, and can be widely used in automobiles, steel doors and windows, furniture and other industries | |||||||
scope
+
model. |
project description | picture | Technical data | Accessories |
| MIG-130S (1KG wire) |
1KG welding wire (no gas) |
Input voltage and frequency: 230V /50HZ Rated input capacity (KVA) MiG: 4.5 MMA: 5.3 Current range: 20-130A Nominal duty cycle: 60% |
1, Electrode holder with 1.8M cable 2. Ground clamp with 1.2M cable 3. Hammer/brush 4, Helmet & Glasses 5. Complete set of MIG torch |
|
| MIG-130MF (1KG wire) |
♦Multi-process MIG ♦Function: 1. MiG (Co2 mixture magnetic core metallic line) 2. MMA 3. Lifting argon arc welding |
Input voltage and frequency: 230V /50HZ Rated input capacity (KVA) MiG: 4.5 MMA: 5.3 Current range: 20-130A Nominal duty cycle: 60% |
1, Electrode holder with 1.8M cable 2. Ground clamp with 1.2M cable 3. Hammer/brush 4, Helmet & Glasses 5. Complete set of MIG torch |
