2L/min indoor atomizing humidification pump, 60bar anti-drip water atomizing cooling system
- $188.00 /set
- 1 set
- Dongguan Mebon Spraying & Purification Technology Ltd.
- Guangdong, China
- Mr Jackson Ng
| Install: | portable | part: | Nozzles, Fittings and Pipes and Pumps |
| Certificate: | CE, EMC | transportation: | By sea or express |
| place of origin; place of origin: | Guangdong, China | payment terms: | T/T, Western Union |
| brand: | Smith Barney | Voltage (V): | 220/110 |
| Packaging Details: | 1 carton/unit with box carton | type: | Electricity, sprayer |
| port: | Shenzhen | Metal Type: | Stainless steel |
| Material: | Metal | Sprayer Type: | Pump |
| model: | MECO-20 | Supply capacity: | 1000 pieces per week |
| usage: | garden |

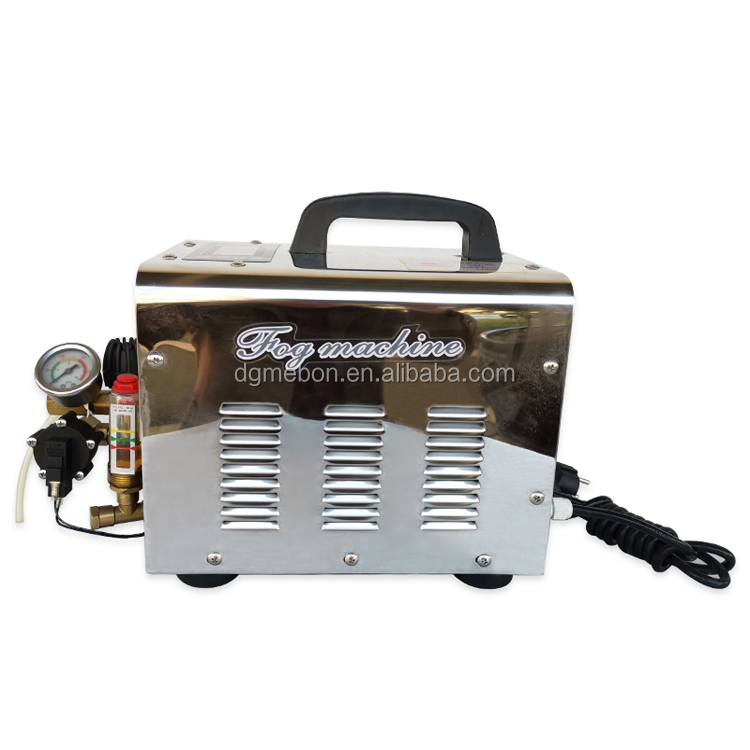

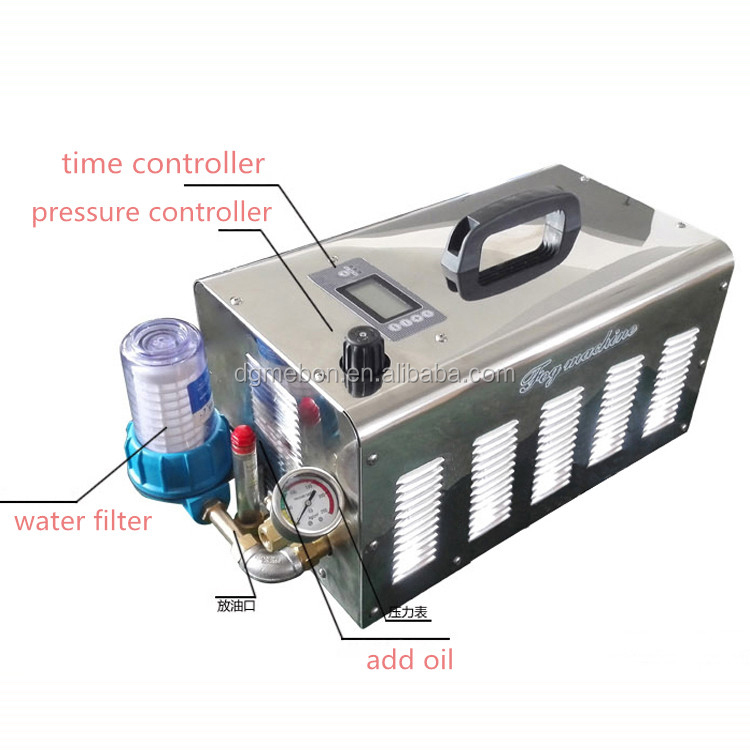

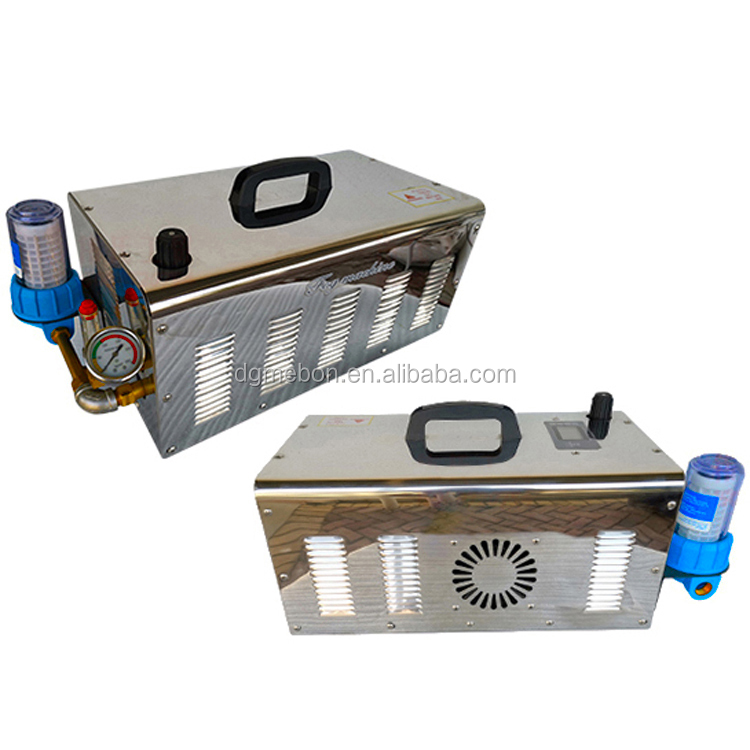

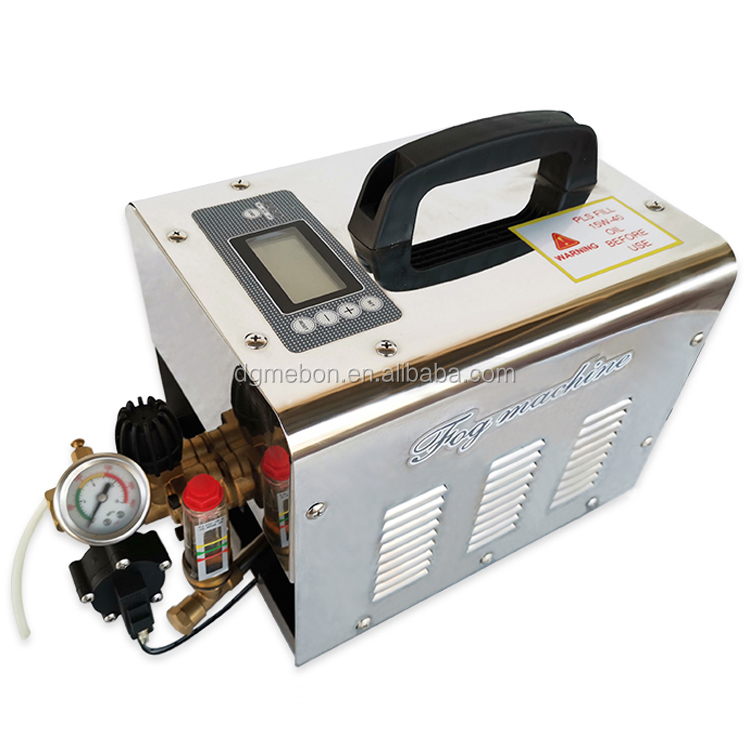

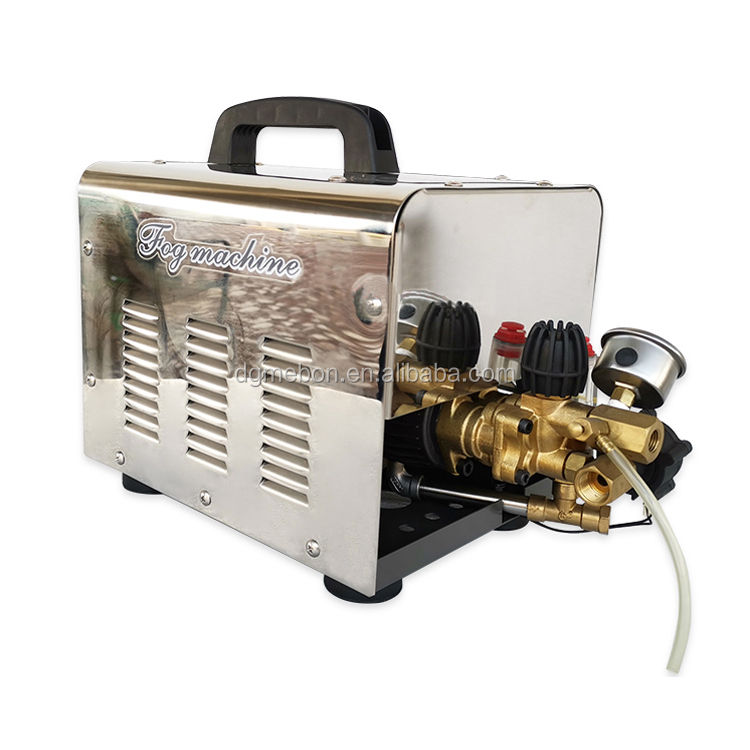

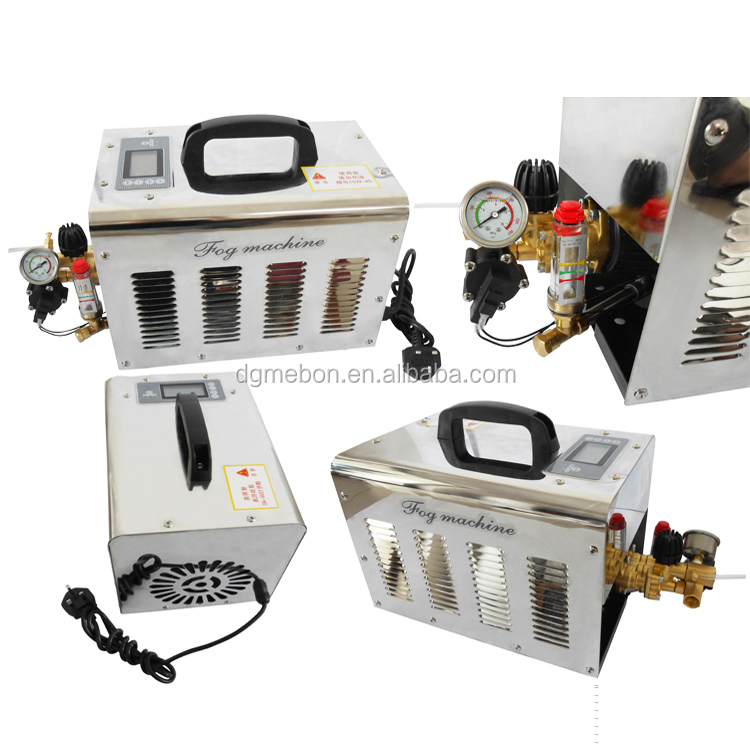

2L/min indoor humidification pump, 60bar anti-drip mist system
The spray pump can be used for various functions such as cooling, humidification, garden dust removal, cooling, etc. It is especially suitable for chemical spraying and breeding in the agricultural field. The following are the salient features of the atomization system.
Wet mist:The high pressure atomization system produces 5 billion droplets. The water drop line is 3~10um, the mist covers the mountain, forming water vapor, aiming at excellent humidification and cooling effect.
Energy saving:It only needs 6w of electricity to atomize one kilogram of water, and the power consumption is only 1/100 of the traditional electric steam humidifier or 1/10 of the centrifugal humidifier.
reliability:High atomization pumps apply the latest technology to the production process. Even in the air environment with high concentration of dust, it can work continuously for 24 hours without damaging other parts such as atomizing nozzles, fittings and pipes.
Sanitation:The high pressure atomization system uses non-circulating water, so there is no threat of bacterial growth.
Volume spray:The sprayer has a high distribution and is easy to adjust.

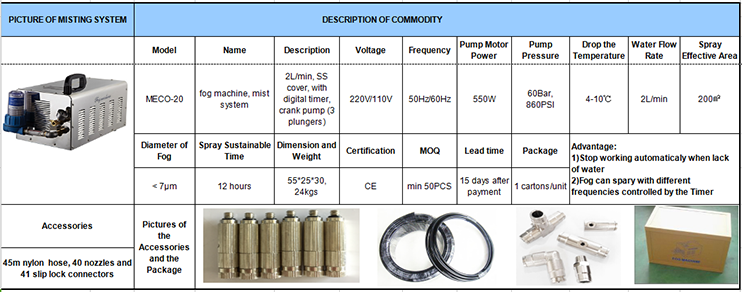

Specification
| Numbering. | LPM | strength | size | work pressure | Voltage | Number of nozzles used | frequency |
| MECO-03 | 0.3L | 120W | 40*20*27cm | 60bar | 220V/110V | 8 nozzles |
50/60HZ |
| MECO-10 | 1L | 300W | 43*22*29cm | 60bar | 220V/110V | 20 nozzles | 50/60HZ |
| MECO-20 | 2L | 550W | 47*25*32cm | 60bar | 220V/110V | 40 nozzles | 50/60HZ |
| MECO-30 | 3L | 750W | 47*25*32cm | 60bar | 220V/110V | 60 nozzles | 50/60HZ |
| MECO-70 | 7L | 1800W | 70*36*35cm | 60bar | 220V/110V | 120 nozzles | 50/60HZ |
| MECO-110 | 11L | 2200W | 69*35*33cm | 60bar | 220V/110V | 200 nozzles | 50/60HZ |
| MECO-154 | 15.4L | 3000W | 69*35*33cm | 60bar | 220V/110V | 260 nozzles | 50/60HZ |
The whole set of equipment includes

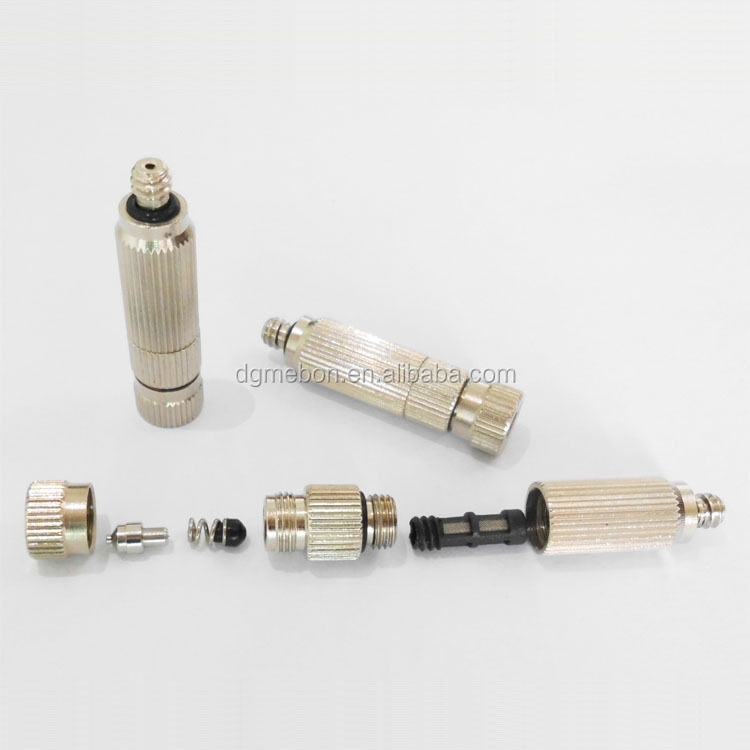

Atomizing Nozzle: 0.1mm,0.15mm,0.20mm,0.30mm,0.40mm,0.50mm
high pressure
Thread: 10/24unc
Washable filter
nickel plated brass
stainless steel hole

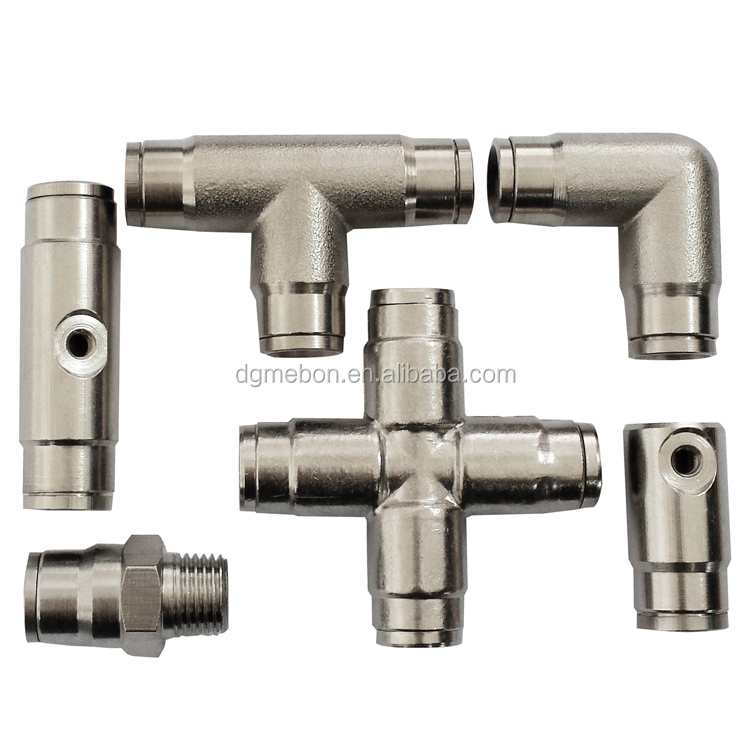

Atomization accessories:
Cross Connectors, Slip Lock Connectors, Slip Lock Male Connectors, Slip Lock Tee Connectors, Elbow Connectors, etc. (1/4", 3/8", 10/24unc)
Tube: Nylon tube
Tubing Cutter, Tubing Clip, Filter

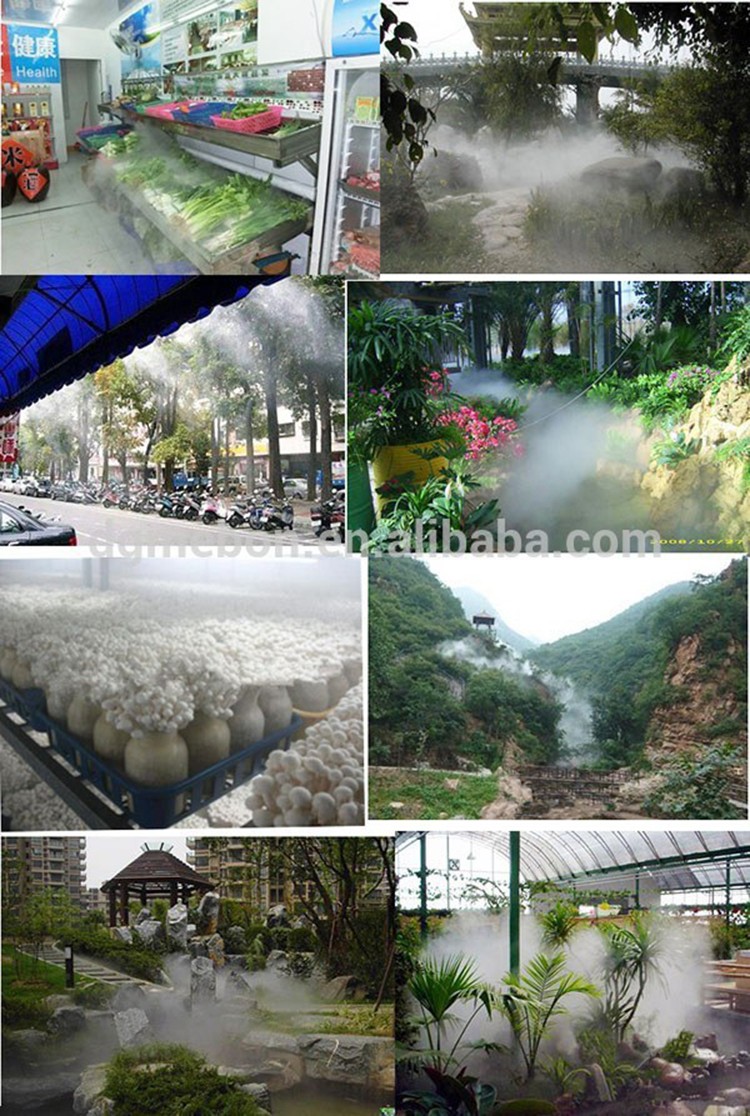

application
The pump can be used for agricultural cooling, humidification, dust removal, deodorization, insect control, etc. The operation is simple and convenient. With this pump, users can save a lot of effort and time managing their farms. In addition, the pump can also be used for other mentioned functions as follows:
1.cool down
Residential Refrigeration, Outdoor Refrigeration, Commercial Premises Refrigeration
2. Humidification
Industry, Agriculture and Horticulture: Greenhouses, Gardens, Livestock
3. Dust removal and deodorization
Industrial processes, bulk powders, cement plants, foundry dust, fly ash control, waste transfer, recycling processes
4.insect control
Garden or agriculture, efficient insecticide.
mist system
fog effect
