2x2 passive mechanical optical switch with 0.25 mm 0.9 mm fiber optic connector with SC FC LC ST connector
- $10.00 /piece
- 1 piece
- Hangzhou Daytai Network Technologies Co., Ltd.
- Zhejiang, China
- Mr Amani DENG
PRODUCT DETAIL
| Transmission power (mW): | 500 | application: | man; OADM; system monitoring |
| TDL (decibel): | ≤0.25 | Supply capacity: | 50,000 pieces per month |
| use: | fiber to the home | Working wavelength (nm): | 850/1310/1550/1650 |
| brand: | Datai | Crosstalk (dB): | MM≥35 SM≥55 |
| port: | Shanghai/Ningbo | model: | 2x2 Mechanical Optical Switch |
| Return Loss (dB): | MM≥30 SM≥50 | Power (V): | 3.0 or 5.0 |
| Broadband (dB): | ≤0.25 | Decibel (dB): | ≤0.05 |
| payment terms: | Wire Transfer, Western Union, Paypal | place of origin; place of origin: | Zhejiang, China |
| Switching Time (ms): | ≤8 | type: | FTTx solutions |
| product name: | 2x2 Mechanical Optical Switch |
Product Description
2x2 Mechanical Passive Optical Switch, Operating Wavelength: 850nm or 1310nm or 1550nm or 1650nm or 1310/1550nm or as specified, Insertion Loss: Typical: 0.8 (Max: 1.2) or Type: 0.8 (Max: 1.0), Echo Loss: MM≥30 OR SM≥50, Voltage Type: 3V OR 5V, Control Model: Latching OR Non Latching, Fiber Type: SM 9/125 OR MM 50/125 OR 62.5/125 OR Specified, Fiber Diameter: 250μm OR 900μm , Fiber length: 1m or 1.5m or specified, Connector: None or SC/APC or SC/UPC or FC/APC or FC/UPC or LC/APC or LC/UPC or ST or specified.
feature
⊙Low crosstalk
⊙Low insertion loss
⊙Wide wavelength range
⊙ Latching and non-latching
⊙ No epoxy resin on the light path
⊙High stability and reliability
⊙Low insertion loss
⊙Wide wavelength range
⊙ Latching and non-latching
⊙ No epoxy resin on the light path
⊙High stability and reliability
application
⊙ people
⊙OADM
⊙ R & D laboratory
⊙ System monitoring
⊙OADM
⊙ R & D laboratory
⊙ System monitoring
scope
scope | 2x2 Mechanical Optical Switch | ||
Working wavelength (nm) | 850 | 1310/1550/1650 | |
Wavelength range (nm) | 850±40 | 1260~1650 | |
Insertion Loss (dB) | Typical: 0.8 Maximum: 1.2 | Typical: 0.8 Maximum: 1.0 | |
Return Loss (dB) | MM≥30 SM≥50 | ||
Crosstalk (dB) | MM≥35 SM≥55 | ||
Decibel (dB) | ≤0.05 | ||
Bandwidth (dB) | ≤0.25 | ||
TDL (decibel) | ≤0.25 | ||
Repeatability (dB) | ≤±0.02 | ||
Power (V) | 3.0 or 5.0 | ||
lifetime (times) | ≥10^7 | ||
Switching Time (ms) | ≤8 | ||
Transmission power (mW) | 500 | ||
Working temperature (℃) | -20~+70 | ||
Storage temperature (℃) | -40~+85 | ||
Weight / grams) | 16 | ||

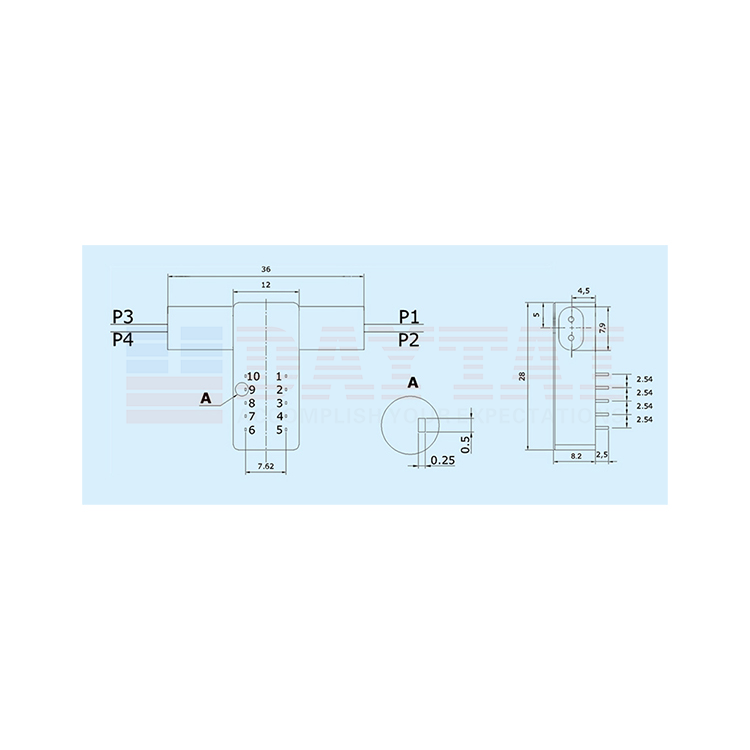

Dimensions (mm) | L27.0 × W12.0 × H8.2 | ||
Specification | Voltage | current | resist |
5V Latch | 4.5~5.5 | 36~44mA | 125Ω |
5V non-latching | 4,5~5.5 | 26~32mA | 175Ω |
3V Latch | 2.7~3.3 | 54~66mA | 50Ω |
3V non-latching | 2.7~3.3 | 39~47mA | 70Ω |
order information
model | wavelength | Voltage type | control model | Fiber Type | Fiber diameter | Fiber length | Connector |
A=SM | A=850nm | A=3V | A = Latch | A=SM 9/125 | A=250μm | A=1m | A=none |
B=MM | B=1310nm | B=5V | B = non-locking | B=MM 50/125 | B=900μm | B=1.5m | B=FC/APC |
/ | C=1550nm | / | / | C=MM 62.5/125 | / | C=specify | C=FC/UPC |
D=1650nm | D=specify | D=SC/APC | |||||
E=1310/1550nm | E=SC/UPC | ||||||
S=specify | F=LC/APC | ||||||
G=LC/UPC | |||||||
H=ST | |||||||
i = specify |

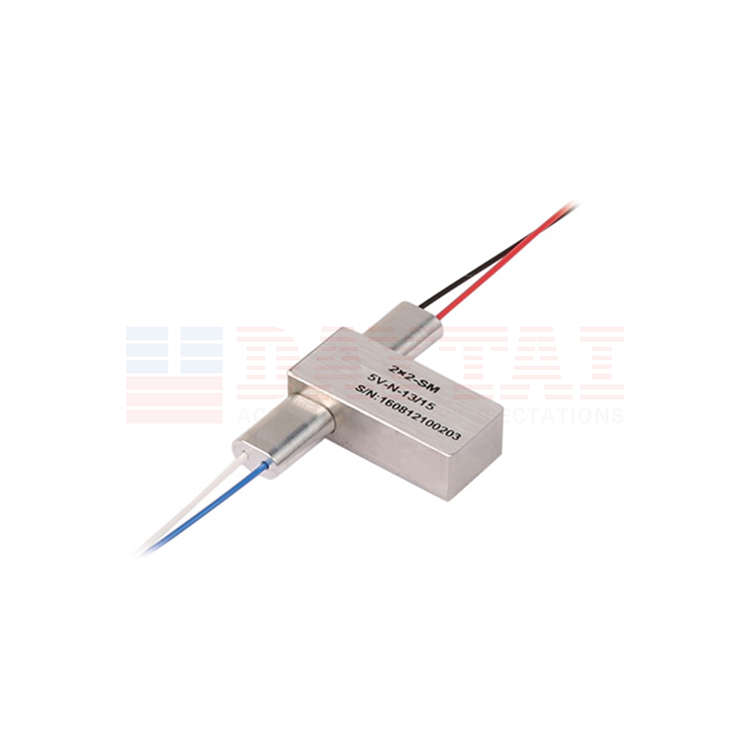

detailed image
