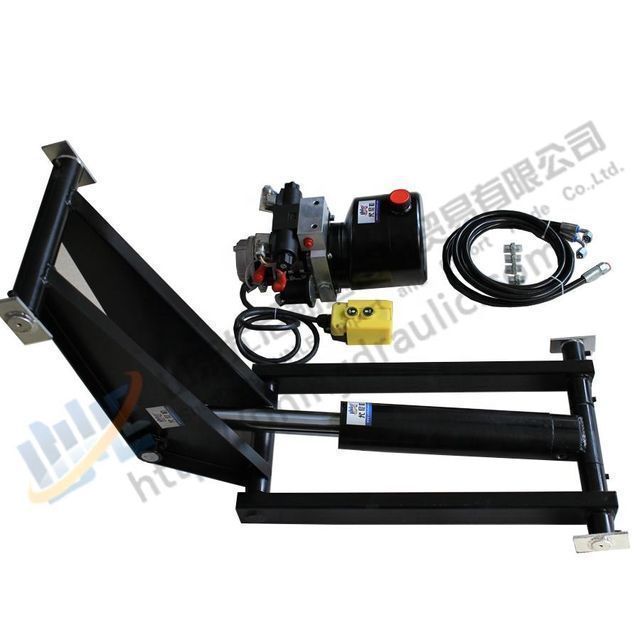

3 Ton Skip Bed Kit Hydraulic Lift Kit Hydraulic Cylinders and Hydraulic Pumps
- $500.00 / >=5 pieces
- 5 pieces
- Jinan Hug Import And Export Trade Co., Ltd.
- Shandong, China
- Mr Nipon Ni
PRODUCT DETAIL
| Work pressure: | 16Mpa | Rod diameter: | 30-100 |
| Certification: | CE certification | application: | dump trailer |
| Maximum stroke: | 800 | structure: | hydraulic |
| Packaging Details: | Wooden box or according to customer requirements | strength: | 1.1-2.2kw |
| type: | double | Inner Tube Diameter: | 50-140 |
| Dimensions (L*W*H): | 70x50x40 | pressure: | hydraulic |
| payment terms: | L/C, Western Union, T/T | place of origin; place of origin: | Shandong China |
| capacity: | 3/6/10 tons | seal: | Parker or AS or DZ or Hallite |
| brand: | UNLE | Processing: | accept |
| pack: | plywood case | Package preview: | |
| Warranty: | 1.5 years | Showroom location: | other |
| weight: | 50 | Voltage: | AC DC |
| Outer tube diameter: | 60-160 | product name: | Dump bed kit hydraulic lift kit hydraulic cylinder for trailer |
| 3 Ton Skip Bed Kit Hydraulic Lift Kit Hydraulic Cylinders and Hydraulic Pumps |
Product description 1
main feature
1. A new generation of series products, the diameter of the hydraulic cylinder is larger, and the lifting force is stronger;
2. Through special processing, special high-quality and high-precision steel pipe materials, the maximum working pressure is 3000psi, and the bending resistance is stronger;
3. The new guide ring structure adopts advanced sliding materials, which makes the hydraulic cylinder lift more stable and has a long service life;
4. We have updated the sealing structure to ensure that the oil will not leak at high temperature
Stress and harsh working conditions.
