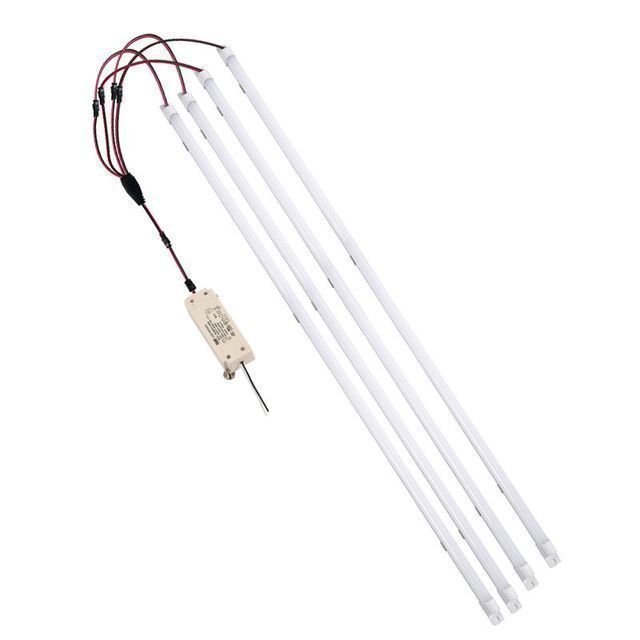

4 Feet 4 Strips 72w High Lumen High Output Magnetic Mount LED Retrofit Kit Replacement Fluorescent LED Light Bar Retrofit Kit
- $24.50 / 1 - 99 sets
$24.00 / 100 - 499 sets
$23.50 / 500 - 999 sets
$23.00 / >=1000 sets - 1 set
- Tiosl Technology (Shenzhen) Co., Ltd.
- Guangdong, China
- Ms Patricia Feng
PRODUCT DETAIL
application: | Business and Industry | Warranty Period (Years): | 5 years |
place of origin; place of origin: | Guangdong, China | port: | Shenzhen |
Intellectual property level: | IP20 | Supply capacity: | 80000 sets per month |
Working life (hours): | 50,000 | type: | LED Magnetic Retrofit Kit |
Color rendering index (Ra>): | 80 | model: | Ark/DT/73K40D412(13D) |
brand: | ark | Voltage: | 120-277V |
Warranty: | 5 years | Working temperature (℃): | -20 ~40 |
Lamp luminous flux (lm): | 9350 | Body material: | personal computer |
Dimming: | 0-10V dimming | payment terms: | L/C,Western Union,T/T |
light source: | lead | Lighting Solutions Services: | Project installation |
Certificate: | ETL DLC CE | Packaging Preview: | |
Key words: | Magnetic LED Light Bar Kit | Certification: | ETL and DLC |
installation method: | Magnetic quick installation | Input voltage (V): | 120-277V |
Light Efficiency (lm/w): | 130 | Color temperature: | 3000K 4000K 5000K |
Packaging Details: | 100pcs LED strip kits per case, 50pcs LED drivers per case | Watts: | 72W (with 4 strip kits) |
Color Temperature (CCT): | 4100K (neutral white) | Power factor: | >0.9 |
Product Description
![](http://s.alicdn.com/@sc04/kf/H94763e74620b4501b093dd56241f929c9/249040872/H94763e74620b4501b093dd56241f929c9.jpg)

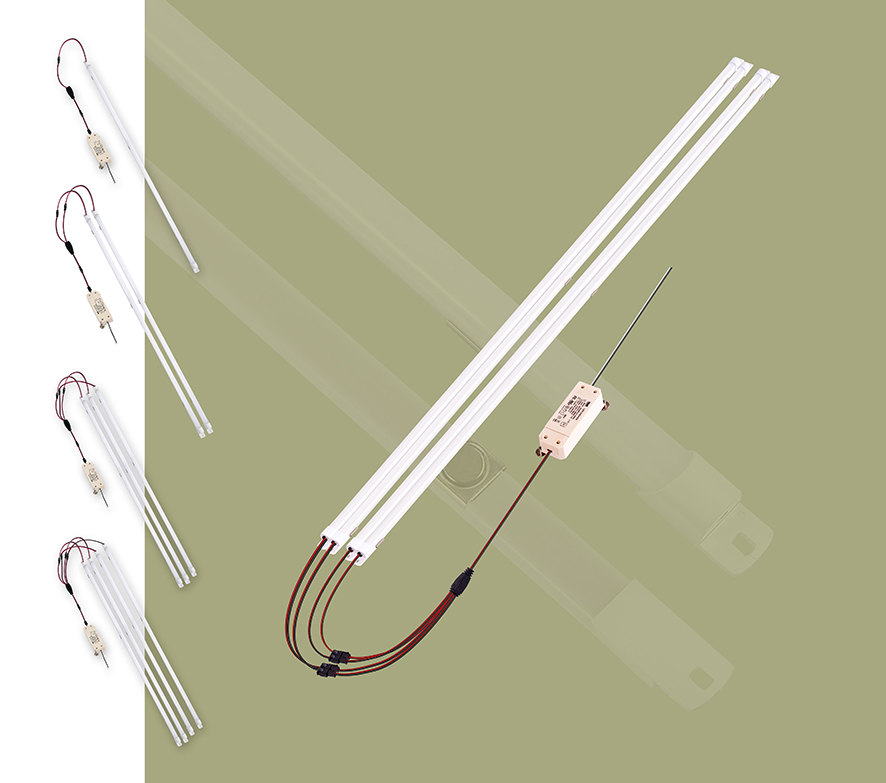

High output 130-140lm/w, lower power consumption, environmental protection and simple magnetic installation.
Optional with PC cover and without cover;
With 0-10V dimming and non-dimming optional.

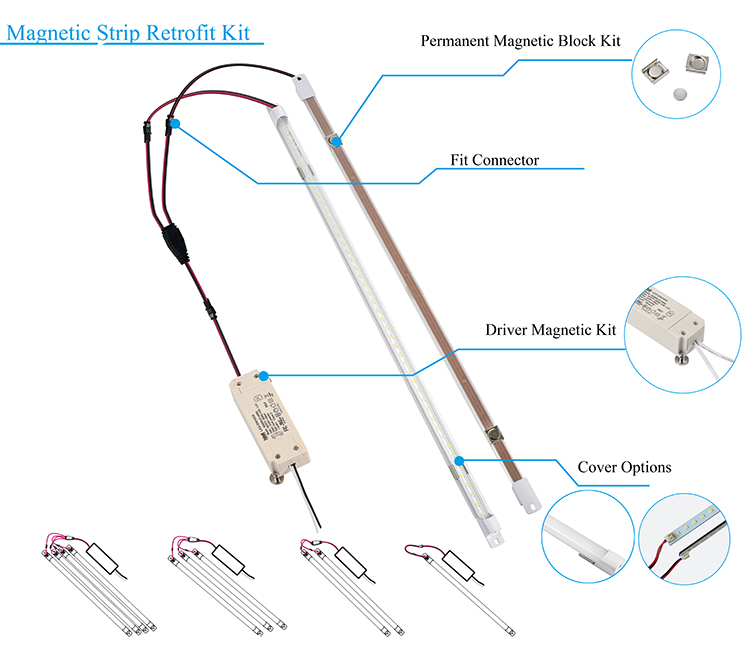

detailed picture
![](http://s.alicdn.com/@sc04/kf/Hb93384c11d5245ec88934729d150f36eJ/249040872/Hb93384c11d5245ec88934729d150f36eJ.jpg)
Product parameters
Groove | part number | Watts (per bar) | Watts (multiple bars) | CCT | color rendering index | output | Dimmable |
2x4 | Ark/48KxxD412(13N) | 12w | 48w- 4 strips | 4000K | >80 | 6700 lumens | non-dimming |
2x4 | Ark/48KxxD412(13D) | 12w | 48w-4 strips | 4000K | >80 | 6700 lumens | 0-10V dimmable |
![](http://s.alicdn.com/@sc04/kf/H3cdd4dbf148f412ba8ff71f2e3c04e0bD/249040872/H3cdd4dbf148f412ba8ff71f2e3c04e0bD.jpg_Q75.jpg)
Frosted cover 130lm/w, without cover 140lm/w
![](http://s.alicdn.com/@sc04/kf/H6297fdcc3a264e6abf7a7b0698ae2ee0o/249040872/H6297fdcc3a264e6abf7a7b0698ae2ee0o.jpg_Q75.jpg)

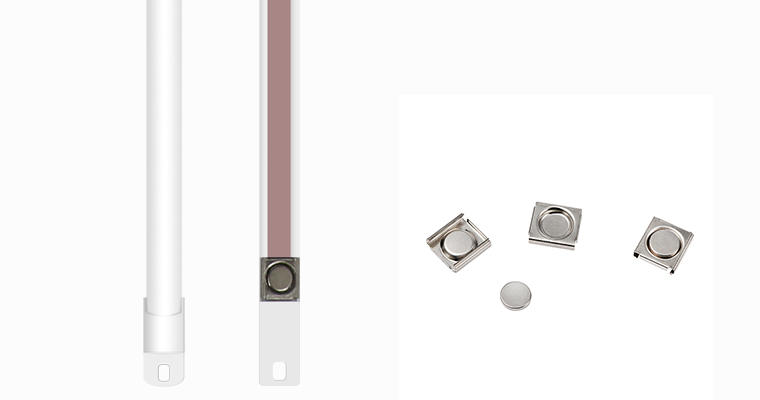

Magnetic quick installation
![](http://s.alicdn.com/@sc04/kf/H2707b48b301842daaa8e9a1c15176c709/249040872/H2707b48b301842daaa8e9a1c15176c709.jpg_Q75.jpg)

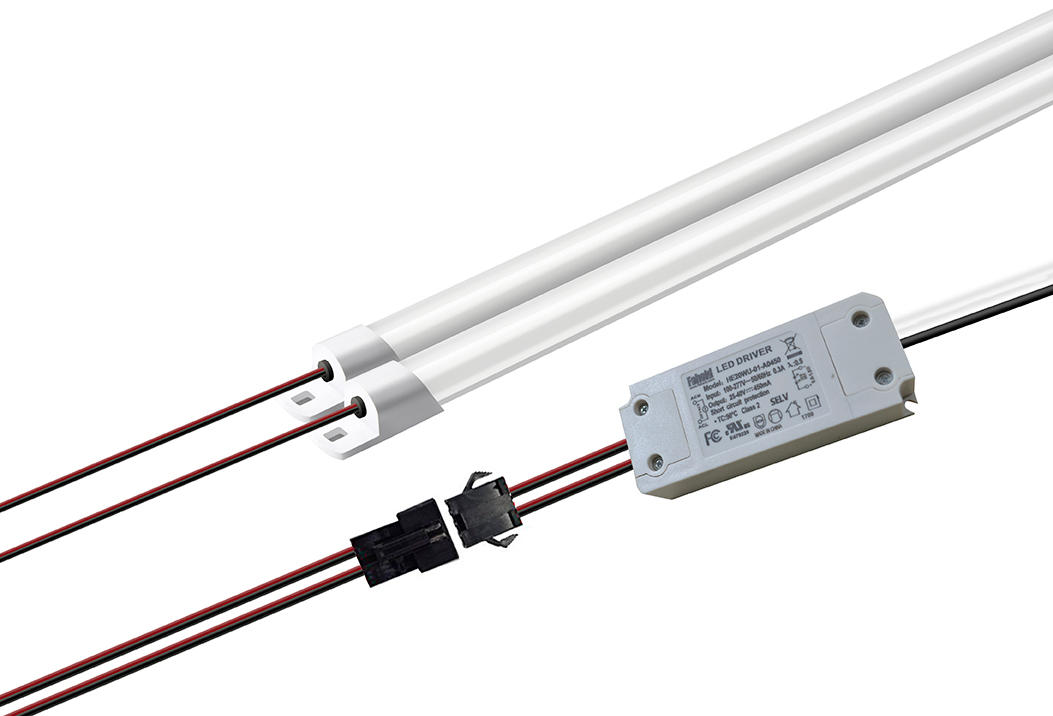

LED drivers also come with magnets
Class 2 LED driver with 0-10V dimming or non-dimming
![](http://s.alicdn.com/@sc04/kf/Hc00e451d43dd43c1a99d2a4660a6b39fS/249040872/Hc00e451d43dd43c1a99d2a4660a6b39fS.jpg_Q75.jpg)

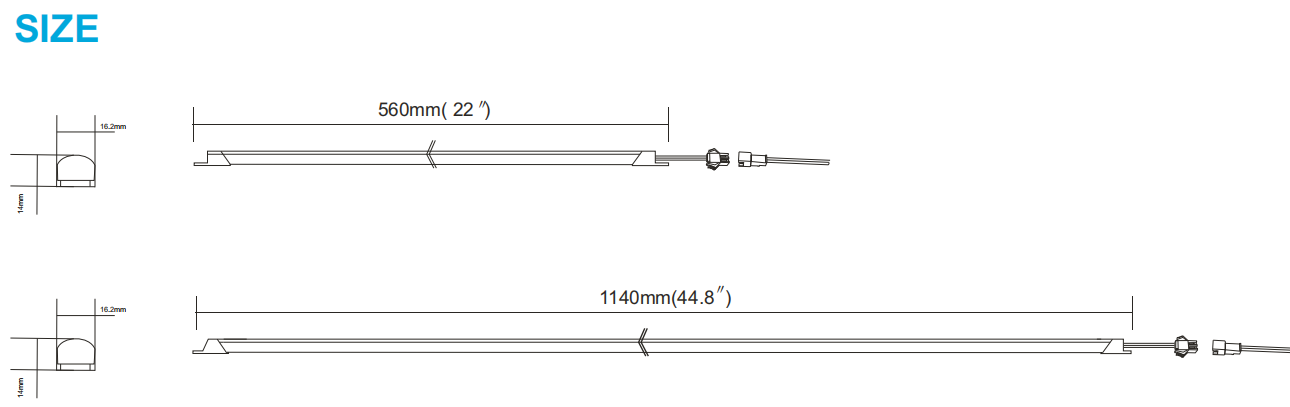

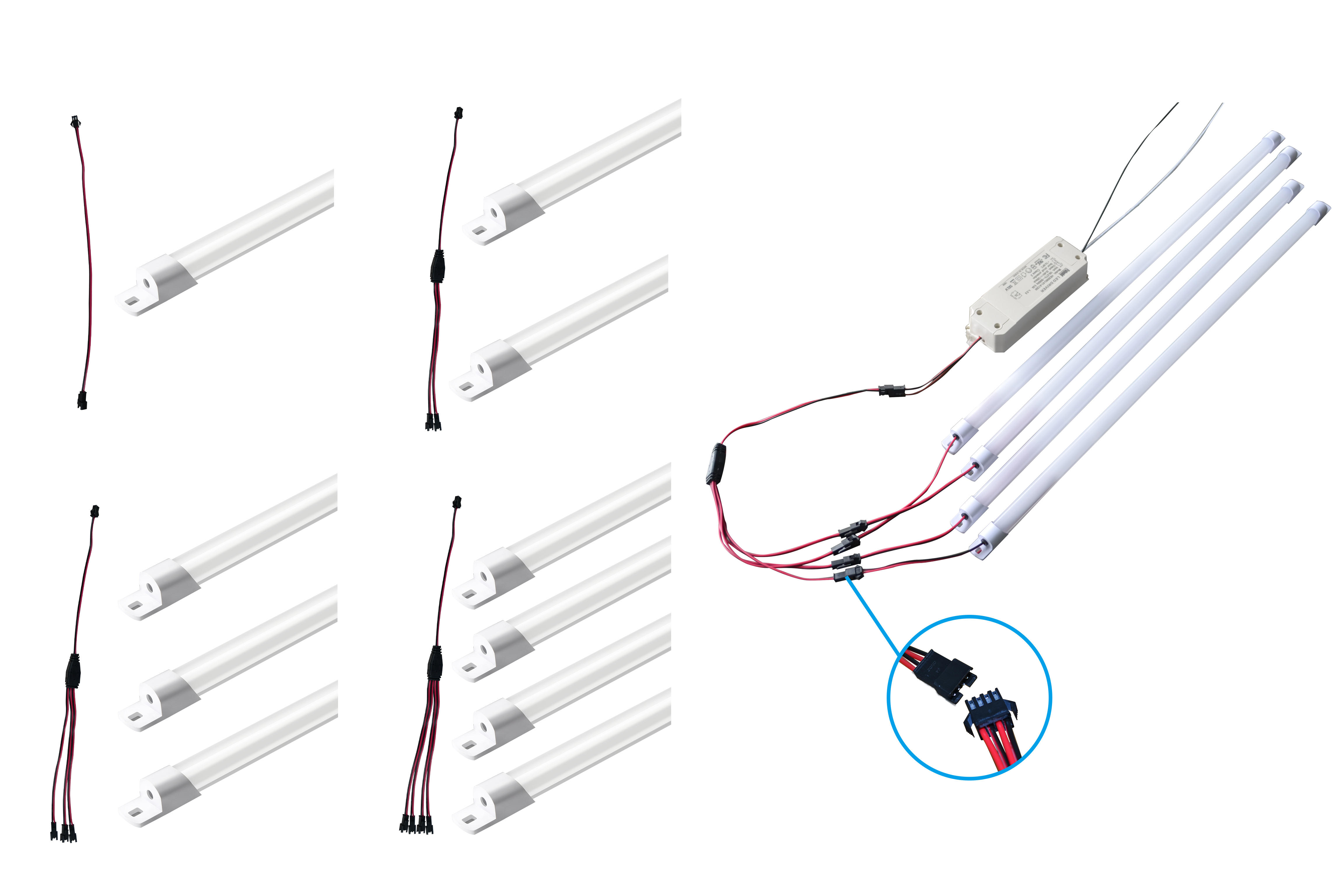

1/2/3/4 strip kit optional
4ft group power from 12w to 72w
![](http://s.alicdn.com/@sc04/kf/H62c528b749aa44e8bca8e6fc8a9cff98O/249040872/H62c528b749aa44e8bca8e6fc8a9cff98O.png)

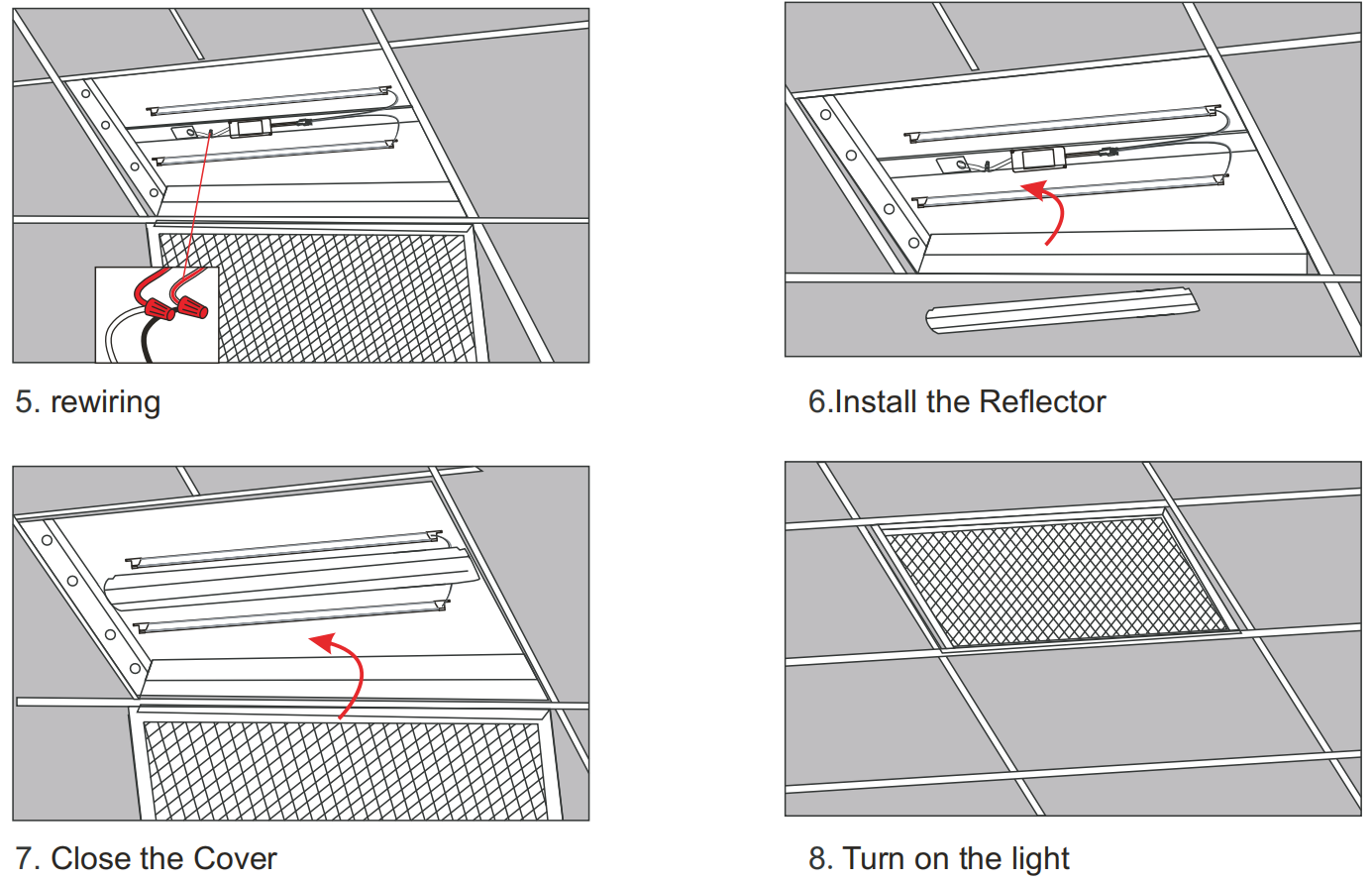

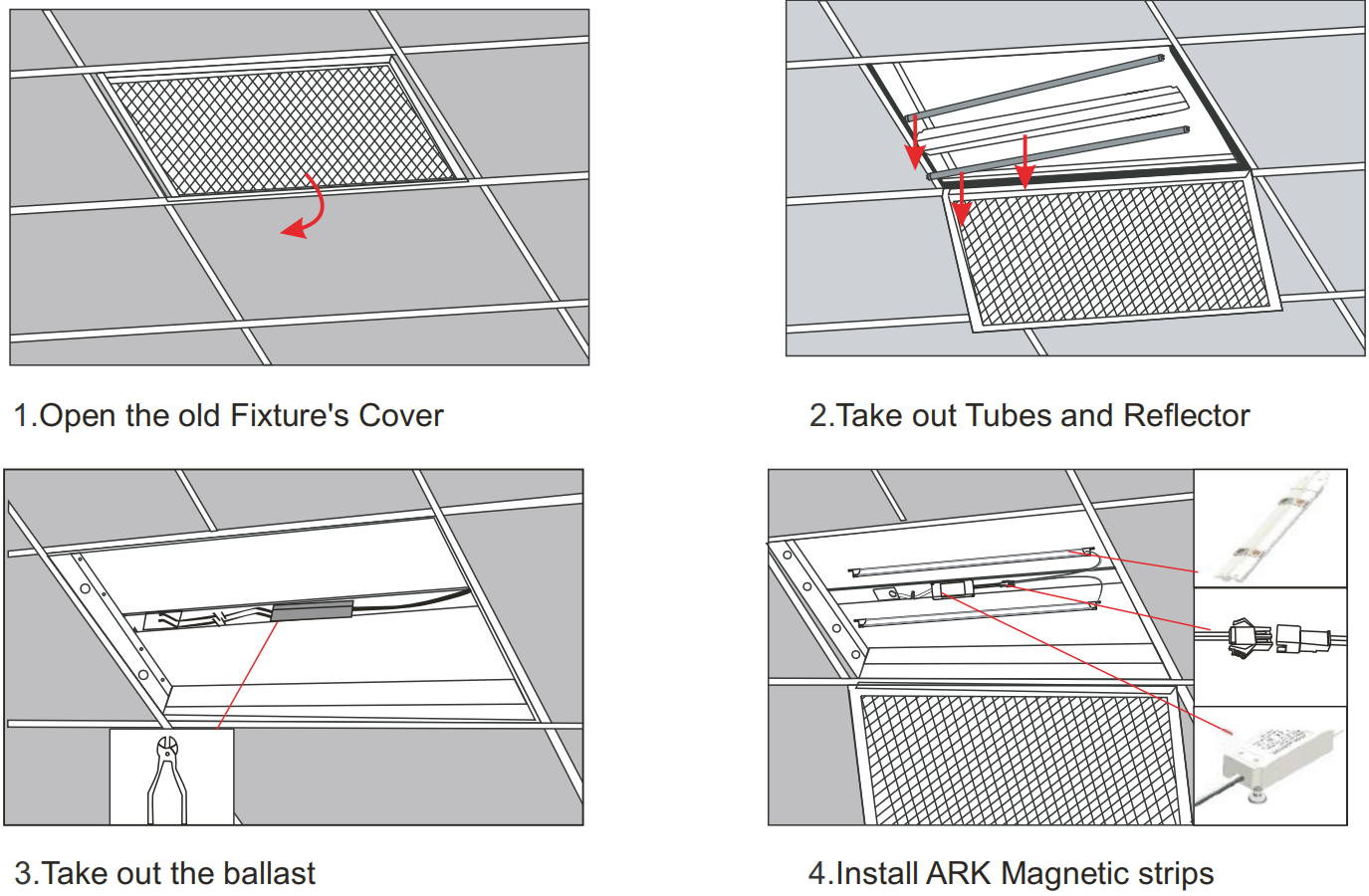

Installation Notes
![](http://s.alicdn.com/@sc04/kf/H0df27f28ba114d618030d4bab770b1b5L/249040872/H0df27f28ba114d618030d4bab770b1b5L.png)
![](http://s.alicdn.com/@sc04/kf/H902c6b4f3fbc435aa3042c7562cff046S/249040872/H902c6b4f3fbc435aa3042c7562cff046S.png)

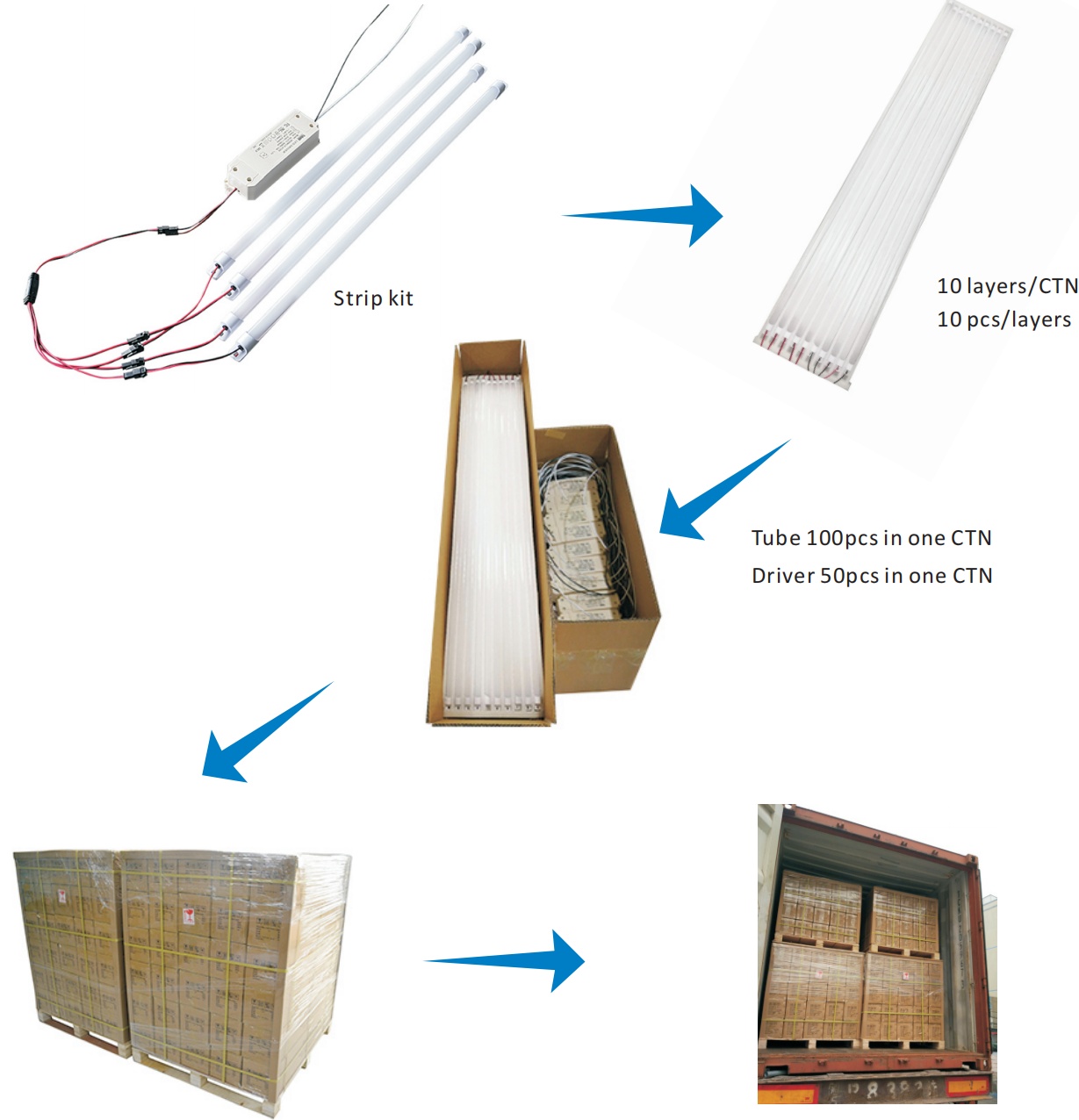

Product packaging
![](http://s.alicdn.com/@sc04/kf/Hff7646869d0045c3b68317e11fca2b8dX/249040872/Hff7646869d0045c3b68317e11fca2b8dX.png)
100 LED strip kits per case, 50 LED drivers per case
