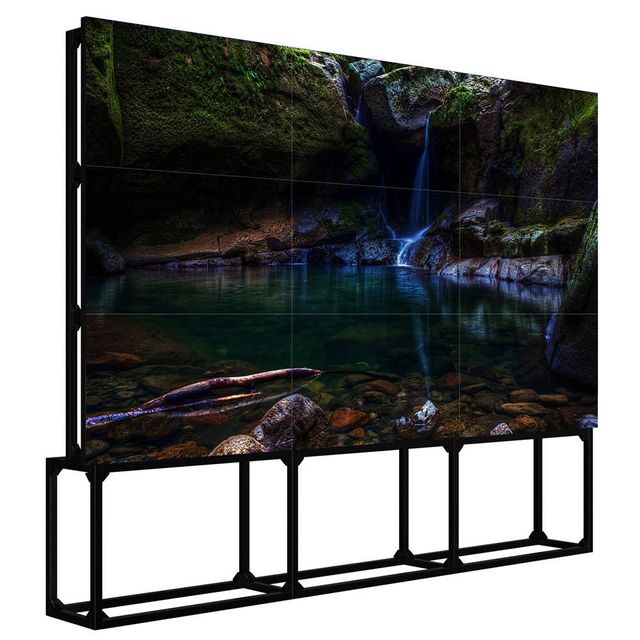

46 inch LCD panel Android advertising player Samsung video wall
- $500.00 / 1 - 8 pieces
$460.00 / 9 - 49 pieces
$420.00 / 50 - 99 pieces
$360.00 / >=100 pieces - 1 piece
- Shenzhen GemDragon Display Technology Co., Ltd.
- Guangdong, China
- Ms Cindy Lv
PRODUCT DETAIL
| model: | LCD video wall | place of origin; place of origin: | Guangdong, China |
| port: | Shenzhen | Warranty: | 2 years |
| screen size: | 43/46/49/55/65 inches (optional) | Three external connections: | Splitter/Matrix/Processor |
| Pixel spacing: | 0.248(H)x0.745(V)mm | Response time: | 8ms |
| operating system: | Stand-alone/android/win (optional) | Contrast: | 4000:1 |
| brightness: | 500cd/m2 ~ 700cd/m2 (optional) | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| product name: | LCD video wall | Packaging Details: | carton, wooden frame/box, flight case |
| application: | indoor | After-sales service provided: | On-site installation and commissioning training, on-site maintenance and repair services, free spare parts, online support, video technical support |
| brand: | Billing | Input voltage: | AC100~240V 50/60Hz |
| type: | TFT | Perspective: | 89/89/89/89 |
| High-speed HDTVs support 4K: | support | Ultra-narrow bezel: | 0.88/1.8/3.5/5.5mm (optional) |
| Supply capacity: | 50,000 pieces per week | Four installation methods: | Cabinet/floor-standing/front maintenance/wall-mounted |
Company Profile
We are a digital signage manufacturer with complete testing equipment and strong technical force. Our products have a wide variety, high quality, reasonable price and stylish design, which are widely used in many industries.
Product Description

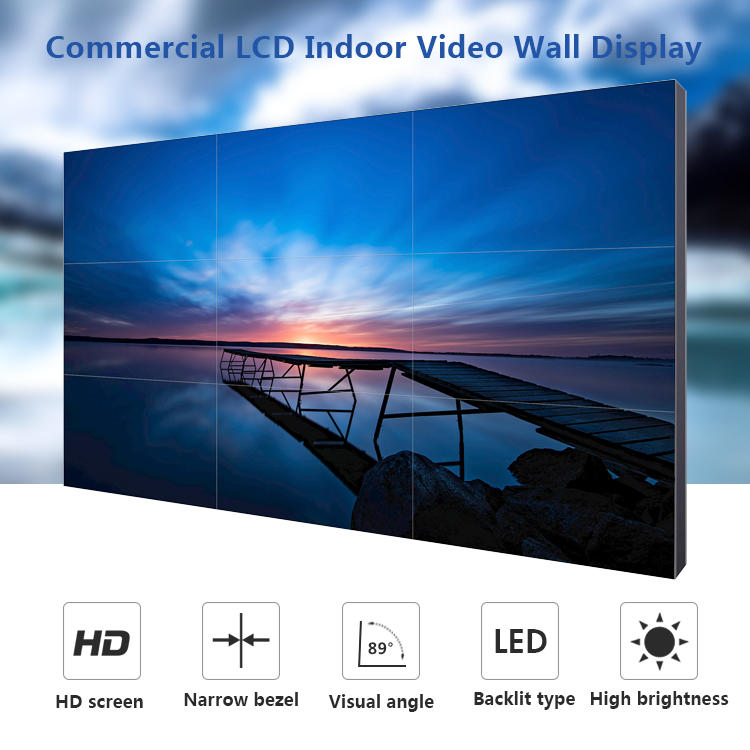

46 inch LCD panel Android advertising player Samsung video wall
Specification
1. Support 4K HD playback
2. Mobile phone/computer control
3. Screen size: 43/46/49/55/65 inches (optional)

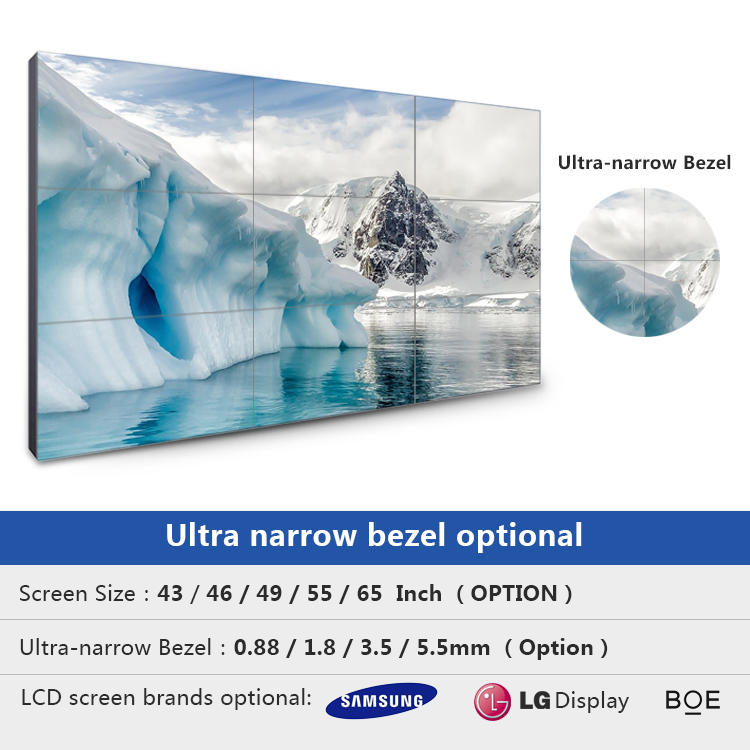

4. Ultra-narrow bezel: 0.88/1.8/3.5/5.5mm (optional)

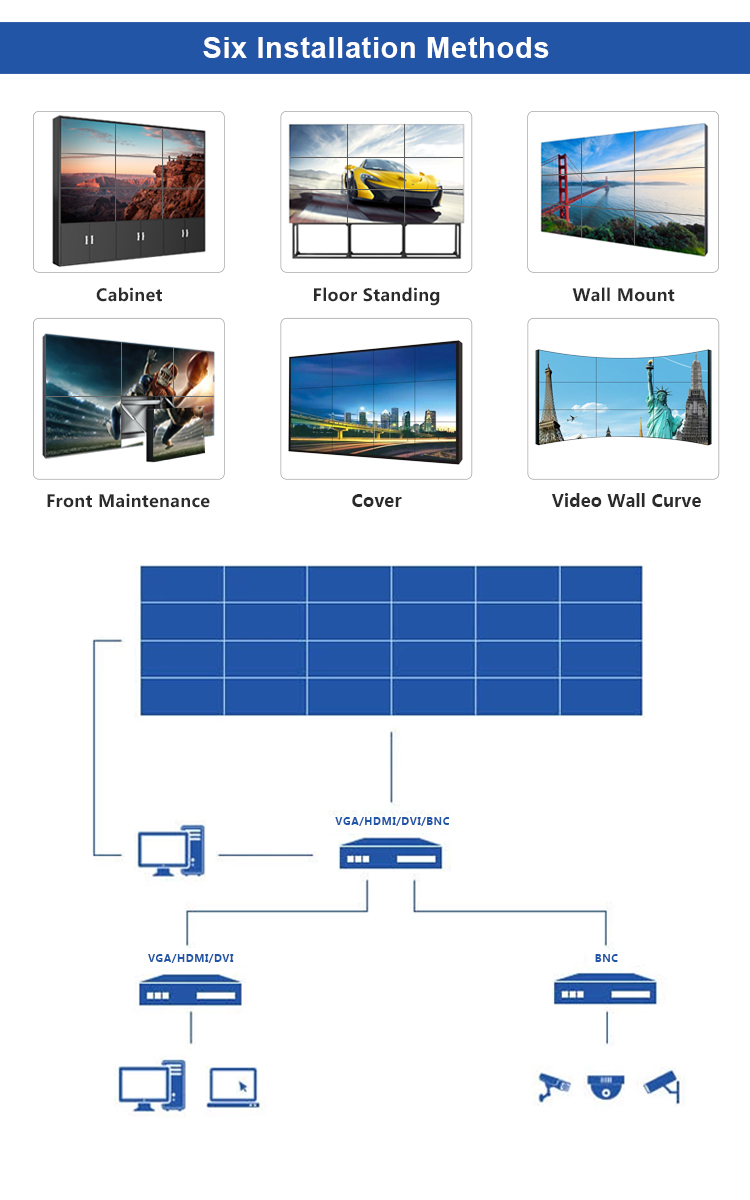

5. Four installation methods: cabinet/floor-standing/front maintenance/wall-mounted
1. Support 4K HD playback
2. Mobile phone/computer control
3. Screen size: 43/46/49/55/65 inches (optional)
4. Ultra-narrow bezel: 0.88/1.8/3.5/5.5mm (optional)
5. Four installation methods: cabinet/floor-standing/front maintenance/wall-mounted

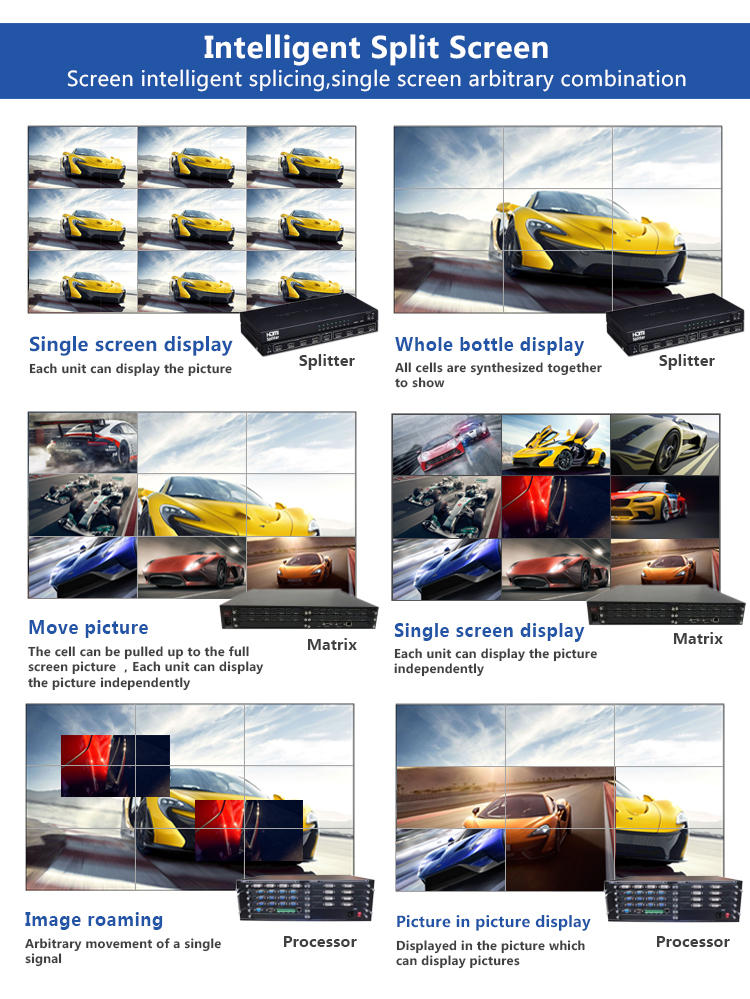

6. Three external connections: splitter/matrix/processor
feature

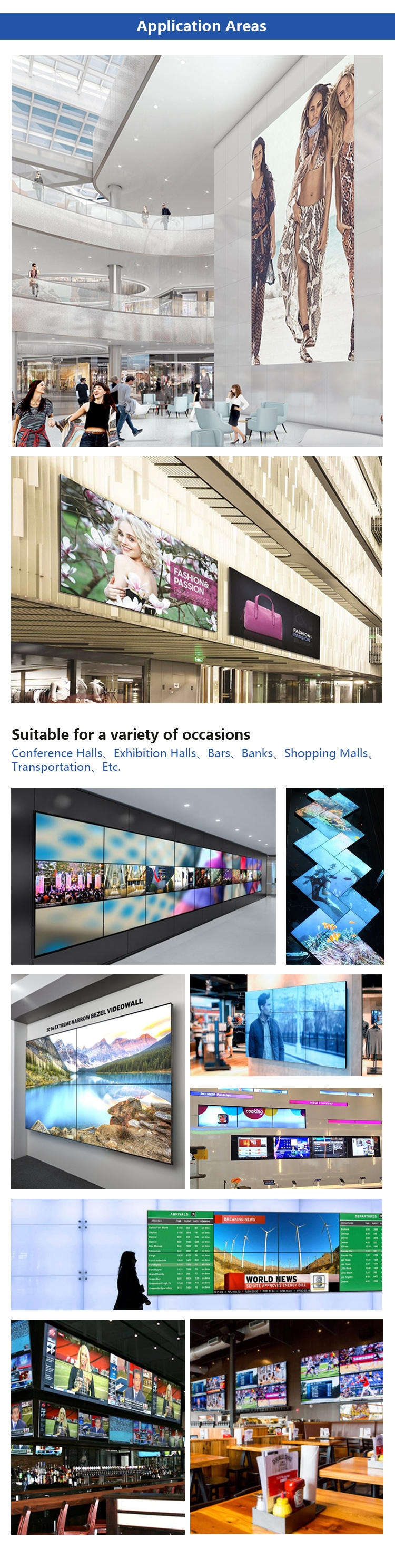

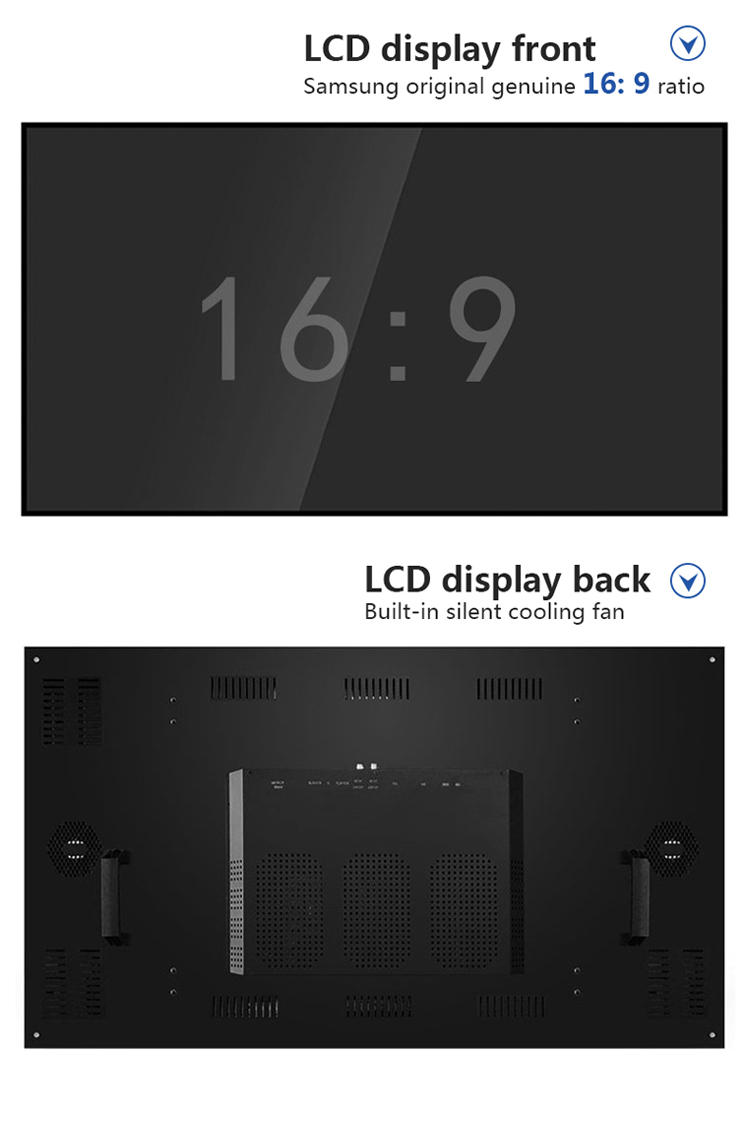

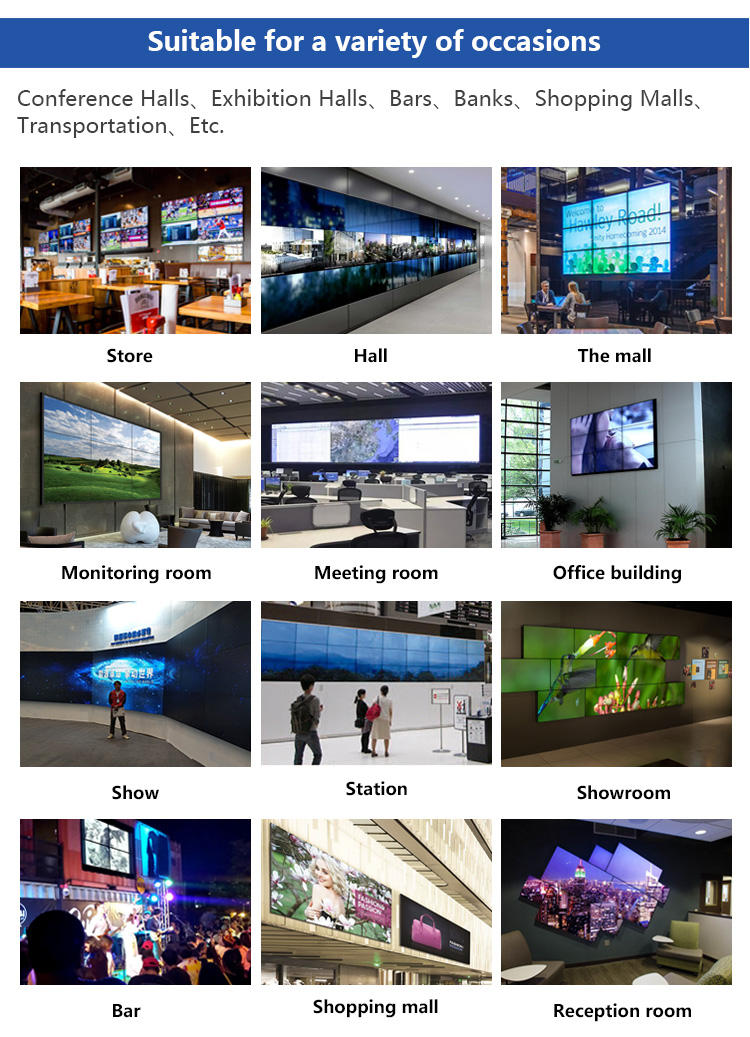

1. Full hardware architecture, professional splicing chip design, no need for CPU and operating system 2. Multi-line parallel processing, powerful processing function; 3. Integrate multiple video signal sources 4. RS232 serial port remote control; Support two-way RS232 loop out 5. The underlying communication protocol can be opened, which is convenient for users to flexibly adopt third-party central control, system or self-compiled software to build a large-screen engineering system 6. Embedded firmware intelligent upgrade system. 7. All metal frame design with narrow frame 8. Fully silent industrial fan with automatic temperature switch 9. 3D noise reduction, 3D filtering, 3D de-interlacing No radiation, support 7*24 hours of uninterrupted work, and adapt to various working environments that require a long time to boot. 12. Uniform brightness, stable image, no flicker, no distortion Stores, hypermarkets, star-rated hotels, restaurants, travel agencies, drugstores, etc.
product description
Hot sale (3 models)
Model | Samsung 46-inch 3.5mm video wall screen specifications |
Compared | 3000:01:00 |
display color | 16.7 million |
Response time | 8ms |

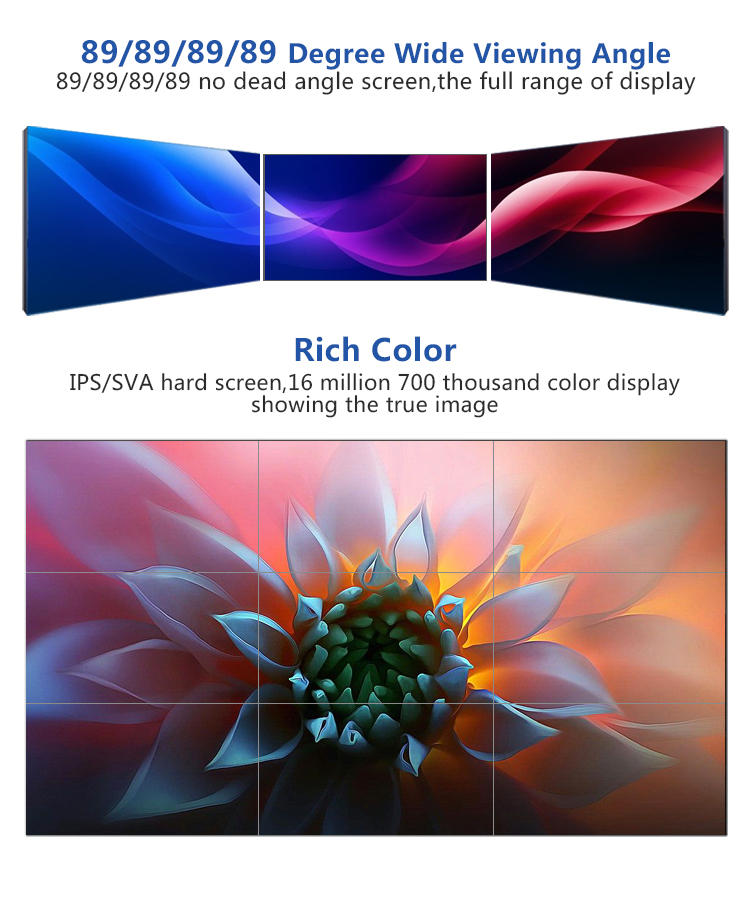

perspective | 89/89/89/89 (typical) |
working frequency | 60Hz |
splicing | 3.5mm |
USB input | (usb*1) can be upgraded to support video picture media playback |
HDTV input | (HDTV*1) Support 1920*1080@60hz signal input, backward compatible with 4k, need to be customized |
VGA input | (vga*1) support 1920*1080@60hz signal input, backward compatible |
DVI input | (dvi*1) Support 1920*1080@60hz signal input, backward compatible |
4k needs to be customized | |
BNC input | (bnc * 1) support ntsc pal and other formats |
Remote receive input | (Debug*1) Remote control signal transmission |
RJ45 input | (rj45 * 1) rs232 signal input |
RJ45 output | (rj45 * 2) rs232 signal output |
BNC output | (bnc * 1) support ntsc pal and other formats |
show diagonal | AC220V 50/60Hz |
aspect | <=240W |
Display area | 3W |
soaring | 0～50℃ |
panel type | -20～65℃ |
Resolution | Simplified Chinese, Traditional Chinese, English and other languages |
dot pitch | 18KG |
brightness | Wall-mounted, embedded, floor-standing, front maintenance, cabinet |
Model | Samsung 55 Inch 1.7mm Video Wall Screen Specifications |
show diagonal | 55" |

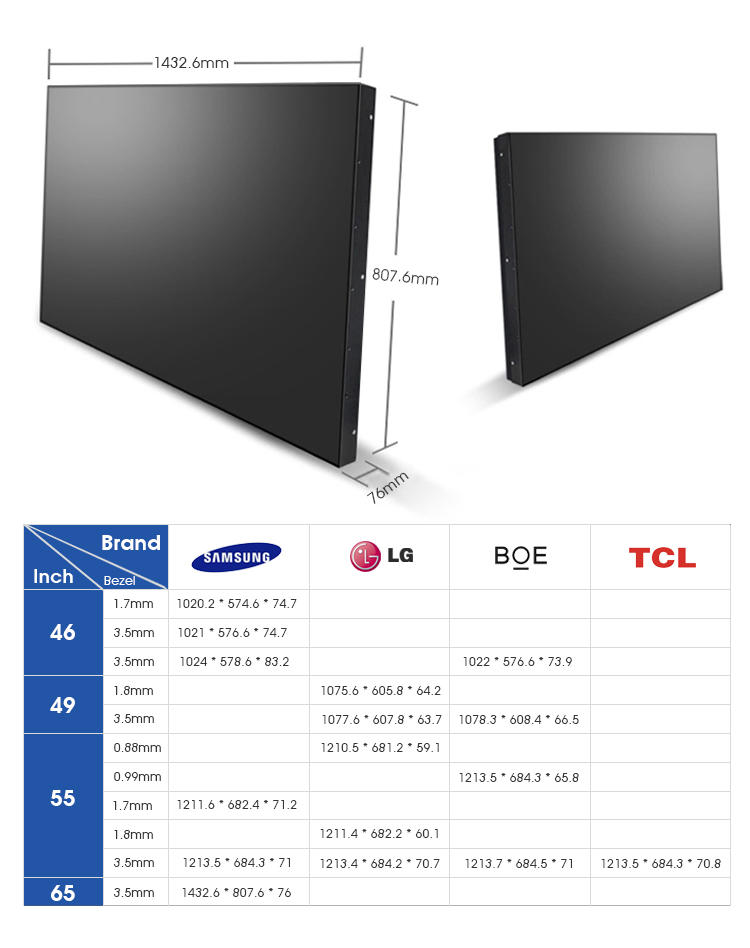

Dimensions | 1211.54(W)*682.34(H)*118.2(D)mm |
Display area | 1209.6(W)*680.4(H)mm |
Zoom | LED backlight |
Analytical power | 1920 (RGB) X1080, Full HD |
point spacing | 0.210(H)*0.630(V) |
brightness | 500CD/M |
Contrast | 4000:01:00 |
display color | 16.7 million |
Response time | 8ms |
perspective | 89/89/89/89 (typ.) |
working frequency | 60Hz |
splice joint | 1.7mm |
USB input | (USB*1) Upgradable video picture media playback |
HDTV input | (HDTV*1) Support 1920*1080@60Hz signal input, backward compatible with 4K, customized |
VGA input | (VGA*1) supports 1920*1080@60Hz signal input and is backward compatible |
DVI input | (DVI*1) Support 1920*1080@60Hz signal input, backward compatible with 4K needs to be customized |
BNC input | (BNC*1) Support NTSC pal and other systems |
Remote control receives input | (debug*1) Remote control signal transmission |
RJ45 input | (RJ45*1) RS232 signal input |
RJ45 output | (RJ45*2) RS232 signal output |
BNC output | (BNC*1) Support NTSC pal and other systems |
Operating Voltage | AC220V 50/60Hz |
Product power consumption | Less than 240W |
Standby power | 3W |
Operating temperature | 0~50℃ |
Storage temperature | -20~ 65℃ |
menu language | Simplified Chinese, Traditional Chinese, English and other languages |
Installation method | Wall-mounted, embedded, floor-standing, front maintenance, cabinet |
Model | LG 49 inch 3.5MM splicing unit specifications |
Diagonal display | 49" |
Display area | 1073.8(W)*604.0(H)mm |
soaring | backlight |
panel type | LED backlight |
Resolution | 1920(RGB)X1080, Full HD |
spacing | 0.1864 (H) * 0.5593 (V) |
brightness | 450CD/square meter |
Compared | 1300:01:00 |
color display | 16.7 million |
Response time | 8ms |
perspective | 89/89/89/89 (typ.) |
working frequency | 60Hz |
Patchwork stitching | 3.5mm |
USB input | (USB*1) Upgradable media player supports video pictures |
HDTV input | (HDTV * 1) * Support 1920 1080@60HZ signal input backward compatible with 4K can be customized |
VGA inlet | (VGA*1)*Supports 1920 1080@60HZ signal input and is backward compatible |
DVI input | (DVI*1)*Support 1920 1080@60HZ signal input, backward compatible with 4K, customizable |
BNC entrance | (BNC*1) and other standards support NTSC PAL |
Remote control receiver input | (DEBUG*1) Remote control signal transmission |
RJ45 input | (RJ45*1) RS232 input signal |
RJ45 output | (RJ45*2) RS232 signal output |
BNC output | (BNC*1) and other standards support NTSC PAL |
Operating Voltage | AC220V 50/60Hz |
energy consumption | ≤240W |
Standby power consumption | 3W |
Operating temperature | 0~50℃ |
Storage temperature | -20~ 65℃ |
menu language | Simplified Chinese, Traditional Chinese, English and other languages |
Installation method | Wall-mounted, embedded, floor-standing, front maintenance, cabinet |
