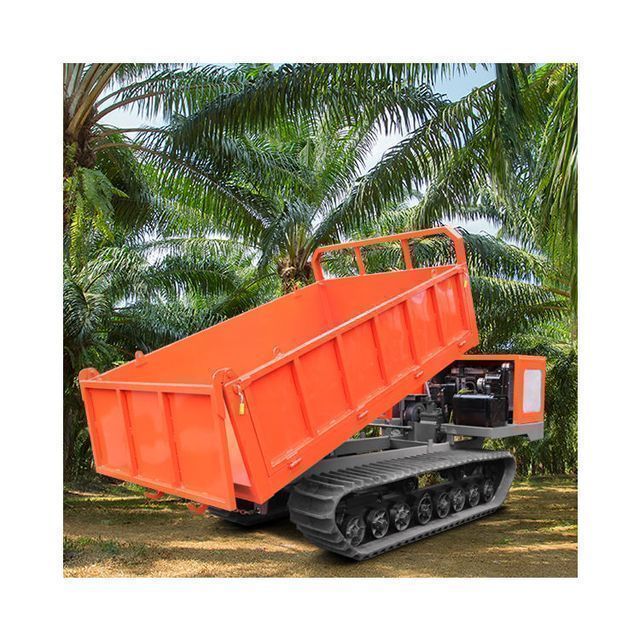

5 tons small crawler all terrain dump crawler mini dump truck for sale
- $7500.00 / 1 - 9 pieces
$6500.00 / 10 - 19 pieces
$1999.00 / >=20 pieces - 1 piece
- Shandong Beijun Heavy Industry Co., Ltd.
- Shandong, China
- Mr Joe
PRODUCT DETAIL
| Weight (kg): | 2000 kg | Capacity (load): | 5 tons |
| Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food and Beverage Factories, Farms, Restaurants, Home Use, Food Stores, Printing Shops, Construction Works, Energy and Mining, Food and Beverage Stores, Others, Advertising Agencies | Hydraulic pump brand: | northern army |
| Hydraulic cylinder brand: | northern army | port: | Qingdao |
| place of origin; place of origin: | Shandong China | Marketing Type: | new design 2022 |
| State of health: | new | Packaging Details: | wood packaging |
| product name: | crawler dump truck | Showroom location: | Vietnam, Philippines, Peru, Indonesia, UAE, Malaysia |
| Mechanical test report: | if | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Send: | 3F+1R | strength: | 34 |
| Video shipment inspection: | if | Warranty: | 1 year |
| Supply capacity: | 100 sets per month | Production capacity: | 100 per month |
| Hydraulic valve brand: | Liyuan | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| Track Specifications: | 400*90*62 | Engine brand: | Chang Chai |
| Unique selling point: | small turning radius | feature: | crawler dump truck |
| engine model: | Changchai 490 | Core component warranty: | 1 year |
| Package preview: | Engine power: | 47 hp | |
| application: | palm plant | Cabin Dimensions (mm): | 2600*1600*550 |
| Dimensions (L*W*H): | 4000*1600*2100 | Chassis width (m): | 1.6 |
| Box steel plate thickness (mm): | bottom 4 side 3 | brand: | northern army |
| driving type: | scraper | Voltage: | 12 |
detailed drawing
Product parameters
Brief introduction of BJC-50 crawler transport vehicle
1) Excellent waterproof performance, the wiring and electrical use advanced waterproof sealing treatment
Appliances, effectively avoiding water leakage due to excessive water accumulation in the roadway
Appliances, effectively avoiding water leakage due to excessive water accumulation in the roadway

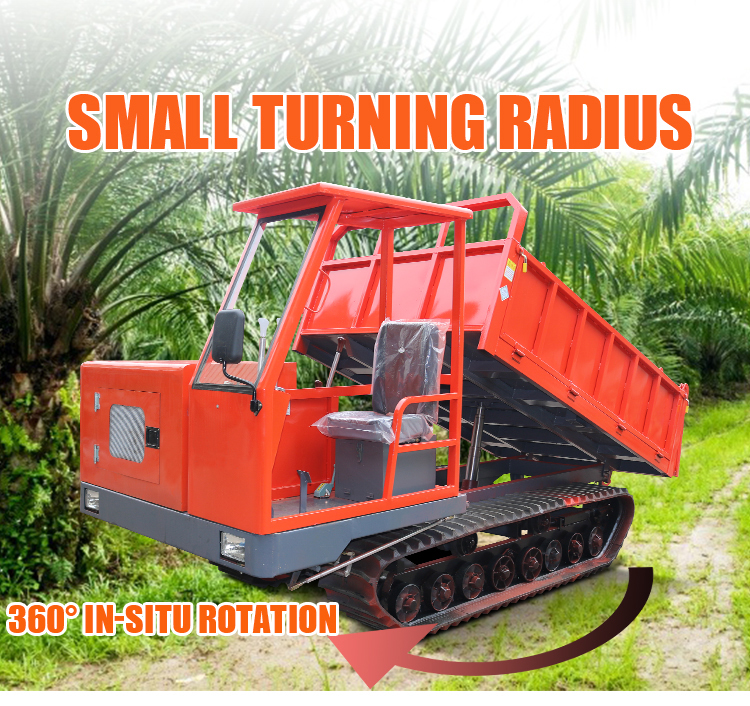

2) 360° steering, smaller turning radius, more suitable for complex road conditions in narrow and curved roadways.
3) The ordinary car steel frame used in China is stronger than the traditional riveted and welded frame, and it is still intact after heavy pressure.
4) National joint insurance, more than 200 service outlets, to provide you with sufficient after-sales protection.
4) National joint insurance, more than 200 service outlets, to provide you with sufficient after-sales protection.
model | BJC-50 crawler dump truck |
Length*Width*Height (mm) | 4200*1600*1600 |
Cabin size (mm) | 2600*1600*550 |
Box steel plate thickness ( mm ) | bottom 4 side 3 |
Chassis width (m) | 1.6 |
engine model | Changchai 490 |
engine power | 34KW 47HP |

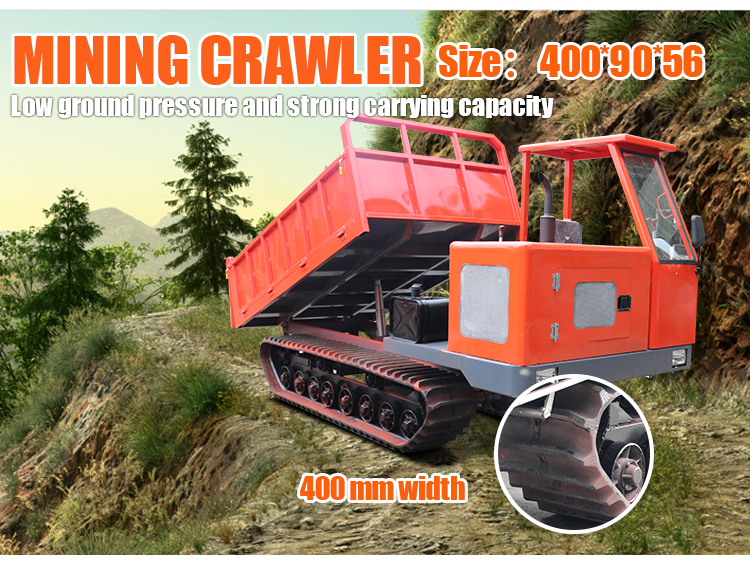

Track Specifications | 400*90*62 |

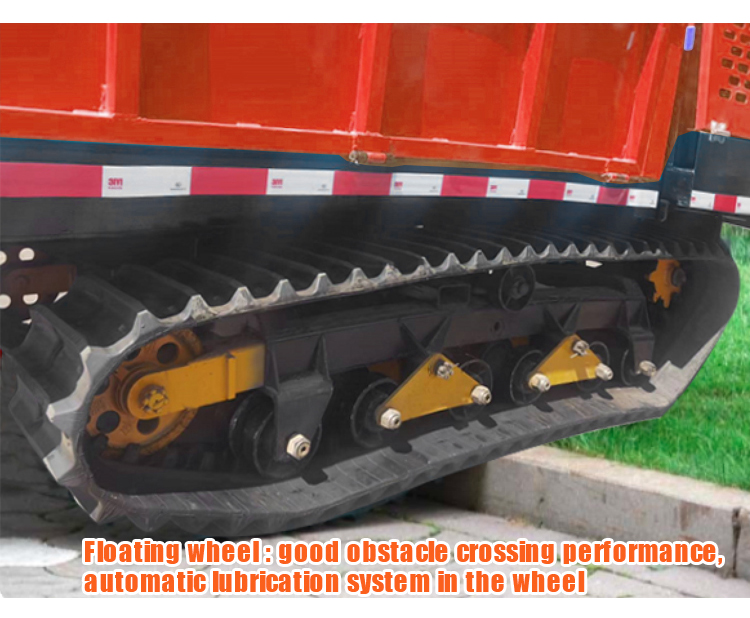

crawler system | Engineering rubber track |
Number of tugboats on one side | 7 groups |
Diameter of tugboat | 200 Offset Tug 206 Bearing |
Hydraulic cylinder model | 115*900 single roof rollover |
Gearbox model | Strength 28 |
start method | electric starter |
Rated load (T) | 5 |
Vehicle Weight (kg) | 2350 |

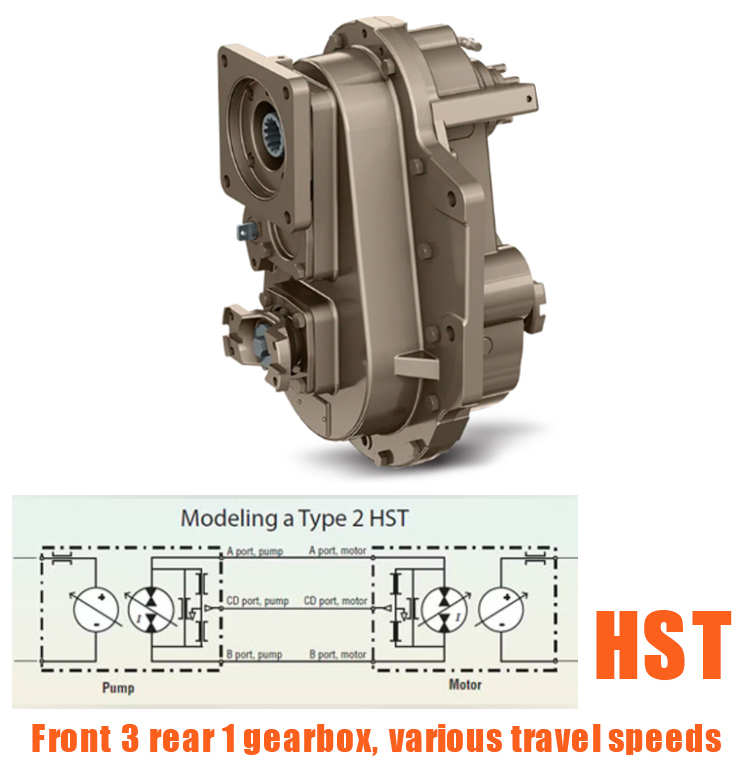

gear | High/Low (3+1) |
Lifting height | 1500mm |
Driving speed (km/h) | 0-15 |
