600g/m2 glass fiber chopped strand mat
- $0.10 /kilogram
- 1 kilogram
- Qingdao Feelongda Industry & Trade Co., Ltd.
- Shandong, China
- Mr zhaobing qin
| Packaging Details: | Products are manufactured in roll packs on paper tubes, then packed in plastic bags and placed in cardboard boxes. Rolls can be loaded directly into containers or pallets. | Bond Content: | 300g/m2, 600g/m2 (4%-6%) |
| Cushion Type: | Continuous Filament Pad | port: | Qingdao, China |
| brand: | Feilongda | model: | chopped strand mat |
| Supply capacity: | 300 tons per week | Fiberglass Type: | E-glass |
| Bond Type: | powder or lotion | density: | 80g/m2-900g/m2 |
| payment terms: | letter of credit, wire transfer | Roll width: | 200mm-2600mm |
| technology: | Chopped Strand Fiberglass Mat (CSM) | aspect: | According to customer requirements |
| place of origin; place of origin: | Shandong China | Softness: | favorable |
| Roll weight: | 28kgs-55kgs | Delivery Details: | within 20 days |
Specification:
Glass fiber chopped strand mat is a nonwoven E or C glass fiberglass fabric made by randomly and uniformly combining 50 mm long continuous filament rovings with polyester binder in powder form (or other binder in emulsion form ) are combined.
Features and Applications:
Chopped strand mat has the characteristics of good resin bonding, easy operation, good wet strength retention, good transparency of laminate and low cost. Suitable for hand lay-up FRP moldings, such as various sheets and panels, hulls, barrels, cooling towers, corrosion resistance, vehicles, etc.
Technical:
property | glass type | Weight (g/m2) | width 200~3300 | roll weight | Moisture content % | % of combustibles | breaking strength N |
testing method | GB/T 1549 | ISO3374:2000 | ISO3374 | GB/T17470-1998 | ISO3344:1997 | ISO1887:1995 | ISO3342 |
EMC 80 | E/C-glass | 80±16 | ±5 | 6~95 | <0.2 | 13.6±0.35 | ≥200 |
EMC 100 | E/C-glass | 100±20 | ±5 | 6~95 | <0.2 | 9.5±0.35 | ≥170 |
EMC 150 | E/C-glass | 150±30 | ±5 | 6~95 | <0.2 | 8.0±0.35 | ≥40 |
Electromagnetic Compatibility 225 | E/C-glass | 225±45 | ±5 | 6~95 | <0.2 | 5.0±0.35 | ≥60 |
EMC 300 | E/C-glass | 300±60 | ±5 | 6~95 | <0.2 | 4.0±0.35 | ≥90 |
EMC 450 | E/C-glass | 450±90 | ±5 | 6~95 | <0.2 | 3.8±0.35 | ≥120 |
EMC 600 | E/C-glass | 600±120 | ±5 | 6~95 | <0.2 | 3.6±0.35 | ≥150 |
EMC 900 | E/C-glass | 900±180 | ±5 | 6~95 | <0.2 | 3.4±0.35 | ≥180 |
pack:
Products are manufactured in roll form on paper tubes, then packaged in plastic bags and placed in cardboard boxes. Rolls can be loaded directly into containers or pallets.
Quantity (chopped strand mat):
20' GP container: about 10000kgs
40' HC container: about 23100kgs
deposit:
Chopped strand mat should be stored in a dry, cool, clean and rain-proof place. The recommended storage temperature range is between 15-30°C and the relative humidity is between 40%-70%.

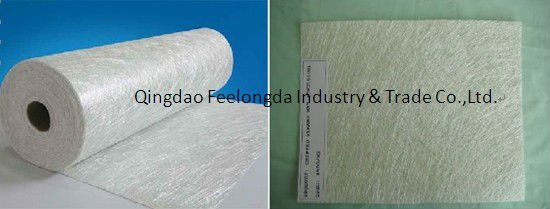

photo:

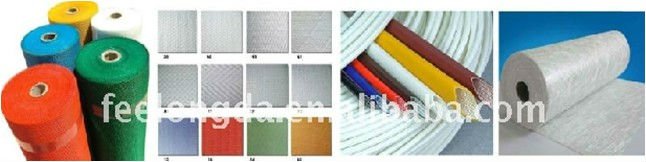

main products:
Welcome to visit us.
