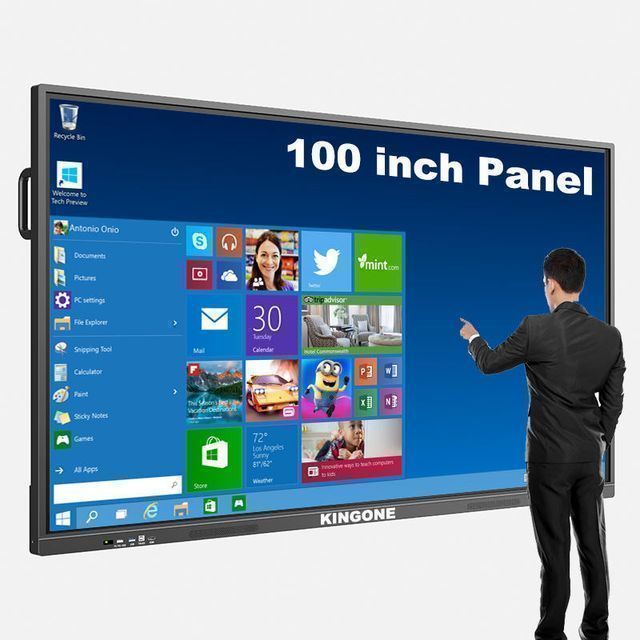

65/75/86/100/110 inch finger multi-touch screen intelligent LCD display meeting room electronic digital interactive intelligent whiteboard
- $800.00 /piece
- 1 piece
- Dongguan Kingone Electronics Co., Ltd.
- Guangdong, China
- Mr Gary Du
PRODUCT DETAIL
| type: | capacitive/infrared | Product Size: | 170x100x10cm |
| screen size: | 110 inches | Whiteboard Type: | Interactive whiteboard |
| port: | Shenzhen | brand: | Tianwangyin |
| Panel type: | LCD Monitor | Panel size: | 110 inches |
| Memory: | 4G (8G optional) | model: | GQ-ZH-110y |
| Supply capacity: | 100000 pieces per month | Package dimensions: | 250*150*110cm |
| Package preview: | Certificate: | ISO9001 CE FCC ROHS | |
| fold: | Do not | Resolution: | 3840*2160 |
| Installation method: | Wall-mounted (floor stand optional) | place of origin; place of origin: | Guangdong, China |
| product name: | conference whiteboard | color: | Black |
| life: | 50000 hours | Writing method: | pen/finger touch |

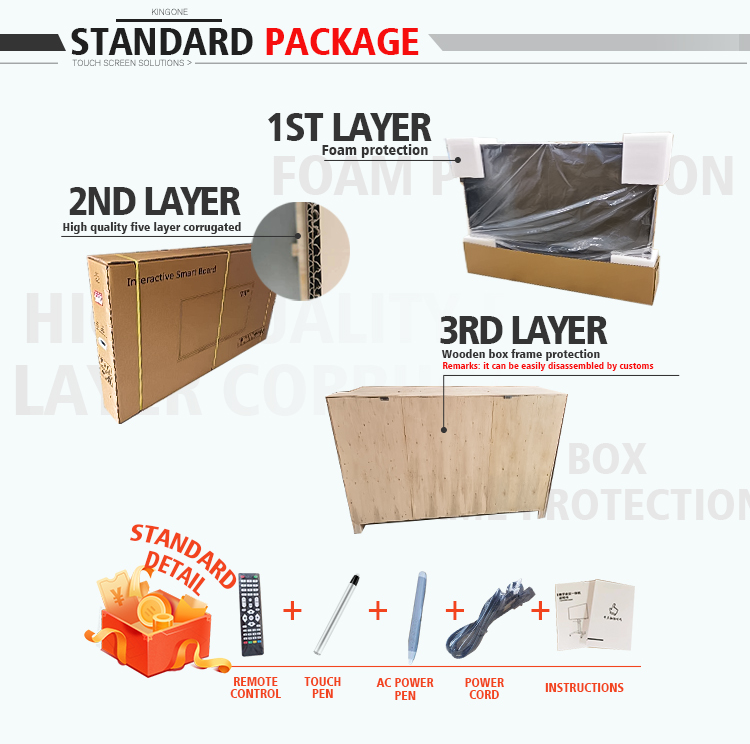

| Packaging Details: | wooden box | weight: | 100 kg |
| Panel type: | LCD Monitor | touch screen: | 20 points infrared touch screen |

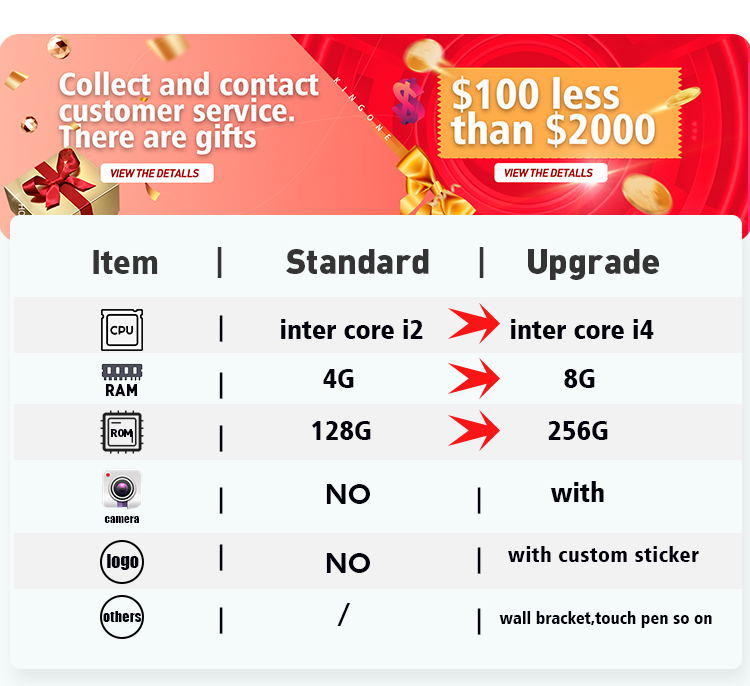

| CPU: | Intel i3 (i5/i7 optional) | ROM: | 120G (256G optional) |
| aspect ratio: | 16:9 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
kingone original 55 65 75 86 98 100 110 inch TFT multi-size intelligent interactive whiteboard dual system whiteboard

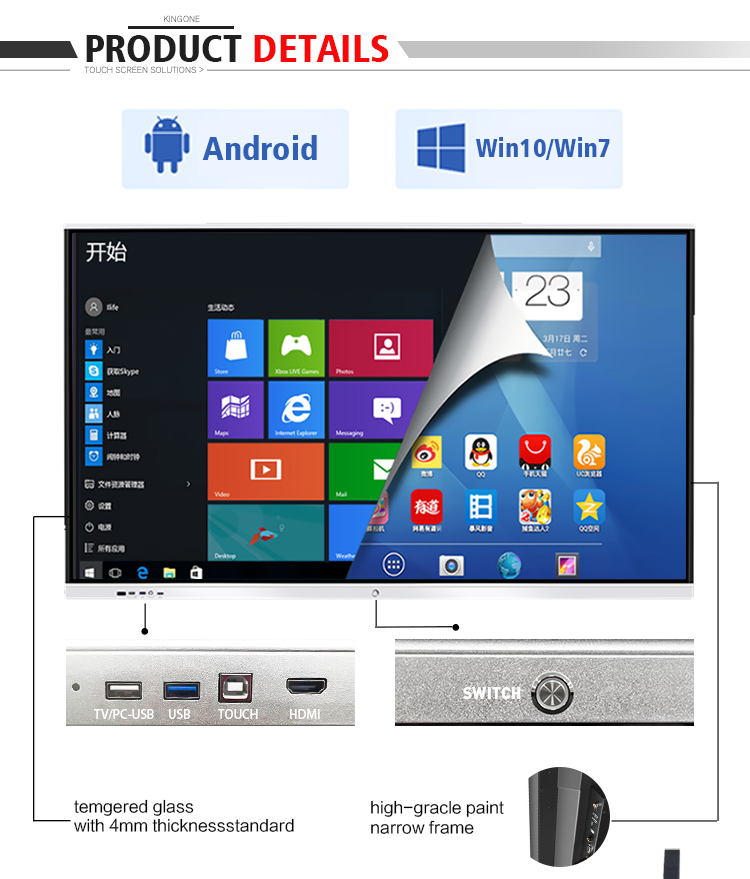

Dual system | |
Windows 10 operating system | Intel Core i3/i5/i7 option, Memory 4G/8G/16G optional Hard disk: 128G/256G/512G/1T optional |
android operating system | Quad-core, 3G RAM, 32G ROM, Android 8.0/9.0 version |
LCD panel | |

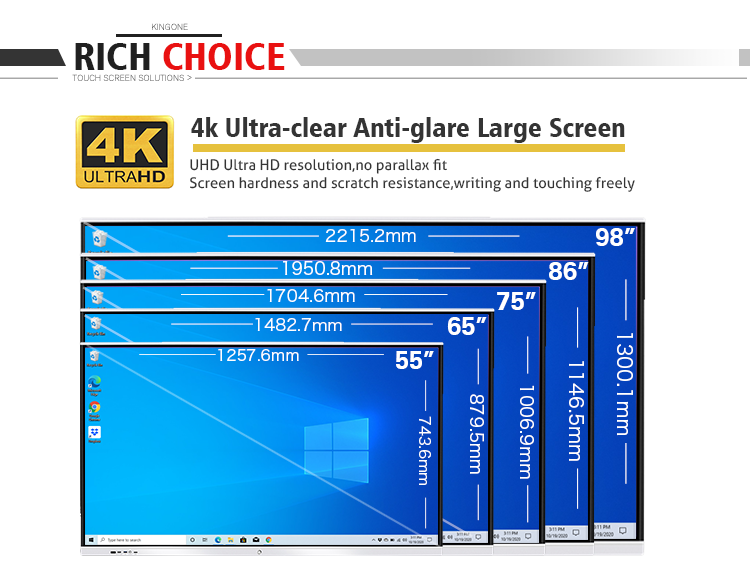

size | 110"/55"/65"/75"/85"/98" optional |
panel brand | LG, BOE, AU (standard A screen) |
type | TFT-LCD S-PVA |
resolution | 3840×2160 (Ultra HD) @60hz, 4K UHD screen |
brightness | 450cd/square meter |
ratio comparison | 2000:1 |
Viewing angle (horizontal/vertical) | 178°/178° |
Response time | 8 milliseconds |
Viewable area(mm) | 1649.7(W)×928(H)mm |
Color space (NTSC) | 72% |
backlight | White LED |
Zoom | 16:9 |
Response time | ＜8ms |
Life | >60000 hours |
Infrared Touch Features | |
Touch Specifications | Infrared touch frame |
Glass | 4mm tempered glass |
Glass transmittance | > 88% (higher light transmittance depends on glass surface treatment technology such as AR/AG) |
Object induction number (IR) | touch 20 |
Infrared induction line number (WD) | 32767 × 32767 |
positioning accuracy | More than 90% of the touch area is 2mm |
Interface definition | USB 2.0 (full speed) |
Feel the strength | zero pressure touch |
Lightfastness | it is lightfast |
Induction life | 6 million times |
Response time | ＜8ms |
Power supply | Full-duplex USB powered DC +5V up to 500mA |
switching power supply | |
Power Consumption (Typical) | AC100-240V~(+/-10%), 50/60Hz |
Standby power consumption | 270W |
power interface | 1W |
switching power supply | European standard 220V two-phase three-wire system |
Mechanical Specifications | |
net weight | 52 kg |
gross weight | 63 kg |
Bare Metal Dimensions (W x D x H) | 1715.8×1024.1×96.8mm |
Package Dimensions (WxDxH) | 1813×1126×190mm |
Shell material (front frame/back shell) | Plastic/Sheet Metal |
Shell color (front frame/back shell) | Black |
to protect the glass | 4mm tempered glass/7 level shock resistance |

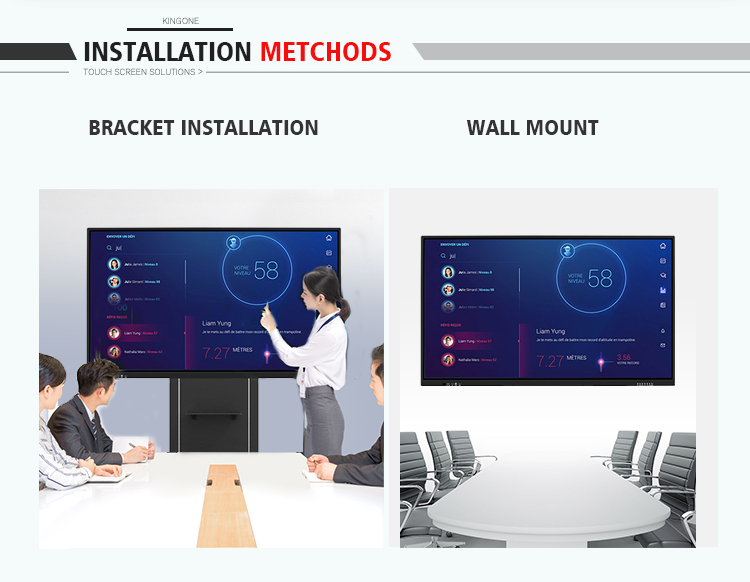

installation type | Bracket/Wall Mount |
cooling method | Temperature-controlled fan cooling |
surroundings | |
Operating temperature | 0℃~50℃ |
Working humidity | 20%~80%(no condensation) |
Storage temperature | -20℃~60℃ |
storage humidity | 10%~90%(no condensation) |
display mode | S-ips, always black screen display, transmission |
Maximum service time (hours/days) | 24 hours |
feature | |
The speaker | 2×8Ω/5W (built-in) |
Support input method | stylus writing keyboard |
appendix | |
user manual | Manual, warranty card, certificate of conformity |
cable | power cable |
Other (optional accessory) | Remote control, base/stand, WiFi |
touch screen smart boardis an interactive TV with built-in LCD/LED and touch screen (PC optional).
We use the most popular technology infrared touch to achieve the interaction between the user and the display.

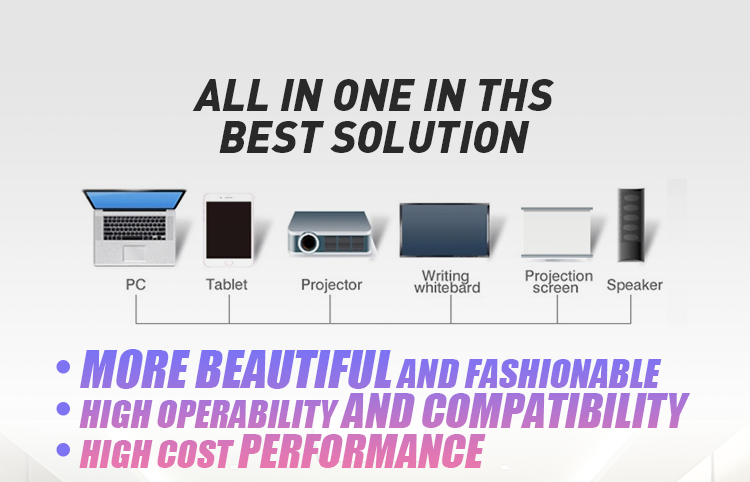

All in one touch monitor is also a liquid crystal whiteboard, which uses a liquid crystal display instead of a projector for image presentation.
Connected with built-in or external PC, it is a big touch PC, finger control and operate PC to present advertisements,
Meeting PPT, classroom courses, playing movies, etc...
All in one touch monitor is also a liquid crystal whiteboard, which uses a liquid crystal display instead of a projector for image presentation.
Connected with built-in or external PC, it is a big touch PC, finger control and operate PC to present advertisements,
Meeting PPT, classroom courses, playing movies, etc...
<<<<<<<<<<<<<
strong songEstablished in 2010, it is a R&D and sales company known for our high quality standards and reliable services. The smart board has passed ISO9001 /CCC/CE?ROHS/FCC?CNAS and other tests. Don't worry about the quality, especially we have a dedicated after-sales service department to answer your questions
1) Are you a factory or a trading company? What is the MOQ for touch screen?
A: Yes, we are factory direct sale, have some stock, you can order 1pc for testing.
2) What's the delivery time? Where do you ship the touch screen?
A: Generally speaking, small orders can be delivered within 5-7 days, and the production time for more than 10 pieces is about 15 days. Also, our factory is located in Wangniudun, Dongguan. If you have a forwarder in Shenzhen or Guangzhou, we can help you ship to your forwarder.
3) Can you provide OEM and ODM service for touch screen?
A: Of course, including software, packaging, product identification, etc., please consult customer service for details.
4) How long is the warranty period of the touch screen?
A: Usually 1 year, we have a professional after-sales service team, you can consult customer service for specific details.
5) How do you guarantee the quality of the touch screen?
A: Our products comply with ISO9001 quality system and CE/FCC/ROHS standard. All of our products pass strict quality control
Inspection during production. In particular, export products need to complete a 72-hour aging test to ensure that there is no problem before shipment.
Inspection during production. In particular, export products need to complete a 72-hour aging test to ensure that there is no problem before shipment.
6) How do you arrange the shipping of the touch screen?
A: For small sample orders, it is recommended to ship by express (7-10 days) or by air (10-15 days), and for mass production, it is recommended to ship by sea, please contact customer service for details!
