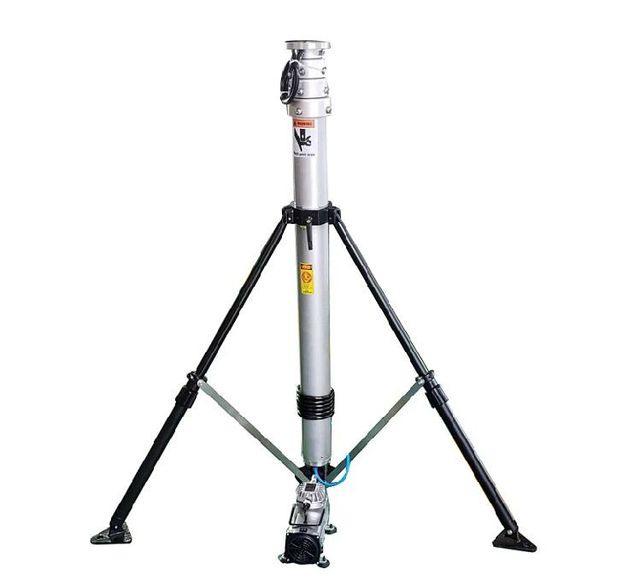

6m 8m 10m 12m 20m telescopic street pole cctv aerial camera
- $200.00 /unit
- 1 unit
- Tianjin Talents International Trade Co., Ltd.
- Tianjin, China
- Mr Alfred Wang
| Material: | Aluminum alloy | application: | Emergency lighting, military, antenna, mobile communication tower. |
| type: | Camera poles, light poles, antenna towers | port: | China's main ports |
| Packaging Details: | Packaging of masts and accessories: 1 set per carton | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,paypal |
| place of origin; place of origin: | Tianjing, China | maximum. Payload: | 15kg |
| Wind load capacity: | 120 km/h | model: | TAL-P6-1.75-15 |
| Certificate: | Chief Executive | Accessories: | Tripod, cable box, anchor rod, boom |
| Lifting: | by hand pump | Packaging Preview: | |
| Fully extended height: | 6m | Operating temperature: | -30 degrees to +70 degrees |
| Supply capacity: | 200 street pole telescopic CCTV aerial camera masts per month | brand: | talent |
| stowed height: | 1.75m |

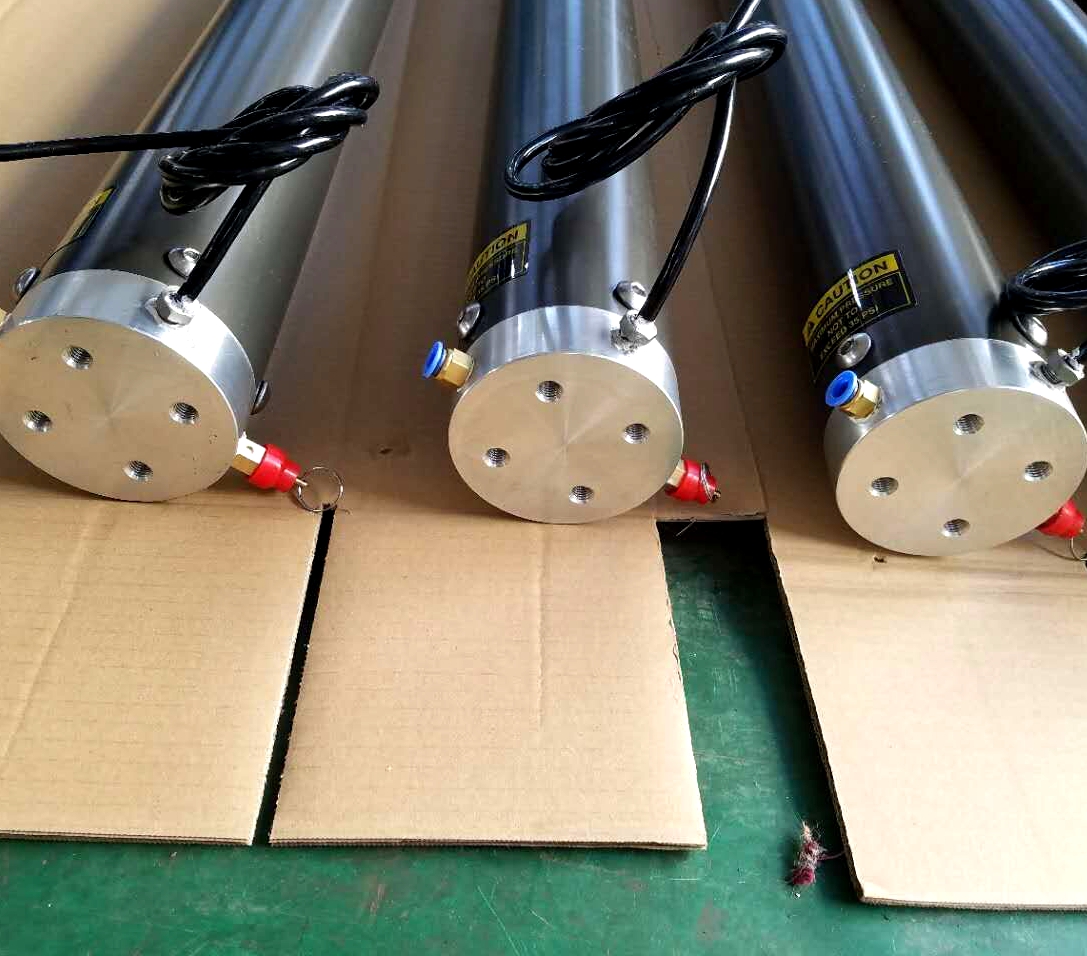

Pneumatic mast payloads up to 400 kg
Our telescopic masts can be used in many different applications,
Suitable for firefighting, telecommunications, military, surveillance and photography fields.

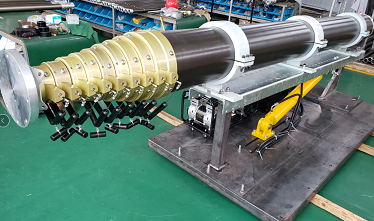

Heavy models for vehicle and ground use up to 32 m,
More than 500 different models are available,
Customized cables, locking and non-locking systems for different applications

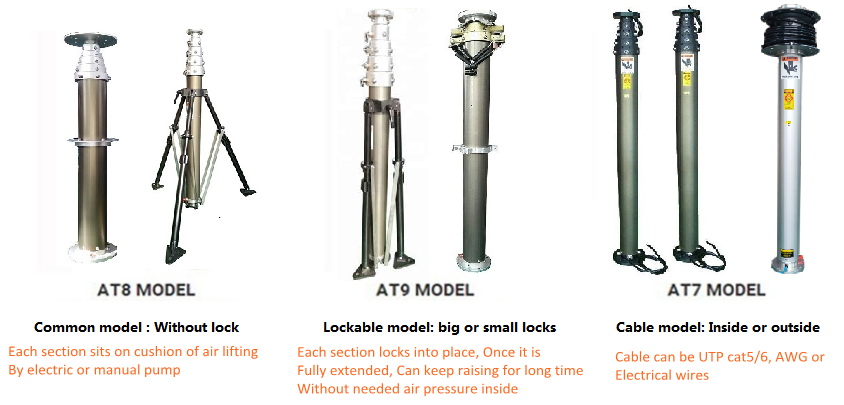

Classification of masts
Model "AT8"---no cables and no locks, short-term use

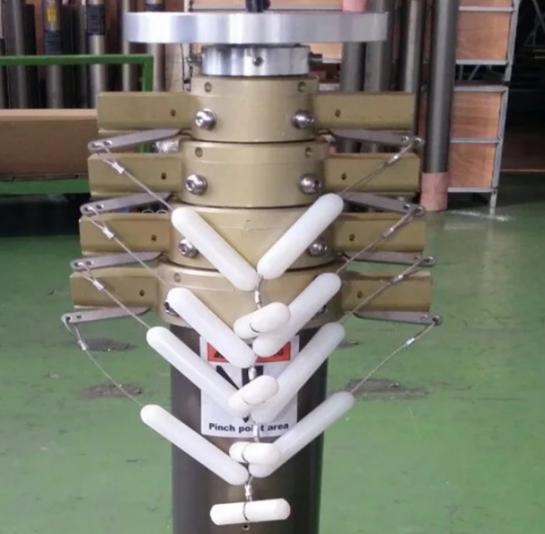

Model "AT9"---with lock. long time use
Model "AT7"---with cable. For mounting cameras, lights or antennas.
Common applications
Military communications, overhead testing and mobile radar applications...and more.
mast specification
Available extended height: 2m to 30m
Head load capacity: 5kg to 500kg.
Elevator Operation Selection
If there is no electricity and the lift load is not heavy, the lift control can be a foot pump or a hand pump---manual lift.
If there is electricity and the head is heavily loaded, the elevator control should be an air compressor, which is convenient and fast.
Air compressor optional DC12V/ DC24V/ DC48V/ AC110V/ AC220V

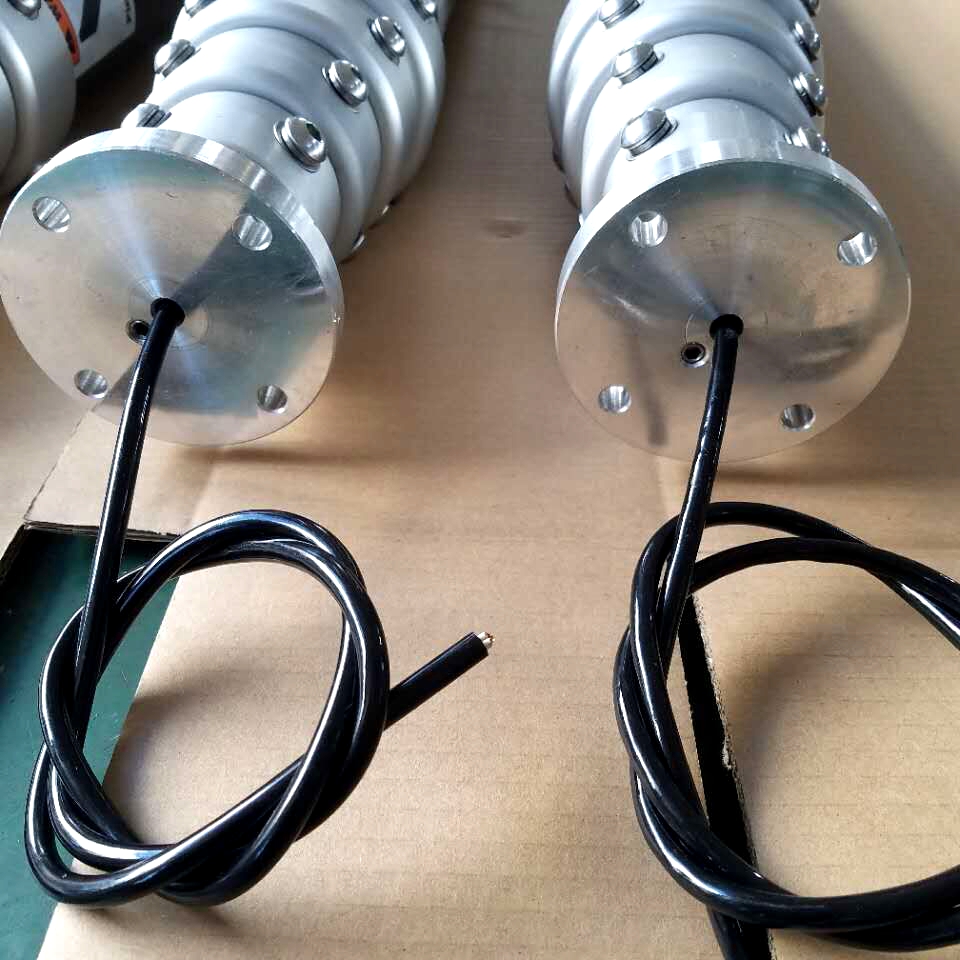

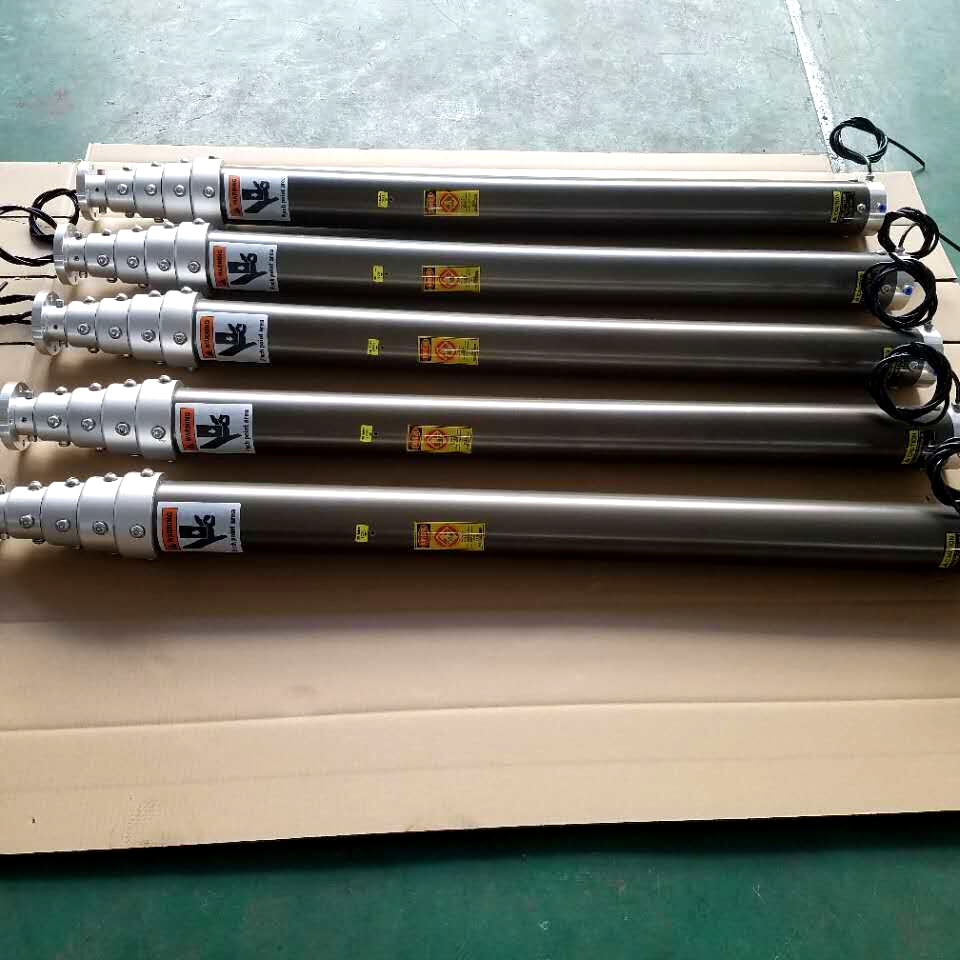

Internal cable model | ||||||||
Extended height | 3.3 meters | 4.5 meters | 6 meters | 8 meters | ||||
closed height | 1.3 meters | 1.4 meters | 2 meters | 2.4 meters | ||||
payload capacity | 30 kg | 15 kg | 30 kg | 80 kg | ||||
Pipe diameter range | 98mm (bottom) to 51 mm (top) | 98mm (bottom) to 36mm (top) | 98mm (bottom) to 51mm (top) | 140mm (bottom) to 82 mm (top) | ||||
Internal cable | 4*1.5 mm2+ 1*CAT5 | 2*1 mm2+ 2*0.2 mm² | 1*CAT5+ 2*AWG14 | 12*1.0mm2 | ||||
maximum. operating pressure | 2.5 bar | 2.5 bar | 2.5 bar | 2.5 bar | ||||

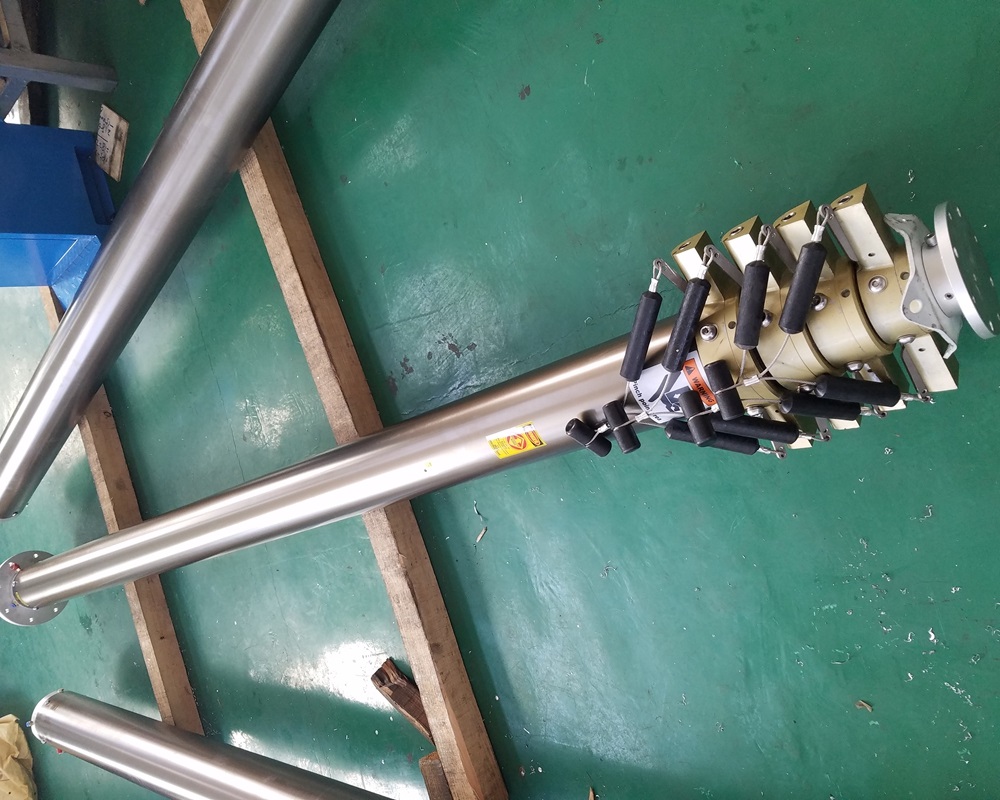

Lock heavyModel | ||||||||
Extended height | 3.2 meters | 6 meters | 18 meters | 25 meters | ||||
closed height | 1.6 meters | 2 meters | 4 meters | 4 meters | ||||
payload capacity | 250 kg | 100 kg | 300 kg | 150 kg | ||||
Pipe diameter range | 180 mm (bottom) to 140 mm (top) | 160 mm (bottom) to 98 mm (top) | 316 mm (bottom) to 160 mm (top) | 316 mm (bottom) to 98 mm (top) | ||||
maximum. operating pressure | 2.5 bar | 2.5 bar | 2.5 bar | 2.5 bar | ||||
