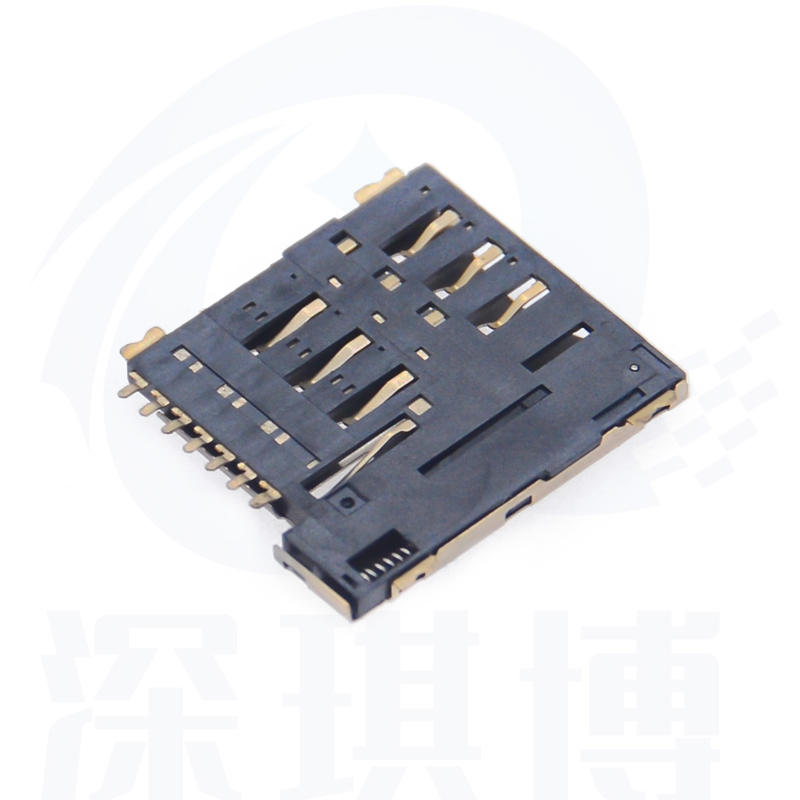

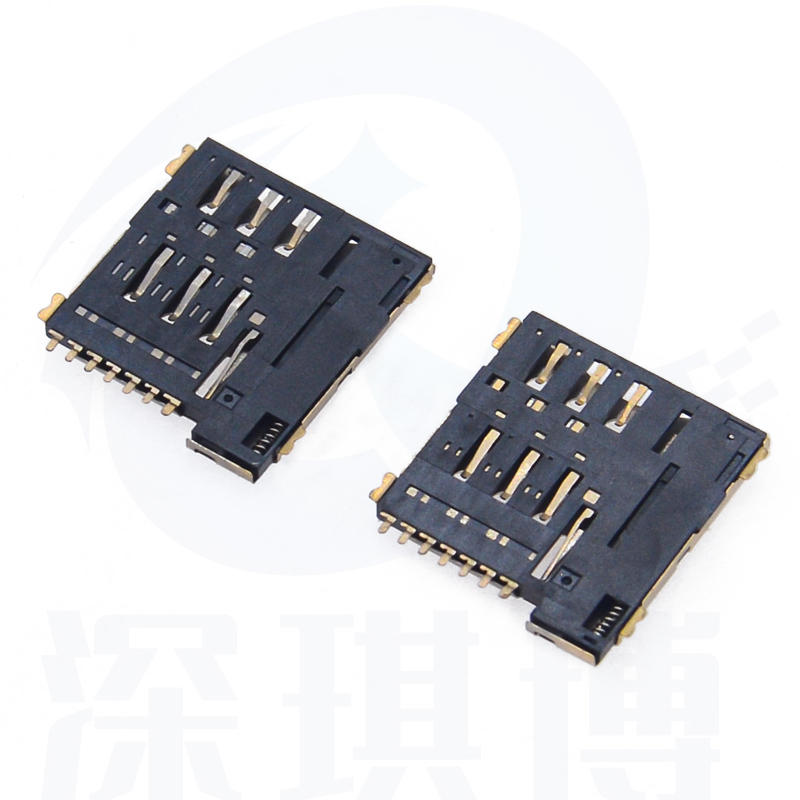

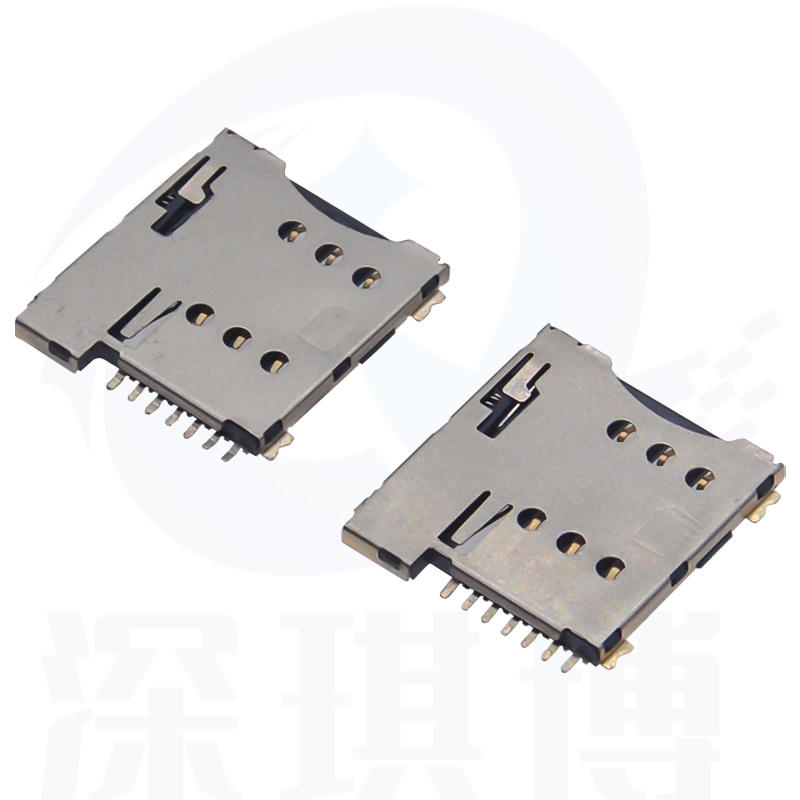

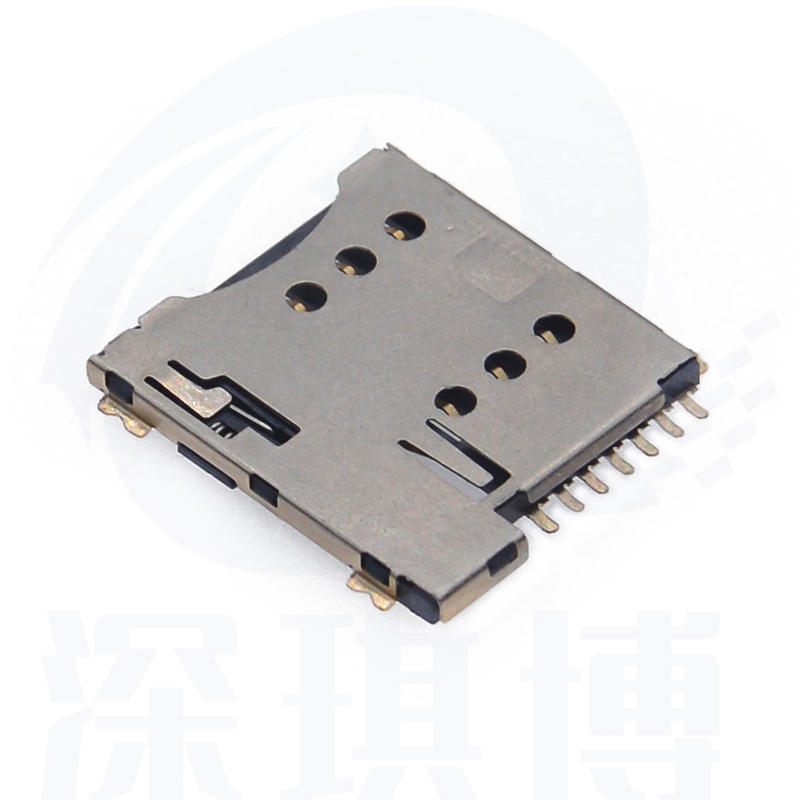

7p small card micro SIM card holder SMT patch mobile phone anti-reverse insertion self-ejection slot push card holder
- $0.13 / 500 - 999 pieces
$0.12 / 1000 - 9999 pieces
$0.11 / >=10000 pieces - 500 pieces
- Shenzhen Shenqibo Electronics Co., Ltd.
- Guangdong, China
- Mr Fan
PRODUCT DETAIL
| brand: | SQB | Certificate: | RoHS/reached |
| Operating temperature: | -20℃ ~ +90℃ | Origin: | Guangdong, China |
| Packaging Details: | Standard export carton | Rated voltage: | 50V |
| Package: | Customer requirements. | Sales unit: | single product |
| describe: | memory card connector | type: | SD card holder |
| Insulation resistance: | 1000mΩ | Contact resistance: | ≤20 milliohms |
| Gross weight per piece: | 0.005 kg | Contact information (material): | copper alloy |
| type: | SCART | Package preview: | |
| gender: | female | model: | 7p small card micro SD card holder |
| application: | circuit board | Single package size: | 1.72X1.53X0.12 cm |
| Origin: | Guangdong, China |
Product Description
Insulation resistance | 1,000MΩ min at 500V DC |
withstand voltage | 500V ACrms for 1 minute |
Contact resistance | 100mΩ at 1mA / 40mV max |
Rated voltage | 5 VDC |
current rating | 0.5A |
Coplanarity | < 0.1 mm |
Operating temperature | -25℃~+85℃ |
Solder tail | Nickel tin |
insulator | LCD Monitor |
shielding plate | Stainless steel |
contact person | copper alloy |
Contact area | nickel gold |
