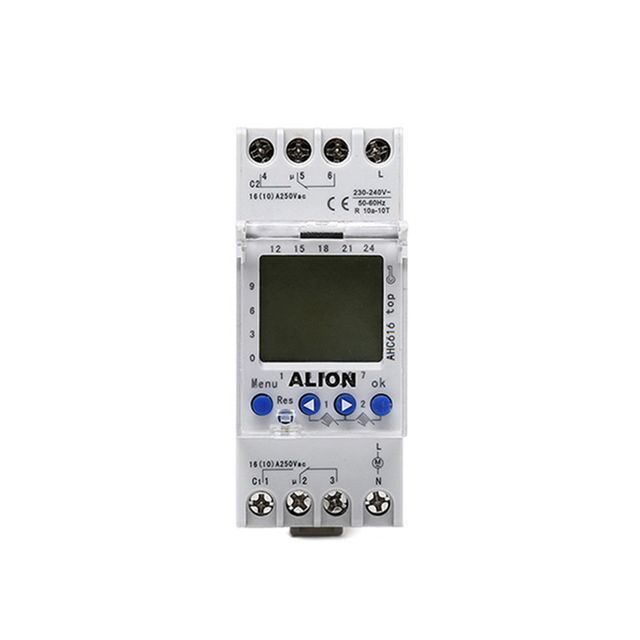

ALION AHC617 85~265VAC LCD 4 Channels Programmable DIN Rail Digital Time Switch
- $12.00 /piece
- 1 piece
- Alion Holding Group Zhejiang Imp.& Exp. Co., Ltd.
- Zhejiang, China
- Ms Melody Zheng
| Max. Voltage: | 240V; | Protection class: | II according to EN 60 730-1; |
| Certification: | CE; | Port: | NINGBO or SHANGHAI; |
| Minimum interval: | 1 Min; | Item: | Digital time switch AHC617; |
| Type of protection: | IP 20; | Model Number: | AHC617; |
| Power Reserve: | 4 years; | Payment Terms: | L/C,Western Union,T/T; |
| Operating Voltage: | 230V AC; | Max. Current: | 16A; |
| Place of Origin: | Zhejiang, China; | Supply Ability: | 15000 Pieces per Month; |
| Brand Name: | ALION; | Packaging Detail: | 1pcs digital time switch/Inner box 100 inner box/cartons G.W.: 17Kgs/CTN VOL:0.0328CBM/CTN; |
| Test approval: | CE; |

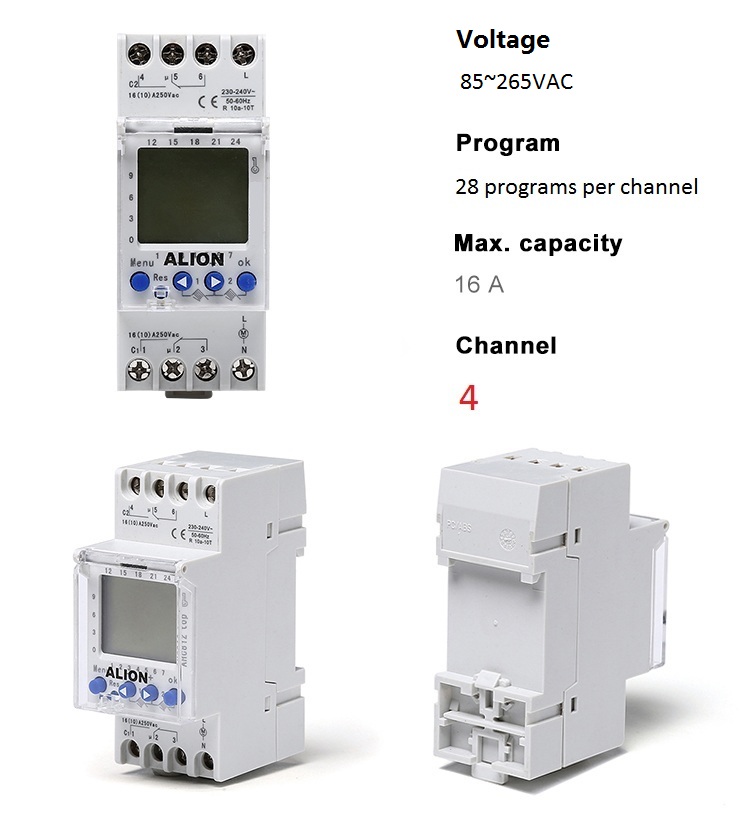

ALION AHC617 85~265VAC LCD 4 Channels Programmable Time Switch,DIN rail Digital Time Switch
Focus On Time Control For 25 Years
AHC617 with wide voltage meet different voltage request, 4 channels that set programs independently, can be complete switching program of the present day at a glance. Large, clear and illuminated display with one text line. Quick and intuitive to set your program.
Description
- Built-in calendar: 2018 - 2048 years.
- 112 groups of switch control programs in total.
- 28 groups of switch control programs per channel.
- EU and custom Daylight Saving Time.
- Built-in lithium battery, keep working when power failure.
- DIN35mm standard rails.
- AHC617L: with LCD Backlight.
Applications
- Light of billboard or showcase control
- Air-condition or Commercial Refrigeration
- Pumps/Motor/Fan Control
- Hydroponic Systems
- Wastewater Treatment Systems
- Generator Exercising
- Boilers / Heater Control
- Pool & Spa
- Ventilation
- Hot Water Pump Circulation
- Lighting Panel Control
- Landscape Lighting
- Bug and Pest Control Systems
- Aerobic Waste Water Systems
- General Electrical Circuits
Technical Data
| Product Type | AHC617 | ||||
| Supply voltage | 85~265VAC | ||||
| Switching capacity (per channel) | resistive load cosΦ=1.0: 10A(250VAC) /10A 28VDC | ||||
| inductive load cosΦ=0.6: 6A(250VAC) | |||||
| Stand-by and action Consumption | Stand-by:<1.5VA, Action:<6.5VA(4 chnnels relays are in pull-in state) | ||||
| Time accuracy at 25 °C | ≤± 2 Sek./day (quartz) | ||||
| Power reserve | approx. 4 year | ||||
| Housing and insulation material | Self-extinguishing thermoplastic | ||||
| Type of protection | IP 20 | ||||
| Class of protection | II according to EN 60 730-1 | ||||
| Permitted ambient temperature | -10 ~ +50 °C (non-icing) | ||||
| Test approval | CE | ||||
Maximum Terminal load
| Incandescent/halogen Lamp | 2000 W |
| Energy saving lamp | 150 W |

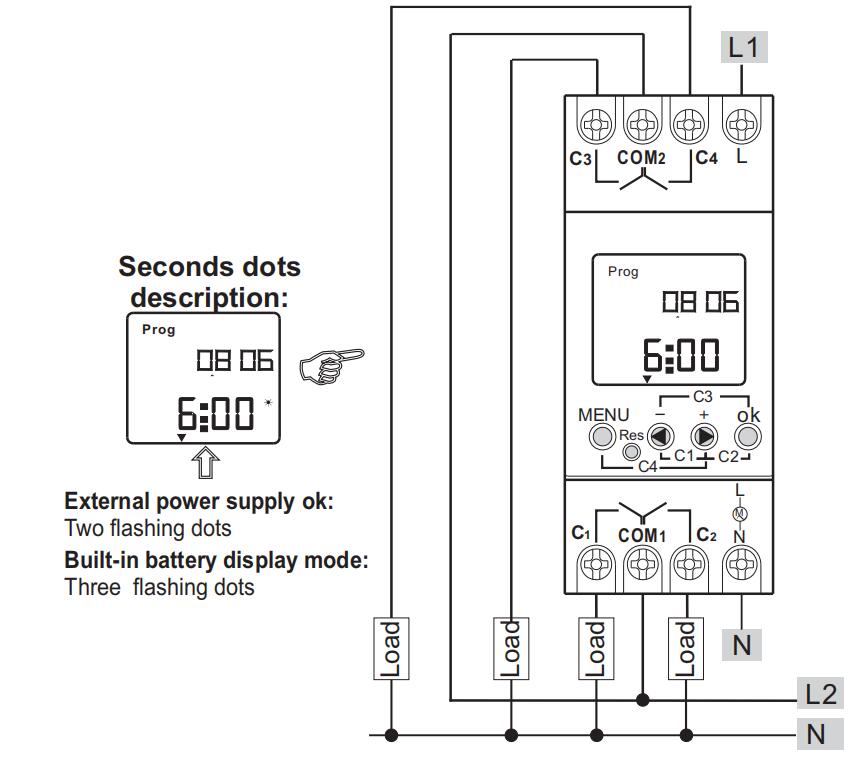

Connection Example
Scale Drawings
1. Exclusive service-a professional Support Team will be in charge of your order.
2. Inquiry processing-data sheet,price,picture,manual and certificate will be provided.
3. The product will be accurately according to your requirement-function,printing,sticker,manual and box.
4. Order progress tracking-photo of your order will be sent to you to keep abreast of progress about producing,testing, packaging and storing.
5. Shipping-a professional Logistics Department is in charge of shipping arrangement.
6. Stable delivery-quantity below 200 pieces will be delivered in 7 days.
7. Quality assurance-all of products have to be tested by our Quality Department before leaving factory. We will provide full coordination to your QC testing if necessary.
8. After-sale service-a professional Customer Service Team will be able to help with your questions of product.
9. Warranty-one years.
Q1: Why choose ALION?
1.ALION is a professional manufacturer that has focused on time control for 20 years.
2.ALION provides complete certification, such as CE, ROHS, ISO and so on.
3.ALION is strict accordance with the following points.
High quality - all of our products are produced according to international standard, we will provide full coordination to your QC testing if necessary.
Great service - a professional Service Team will be in charge of your order and help to solve your questions timely whether before or after you purchase.
Q2: How will you do the OEM?
We have own R&D team that involves 2 experienced structural engineers, 1 software engineer and 2 circuit engineers.
The OEM product will be accurately according to your requirement about function, printing, sticker, manual and box.
After the product has entered the market, you can send your feedback to our after-sale service team. Our R&D team will adjust and improve the product according to your feedback.
Q3: What is the MOQ for OEM?
Our MOQ for OEM is 1000 pcs.
Q4: Can I have a sample order?
YES, we can provide a sample for FREE to test or check quality, you only need to pay the freight cost.
Q5: What is the MOQ for ALION product?
There is no MOQ, we deal with any quantity of your order.
Q6: What is the payment term?
We accept T/T, L/C, Western Union and paypal.
Q7: What is the delivery time?
It depends on the quantity.
7 days, below 200 pcs.
10 days, below 500 pcs.
15 days, below 1000 pcs.
