Active infrared intrusion detectors Infrared detector Infrared intrusion detection system
- $12.00 / >=10 pairs
- 10 pairs
- Dongguan Tuotian Intelligent Technology Co., Ltd.
- Guangdong, China
- Ms ly Li
PRODUCT DETAIL
| brand: | Takuta | Certification: | is 9001 |
| port: | Shekou | model: | TT-A100 |
| payment terms: | L/C, Western Union, D/A, T/T | network: | transmission control protocol |
| Origin: | Guangdong, China |
Product Description
Model | ABT-50-250 | ABE-50-250 | ABH-50-300 |

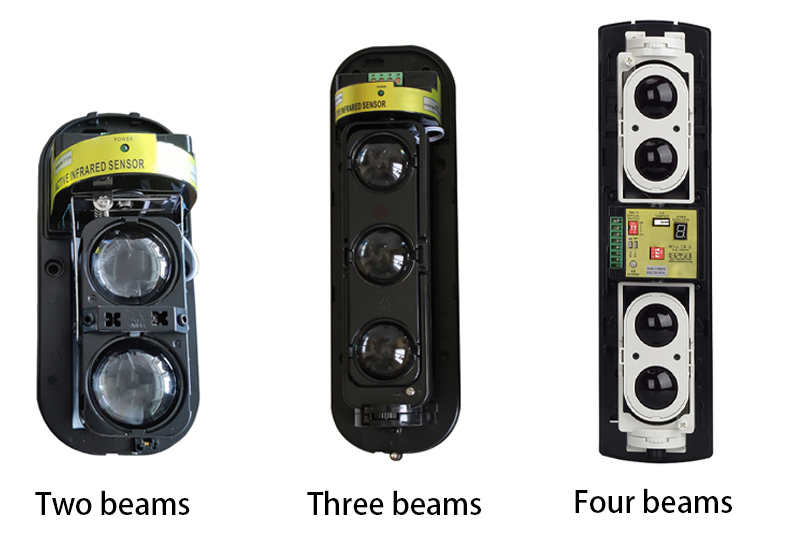

Number of beams | double girder | Three beams | Four beams |
Warning distance | 50-100m | 100-200m | 50-250m |
Detection method | Simultaneous two light interruption alarm | Simultaneous three beam interruption alarm | Simultaneous four beam interruption alarm |
light source | Infrared digital pulse | Infrared digital pulse | Infrared digital pulse |
Induction speed | 50-700 milliseconds | 50-700 milliseconds | 35-700ms adjustable |
Alarm Output | Relay contact output 1C (COM, NC, NO), contact capacity AC/dc30v 0.5amax | Relay contact output 1C (COM, NC, NO), contact capacity AC/dc30v 0.5amax | Relay contact output ON or NC, contact capacity AC/DC30V 0.5Amax |
voltage | AC12-18V/DC12-24V, minimum power 3W | AC12-18V/DC12-24V, minimum power 4W | DC12-24V/AC11-18V P |
current consumption | Transmitter+Receiver≤85mA | Transmitter+receiver≤100mA | 95mA/100mA/100mA/100mA/105mA/105mA |
range of working temperature | -25℃~55℃ | -25℃~55℃ | -25℃～50℃ |
Dimensions | 170mm*78mm*73mm | 265mm*85mm*85mm | 370mm*96mm*101mm |
Tamper output | Contact output: 1B (COM, none), contact capacity AC/DC 30V 0.5A Max | Contact output: 1B (COM, none), contact capacity AC/DC 30V 0.5A Max | Contact output, contact capacity AC/DC 24v 0.5AMax |
Optical axis adjustment angle (horizontal) | 180°(±90°) | 180°(±90°) | 180°(±90°) |
Optical axis adjustment angle (vertical) | 20°(±10°) | 20° (±10°) | 20° (±10°) |
Measures against condensation and frost | Heated housing (optional) | Heated housing (optional) | |
Other additional functions | Light receiving instruction, OK instruction, test manuscript | Light receiving instruction, OK instruction, test manuscript | |
Material texture: | PC (shell) + ABS (body) | PC (shell) + ABS (body) |

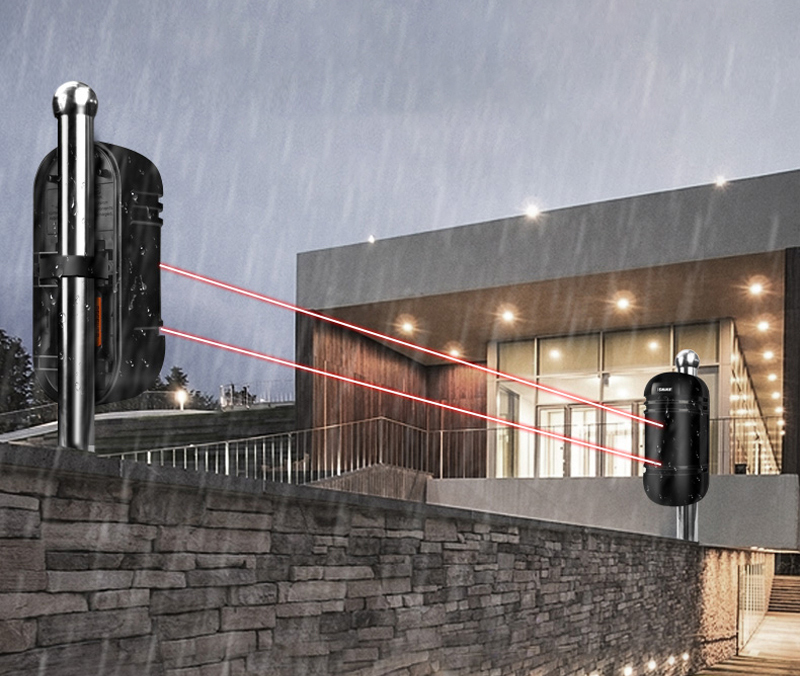

This is an infrared alarm on the wall, when someone tries to climb the wall, when the infrared is blocked, the infrared radiation
The alarm signal will be output, and the alarm host will receive the alarm signal
The alarm signal will be output, and the alarm host will receive the alarm signal

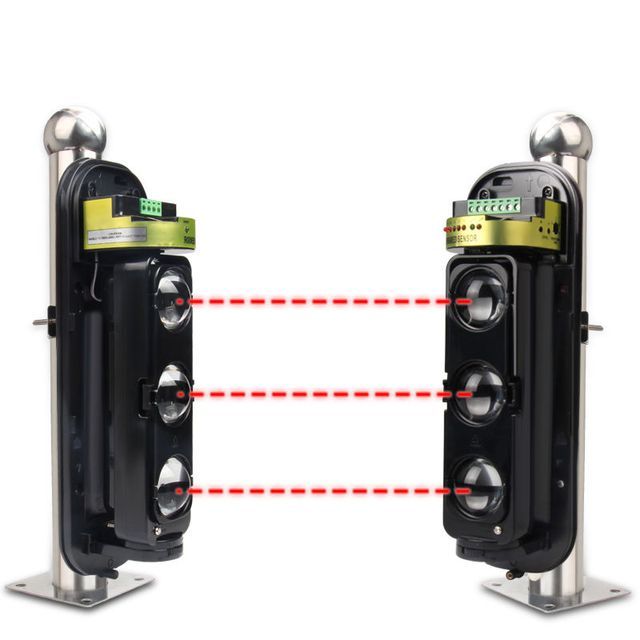

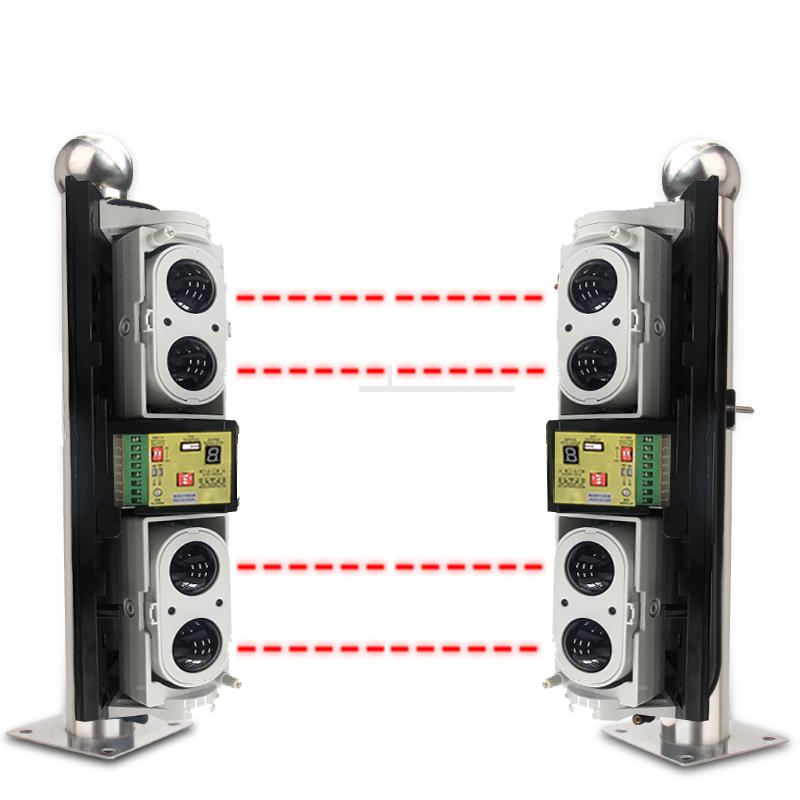

Beamactive Infrared Intrusion Beam Detector
Outdoor waterproof and anti-interference strong

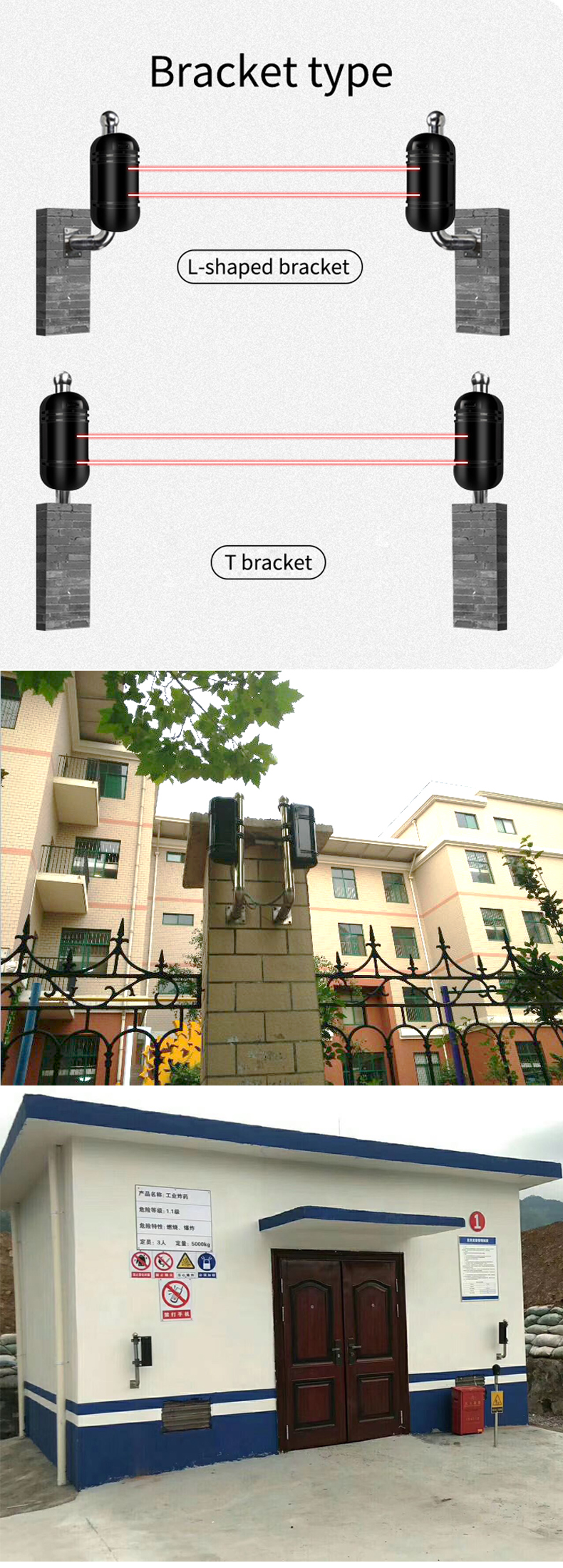

prevention site
With sealed design, it has the functions of waterproof, moisture-proof, windproof and snowproof. It can effectively resist the influence of harsh outdoor environment and make the use of radiation more stable

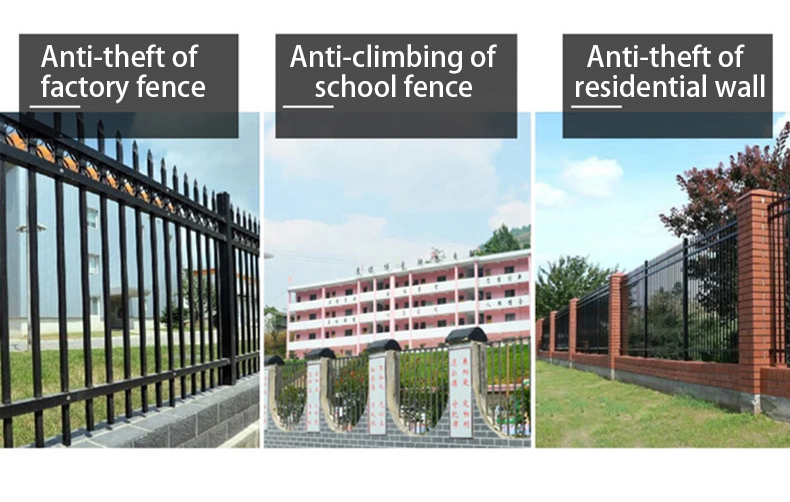

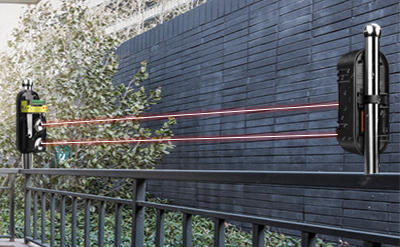

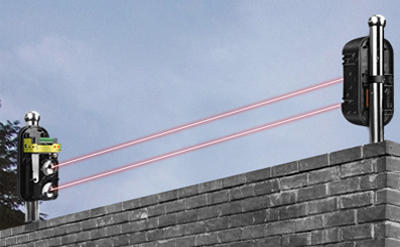

Anti-theft wall
Installed on the fence for anti-theft
Anti-theft balcony
Installed on the balcony to prevent theft

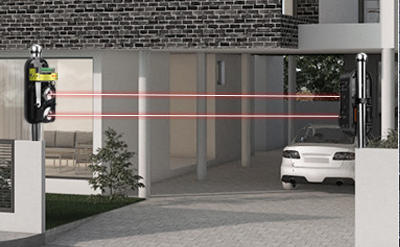

Anti-theft door
Installed on the gate to prevent theft
Product Usage
The set time is less than the time required for the intruder to pass through the torus. Power outage time can be set according to individual needs

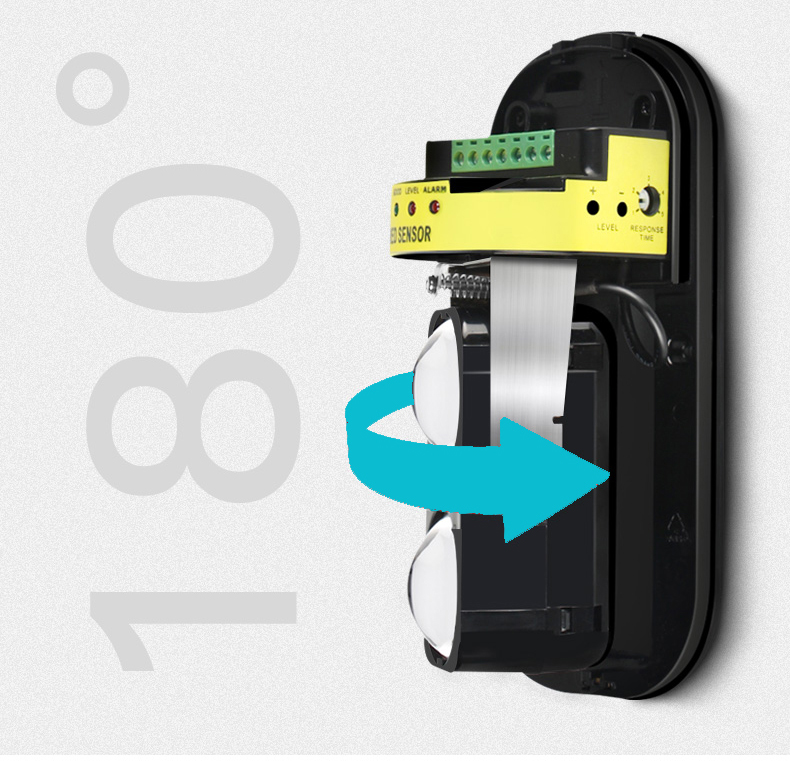

90° left and right rotation, 10° vertical rotation up and down, easy to install, omnidirectional projection focus
Orientation makes installation more comfortable
Orientation makes installation more comfortable
