Advertising letter LED letter sign making / cnc channel letter aluminum profile bending machine metal bending machine price
- $3800.00 / 1 - 5 sets
$3500.00 / >=6 sets - 1 set
- Shenyang Jiahua De-Long Science Technology Co., Ltd.
- Liaoning, China
- Ms Carolina Liang
PRODUCT DETAIL
| Applicable industries: | Retail, Energy & Mining, Food & Beverage Stores, Printing Stores, Hotels, Home Use, Mechanical Repair Stores, Manufacturing Plants, Food & Beverage Plants, Advertising Agencies, Restaurants, Construction Works, Clothing Stores, Building Materials Stores | Core Components Warranty: | 1 year |
| Video external inspection: | Not available | Core components: | motor |
| Weight (kg): | 350 | Material Height: | 30-128mm (customizable by user) |
| Warranty: | 1 year | brand: | DROVECNC |
| Mechanical test report: | if | Packaging Preview: | |
| Bending Radius: | 4mm | air pressure: | 0.8mpa |
| Extra Services: | Grooving and Grooving v Cutting | Health status: | new |
| Raw materials: | Sheet/Platform Rolling | Material thickness: | 0.2mm-1.5mm |
| Single package size: | 1600X80X145 cm | Material/Metal Finishing: | PVC, aluminum, stainless steel |
| Packaging Details: | Standard export wooden box | file format: | DXF AI PLT |
| Gross weight per piece: | 280.000 kg | place of origin; place of origin: | Liaoning, China |
| Sales unit: | single product | Type of machine: | Rolling machine |
| Marketing Type: | easy to operate | automation: | automatic |
| Showroom location: | not any | Main selling point: | high accuracy |
| Material: | aluminum, stainless steel | After-sales service provided: | Engineers can repair machinery overseas |
Product Description

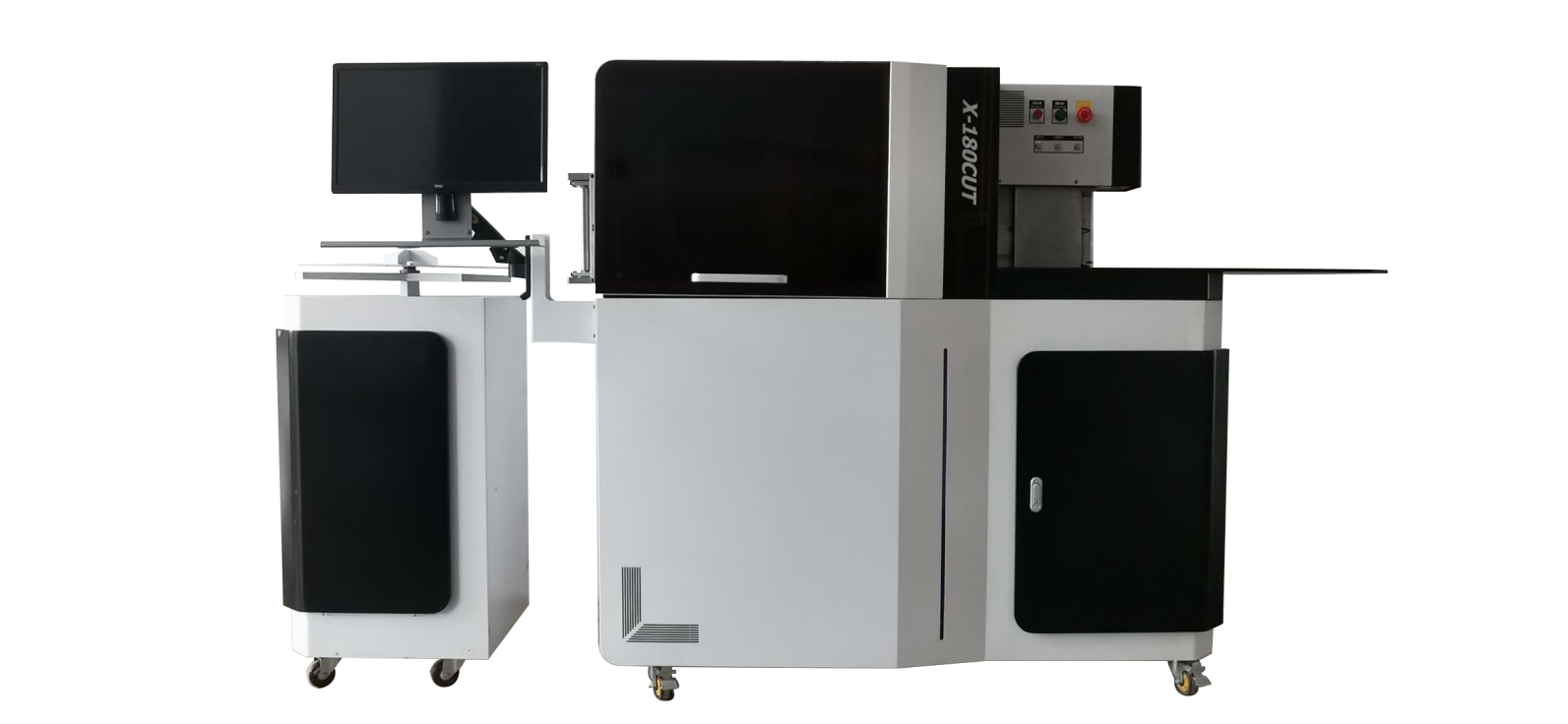

X180CUT Slotted Flanging Bending Machine

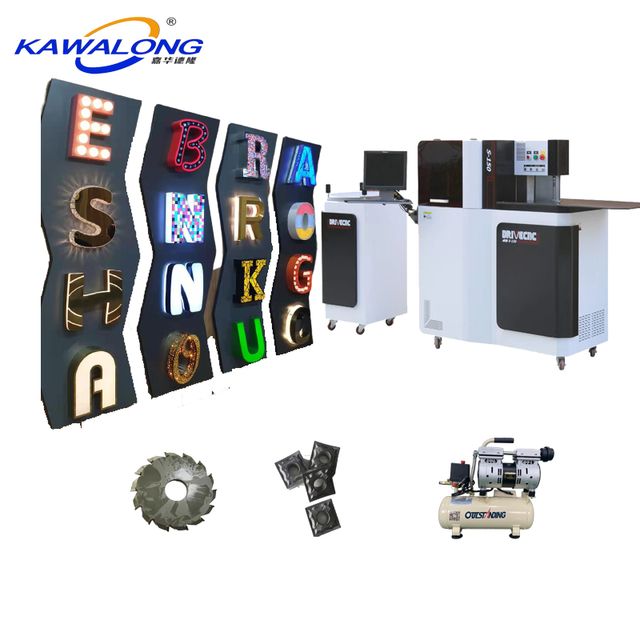

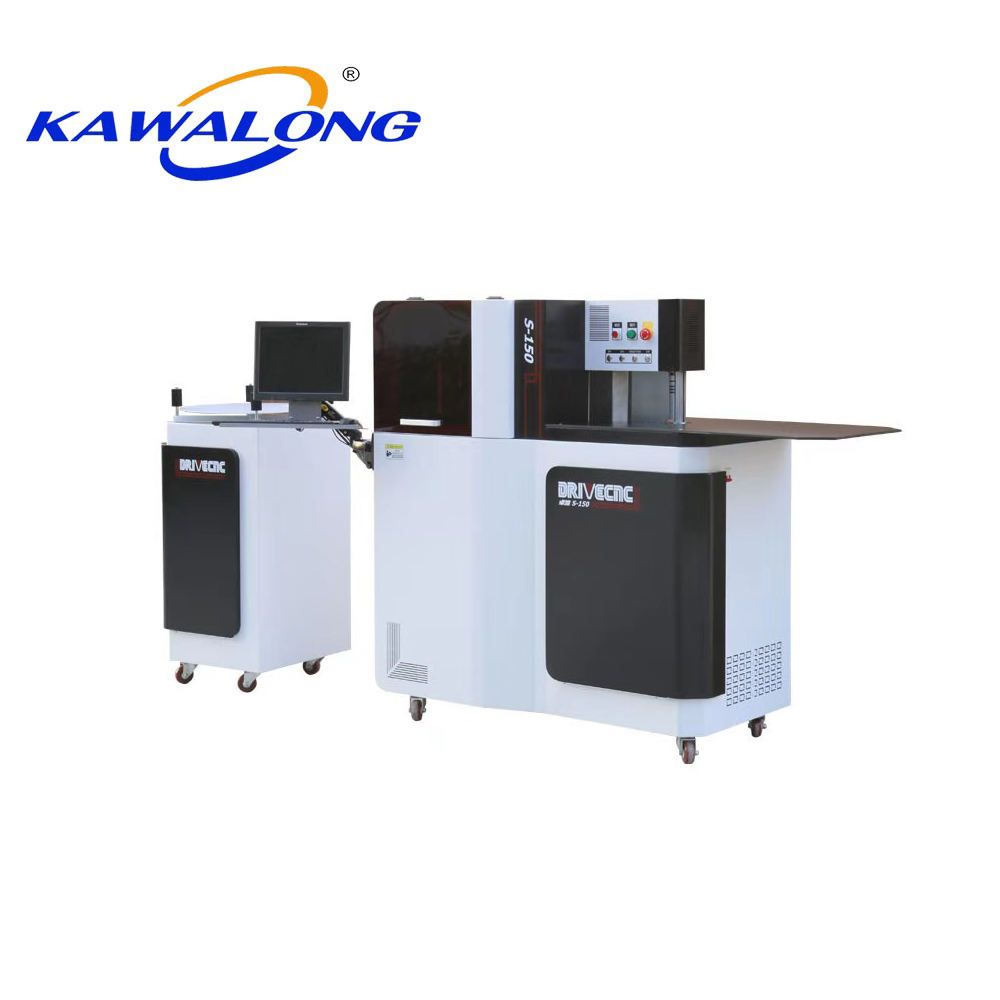

SS and Aluminum 3d Sign All in One Channel Letter Bending Machine S150
Specification
S-150 technical parameters | ||||||
Function | Automatic feeding, automatic grooving, automatic bending | |||||
Applicable materials | Folded aluminum, flat aluminum, profiled aluminum, stainless steel and galvanized | |||||
Material width | 20-150mm | |||||
Material thickness | Stainless steel (0.3-1.0mm) | Aluminum (0.6-1.5mm) | Galvanized Iron (0.4-1.0) | |||

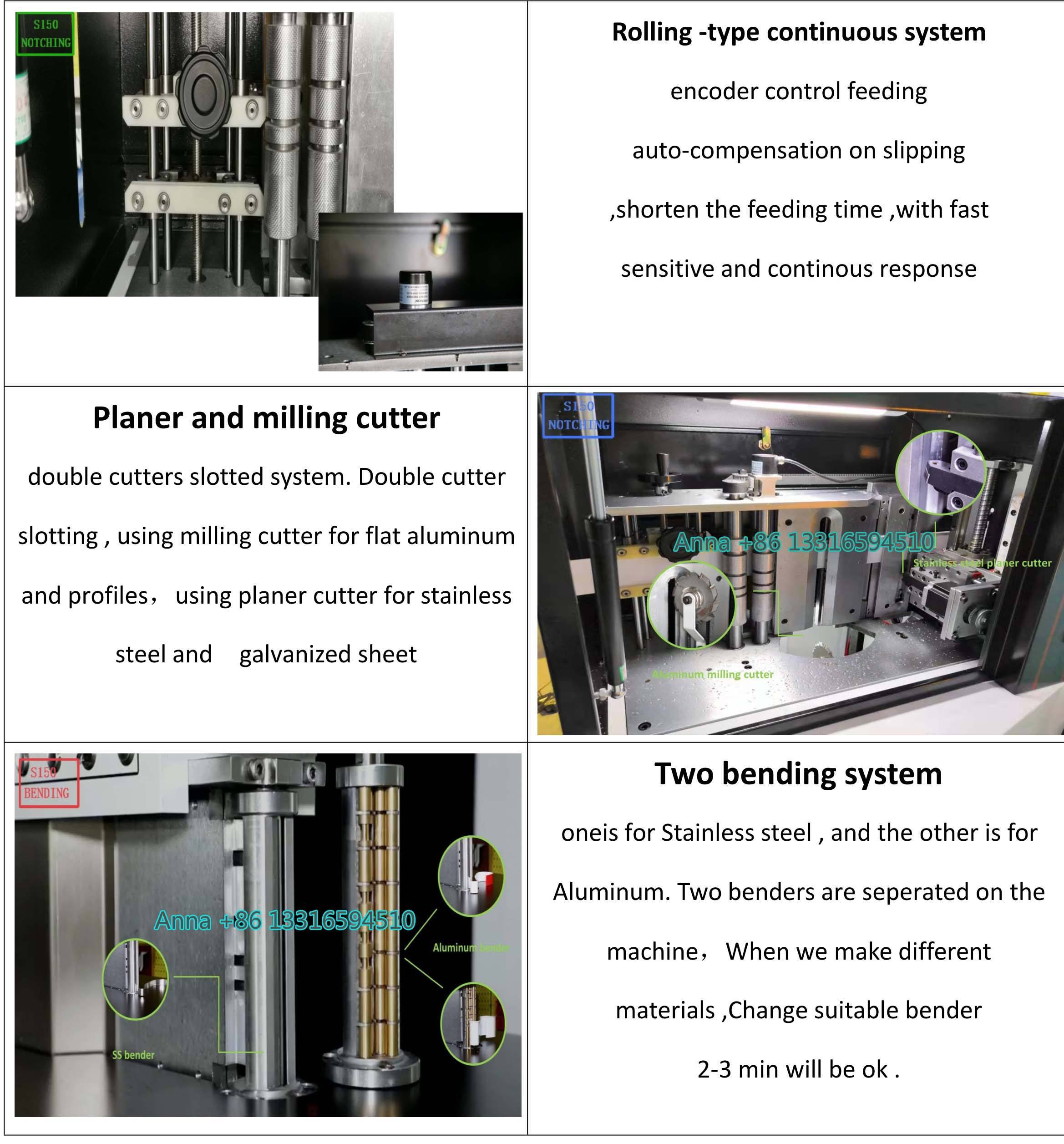

feeding system | Rolling continuous feeding system | |||||
Grooving system | Face milling cutter grooving system | |||||
Bending system | Stainless Steel and Aluminum Double Roller Bearing Extrusion Bending System | |||||
accuracy | ±0.1mm | |||||
Bending radius | ≥10mm | |||||
input file format | PLT,DXF,AI, | |||||
strength | AC 220V/50HZ/ 3.5KW | |||||
Gas source | 0.6-0.8MPa | |||||
Control System | Force CBS4 | |||||
weight | 350kg | |||||
Packing size-mm | L2100*W800*H1600 | |||||
X180 CUT technical parameters | ||||
hardware | feeding system | Alternate feeding structure of precision screw drive and mechanical arm (closed-loop self-checking system) | ||
Grooving system | Carbide planer | |||
Slotted structure | Cylinder Slotting | |||
Flanging structure | Cylinder Pneumatic Flanging | |||
Bending system | Bipolar alternating partial arc mechanism and patented alternating arc extrusion structure | |||
motor | 3 sets of servo motors; 1 set of stepper motors | |||
weight | 800kg | |||
aspect | Body: L2140mm*W700mm*H1560mm; feeding table L500mm*W500mm*H1100mm | |||
Material category | Flat aluminum/stainless steel/galvanized sheet (height: 20-180mm) | |||
Material thickness | Flat aluminum: 0.6 -1.5 mm / SS: 0.3-1.2mm / Galvanized sheet: 0.4-1.2mm | |||
Flanging thickness | Flat aluminum 0.8mm | |||
Slotting angle | 30° / 120° | |||
Flange width | 10mm | |||
Supported formats | Aluminum/PLT/DXF/NC | |||
Feed accuracy | Length j+0.1mm radius> 4mm | |||
control card | Leetro four-axis motion control card | |||
Software system | Automatic driving/CBS4 automatic bending system | |||
Input voltage | 220V 50Hz 3Kw | |||
air pressure | 0.6-0.8Mpa | |||

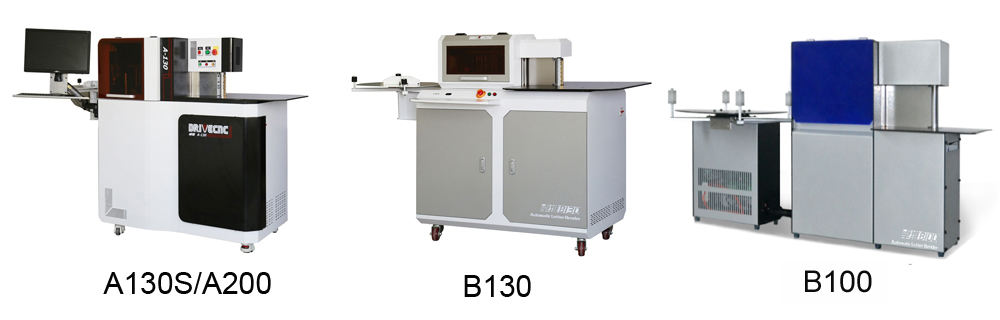

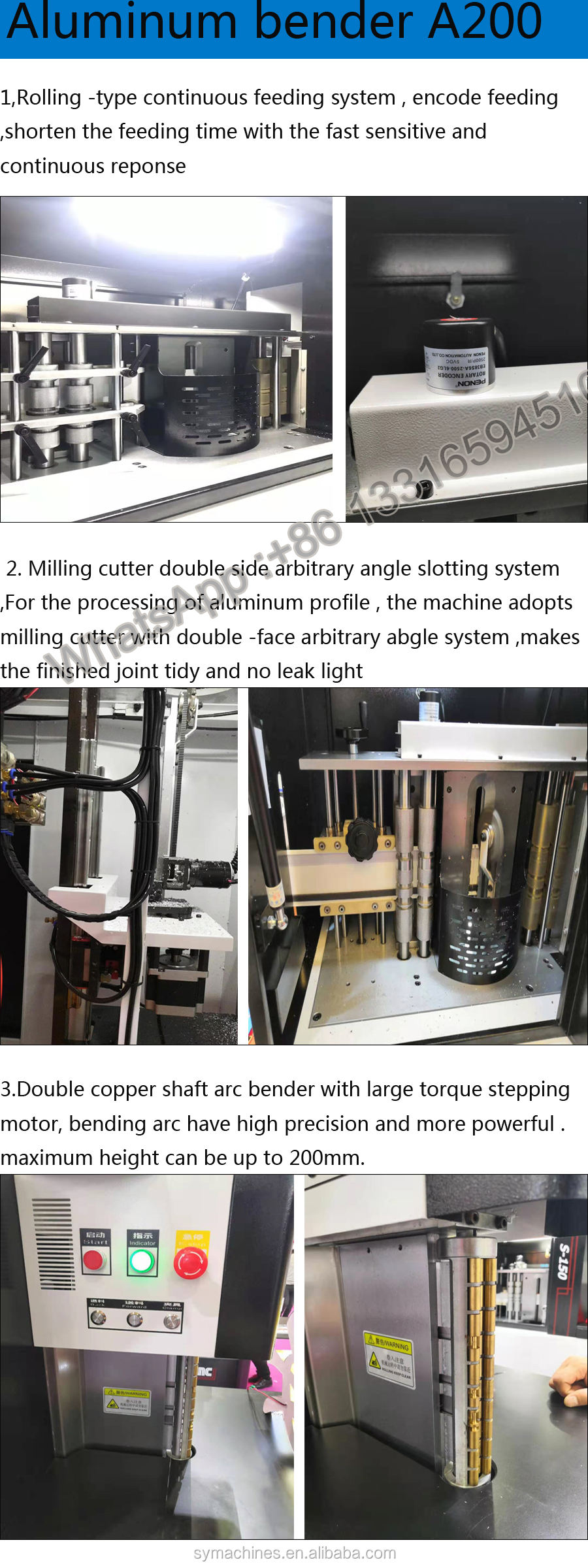

Aluminum word bending machine | ||||||
Model | A-200 | A-130S | B-130 | |||
Function | Automatic feeding, slotting, bending | |||||
Applicable materials aluminum = aluminum | Folded aluminium, flat aluminium, profiled aluminium and PVC and foam profiles | Folded aluminum, flat aluminum, profiled aluminum | Folding aluminum, flat aluminum | |||
Material width | 20-200mm | 20-130mm | 20-130mm | |||
Material thickness | 0.5-1.2mm | 0.5-1.2mm | 0.5-1.2mm | |||
feeding system | Rolling continuous feeding system | |||||
Grooving system | Milling cutter double-sided arbitrary angle grooving system | |||||
Bending system | Double roller bearing extrusion bending system | |||||
accuracy | ±0.1mm | |||||
Bending radius | ≥7mm | ≥4mm | ≥7mm | |||
input file format | PLT,DXF,AI, | PLT,DXF,AI, | PLT,DXF,AI, | |||
strength | AC 220V/50HZ/ 3KW | AC 220V/50HZ/ 3KW | AC 220V/50HZ/ 3KW | |||
