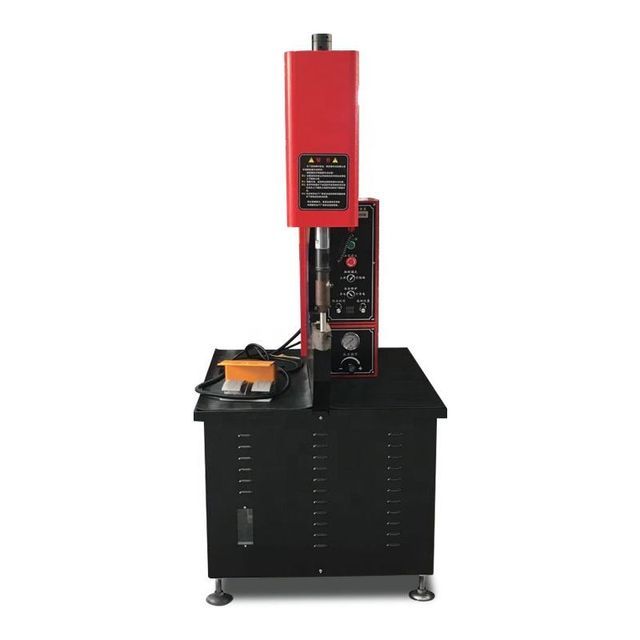

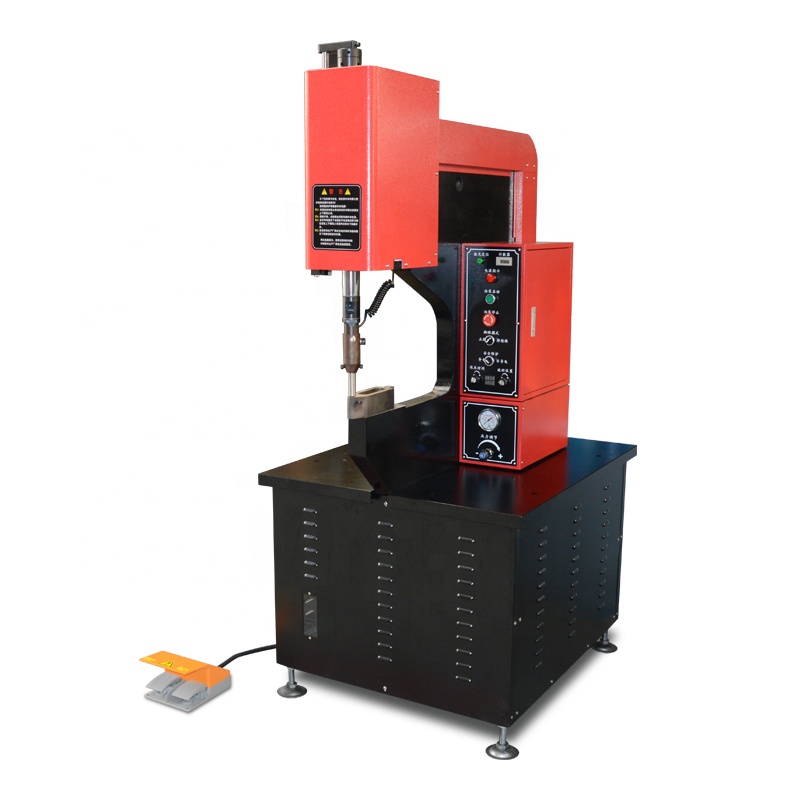

Aluminum Cookware Wholesale Custom Factory Price Semi Automatic Riveting Machine
- $3750.00 / 1 - 9 sets
$3250.00 / >=10 sets - 1 set
- Dongguan Juli Hydropneumatic Equipment Co., Ltd.
- Guangdong, China
- Mr Tony July
PRODUCT DETAIL
| Core components: | engine | After-sales service provided: | online support |
| Supply capacity: | 150 sets per month | Applicable industries: | Construction projects, others, clothing stores, restaurants, building materials stores, advertising agencies, machinery repair shops, manufacturing plants |
| Power (kW): | 2.2 | Local service location: | not any |
| Main selling points: | easy to operate | port: | Shenzhen |
| Core component warranty: | 1 year | Origin: | Guangdong, China |
| Weight (kg): | 530 | Energy source: | Mechanical |
| Mechanical test report: | if | Warranty: | 1 year |
| After warranty service: | Video technical support | Health status: | new |
| brand: | July | Packaging Details: | Foam inside, plywood case outside |
| payment terms: | L/C, Western Union, T/T | Video shipment inspection: | if |
| Marketing Type: | New Products 2020 | Showroom location: | not any |
Product Description
product specification
No | thing | data |
1 | C-shaped throat depth | 500mm |
2 | C type throat height | 365mm |
3 | stroke | 100mm |
4 | Nominal pressure | 100KN (10T) adjustable |
5 | positive limit device | lower control limit |
6 | Driver model | Low noise and high efficiency hydraulic system |
7 | Repeatability of mechanical load | ±1% |
8 | Mold Assembly Replacement Model | Quick Release Block for Loose Clamp Screws |
9 | Automatic support rocking plate (optional) | Fast automatic feeding system |
10 | Laser Positioning Instructions | Rapid positioning |
11 | Stand-alone form factor (MM) | 840*710*1950MM |
12 | Input power capacity/voltage | 2.2KW three-phase 380V |
detailed drawing

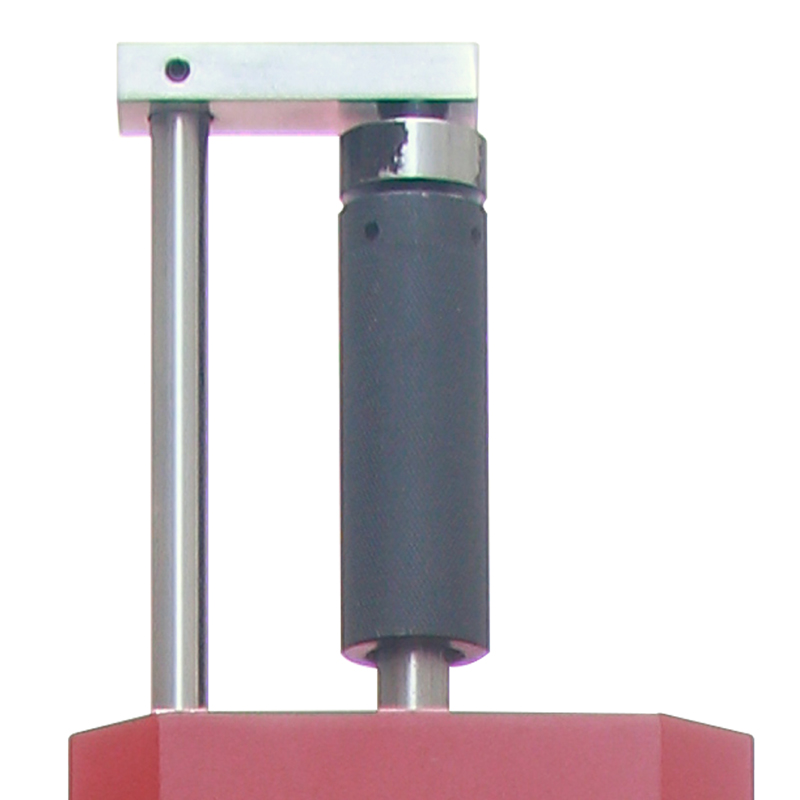

positive limit
Positive stop system provides an easily adjustable method of precisely maintaining machine stops
Cylinder, effectively prevents indentation of soft materials when inserting fasteners, such as aluminum, fiberglass,
Printed circuit boards, plastics and various composite materials. Product thickness can be accurate to ±0.05mm.
Cylinder, effectively prevents indentation of soft materials when inserting fasteners, such as aluminum, fiberglass,
Printed circuit boards, plastics and various composite materials. Product thickness can be accurate to ±0.05mm.

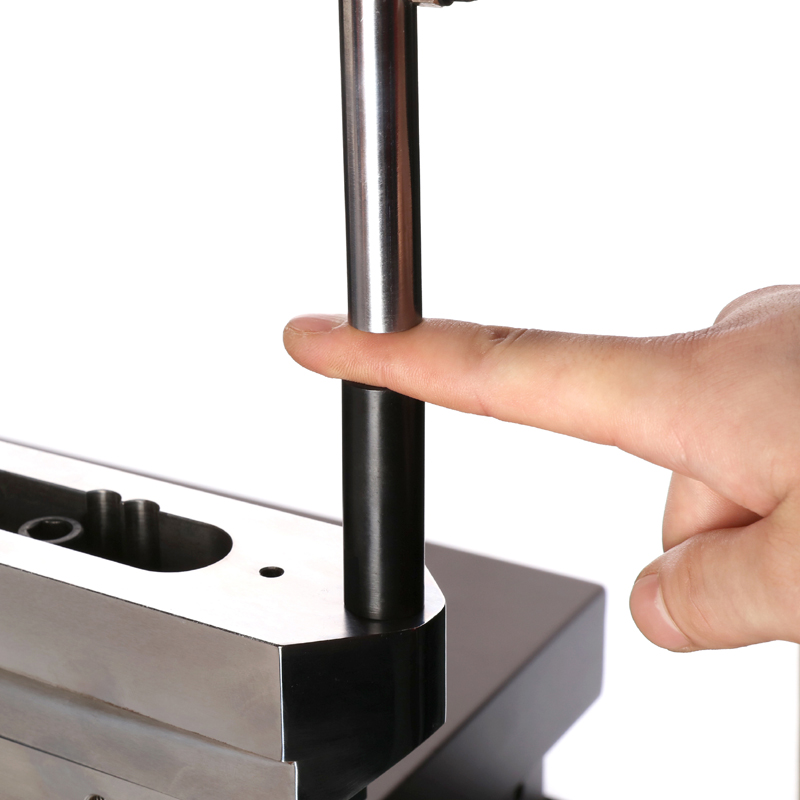

Anti-crushing hand protection system
The intelligent fastener insertion machine is equipped with mandatory our patented safety protection system, automatic detection
The anti-pinch function works when the machine is turned on.
The anti-pinch function works when the machine is turned on.

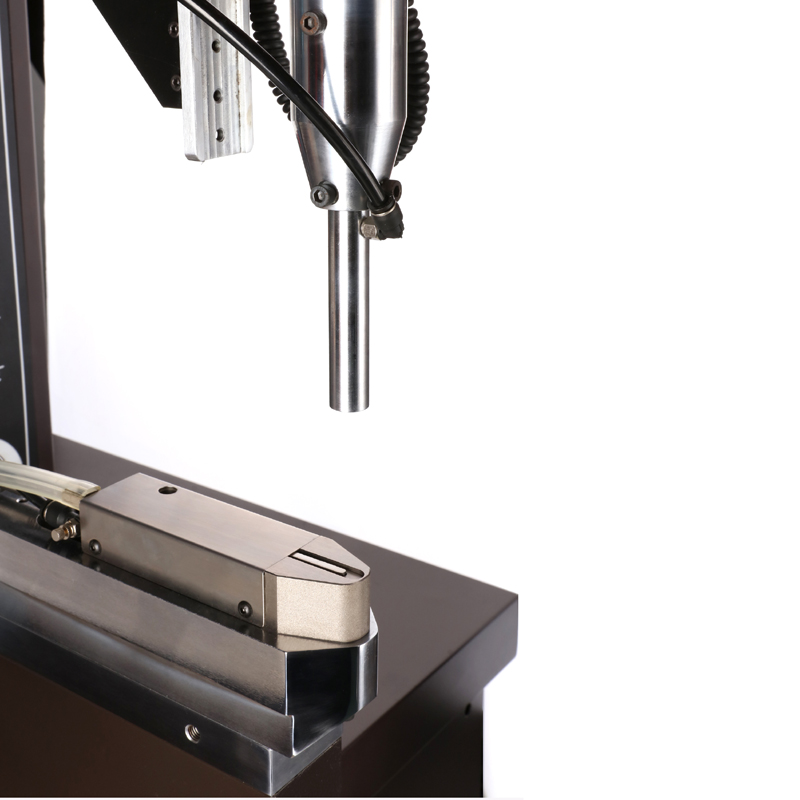

Replaceable mold base mounting plate
The lower mold base is often replaced during work, resulting in long-term failure of the threaded thread of the locking thread
Serving. This machine is specially designed with hardened and ground quick-change bottom plate for the mold base.
Serving. This machine is specially designed with hardened and ground quick-change bottom plate for the mold base.

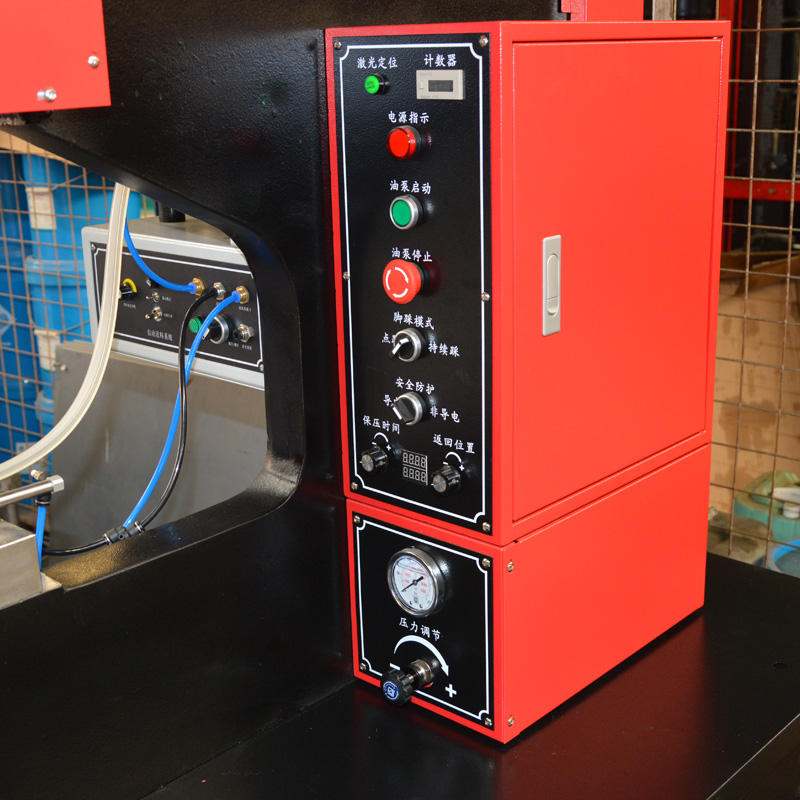

Main electrical cabinet and control panel
Control power supply, parameter setting and pressure regulation etc.

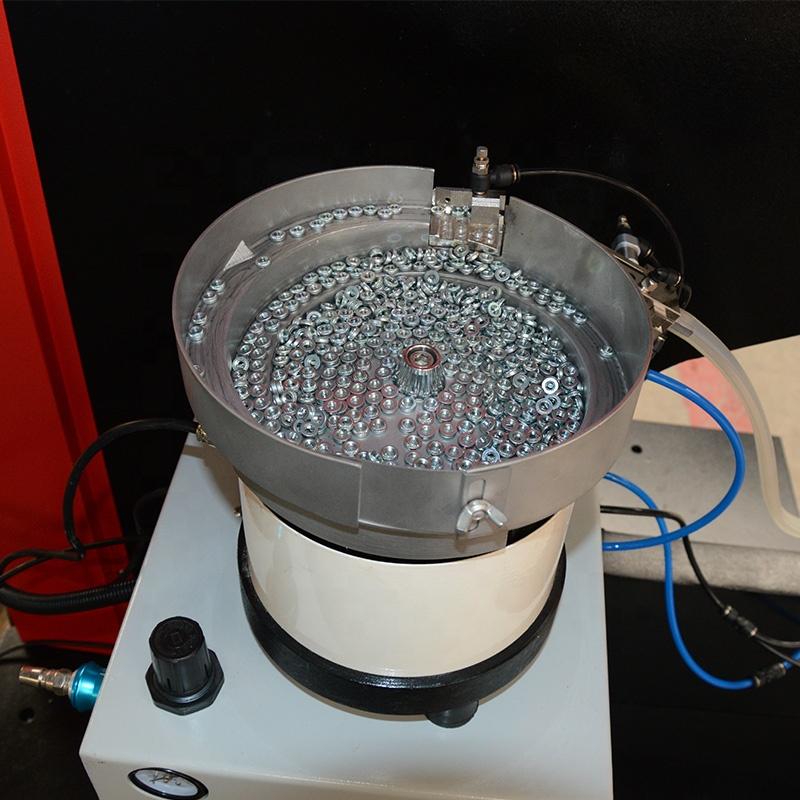

Automatic feeding system (optional)
The intelligent switch of the bowl feeder prevents the fasteners from rubbing for a long time in a vibrating state, causing coating
Peel and wear. For automatic feeding of M2-M6 size screws, nuts and studs. maximum length nut and
The standoffs can reach 30mm. The system has the function of quickly removing residual fasteners.
Peel and wear. For automatic feeding of M2-M6 size screws, nuts and studs. maximum length nut and
The standoffs can reach 30mm. The system has the function of quickly removing residual fasteners.

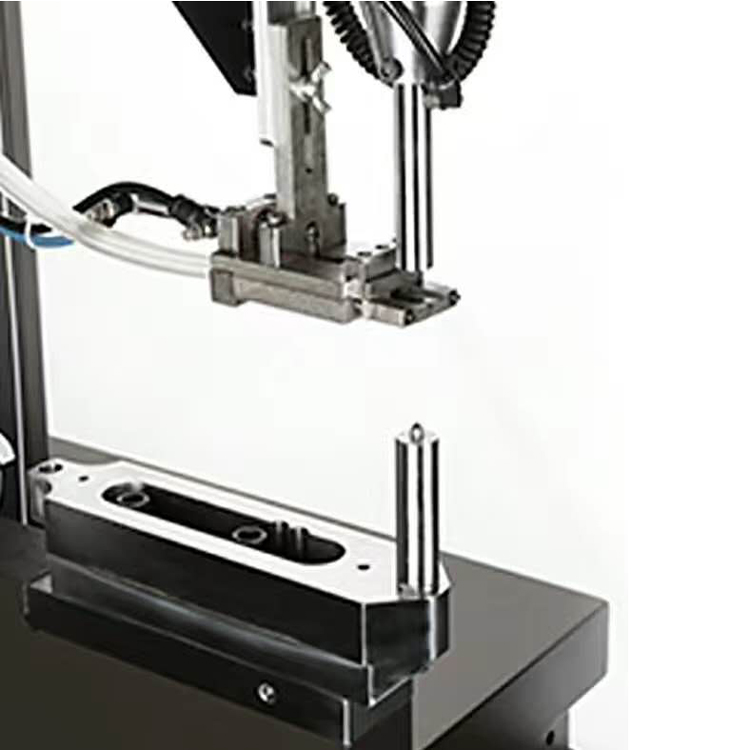

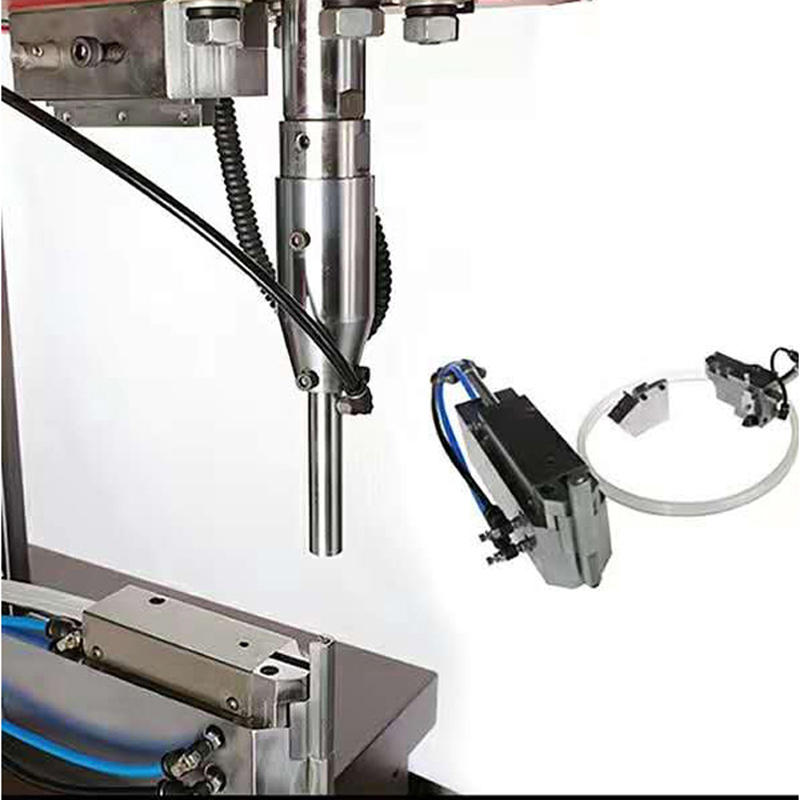

Automatic feeding tool (optional)
According to different feeding methods and fasteners, we have designed different tooling to realize the work of the machine
automatically.
automatically.

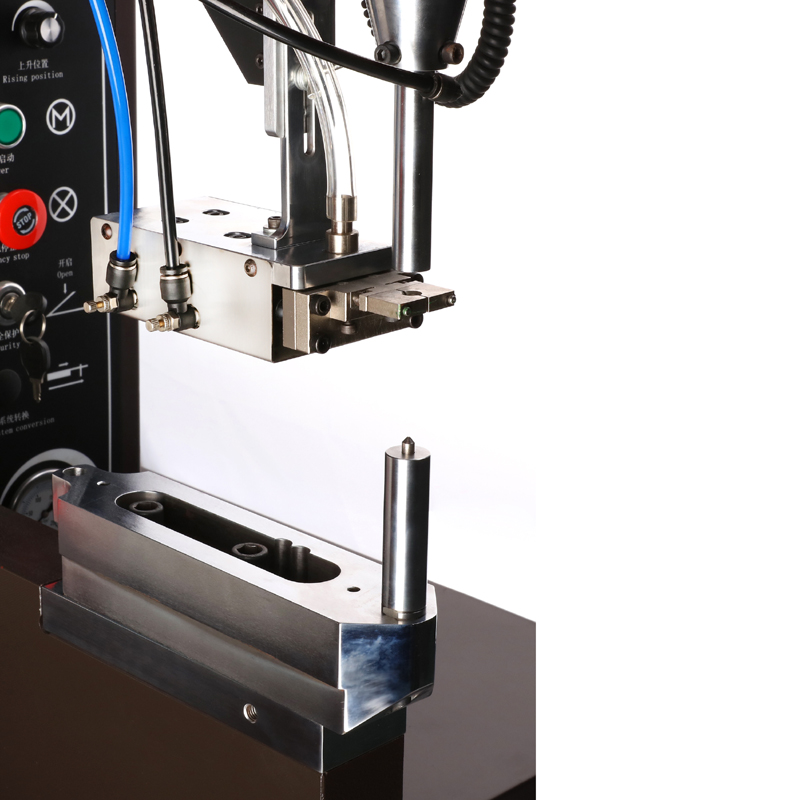

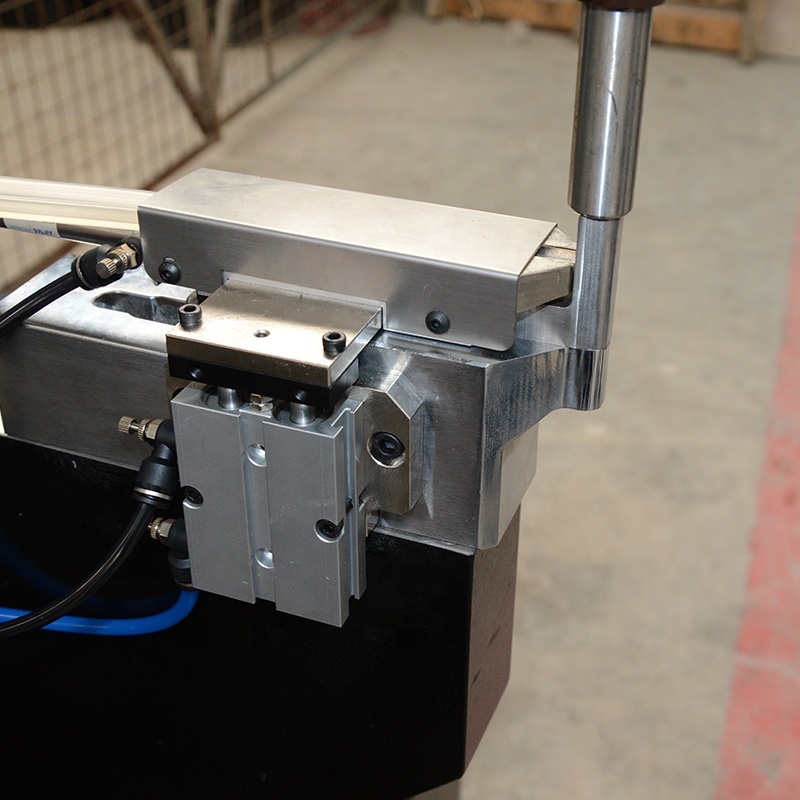

Automatic feeding tool (optional)
According to different feeding methods and fasteners, we have designed different tooling to realize the work of the machine
automatically.
automatically.

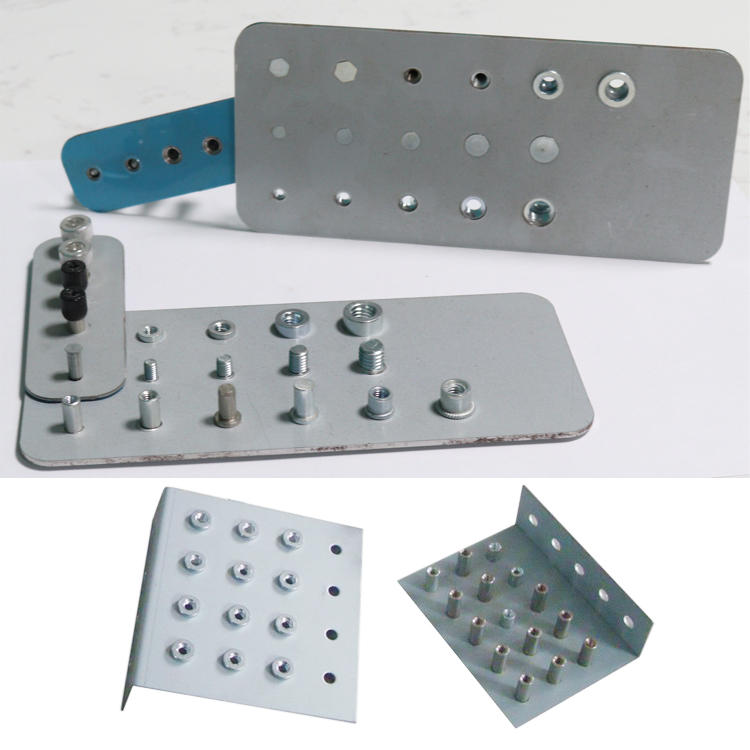

application

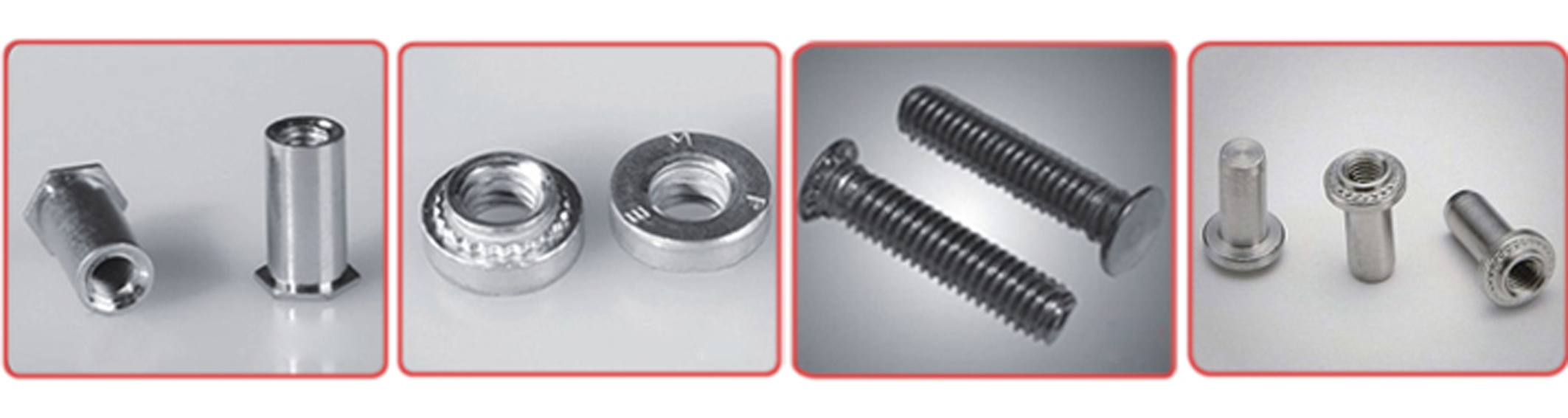

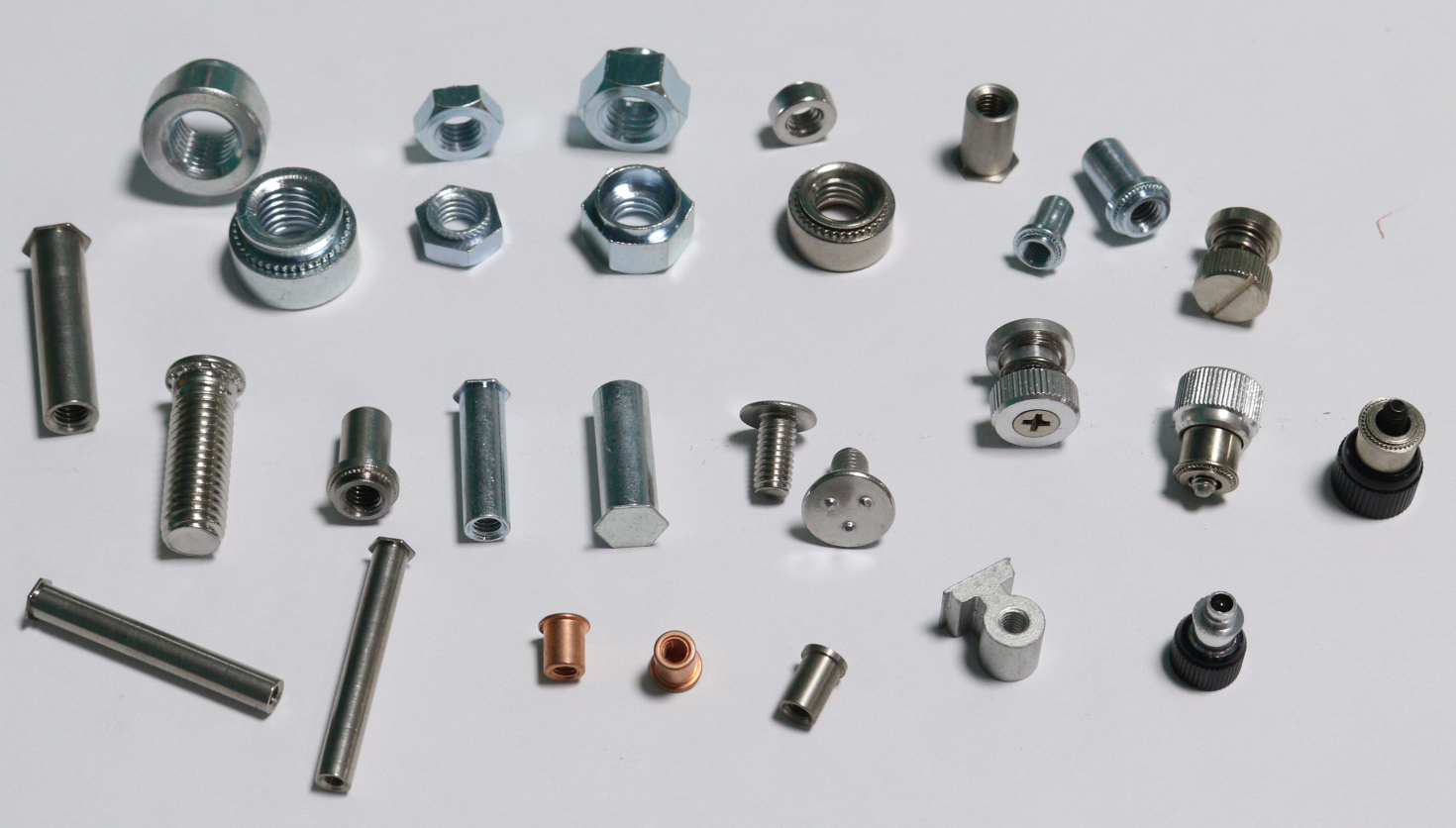

Fastener Reference
From our standard offering of insertion machines, to our build-to-order products and custom engineered insertion solutions,
Co-Win has the ability to provide you with a fully unified solution to virtually any insertion challenge. whatever your
Companies new to hardware insertion, or inserting millions of fasteners each year, our solutions-oriented approach will ensure
You can get the right system for your needs.
Co-Win has the ability to provide you with a fully unified solution to virtually any insertion challenge. whatever your
Companies new to hardware insertion, or inserting millions of fasteners each year, our solutions-oriented approach will ensure
You can get the right system for your needs.
