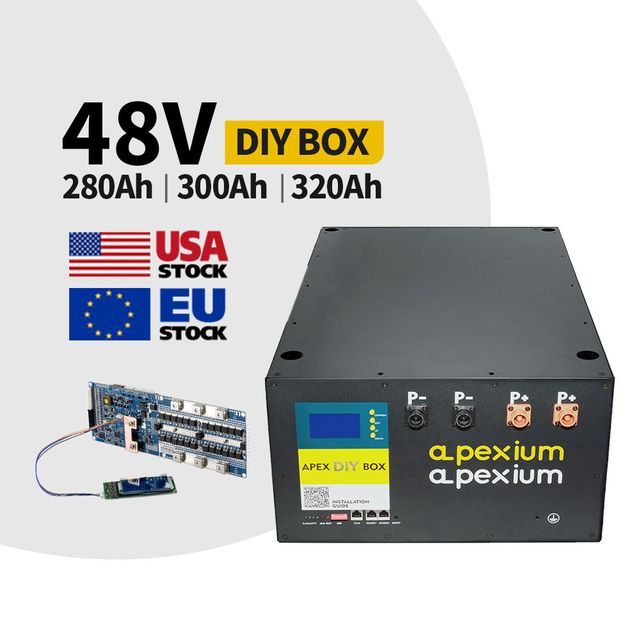

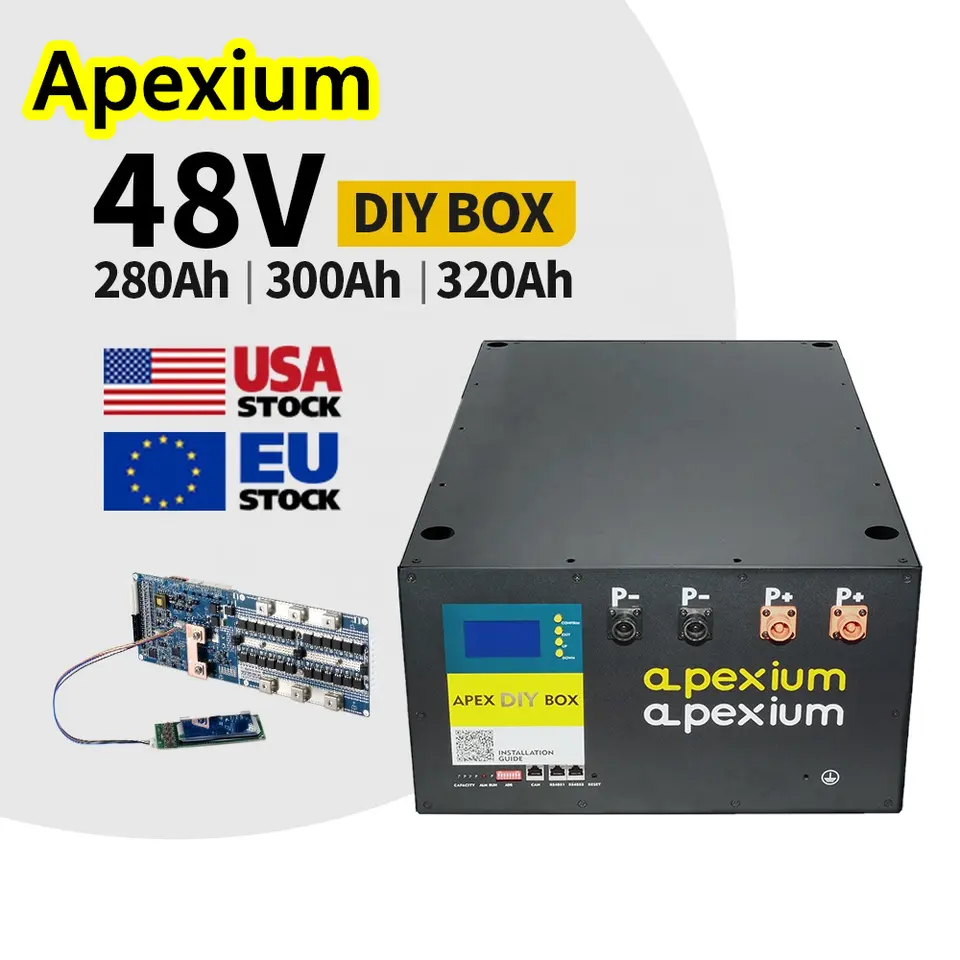

Apexium Custom Mason 16S 280 Diy Kit 48V 280ah Lifepo4 Battery Box 320Ah Akku Empty Box 200A BMS Solar Battery Pack
- $420.00 / 2 - 49 pieces
$360.00 / 50 - 99 pieces
$340.00 / 100 - 4999 pieces
$190.00 / >=5000 pieces - 2 pieces
- Docan Technology (shenzhen) Co., Ltd.
- Guangdong, China
- Ms Jenny Wu
PRODUCT DETAIL
| Sales unit: | Single product | model: | 280 304 302 310 DIY kit |
| Voltage: | 48V/51.2V | Dimensions (mm): | 440*750*270mm |
| Battery management system: | Apexium 48V 16S 200A Battery Management System | Packaging details: | Use high-hardness customized sponge to strengthen the battery and five-layer dangerous goods export corrugated carton to ensure free transportation. |
| Gross weight of single piece: | 36.000kg | Package preview: | |
| brand: | celery | Material: | steel |
| application: | UPS/solar household system | Cycle life: | 6000 cycle life |
| Model: | 280 with 200A BMS | Warranty: | 5 years |
| Single piece packaging size: | 45X35X25cm | battery model: | Eve 280AH 304AH, CATL 280AH 304AH |
| Place of origin: | China | brand: | top |
| Name: | 48V 280ah solar system |
Best DIY 16S 48V 51.2V Empty Metal Box 280AH 302AH 304AH 310AH Stackable Box Metal Box with Accessories
brand | peak | ||||||
Model | 48V 16S 280/304/320ah DIY box | ||||||
application | Apexium Energy Home System | ||||||

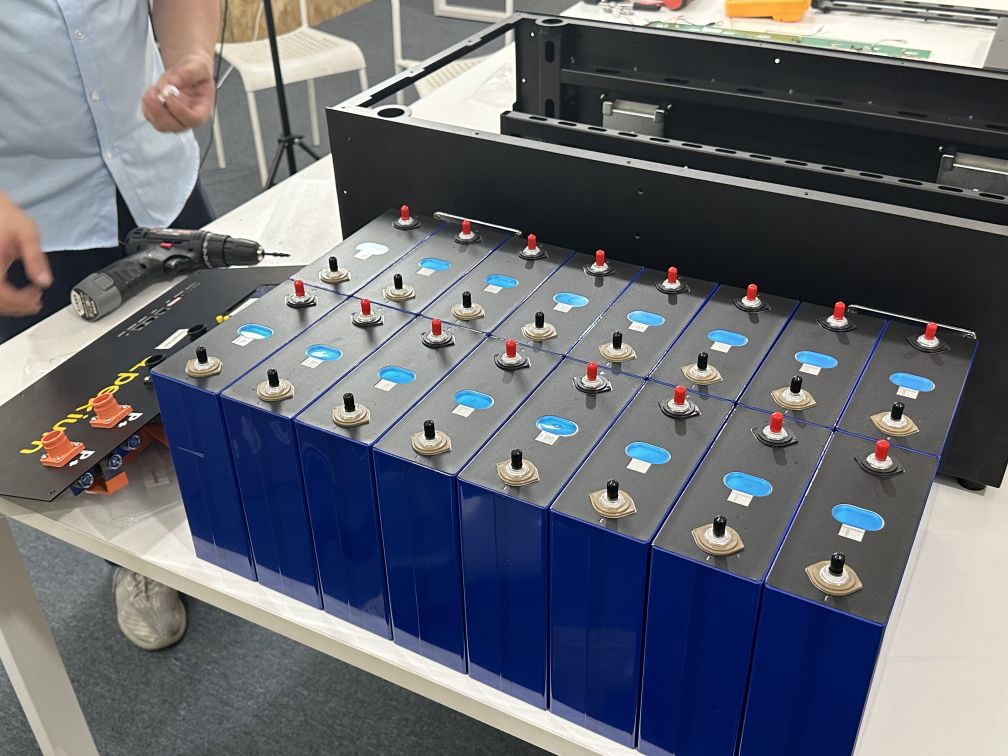

Battery Type | 280 Ah 302 Ah 304 Ah | ||||||
communicate | CAN bus and RS485 | ||||||
battery management system | 48V 16S 200A battery management system | ||||||
weight | 24kg/28kg | ||||||
Q | 48V/51.2V | ||||||

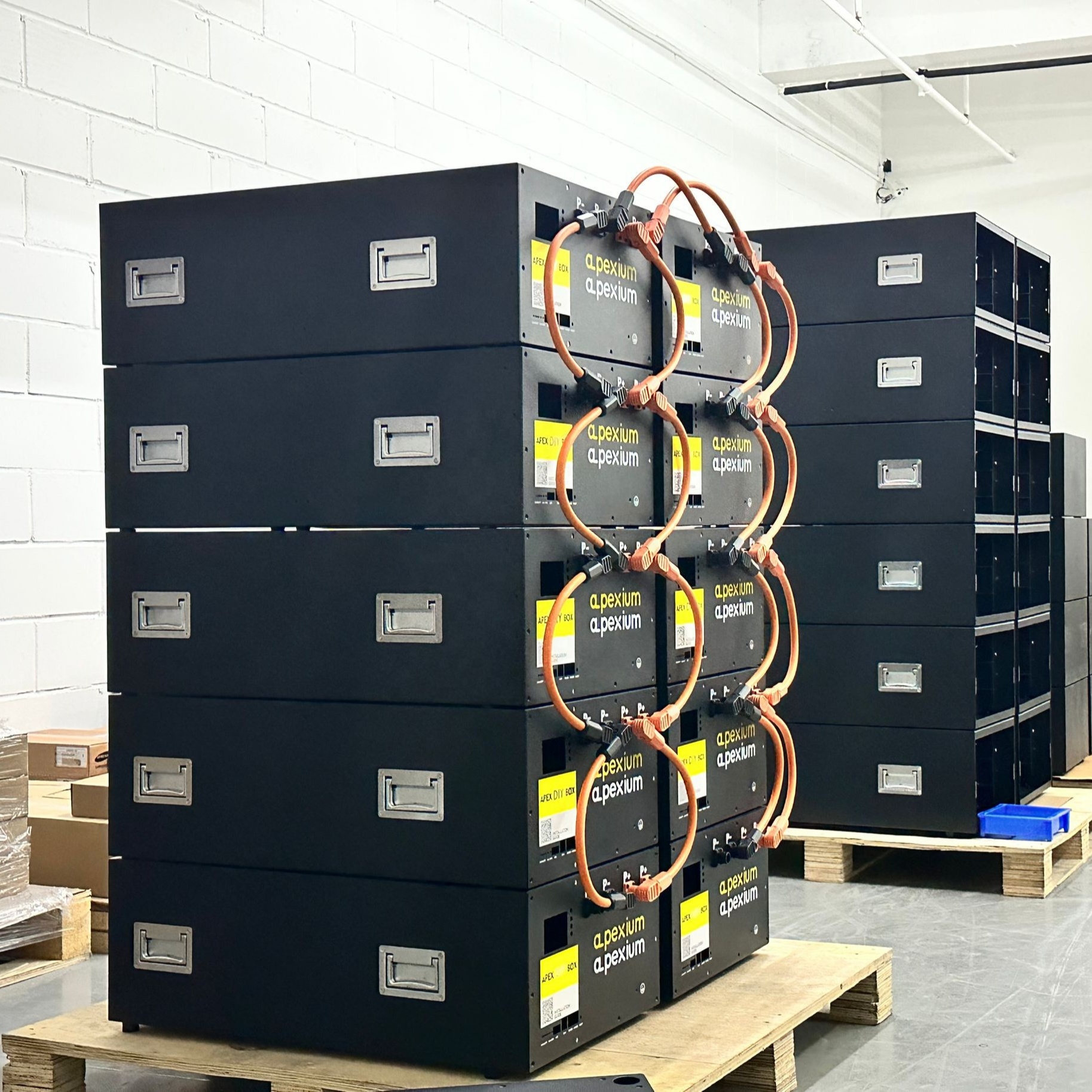

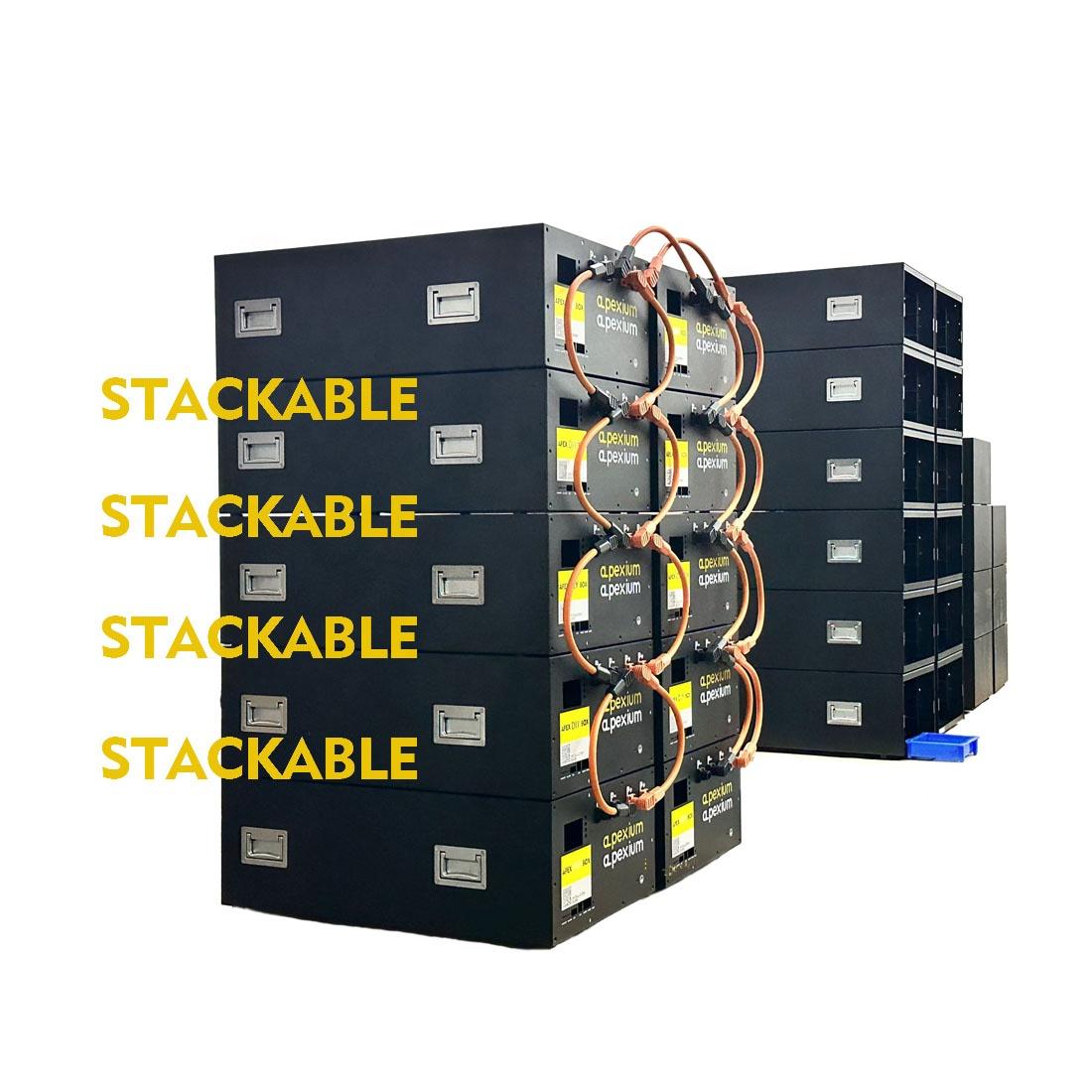

Battery pack type | Stackable | ||||||
continuous current | 200A | ||||||
Material | Stainless steel | ||||||
size | (230)67*52*32cm (280)84*53*34cm | ||||||
OEM/ODM | acceptable | ||||||
Building management system functions
Overcharge protection
Over discharge protection
Overcurrent protection
battery balancing
temperature protection
CAN and RS485 communication
See the BMS specification for details.
Overcharge protection
Over discharge protection
Overcurrent protection
battery balancing
temperature protection
CAN and RS485 communication
See the BMS specification for details.

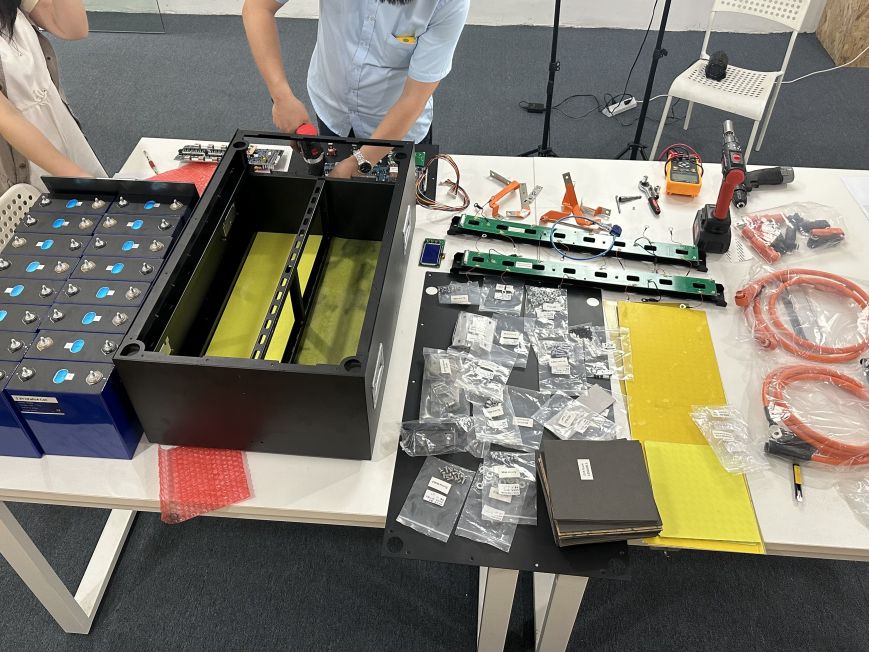

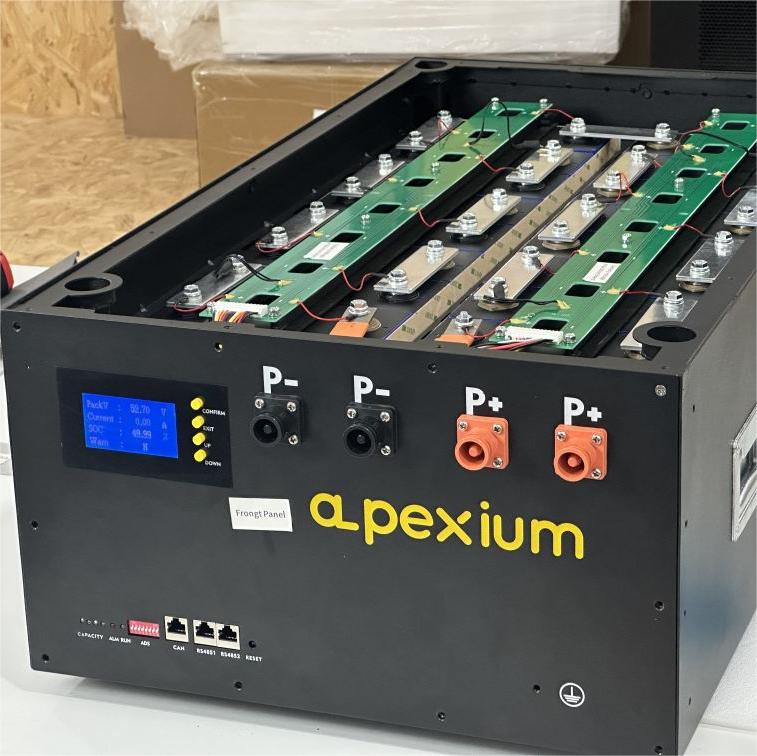

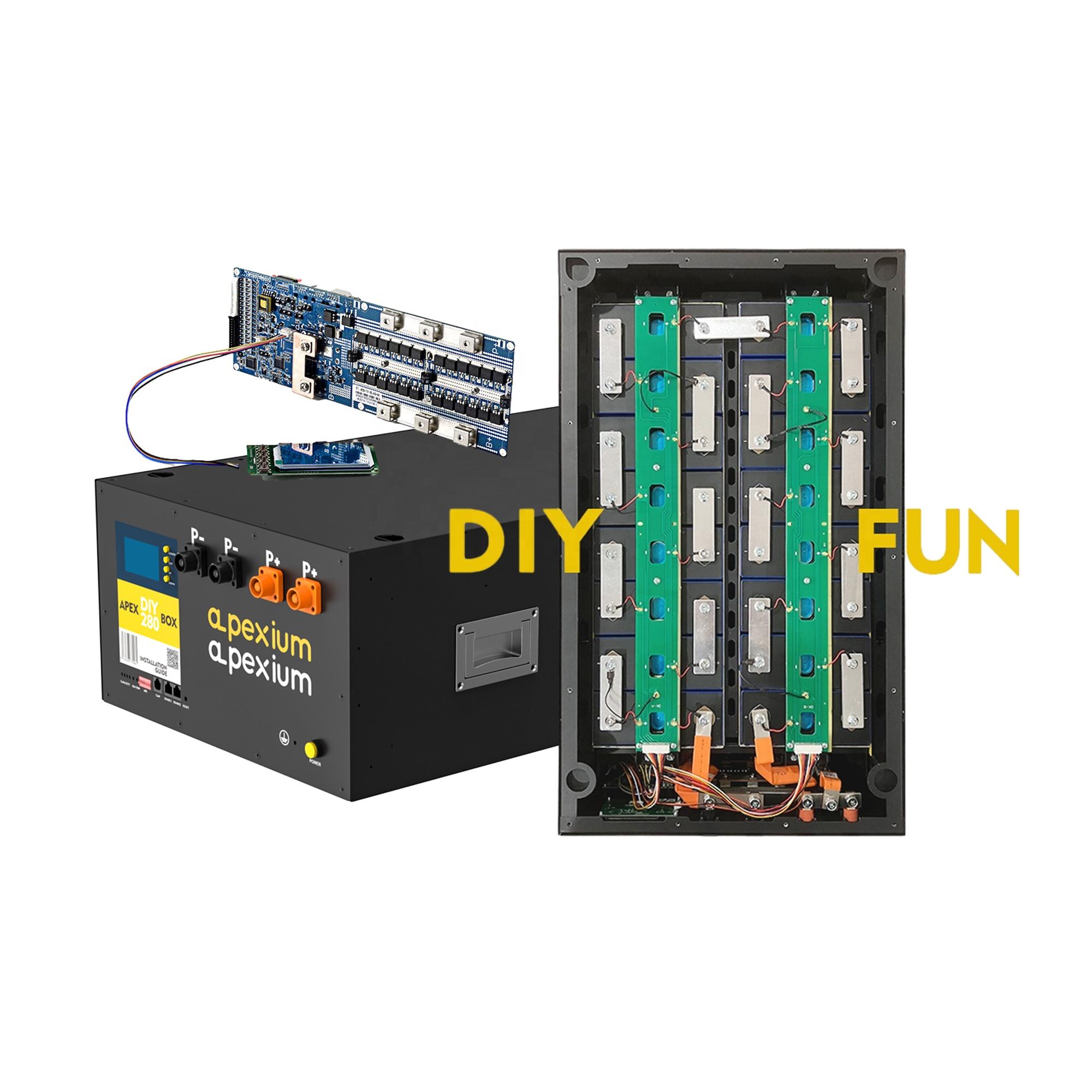

* 1 * Battery box (bottom case, front panel, top bracket, front bracket, top cover)
* 1 * 48V 200A 16S Apexium BMS
* 1 * 58V 400A fuse
* 4 * handle
* 2 * PCB board for BMS and battery connection
*3* Upper and lower latches
* 1 * LCD screen
*1* LCD screen sticker
* 4 * button hat
* 3 * Wires (LCD screen wire, PCB board A and PCB board connector)
* 2 * Battery terminals (P+ terminal and P- terminal)
Other components include:
* 6 * Copper busbar (BMS connection)
* 15 * Aluminum busbar (battery connection)
* 10 * Epoxy sheet (between battery and case)
* 26 * EVA tape (between batteries)
* 1 * PC board (top cover)
Screw details:
*12*Phillip Hex M4*8mm (PCB board fixed)
* 9 * Cross hexagonal M5 * 8mm + washer + spring set (ground wire and top bracket fixed)
* 7 * Phillip Hex M6 * 25mm + washer + spring set (front panel fixed)
* 10 * Phillip Round M3 * 8mm + washer + spring set (BMS and LCD screen fixing)
*12*Phillip Pan M5*10mm (Latch fixed)
* 16 * Hexagonal socket plate M4 * 10mm (P+/P- terminal fixed)
* 42 * Hex countersunk head M4 * 10mm (handle and battery box)
* 4 * Cross hexagonal M6 * 14mm + washer + spring set (foot fixed)
* 5 * Phillip Hex M8 * 10mm + washer + spring set (P+/P- busbar fixing)
* 8 * Cross recessed round M5 * 10mm + washer

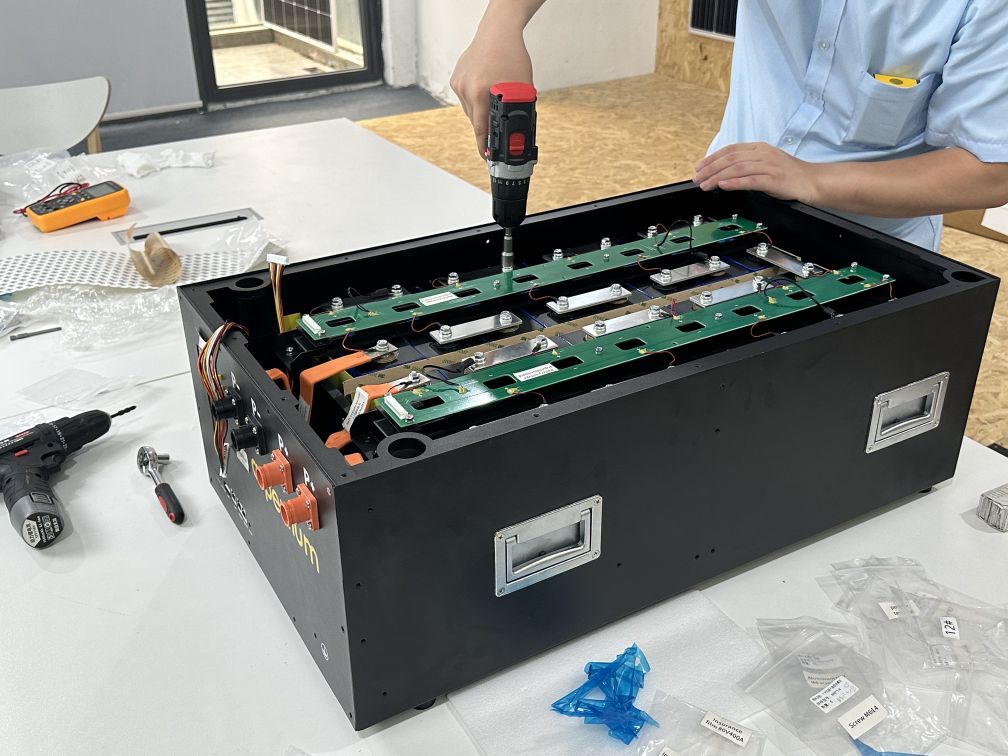

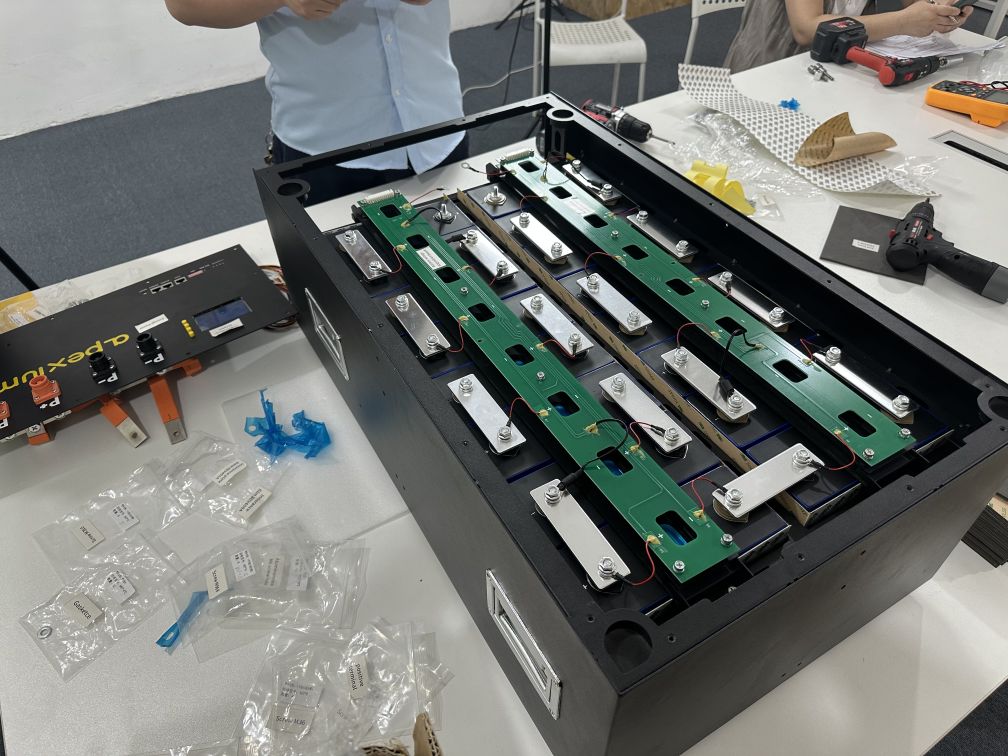

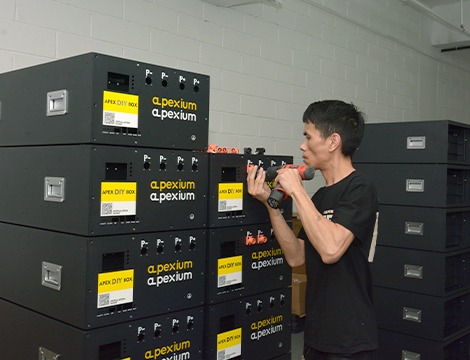

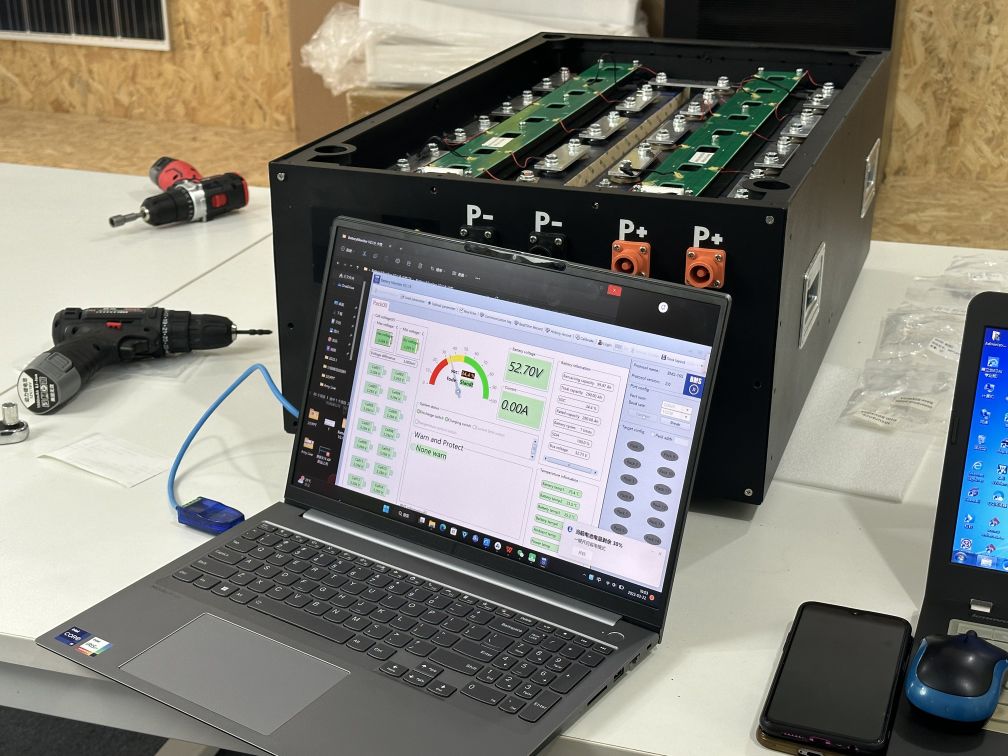

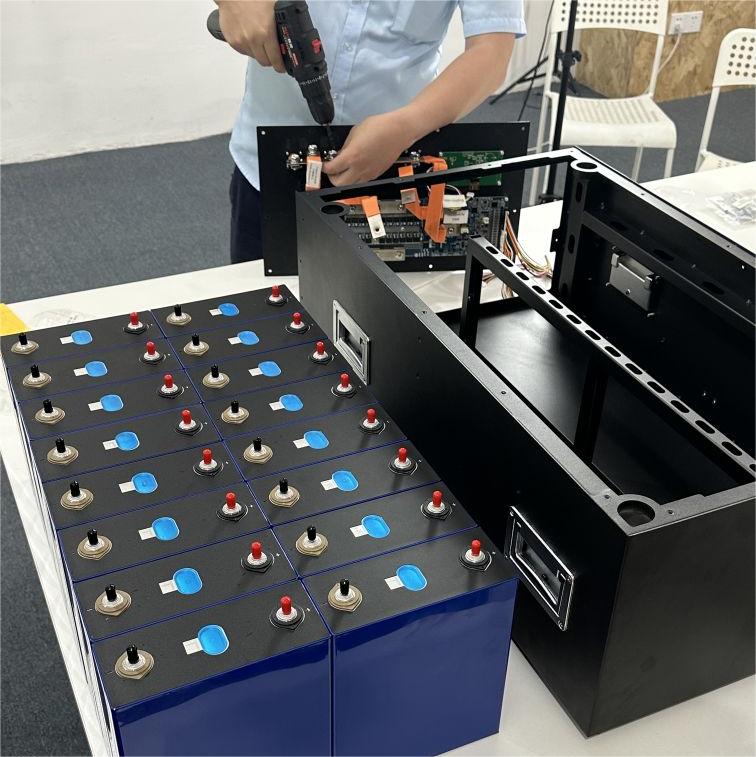

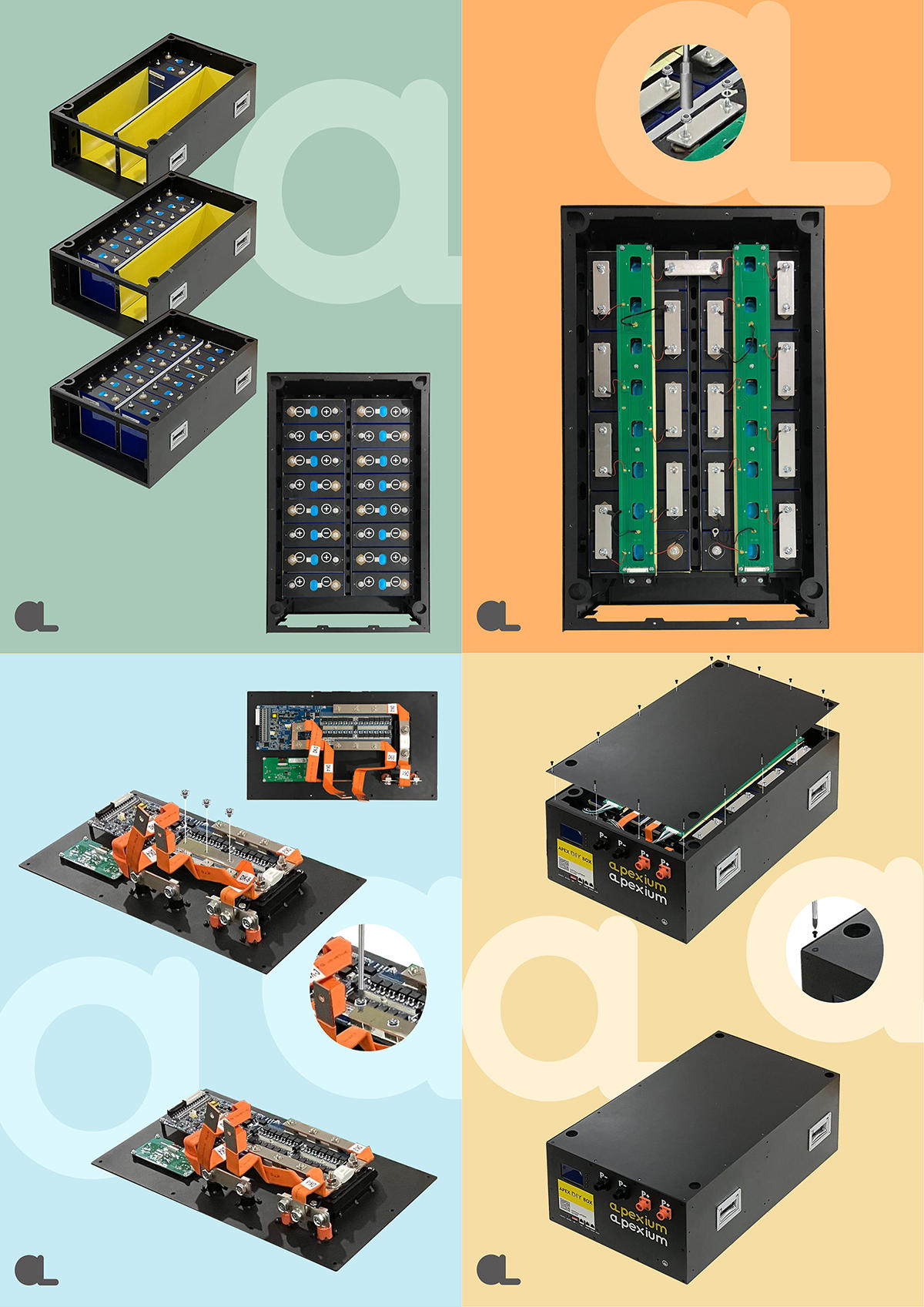

detailed picture
To get the assembly video, just talk to Daisy directly
Email: [email protected]
Contact here for a quick chat via Alibaba
Contact here to send detailed inquiry on Alibaba

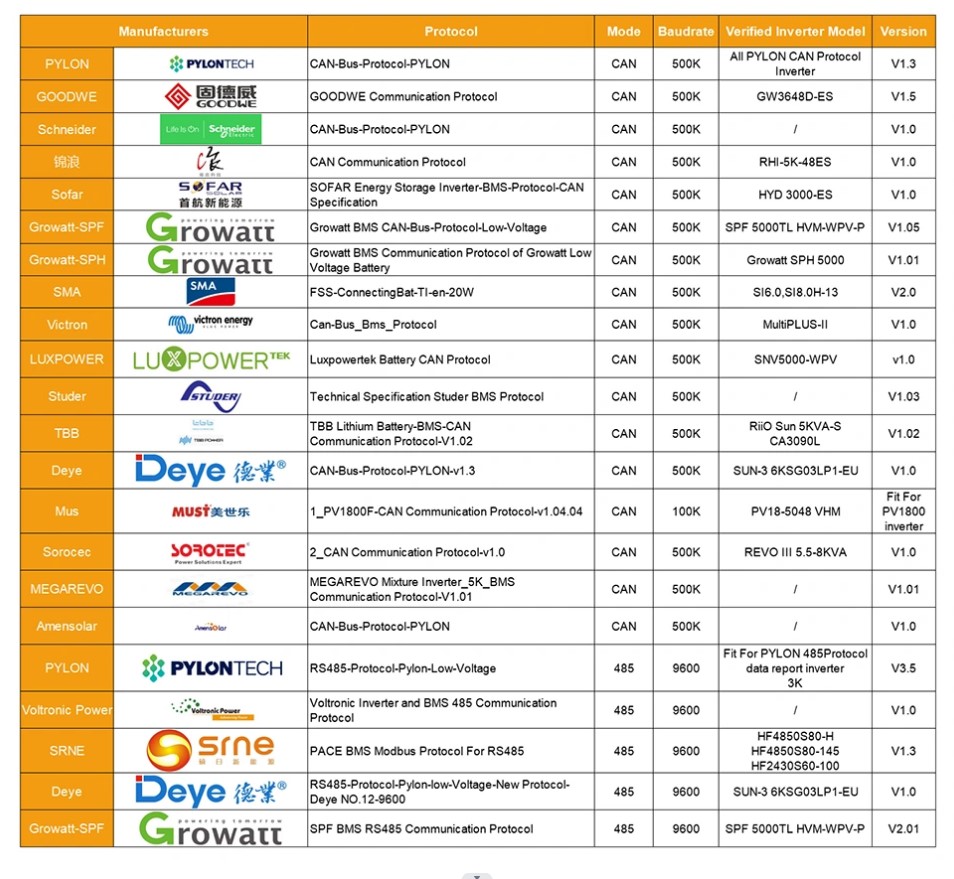

Compatible with inverter
The Seplos lithium phosphate battery pack is suitable for the following multi-brand inverters:
The Seplos lithium phosphate battery pack is suitable for the following multi-brand inverters:
Other DIY kits you may also be interested in
Apexium 280 DIY Kit (for 280 302 304 310 320ah batteries)
Apexium 230 DIY Kit (fits 202ah 228ah 230ah batteries)
Apexium105 DIY Kit (for 105ah batteries)
Apexium smart BMS or Lifepo4 battery.
Apexium105 DIY Kit (for 105ah batteries)
Apexium smart BMS or Lifepo4 battery.
If you need the above items, please click here to contact Daisy for a quote. Thanks
