Automatic 5 10 Tons Uncoiler Sheet Metal Coil Steel Strip Hydraulic Uncoiler Manual Uncoiler For Roller Press
- $5500.00 / 1 - 2 sets
$4700.00 / >=3 sets - 1 set
- Henan Wadjay Machinery Co., Ltd.
- Henan, China
- Ms Alice Li
PRODUCT DETAIL
| Types of: | Hydraulic automatic uncoiler | name: | Uncoiler |
| Packaging Details: | Simple plastic film protection, individually loaded in containers, ensures safe handling by customers. | place of origin; place of origin: | Henan, China |
| Maximum Coil Width: | 1200mm | brand: | Vaj |
| Processing materials: | steel | After warranty service: | Video technical support, online support, spare parts |
| Dimensions (L*W*H): | 2360*1600*1750mm | Supply capacity: | 30 sets per month |
| Maximum width of steel coil: | 1450mm | Weight (kg): | 2300 |
| State of health: | new | Mechanical test report: | if |
| strength: | 12.5KW | Main selling points: | long lasting |
| payment terms: | Western Union, L/C, D/P, D/A, T/T, MoneyGram | Video shipment inspection: | if |
| capacity: | up to 35 tons | Core component warranty: | 1 year |
| Warranty: | 2 years | Applicable industries: | Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies |
| used: | Used for temporary storage and safe release of steel strips | Marketing Type: | New Products 2021 |
| port: | Tianjin harbor | use: | sheet |
| Showroom location: | not any | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| Voltage: | 380V /220V | Inner steel coil: | 508/610mm |
| Certification: | International Organization for Standardization |
Automatic 5 10 Tons Uncoiler Sheet Metal Coil Steel Strip Hydraulic Uncoiler Manual Uncoiler For Roller Press
Send me an inquiry now for more discounts! !
Send me an inquiry now for more discounts! !
describe
Hydraulic uncoiler:
An avoidable part of the roofing roll forming machine to hold and securely pay off steel strips.An uncoiler, also known as an uncoiler, unwinds a coil of steel that can be fed into a continuously operating machine such as a roll former or automatic punching press. The uncoiler is suitable for the feeding of various coils, and the uncoiler can be used in conjunction with the straightening machine.

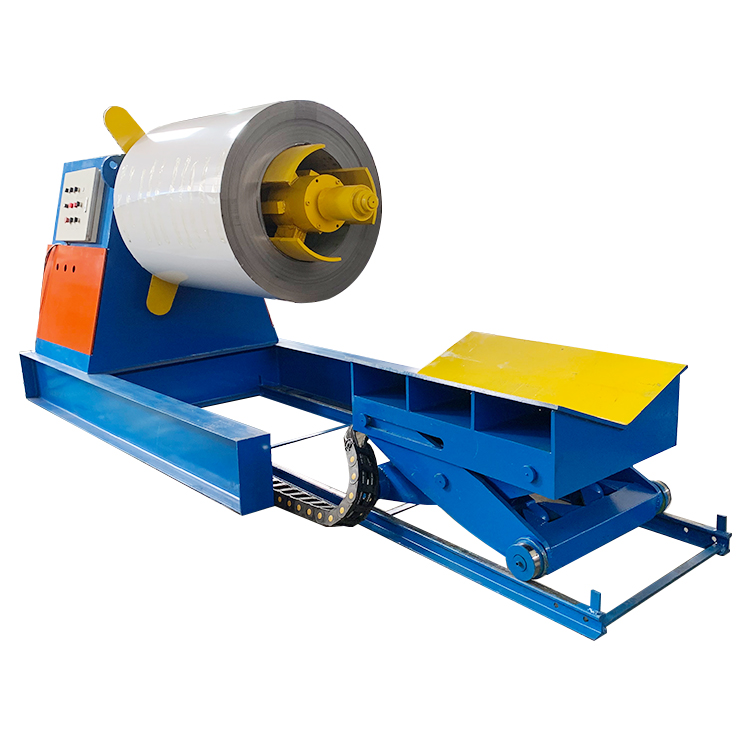

Uncoiler picture
This uncoiler is used to support the coils of the roll former 1 . The uncoiler is the auxiliary equipment of the roll forming machine.When it works together with roll forming machine and automatic stacker, they form a complete steel plate production line. 2. The working process is coiling → expanding and fixing → uncoiling → sending the sheet into the forming machine. There is a sensor that keeps the uncoiler at the same speed as the former.
Specification:
We are a manufacturer, so we can tailor it to your needs.
total power | 5.5 – 15 kW |
speed | 0 – 40m/min (adjustable) |
Dimensions (LxWxH) | 2.2×1.2×1.2m |
machine weight | 2.0 – 4.0 tons |
material thickness | 0.2 – 2.0 mm (G300-G550) |
Material width | 450 – 1500 mm |
