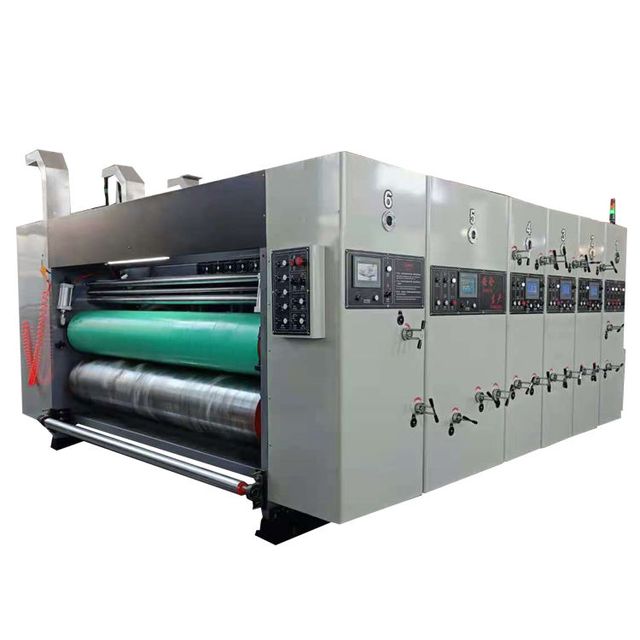

Automatic Flexo Corrugated Box Manufacturer Printer Slotting Die Cutting Machine Packaging Packaging Machine Manufacturer
- $35000.00 /set
- 1 set
- Cangzhou Kingsun Imp.& Exp. Co., Ltd.
- Hebei, China
- Ms linda liu
| thing: | carton packing machine | Machine Speed: | 100/min |
| figure: | Dual system touch screen manual electrical control | stage: | Printing and making carton |
| Warranty: | 1.5 years | port: | Tianjin |
| Finished product: | corrugated box | Mechanical test report: | if |
| Weight (kg): | 15000 kg | Showroom location: | not any |
| Machine Control: | PLC automatic control | raw material: | corrugated paper |
| Health status: | new | type: | carton machine, KS1200 |
| Key words: | carton machine | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies |
| Core components: | Gearboxes, Pressure Vessels, Pumps, Gears, Bearings, Engines, Motors, PLCs | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Video external inspection: | if | brand: | KS |
| Supply capacity: | 30 carton packing machines per month | Main selling point: | automatic |
| Feature 2: | 9999 order memory function | Packaging Details: | Machines are wrapped in plastic sheet and packaged in 20" and 40" containers |
| Core Components Warranty: | 1 year | Marketing Type: | New Products 2020 |
Automatic Flexo Corrugated Box Manufacturer Printer Slotting Die Cutting Machine Packaging Packaging Machine Manufacturer
2. The wall panels and important parts of the whole machine are treated by aging and tempering to eliminate the internal stress of the metal; they are all processed by high-precision machining centers and CNC grinding machines.
3. The shafts and rollers of the whole machine are made of high-quality steel, which has been quenched and tempered, and processed by grinding, high-precision computer dynamic balance correction, and hard chrome plating on the surface.
4. The entire transmission gear is made of 40cr alloy steel, carburized and quenched, and the hardness is HRC58~62; through the grinding process, the 6-level precision ensures high-precision color registration accuracy.
5. The transmission part (shaft tooth connection) of the whole machine adopts keyless connection (expansion sleeve), which eliminates the connection gap and is suitable for long-term high-speed operation with large torque.
6. The transmission bearing of the whole machine and the important transmission parts all adopt the reinforced self-aligning bearing, which is easy to maintain and has a longer service life.
7. The lubrication system of the whole machine adopts spray-type automatic lubrication, visual display device, and is equipped with a dual oil level oil level balance system.
8. The whole machine adjusts the preset function, feeding, printing, grooving, die-cutting, automatic zeroing, and automatic memory reset.
9. The adjustment of the working gap of the whole machine adopts the quick adjustment without wrench wrench, and the adjustment is fast and convenient.
10. The host adopts frequency conversion control, which makes the startup and operation more stable and energy-saving.
11. The leading edge adopts vacuum suction feeding.
12. Optional: ceramic anilox roller; scraper fixed ink supply system; stacker.
13. There is an ink shortage alarm device to monitor the working status of the ink supply system in real time.
14. The display of the limit position and overtravel of the whole machine.
15. Optional electric adjustment of machine working gap
thing | Printing cylinder diameter | Maximum slot width | actual working speed |
KS180-900 | 300mm | 7mm*220mm | 170/min |
KS180-1200 | 408mm | 7mm*300mm | 160/min |
KS180-1400 | 480mm | 7mm*350mm | 150/min |

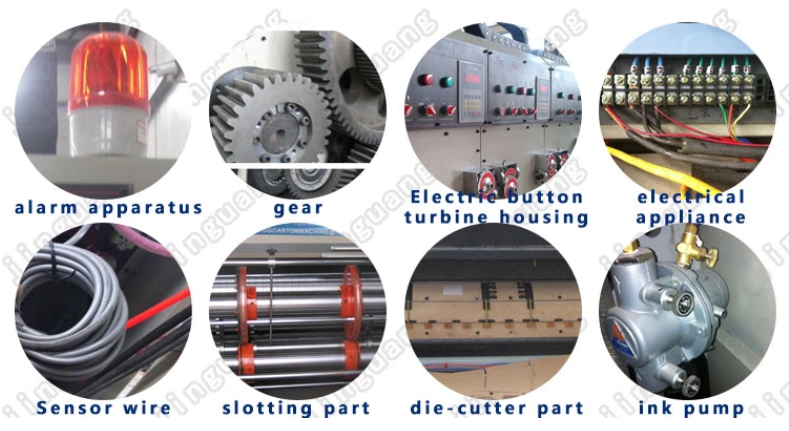

main feature
1. The self-alarming bell of the electronic control machine continuously sounds the alarm to ensure the safety of workers.
2. The transmission shaft adopts a friction clutch to avoid damage to the machine due to misoperation.
3. Pneumatic interlocking device.
4. The main engine motor starts the protection device. (The machine is not locked, the host cannot start running)

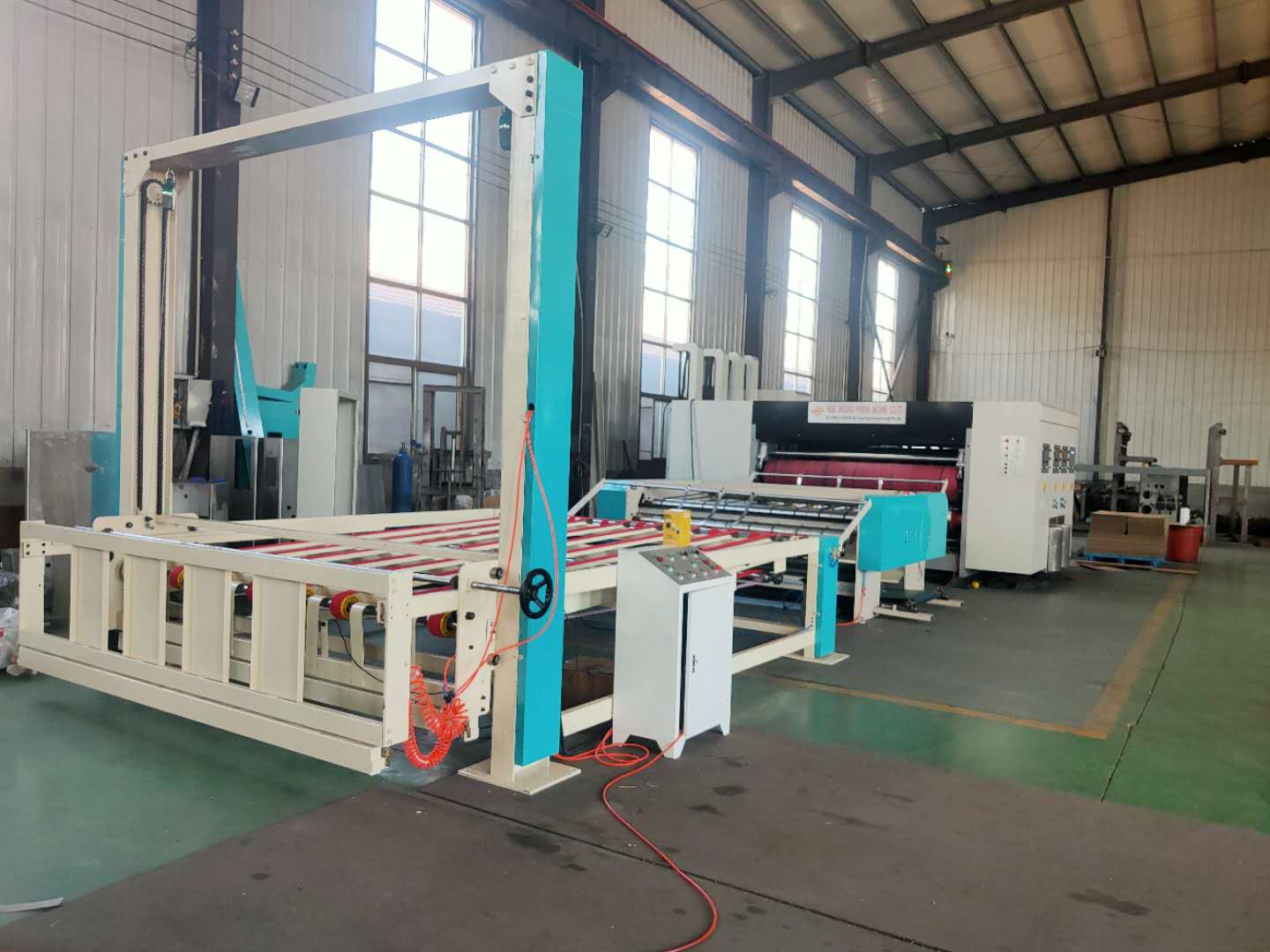

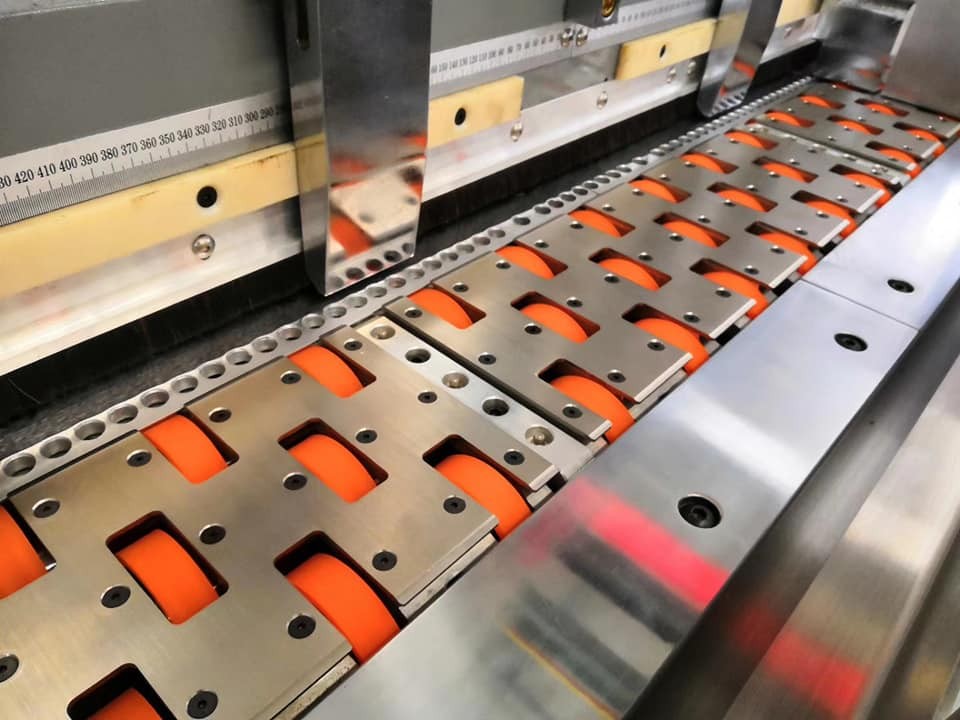

Edge-Leader Feeding System
describe: Vacuum adsorption assists paper feeding, the air volume and air pressure can be adjusted according to the size of the cardboard, the paper feeding is fast and accurate, suitable for all kinds of corrugated cardboard

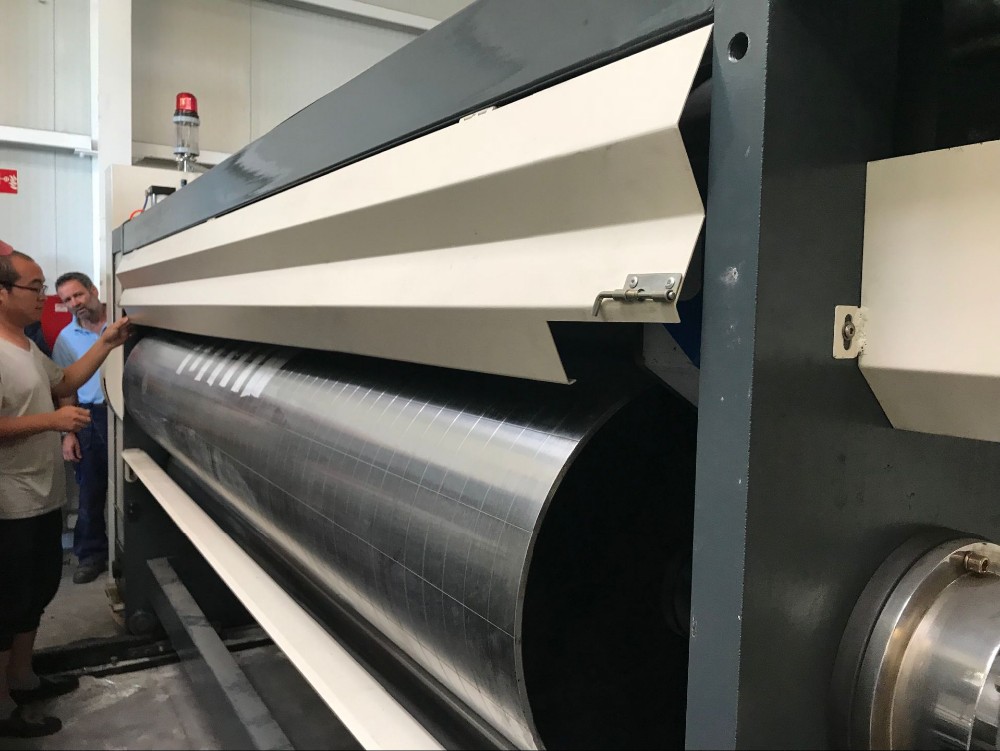

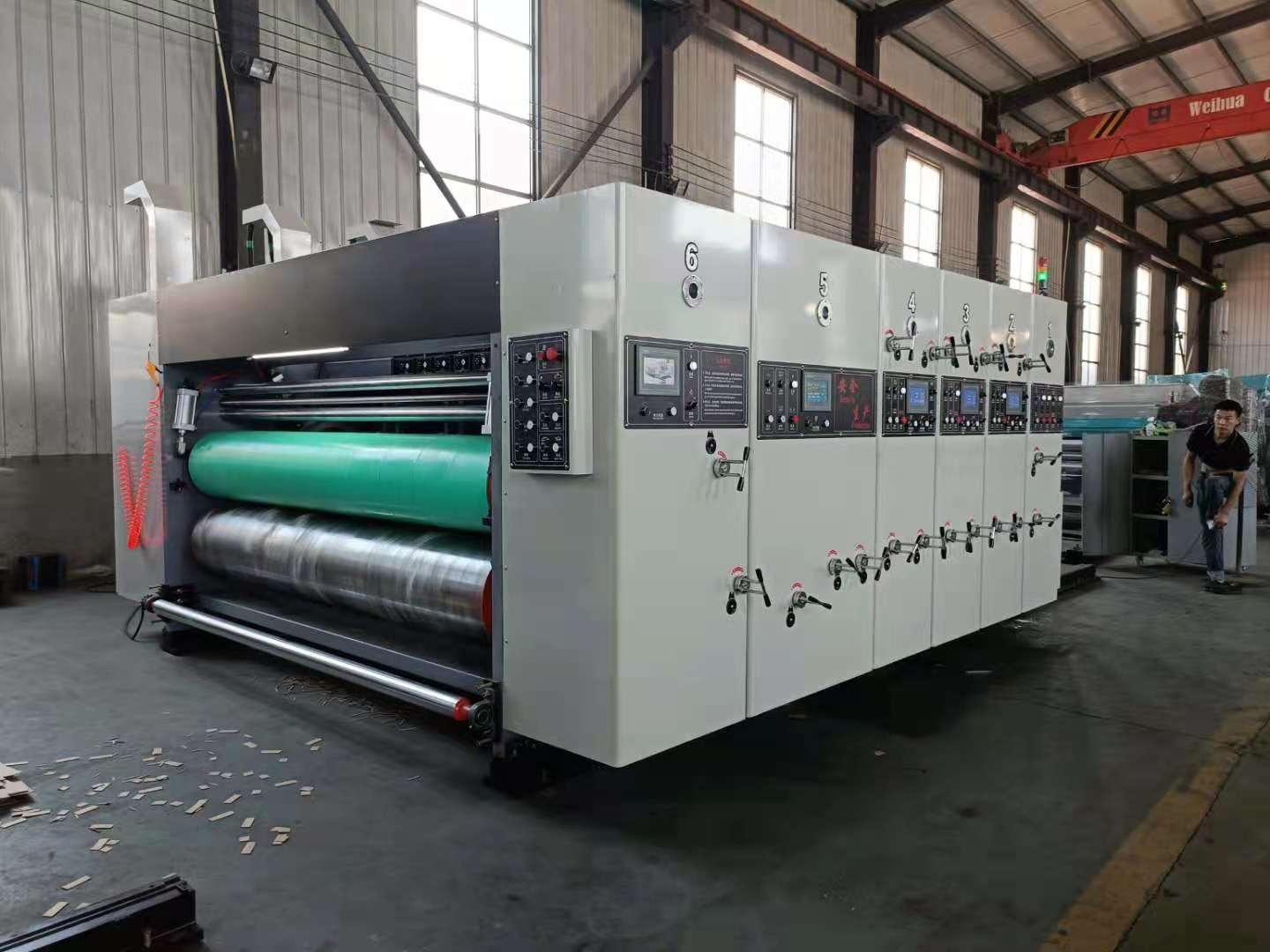

printing unit
Print color on carton
describe: The printing roller and driving roller are made of high-quality steel, with computerized dynamic balance to eliminate eccentric force, and the polished surface is chrome-plated.
1 color, 2 color, 3 color, 4 color, 5 color, 6 color printing-customized color quantity

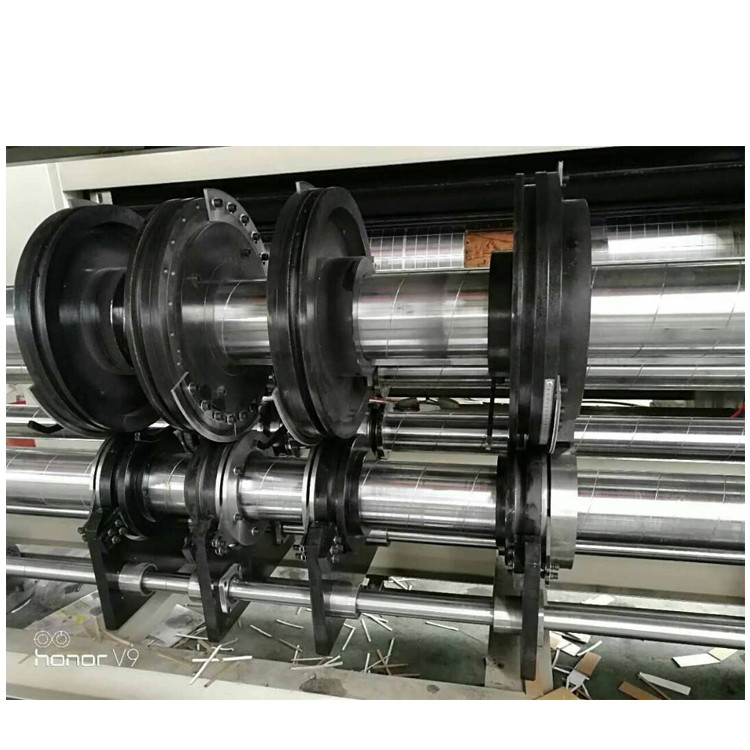

slotted unit

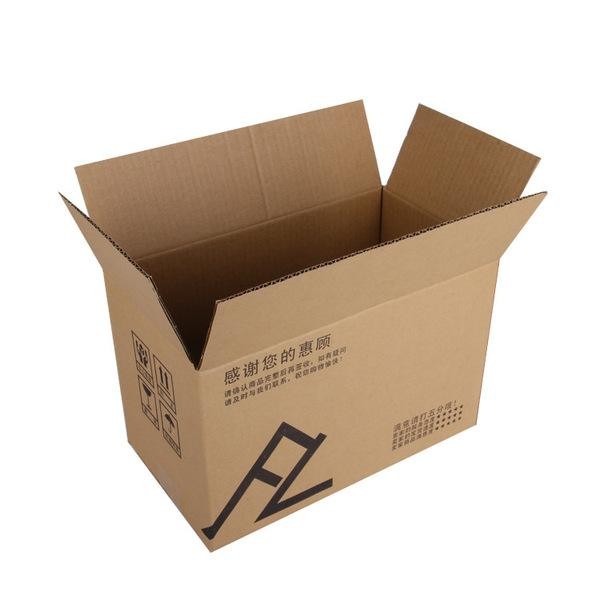

Making Standard Corrugated Boxes
describe: All carton sizes, including carton height and phase are completed by computer, man-machine interface, saving time and effort, improving work efficiency, can store 500 orders

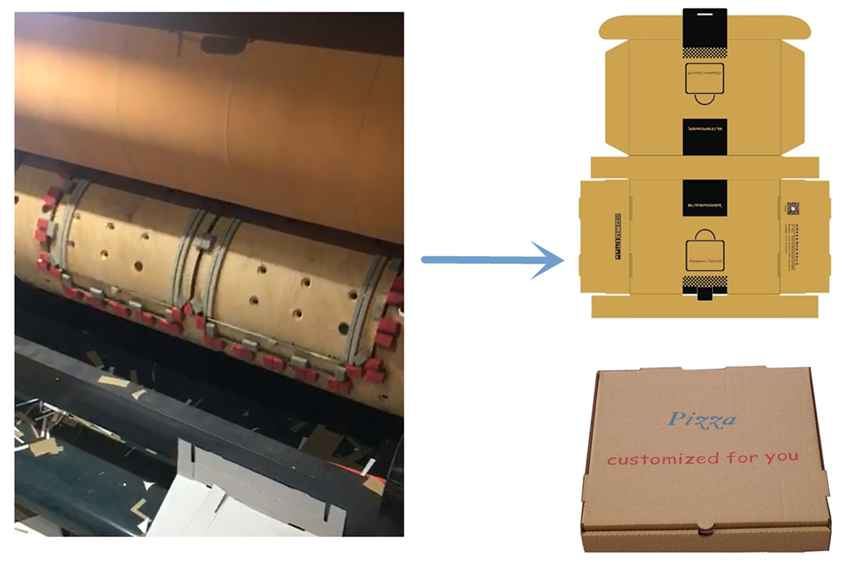

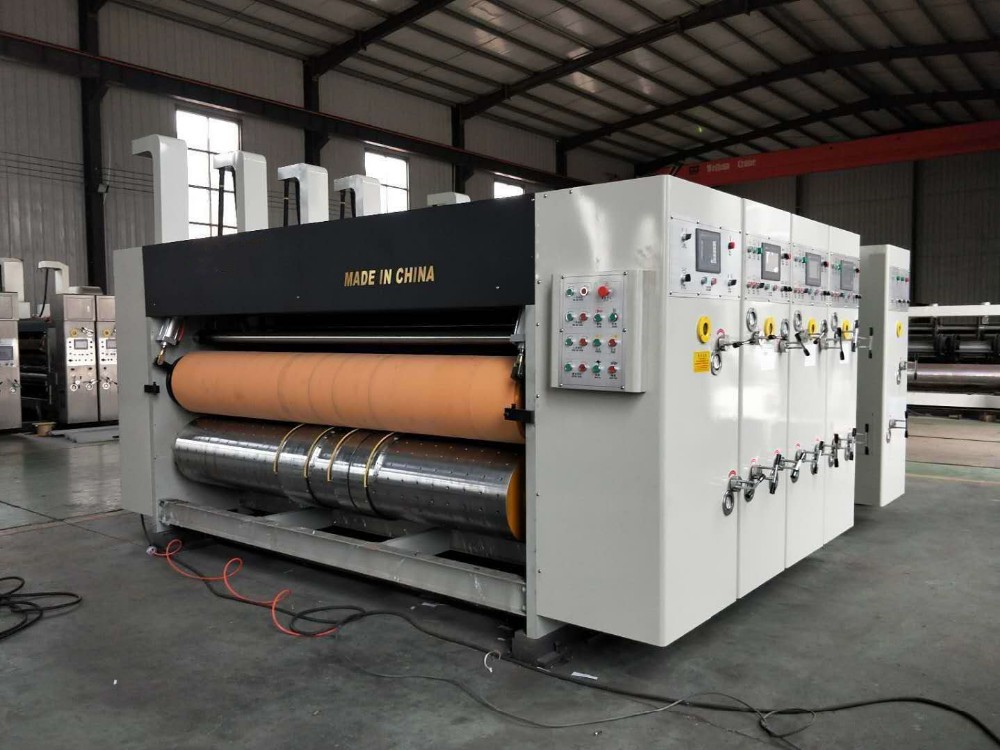

Die cutting unit

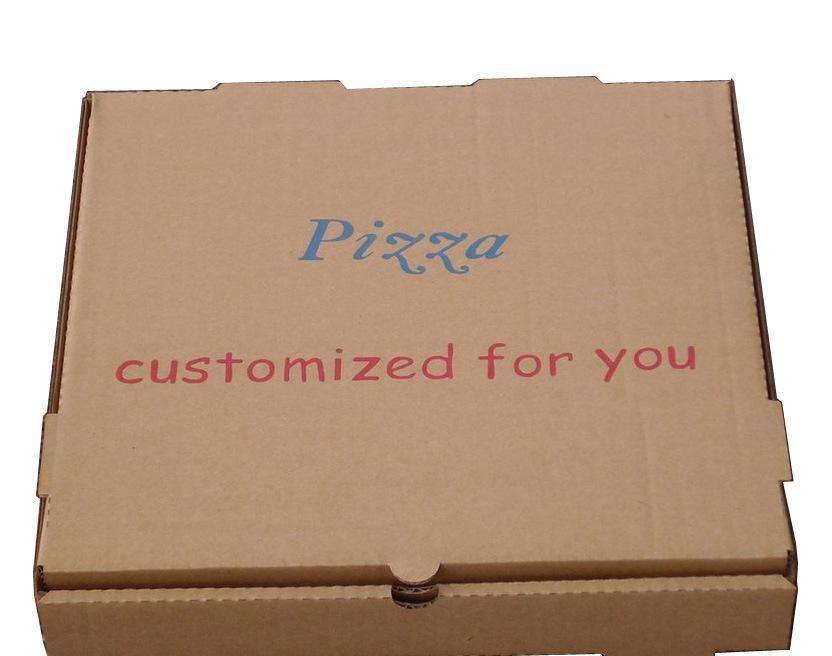

Making special corrugated box machine
describe: The rubber roller is repaired and configured, the rubber can be used many times, which greatly saves the cost. Axial movement adjustment adopts PLC touch screen and motorized numbers, and the arrangement is 15mm
pre-sale service
* Inquiry and consultation support.
* Sample testing support.
* View our factory.
* This photo is for an Indian customer to see the aircraft
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers can repair machinery overseas.

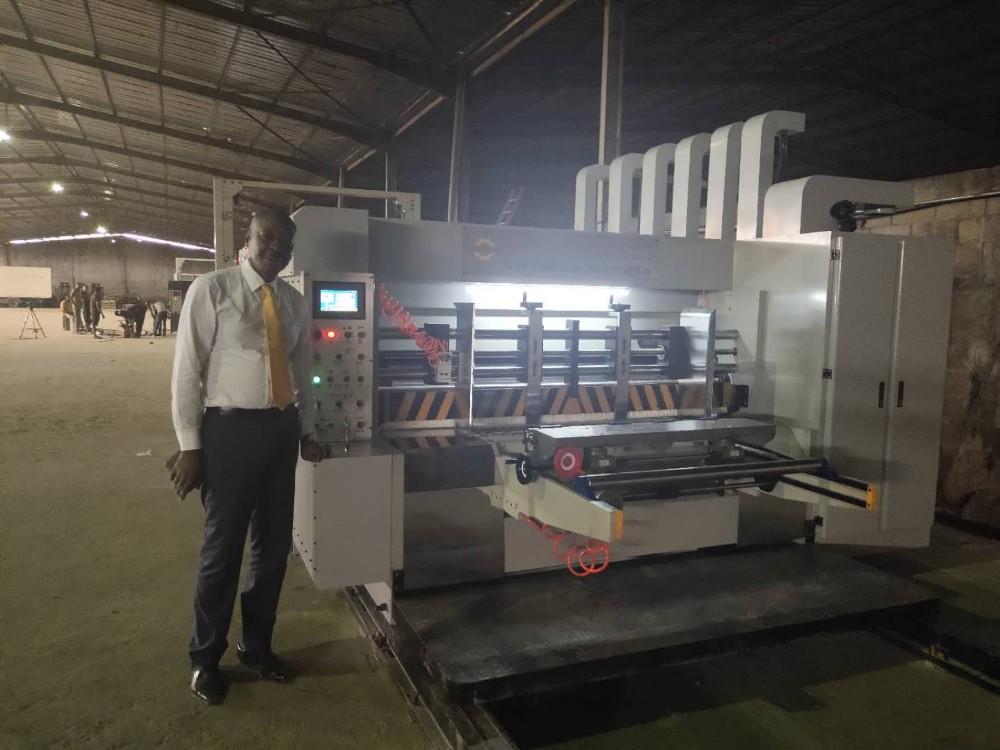

* This photo is from our VIP Cameroon customer
