Automatic M55 plastic rope production machine hdpe single twist rope mechanism rope
- $20000.00 / 1 - 1 sets
$15000.00 / 2 - 2 sets
$9900.00 / >=3 sets - 1 set
- Shandong Haidai Intelligent Machinery Co., Ltd.
- Shandong, China
- Mr Frank Zhang
PRODUCT DETAIL
| Showroom location: | Egypt, Vietnam, Saudi Arabia, Indonesia, Pakistan, Mexico, Thailand, Morocco, Kenya, Argentina, South Korea, Colombia, Algeria, Romania, South Africa | Product Category: | plastic rope |
| place of origin; place of origin: | Shandong China | Health status: | new |
| Power (kW): | 5.5kw-30kw | Pay-off reel size: | 8" or 10", customized |
| Dimensions (L*W*H): | 9.5*1.9*2m | Warranty: | one year |
| product name: | Turnkey PP/PE Rope Production Line Machine Rope Making Machine | Rope twist range: | Loose, medium and tight torque adjustable |
| Core components: | PLC, engine, bearing, motor, gear | brand: | CNRM |
| weight: | 5000 | Main selling point: | high productivity |
| Product Range: | 3mm-60mm rope | Type of machine: | Two-in-one rope winch |
| Mechanical test report: | if | Packaging Preview: | |
| Applicable materials: | PP,PE,PET,Nylon,HDPE,Jute,Cotton,Polyester | After-sales service provided: | Engineers can repair machinery overseas |
| Supply capacity: | 20 sets per month | Core Components Warranty: | 1 year |
| Voltage: | 380V, three-phase, 50HZ | Marketing Type: | New Products 2020 |
| Video external inspection: | if | port: | Qingdao |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade Assurance from Alibaba | Twist direction: | S or Z |
| Processing type: | other | usage: | distortion |
| Rope structure: | 3-strand rope or 4-strand rope | Packaging Details: | This twisted polypropylene rope machine will be packaged in a 40ft container and held very securely |
| Applicable industries: | manufacturing plant |
Product Description

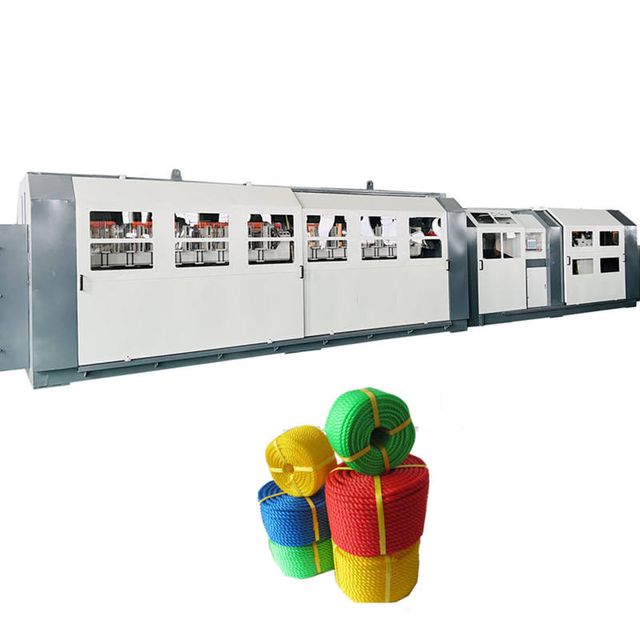

Rope production line--Twisting polypropylene rope machine
Customer Satisfaction Index: 100%
We can supply the entire rope line from A to Z. From the yarn extruder to the final rope product packaging machine.
Our CNRM 3-strand 4-strand twisted polypropylene rope machine is very popular in Africa, Middle East, South America and Southeast Asia such as Kenya, Algeria, Sudan, Egypt, Mexico, Vietnam, etc. We have helped many clients in these areas to set up their own plastic rope or fishing net manufacturing plants.

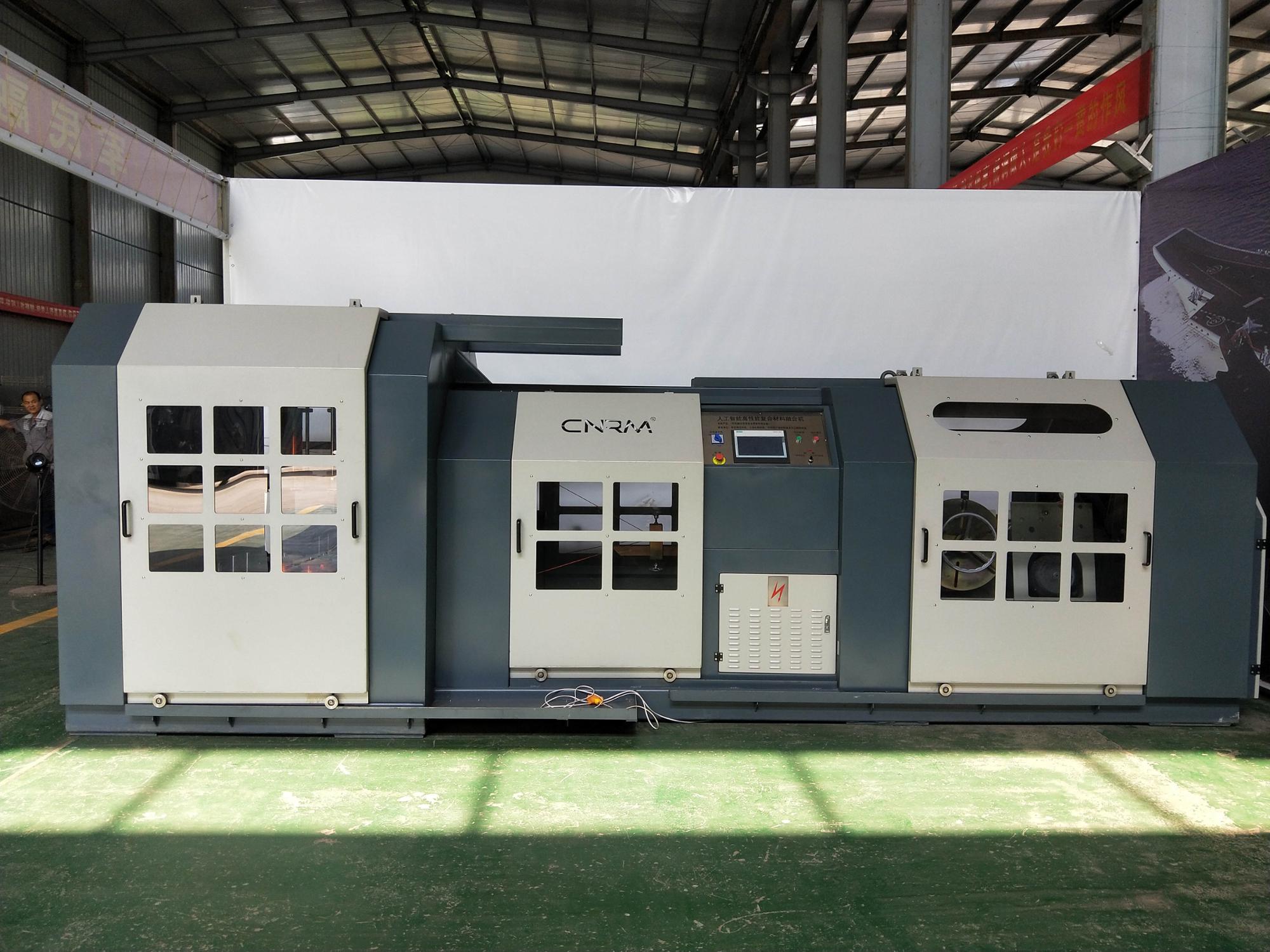

Twisting polypropylene rope machine
ourTwisting polypropylene rope machineIt can make 3 or 4 strands twisted ropes of different materials, such as pp, pe, nylon, cotton, etc. Ropes range from 3mm to 32mm.
Our company upgrades the rope machine every year according to the feedback of the market and customers, and launches new designs every year.Pay close attention to the core needs of customers,The breakthrough in output and function is well received by customers.
Our brand CNRM stands for ChiNa Rope Machine, we will strive to build CNRM into a first-class brand at home and abroad.
thing | HDTM-M33 | HDTM-M44 | HDTM-M55 | HDTM-M66 | HDTM-M77 |
rope range | 3-10mm | 6-14mm | 12-22mm | 18-26mm | 22-32mm |
laying range | 15-38mm | 20-50mm | 32-78mm | 40-105 | 45-130 |
strength | 5.5kW | 7.5kW | 11kW | 18.5kW | 20kW |
Coiling capacity | Φ130*Φ500*Φ320 | Φ130*Φ600*Φ400 | Φ130*Φ600*Φ400 | Φ140*Φ700*Φ450 | Φ200*Φ550*Φ650 |
Pay-off reel size | 175*300mm(8) | 175*300mm(8) | 175*300mm(8) | 175*300mm(8) | 175*300mm(8) |
8" Bobbin quantity | 8*3 or 8*4 | 24*3 or 24*4 | 32*3 or 32*4 | 46*3 or 46*4 | 64*3 or 64*4 |
machine weight | 2500kg | 3500kg | 5000kg | 6000kg | 7000kg |
Twisting polypropylene rope machine Main features
– Power transmission via timing belt.
——Automatic shutdown after yarn breakage to control loss.
– Digital length counter.
– Door sensor.
– AC variable frequency drive.
– Direct take-up head.
——Automatic shutdown after yarn breakage to control loss.
– Digital length counter.
– Door sensor.
– AC variable frequency drive.
– Direct take-up head.
