Automatic combination door cabinet wood disc brush polish sanding sander machine
- $23500.00 / 1 - 1 sets
$4000.00 / >=2 sets - 1 set
- Qingdao Wfsen Mechanical And Electrical Co., Ltd.
- Shandong, China
- Mr David Wang
| Feeding speed: | 5-18m/min; | Video outgoing-inspection: | Provided; |
| Key Selling Points: | Famous brand PLC; | Condition: | New; |
| Disc turn power: | 1.5kw; | Machinery Test Report: | Provided; |
| After-sales Service Provided: | Field maintenance and repair service; | Packaging Detail: | SK6S-1300 wood brush polishing sanding machine, packing with plastic films and wooden box, or as you requirement.; |
| Marketing Type: | New Product 2020; | Working height: | 5-160mm; |
| Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Furniture factory; | Machine Type: | Wood Sanding Machine; |
| After Warranty Service: | Field maintenance and repair service; | Name: | Brush Roller Wood Polishing Machine; |
| Vertical roller turn power: | 1.5kw x 2; | Weight (KG): | 4500; |
| Working width: | 1300mm; | Port: | Qingdao port, or as your port name in China.; |
| Place of Origin: | China; | Core Components: | PLC,Engine,Bearing,Motor,Gear,Pump; |
| Local Service Location: | Canada,United Kingdom,Italy,Australia; | Adjust height: | 50mm; |
| Horizontal roller turn power: | 3kw x 2; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Voltage: | 220V/3800V/Customize; | Brand Name: | WFSEN; |
| Showroom Location: | Canada,United Kingdom,United States,Italy,Australia; | Warranty: | 2 years; |
| Warranty of core components: | 2 years; | Feeding power: | 2.2kw; |

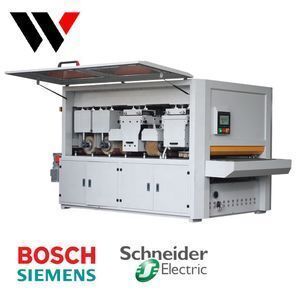

Automatic combination door cabinet wood disc brush polish sanding sander machine
SK1300-6S wood brush polishing machine
Width1300/1000mm, 6 units, feeding frequency control, each unite can be up or down alone.
Germany Rexroth PLC, CHINT electric appliance, Germany sanding paper, bearing TR China, Marble table.
 |
 |
|
4R polishing machine SF brush polishing machine Wire polishing machine
 |
 |
|
MF630A auto edge bander MF360B auto edge bander MF60S manual edge bander
 |
 |
|
Wide belt sanding mahcine Planer+ polishing machine CNC Router
 |
 |
|
Horizontal panel saw Horizontal band saw Vertical panel saw
 |
 |
|
Hot Press Cold press Dust collector
 |
 |
|
Vacuum membrance press machine Hinge drill machine Drill machine
 |
 |
|
Dovetail machine Spindle moulder machine 4 side planer moulder
00MDF solid wood wire panel brush sander machine
K1300-6S MDF solid wood wire panel brush sander
——— Technical Parameter
| Model | SK1300-6S | Disc swing power | 0.37kw | |
| Max. working width | 1300mm | Disc lifting power | 0.37kw | |
| Max. working height | 5-160mm | Vertical roller turn power, 9pcs | 1.5kw*2 | |
| Separateness adjust height | 50mm | Vertical roller swing power | 0.37kw | |
| Feeding speed | 5-18m/min | Vertical roller lifting power | 0.37kw | |
| Total motor power | 14.47kw | Horizontal roller turn power | 3kw*2 | |
| Feeding power | 2.2kw | Horizontal roller lifting power | 0.37kw*2 | |
| Feeding plat lifting power | 0.55kw | Over dimension | 3400*2100*2100mm | |
| Disc turn power, 11pcs | 1.5kw | Weight | 4500kg |

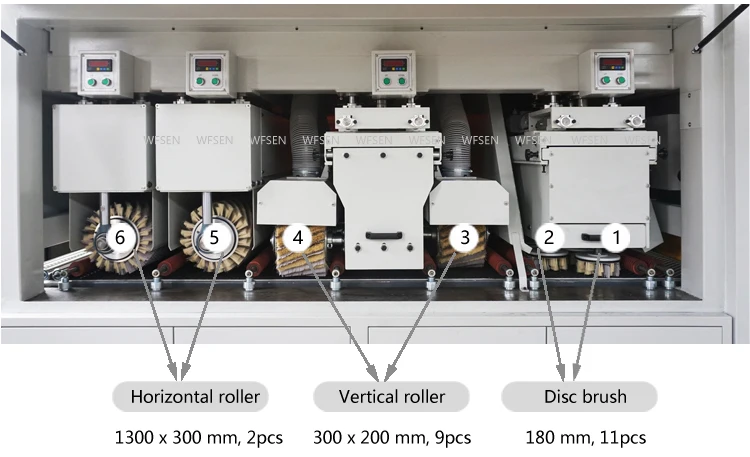

——— Internal Structure
——— Parts Show
——— Suit for working
