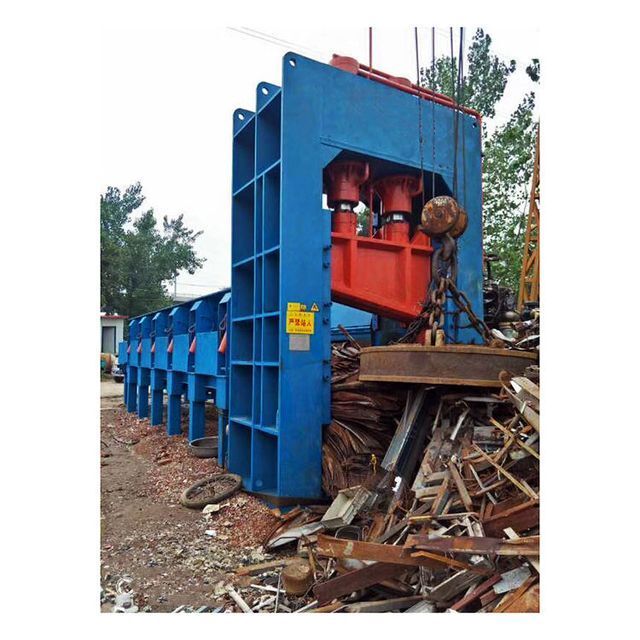

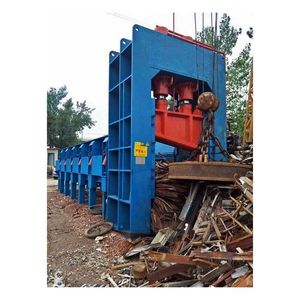

Automatic scrap metal cutting machine Gantry Shears for recycling industry

PRODUCT DETAIL
Color:Customizable;Port:Qingdao,Shanghai,Tianjin;
Video outgoing-inspection:Provided;Rated Power:7.5kw, 18.5kw;
Applicable Industries:metal shearing and recycling;Warranty of core components:1 Year;
Cutting material:Metal Stainless Steel Carbon Steel Aluminum;Application:Industrial Metal Cutting;
Key Selling Points:Automatic;Power (kW):18.5;
Control system:START Control System;Material / Metal Processed:Brass / Copper,ALLOY,Carbon steel,Aluminum,Stainless Steel;
Machinery Test Report:Not Available;After-sales Service Provided:Engineers available to service machinery overseas;
Showroom Location:None;Core Components:PLC,Gearbox;
Condition:New;Packaging Detail:1, Small size equipment is packed by wooden case which delivery by LCL shipping . 2, Big size equipment is nude packing which delivery by full container load,small parts will be packed into wooden case. 3, Special packing requirement as customers requirement .;
Weight (KG):11000;Marketing Type:New Product 2020;
Warranty:1 Year;Weight:11t;
Name:Hydraulic Shearing Machine;Max. Cutting Force (Ton):1.5;
Machine Type:Gantry Shears;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Cutting thickness:0-200mm;Shearing frequency:4-6/min;
Supply Ability:100 Sets per Month;Place of Origin:China;

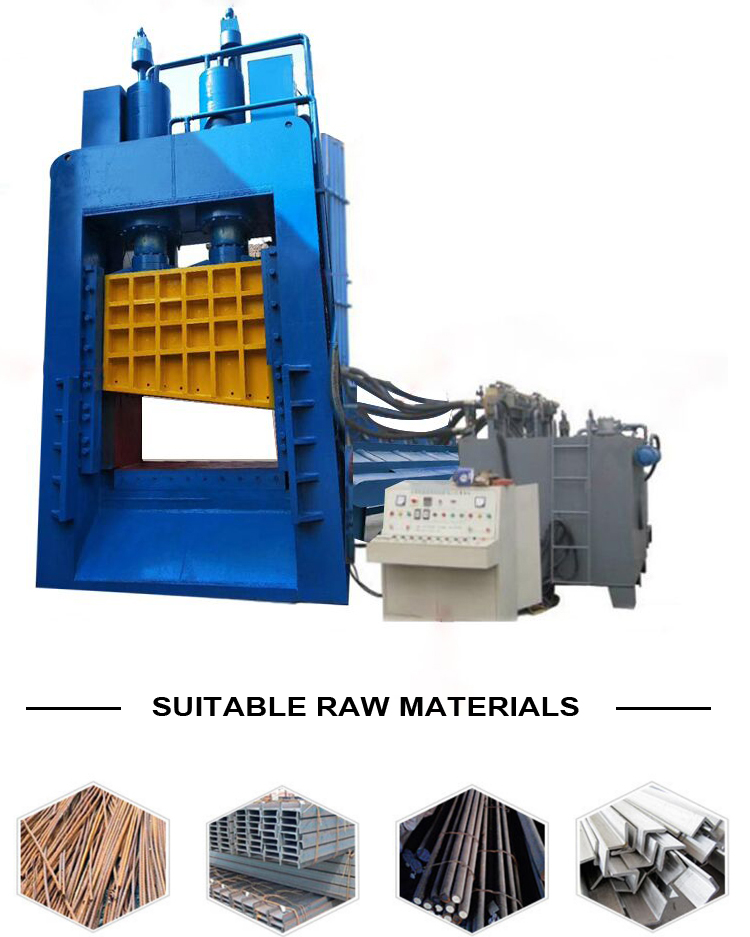

Automatic scrap metal cutting machine tool for recycling industry

Product Description
Heavy-duty hydraulic shears are suitable for compressing and cutting thin & light materials, production and living scrap steel, light metal structural parts, scrap car body, wheel hub, old home alliances, plastic non-ferrous metals(stainless steel, aluminum alloy, copper, etc), or used to compress and bale the above mentioned materials.

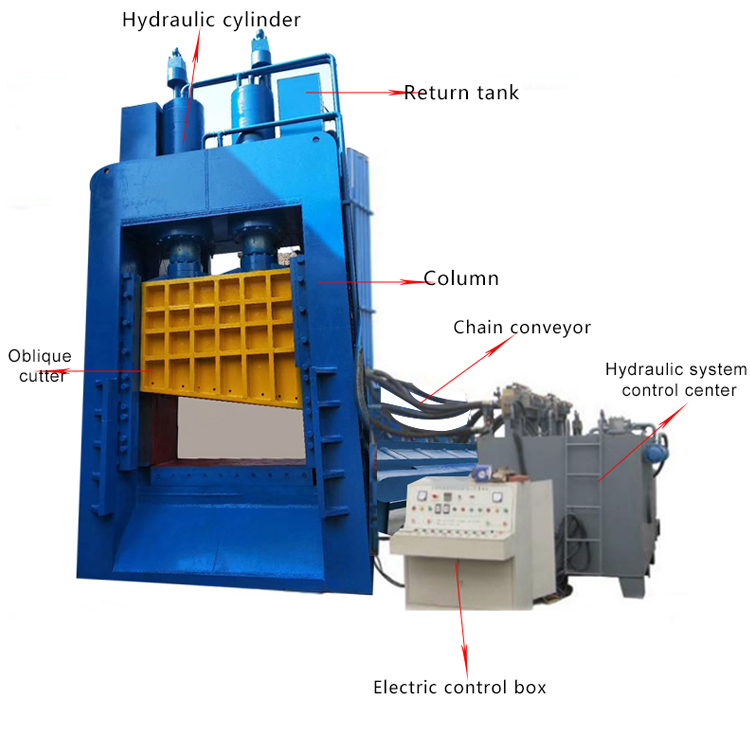

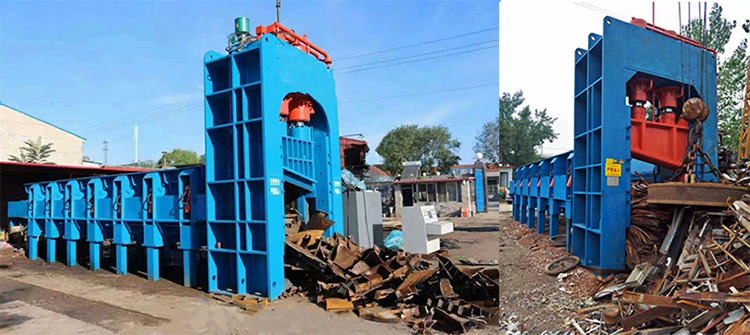

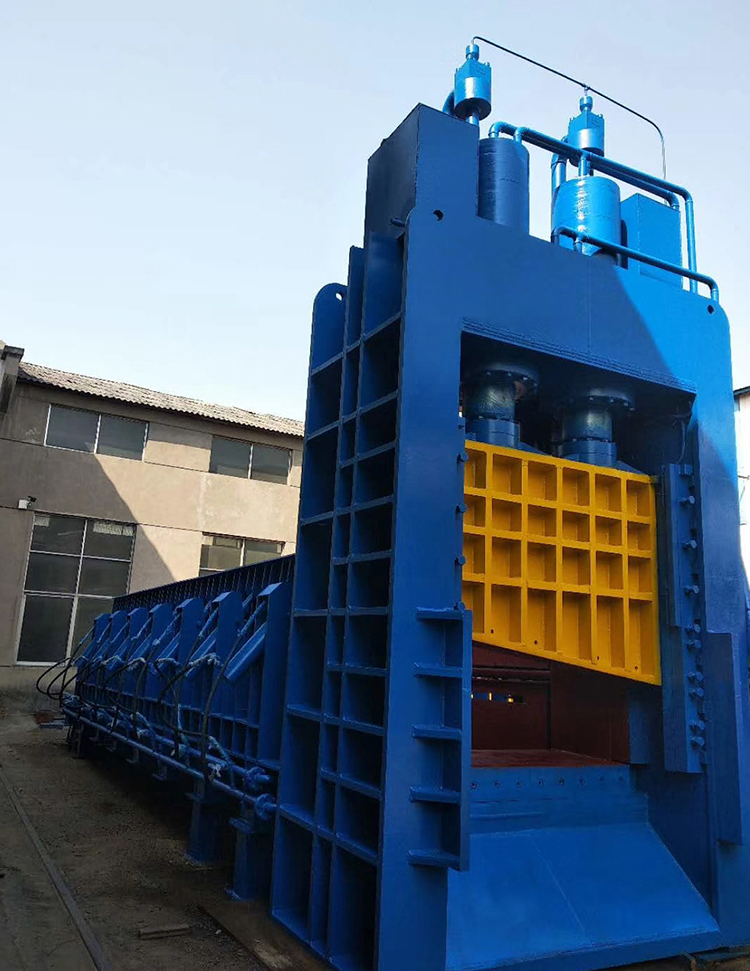

The gantry shear is composed of a frame, a hydraulic cylinder, a hydraulic power system and an electrical system. In the working principle, it passes through the automatic feeding bin, that is, after the material is grabbed to the loading bin, the scrap is automatically sent to the knife edge by the conveyor belt.The feeding speed can be adjusted by the speed regulating motor.
There are side extrusion cylinders on both sides of the bin. Large scraps such as scrapped cars cannot be cut by the gantry shears. The scrap can be squeezed and reduced by the side squeeze cylinders, and then sent to the cutting edge through the conveyor to cut.

Product parameters



Type Max.Cutting fore System pressure(Mpa) Bin size(mm)

Blade lenght

(mm)

Capacity

Shearing frequency

(times/min)

Power

(kw)

Weight

(T)

XTL-200T 200  ≤25  700*1600*2300  1200  2.5-3 4--6 2*18.5  11
 XTL-400T 400 ≤25  5000*1300*500 1400  4-5  4--6  2*45 19
XTL-600T  600  ≤25  5500*1500*700 1600   8-10 4--6  3*45 30
XTL-800T  800  ≤25  6000*1700*800 1800   15-20 4--6  4*45 38
XTL-1000T  1000  ≤25  6000*1900*1000 2000   20-25 4--6  5*45 60
XTL-1250T   1250 ≤25  8000*2100*1500 2200   25-30  4--6 6*45  88

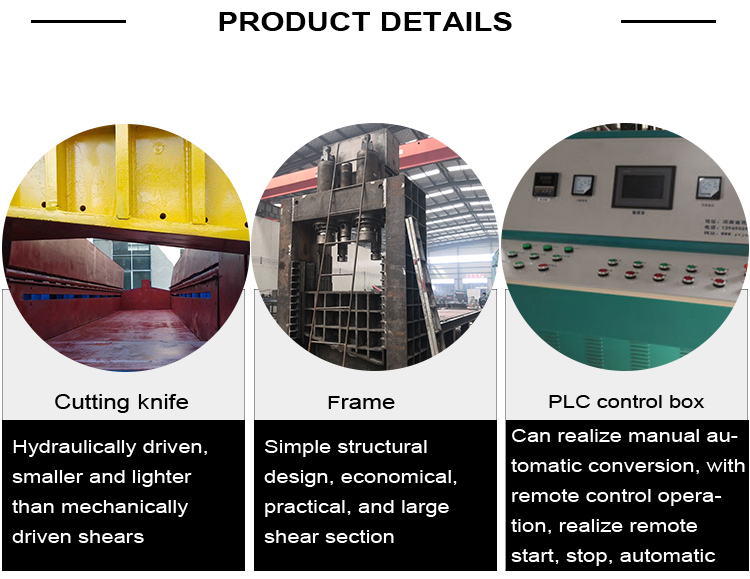

Product Details



Application





Company Information




FAQ

Contact us for more details about price, packing, shipping and discount.



Q: How do I know the quality of your machine?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.


Q: When we only purchase one baler machine production line, can we use it to bale other scrap materials like?
A: Yes, you can.which can be customized.


Q: Which brand of motor will you use?
A: We use domestic motor manufacture by Chinese-famous suppliers, but you can choose or other brand motor. Don't worry about our machine's quality.


Q: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.
