Automatic welded pipe roller machine / pipe roller machine 1000kgs
- $1599.00 / 2 - 99 pieces
$1499.00 / >=100 pieces - 2 pieces
- Jinan Apes Technology Co., Ltd.
- Shandong, China
- Ms Grace Lv
PRODUCT DETAIL
| Main selling points: | high productivity | Diameter range: | 375mm |
| power input: | AC220/110V, 50/60Hz | type: | welding roller |
| Showroom location: | not any | port: | Qingdao, Tianjin, Shanghai |
| Speed range: | 80-1600mm/min | Marketing Type: | normal product |
| Health status: | new | payment terms: | Western Union, T/T, MoneyGram |
| From dimension: | 450*120*350mm | Core component warranty: | 1 year |
| aspect: | Drive size: 580*360*350mm | brand: | OEM production |
| Packaging Details: | Packaging Type: 1 per box | Warranty: | 1 year |
| Video shipment inspection: | not available | motor: | DC motor 220V/110V 100W |
| Core components: | Engines, gearboxes, motors, gears | net weight: | 54 kg |
| Mechanical test report: | if | capacity: | 1000KGS |
| Applicable industries: | Building materials store, machinery repair shop, manufacturing plant, retail, construction, other | Drive size (including control box): | 580*360*350mm |
| usage: | Soldering Flux | Origin: | Shandong China |
| Weight (kg): | 54 kg | Roller type: | 50mm(width)*200mm |
| Package preview: | spinning speed: | 20-800mm | |
| Supply capacity: | 500 sets per month |

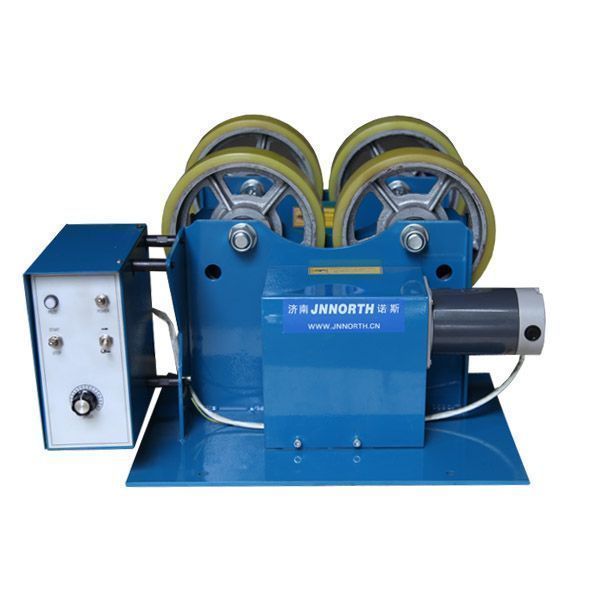

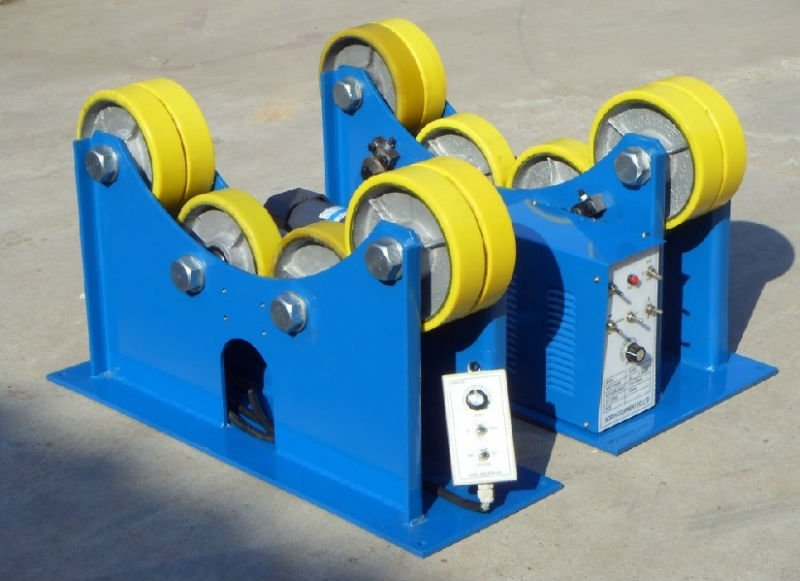

product display
The light-duty turning roller has a simple and compact structure design, small size and light weight, and can work on any occasion
Suitable for cylindrical workpieces with a weight of less than 1000kg and a diameter of 20mm-800mm, with stepless speed regulation
The adjustment speed can reach 80-1600mm/min, the operation is simple, and the installation and movement are convenient.
Suitable for cylindrical workpieces with a weight of less than 1000kg and a diameter of 20mm-800mm, with stepless speed regulation
The adjustment speed can reach 80-1600mm/min, the operation is simple, and the installation and movement are convenient.
Advantages of light tube seam welding machine
1. Large power and large output torque;
2. DC stepless speed regulation, wide speed regulation range;
3. Equipped with two sets of rollers to broaden the range of applicable workpiece diameters;
4. The structure is compact, simple and light, suitable for various working environments;
5. Equipped with a manual control box, the start and end of the roller frame are easy to control.
6. The manual control box can control the speed, on/off, forward and reverse rotation of the roller frame in real time;
7. Suitable for welding and cutting process of slender workpieces
1. Large power and large output torque;
2. DC stepless speed regulation, wide speed regulation range;
3. Equipped with two sets of rollers to broaden the range of applicable workpiece diameters;
4. The structure is compact, simple and light, suitable for various working environments;
5. Equipped with a manual control box, the start and end of the roller frame are easy to control.
6. The manual control box can control the speed, on/off, forward and reverse rotation of the roller frame in real time;
7. Suitable for welding and cutting process of slender workpieces
Product Description
power input | AC110V/220V 50/60Hz |
Model | NHTR-1000 |
loading capacity | 1000Kg |
speed range | 80-1600mm/min |
Diameter range | φ20-800mm |
motor | DC motor, 220V/110V, 100W |
Roller | 50mm(width)*φ200mm |
Driver size (including control box) | 580*360*350mm |
slave dimension | 450*120*350mm |
Product packaging
about Us
Jinan Apeman Technology Co., Ltd. is a leading exporter and Manufacturer in the field of Welding Machine Manufacturers. We have our own machinery company, which is specialized in R&D, production and sales of welding equipment, accessories and other spare parts. At the same time, we cooperate with many other factories whose main products are welding guns and accessories, hardware tools. We have the best suppliers. We can help foreign buyers to manufacture high quality products in China. We can also act as a third party to control the factory's production and get the best price for our customers. Our general manager has more than 12 years of experience in the welding industry. They have a good knowledge of what they offer. Any special requests can also be handled as we are happy to take orders in any size and can assist with OEM as well. We are confident and proud of the products offered by our factory. We can meet different quality requirements from different markets all over the world.
