BIOBASE China pilot freeze dryer BK-FD12P laboratory standard vacuum pump vacuum freeze dryer
- $1499.00 /unit
- 1 unit
- Medfuture Biotech Co., Ltd.
- Shandong, China
- Ms Melody-O Xu
PRODUCT DETAIL
| Applicable industries: | Manufacturing plants, machinery repair shops | gross weight: | 90kg |
| Height between pallets: | 50mm | brand: | biological base |
| Showroom location: | United States, India, United Arab Emirates | model: | BK-FD12P |
| Cold trap temperature: | ≤-60℃/-80℃ | Freeze drying area: | 0.12 square meters |
| application: | Freeze drying equipment | Packing size (width*depth*height): | 590*710*1170 |
| Warranty: | 1 year | Packaging details: | Standard export packaging |
| payment terms: | Letter of credit, wire transfer | Core components: | engine |
| port: | Qingdao/Shanghai/Guangzhou | tray: | 4 pieces |
| Mechanical test report: | if | Marketing type: | 2020 new products |
| Video outbound inspection: | if | Cold trap capacity: | 9.5 liters |
| Supply capacity: | 10,000 units per year | Package preview: | |
| Core component warranty: | 1 year | Weight (kg): | 75 |
| Place of origin: | Shandong China | product name: | Pilot freeze dryer |
| type: | Standard room |
Product Description
biological base

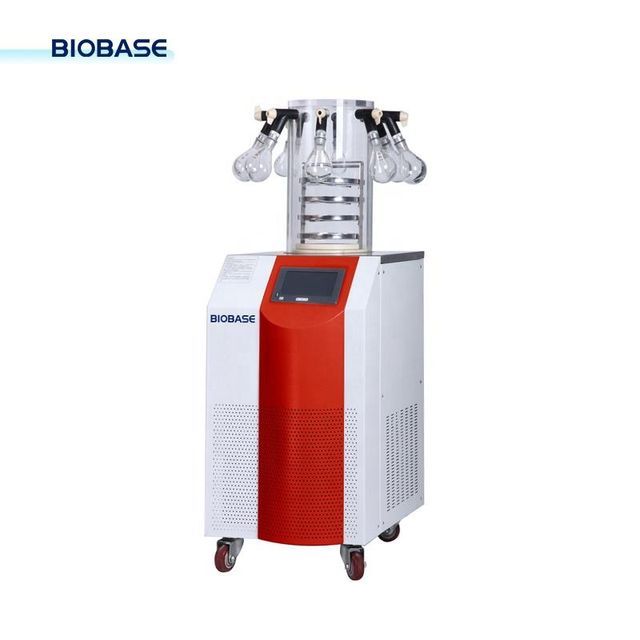

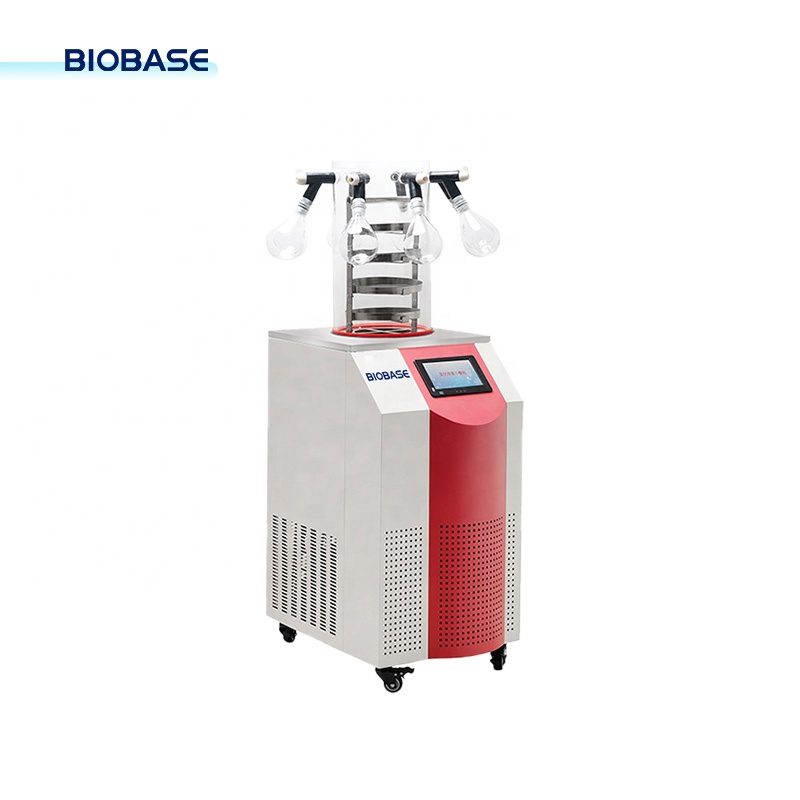

Pilot freeze dryer
BK-FD12P
Pilot freeze dryer
BK-FD12P
feature:
1. LCD touch screen.
2. It has historical data query function.
3. Has a USB interface to export data.
4. Large-capacity ice condensation trap with no coil inside.
5. Adopt cascade refrigeration technology.
6. The pre-freezing rack can be used as a guide bucket to speed up drying.
7. The ice condenser drain valve and operating panel are made of stainless steel.
8. The drying room is transparent, intuitive and safe.
9. The shelf is made of stainless steel and can be adjusted as needed.
2. It has historical data query function.
3. Has a USB interface to export data.
4. Large-capacity ice condensation trap with no coil inside.
5. Adopt cascade refrigeration technology.
6. The pre-freezing rack can be used as a guide bucket to speed up drying.
7. The ice condenser drain valve and operating panel are made of stainless steel.
8. The drying room is transparent, intuitive and safe.
9. The shelf is made of stainless steel and can be adjusted as needed.
Lab series freeze dryers are suitable for freeze drying tests of laboratory biomedical samples.
Widely used in pharmaceuticals, biological products, chemicals, food and other industries. Freeze-drying technology is used for heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes.
Widely used in pharmaceuticals, biological products, chemicals, food and other industries. Freeze-drying technology is used for heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes.
Specification
Model | BK-FD12S(-60/-80) | BK-FD12P(-60/-80) | BK-FD12T(-60/-80) | BK-FD12PT(-60/-80) | |||||||
type | Standard room | Standard chamber with 8-port manifold | Addition room | gag Chamber with 8-port manifold | |||||||
Freeze drying area | 0.12 square meters | 0.09 square meters | |||||||||
tray | 4 pieces | 3 pieces | |||||||||
height between pallets | 50mm | 68 mm | |||||||||
cold trap temperature | ≤-60℃/-80℃ | ||||||||||
Cold trap capacity | 9.5 liters | ||||||||||
Cold trap size (Dr*H) | Φ215*260mm | ||||||||||
Vacuum degree | <10Pa | ||||||||||
water capture capacity | 4kg/24 hours | ||||||||||
Pallet size (depth*height) | Φ200*20mm | ||||||||||
Freeze drying time | 24 hours | ||||||||||
Loading volume/shelf (liquid) | 0.3 liters | ||||||||||
Total load (liquid) | 1.2 liters | 0.9 liters | |||||||||
Drying chamber dimensions (depth*height) | Φ260*310mm | Φ260*450mm | Φ260*450mm | ||||||||
Number of vials that can be loaded | Φ22mm | 260 | 195 | ||||||||
Φ16mm | Chapter 480 | 360 | |||||||||
Φ12mm | 920 | 690 | |||||||||
refrigerant | R600a+R290+R23 | ||||||||||
cooling system | air cooling | ||||||||||
consume | -60℃: 0.9kW, -80℃: 1.5kW | ||||||||||
power supply | AC220V, 50Hz, 60Hz (single phase); 110V/220V, 60Hz (single phase, only applicable to -60℃) | ||||||||||
Standard accessories | Vacuum pump 2L/S, 8m3/h (applicable to all models), conical mouth flask 500mlx8 (only applicable to model BK-FD12P/PT) | ||||||||||
Optional features and accessories | Tray heating (available on all models), Cold trap defrost (available on all models), Erlenmeyer flask and wide mouth flask (for BK-FD12P/PT), Imported vacuum pump | ||||||||||
Overall dimensions (width*depth*height) | 460*620*920/1370mm | ||||||||||
Packing size (width*depth*height)mm/ gross weight | main body | 590*710*1170/90kg | 590*710*1170/90kg | ||||||||
drying room | 340*340*460/12kg | 390*390*670/12kg | |||||||||
Vacuum pump | 590*380*220/22kg | 590*380*220/22kg | |||||||||
