BLOXSPORT Hubcentric Wheel Spacer 5x112 for Volkswagen Passat
- $25.99 / >=10 pieces
- 10 pieces
- Guangzhou Zhongpeng Auto Parts Co., Limited
- Guangdong, China
- Mr
PRODUCT DETAIL
| Single package size: | 32X32X32 cm; | Packaging Detail: | Protective Bag + OEM Box + Carton Package to protect the wheel spacer; |
| Hole: | 5; | Center Bore: | 57.1; |
| Thread Pitch: | M14x1.5; | 1 Item include: | 2pcs wheel spacers with bolts; |
| Wheel Spacers Thickness: | 25mm/1''; | PCD: | 112mm,100mm; |
| Wheel Bolt Pattern(PCD): | 5x100/112; | Material: | Forged Aluminum 6061 T6; |
| Selling Units: | Single item; | Wheel spacers Material: | Forged Aluminum Alloy 60601 T6; |
| Package Preview: | ; | Wheel Spacers Color: | Black Anodized; |
| Fit for: | For Porsche; | Thickness: | 25mm; |
| Single gross weight: | 1.500 KG; | Finishing: | Hard Anodized Forged Aluminum Alloy; |
| Brand Name: | BLOXSPORT; | Diameter: | 11-15 Inch; |
| Place of Origin: | Guangdong, China; | Manufacturer Part Number: | Wheel Spacer 5x100/112; |
| Bolt Grade: | 12.9 Tested Report,TUV,ISO; |
Contact us
We are a Manufacturer,Wheel Spacer can be customized by your request,If you would like OEM Order.Pls contact me.
Product Description
Product Name | Wheel Spacers for Volkswagen |
Wheel Spacers Material | Forged Aluminum 6061 T6 |
Wheel Bolt Pattern(PCD) | 5x100/112 |
71.6Center Bore (CB) | 57.1 |
Thread Pitch | M14X1.5 |
Lug Bolt Material | 12.9 Grade Steel |
Surface Finish | Hard Anodized Forged Aluminum Alloy |
Hub Centric | Yep.10mm Hub Centric |
Placement on Vehicle | Left,Right,Front,Rear |
Color | Black Anodized |
BLOXSPORT Wheel Spacer Advantages:
* 6061-T6 Aerospace Aluminum
* Increase Vehicle Wheel Track Width
* Hub-Centric Chamfered Design
* Pocketed to Reduce Weight
* Anodised Anti-Corrosion Black Coating
* High-Tensile 12.9 Grade Wheel Bolts
* Anti-Corrosion Zinc Coated Black Wheel Bolts
* Wheel Spacers & Bolts Strength Tested to ensure Quality
* 5 Years Structural Warranty
* Increase Vehicle Wheel Track Width
* Hub-Centric Chamfered Design
* Pocketed to Reduce Weight
* Anodised Anti-Corrosion Black Coating
* High-Tensile 12.9 Grade Wheel Bolts
* Anti-Corrosion Zinc Coated Black Wheel Bolts
* Wheel Spacers & Bolts Strength Tested to ensure Quality
* 5 Years Structural Warranty
Details Images
Features:
* High-Strength Aircraft Aluminum Alloy 6061-T6,Forged Material.
* Brand Wheel Spacers, Real Material, Laser Material Number and Logo on Spacers/Adapters.
* Hard Anodized for durability and corrosion protection.
* Precision Engineered Hub-Centric and Model Specific for Perfect Fit and Wheel Balance.
* Limited Life Range Tested for Wheel Bolts/Stud (1 Million Times) in accordance to ISO3800.
* Machine pressed high tensile, heat treated studs.
* High-Strength Aircraft Aluminum Alloy 6061-T6,Forged Material.
* Brand Wheel Spacers, Real Material, Laser Material Number and Logo on Spacers/Adapters.
* Hard Anodized for durability and corrosion protection.
* Precision Engineered Hub-Centric and Model Specific for Perfect Fit and Wheel Balance.
* Limited Life Range Tested for Wheel Bolts/Stud (1 Million Times) in accordance to ISO3800.
* Machine pressed high tensile, heat treated studs.
Hubcentric spacers are designed to fit snugly over your vehicle's center hub, allowing your wheel/tire to center properly,
preventing vibrations and premature wear of wheel/tire components. This also gives improved safety over universal spacers by
reducing the chance of lug nut/bolts sheering off during events such as driving through a deep pothole or wheels making a hard
impact against objects such as curbs and other road hazards.
preventing vibrations and premature wear of wheel/tire components. This also gives improved safety over universal spacers by
reducing the chance of lug nut/bolts sheering off during events such as driving through a deep pothole or wheels making a hard
impact against objects such as curbs and other road hazards.
Non-hubcentric Spacer
Will not properly center around your vehicle's hub. This causes it to rotate unevenly during driving, which is one of the main
causes for steering wheel vibrations
causes for steering wheel vibrations
Hubcentric Spacer with Lip
Hubcentric Spacer with Lip
The 57.1mm centerbore of these spacers will properly center around your vehicle's hub. In addition, the 57.1mm diameter lip allows
you to center your wheel.
The 57.1mm centerbore of these spacers will properly center around your vehicle's hub. In addition, the 57.1mm diameter lip allows
you to center your wheel.
CNC machined
1.Our Wheel Spacers were modern CNC machined, the surface was more smooth, increasing car driving more stable and more secure and
no vibration. 0.02mm Machining precision, the consummate data comes from constant practice,We always make perfection more perfect.
2.Our Wheel Spacers have professional technology engineers,each car model with each precise data have measure by our engineers.We
always insist on the conception of” Carrying Responsibility and Delivering Security, Safety First” for the customer.
3.Our Wheel Spacer insist on CNC Machined with 60 degree taper bulge seat lug nuts,Precision Engineered Hub-Centric and
ModelSpecific for Perfect Fit and Wheel Balance.Machine pressed high tensile,heat treated studs.
no vibration. 0.02mm Machining precision, the consummate data comes from constant practice,We always make perfection more perfect.
2.Our Wheel Spacers have professional technology engineers,each car model with each precise data have measure by our engineers.We
always insist on the conception of” Carrying Responsibility and Delivering Security, Safety First” for the customer.
3.Our Wheel Spacer insist on CNC Machined with 60 degree taper bulge seat lug nuts,Precision Engineered Hub-Centric and
ModelSpecific for Perfect Fit and Wheel Balance.Machine pressed high tensile,heat treated studs.

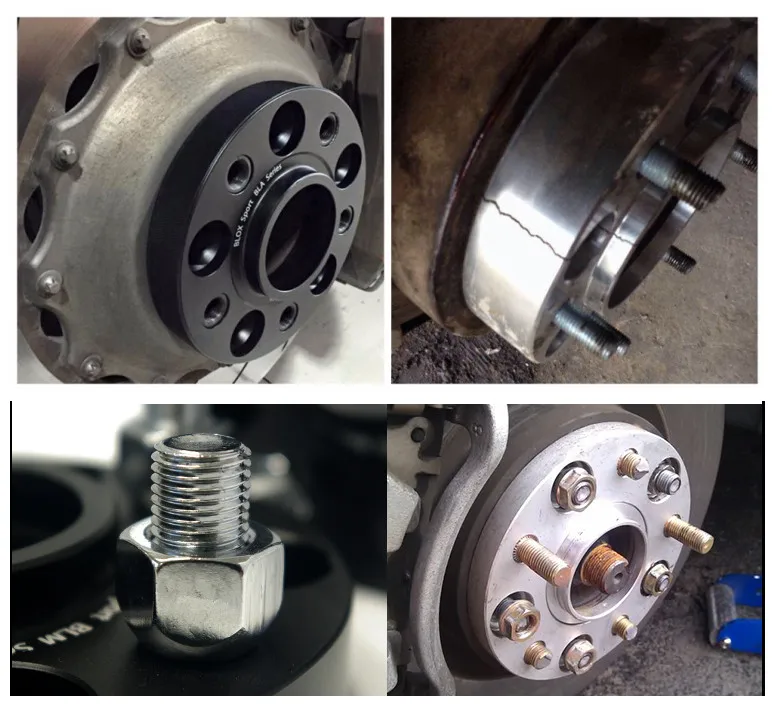

Our Wheel Spacer Made from High-Strength Aircraft Aluminum Alloy (7075-T6 or 6061-T6), Lightweight,Forged Hard Anodized for
durability and corrosion protection insist on using the forged material, insist on the conception of putting safety in the first
place and reject to use the casting material.
The Casting Wheel Spacer material made wheel spacers performance is terrible,it will snapped off and pose a very serious threat to
the driving safety.
durability and corrosion protection insist on using the forged material, insist on the conception of putting safety in the first
place and reject to use the casting material.
The Casting Wheel Spacer material made wheel spacers performance is terrible,it will snapped off and pose a very serious threat to
the driving safety.

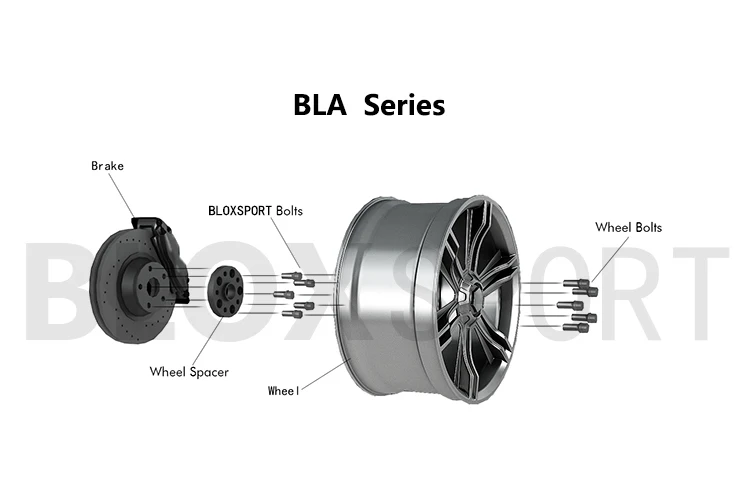

Installation illustration :
BLA Series Installation Tips
1.Remove wheel bolts and wheel.
2.Place BLOXsport Spacer on hub of car (where the wheel was attached) making sure that the spacer is fully
seated and flush with the hub.
3.Fasten BLA spacer to car using supplied special bolts. Carefully hand turn bolts making sure that they spin in
easily so as to not cross-thread. Repeat with the remaining bolts.
4.With hand wrench, snug up the bolts in a star.
5.Tighten bolts in a star pattern using torque wrench set to manufacturers specification.
6.Make sure no bolt heads protrude past spacer.
7.Place wheel onto the spacer and carefully line up the wheel / spacer bolt holes and mounting hole.
8.Carefully hand turn bolts making sure that they spin in easily so as to not cross-thread.
9.Repeat step 8 with the remaining bolts.
10.With hand wrench, snug up the bolts in a star pattern.
11.Before fully tightening, spin the wheel and tire to check for any noise or interference.
12.Tighten the wheel bolts in a star pattern with a torque wrench set to wheel manufacturers specifications..
1.Remove wheel bolts and wheel.
2.Place BLOXsport Spacer on hub of car (where the wheel was attached) making sure that the spacer is fully
seated and flush with the hub.
3.Fasten BLA spacer to car using supplied special bolts. Carefully hand turn bolts making sure that they spin in
easily so as to not cross-thread. Repeat with the remaining bolts.
4.With hand wrench, snug up the bolts in a star.
5.Tighten bolts in a star pattern using torque wrench set to manufacturers specification.
6.Make sure no bolt heads protrude past spacer.
7.Place wheel onto the spacer and carefully line up the wheel / spacer bolt holes and mounting hole.
8.Carefully hand turn bolts making sure that they spin in easily so as to not cross-thread.
9.Repeat step 8 with the remaining bolts.
10.With hand wrench, snug up the bolts in a star pattern.
11.Before fully tightening, spin the wheel and tire to check for any noise or interference.
12.Tighten the wheel bolts in a star pattern with a torque wrench set to wheel manufacturers specifications..

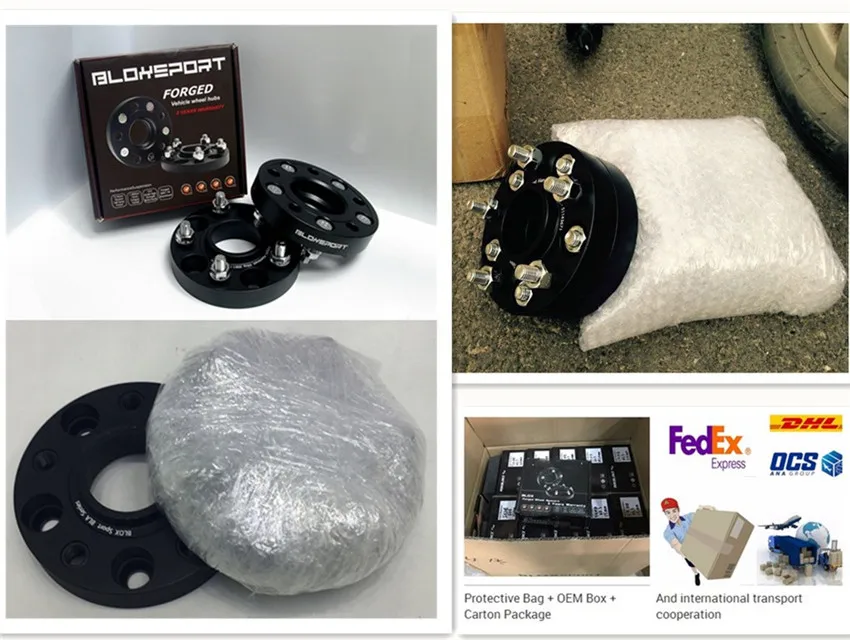

Packing&Shipping
Packing with hard boxes and froth bag, all-round protection for products, you will get a better experience.
Company Introduction
BLOXSPORT / BONOSS are one of the most professional wheel spacer company, which already run 10 years in this industry. With over 5 teams to develop our data system, and designer make our data difference with the original only 0.02mm. We are welcome our customer have their design, like OEM order, hope to have good business relationship with you all.
Our Services & Strength
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
BONOSS is a high-end brand established by Guangzhou Zhongpeng Auto Accessories Co., Ltd, based on the original BLOXSPORT brand with higher performance as the standard.
BONOSS is a company specializing in R&D, production and sales of forged wheel hub Spacer, bolts and nuts with SGS and TUV certificates. We now provide wheel spacers/adapters, aluminum wheel locking lug nuts/bolts, titanium wheel locking lug nuts/bolts,hub centric rings,wheel hanger, Throttle body spacer, lift spacers, customized service etc..
BONOSS is a company specializing in R&D, production and sales of forged wheel hub Spacer, bolts and nuts with SGS and TUV certificates. We now provide wheel spacers/adapters, aluminum wheel locking lug nuts/bolts, titanium wheel locking lug nuts/bolts,hub centric rings,wheel hanger, Throttle body spacer, lift spacers, customized service etc..
FAQ
1. What is the Tightening Torque for 10.9/12.9 Grade M12/M14 Bolts?
M12:110-130NM, Reference113NM(83.3Ft-tb), Steel Wheels and Aluminum Wheels are same.
M14:180-201NM, Reference 181NM(133.5Ft-tb) for Steel Wheels or 140NM (103.5Ft-tb) for Aluminum Wheels.

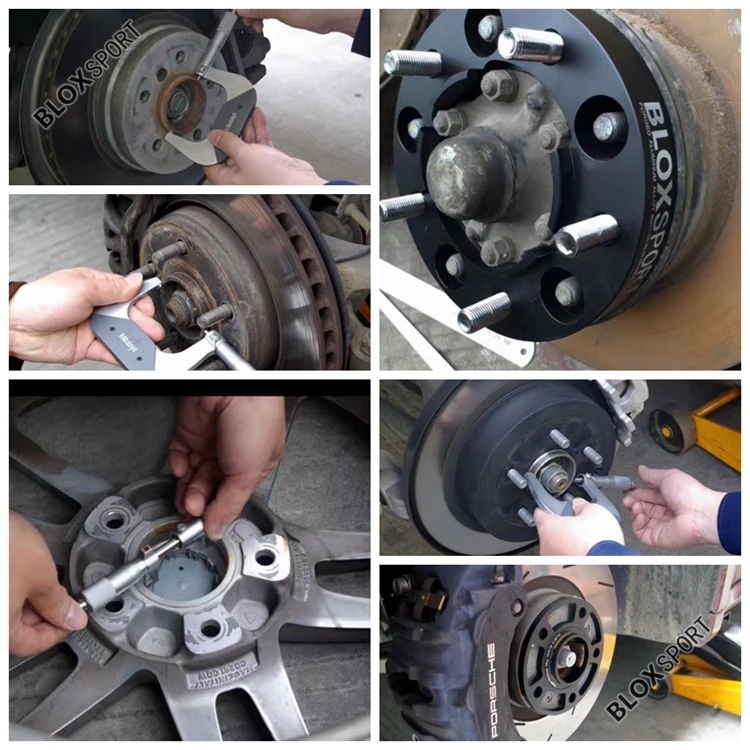

2. How is the Machining Precision?
Tolerance Range:
Circularity: 0.02mm, Perpendicularity: 0.05mm, Parallelism: 0.04mm, Concentricity: 0.05mm,
PCD true position: 0.02mm.
3. Will installing Spacers wear out my wheel bearings faster than normal?
No. BLOXSPORT Wheel Spacers will not cause premature wear of your wheel bearings. Inspect your bearings to make sure they are in
good working condition before installing BLOXSPORT Wheel Spacers.
4. Can I run different size wheel spacers in the front and rear?
Yes. Different size wheel spacers in the front and rear are very common. Usually the front and rear have different requirements
for optimal fitment.
5. Will BLOXSPORT Wheel Spacers stop my tires from rubbing the fender lip?
No. If your tire is rubbing your vehicle's fender lip it is possible that you have a tire or wheel fitment issue.
M12:110-130NM, Reference113NM(83.3Ft-tb), Steel Wheels and Aluminum Wheels are same.
M14:180-201NM, Reference 181NM(133.5Ft-tb) for Steel Wheels or 140NM (103.5Ft-tb) for Aluminum Wheels.
2. How is the Machining Precision?
Tolerance Range:
Circularity: 0.02mm, Perpendicularity: 0.05mm, Parallelism: 0.04mm, Concentricity: 0.05mm,
PCD true position: 0.02mm.
3. Will installing Spacers wear out my wheel bearings faster than normal?
No. BLOXSPORT Wheel Spacers will not cause premature wear of your wheel bearings. Inspect your bearings to make sure they are in
good working condition before installing BLOXSPORT Wheel Spacers.
4. Can I run different size wheel spacers in the front and rear?
Yes. Different size wheel spacers in the front and rear are very common. Usually the front and rear have different requirements
for optimal fitment.
5. Will BLOXSPORT Wheel Spacers stop my tires from rubbing the fender lip?
No. If your tire is rubbing your vehicle's fender lip it is possible that you have a tire or wheel fitment issue.
