Belt grinder JZ-900 2x72

PRODUCT DETAIL
model:JZ-S03Origin:Henan, China
Grinder type:Horizontal Belt Grinder, Vertical Belt Grindergrade:industry, DIY
Applicable industries:Belt Grinderapplication:LRON, brass, ferrous materials, steel, copper
Voltage:110V-230V, 380VAbrasive belt motor power:1.5kw/2.0kw
weight:90KGport:Shanghai/Qingdao/Tianjin/Ningbo etc.
Package preview:Dimensions (L*W*H):68*58*64cm
Sand mat size:1880*50/2100*50mmfrequency:50Hz/60Hz
Rated voltage:380v/220vSupply capacity:100 sets per quarter
Packaging Details:Wooden box or carton packaging, suitable for long-distance sea and rail transportation, or machine-loaded container transportation.Rotating speed:3000 rpm
Customization support:OBM,ODM,OEMEnergy source:electrical
Maximum motor speed:othertype:Belt Grinder
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramRubber contact wheels:PH 427 X 12"
current:3.5A/7.5A, others
Product Description

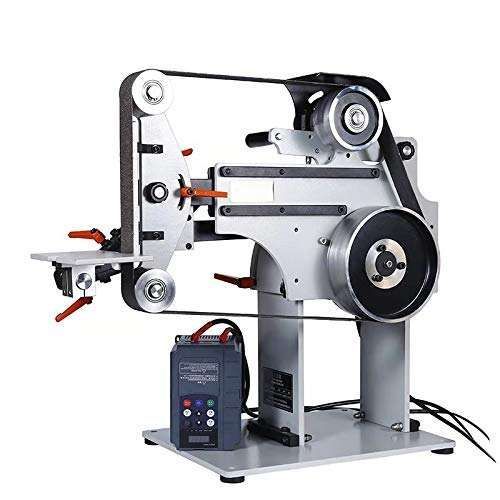

Variable Speed ​​Belt Sander (Reversible) Heavy Duty with Inverter 2 HP 1500W 220V
* Belt Grinder Variable Speed ​​Chassis is designed for professional knife and other cutting tool and machine builders. we provide full
A range of accessories for making knives, blades, scissors and other metalworking materials.
* The unit is very easy to maintain
And doesn't require any special skills from an engineer and can be built in your workshop. You have to place the motor additionally
and pulleys.
* Available abrasive belt size: 70.9-82.7"*2"/1800-2100mm*50MM (our machine is equipped with 1800mm abrasive belt)
detailed drawing
Heavy duty inverter
Equipped with heavy-duty frequency converter, high torque at low speed. The whole machine is fixed with all bolts, which greatly improves the running accuracy of the machine.
Wide range of applications
The main frame is made of 12mm thick steel plate, which is not easy to deform. It is used for regular and irregular polishing of stone, wood, metal appliance parts and accessories.
Title here.
The machine board is equipped with reinforcing ribs, which effectively avoids the deformation of the frame due to gravity after long-term use. The all-steel frame is welded at all joints, very strong and stable.
Title here.
Detachable workbench. Platen or wheels/attachments can be easily changed without tools, and tool arms and tool holders can be quickly released.
Product parameters
* Motor power 1.5KW; line speed 0-31/s; speed: 2800r/min; motor: 2HP;
* Knife and steel working belt: 2" X 48". Inverter*1
* All-steel structure, the surface of the machine is polished and sprayed, which is durable and durable.
* Equipped with 1500w pure copper motor.
* Adjustable table.
* It comes with three different grinding wheels.
Voltage
220V
weight
152 lbs/69 kg
belt size
72"inch*2inch/1828mm*50MM
pack
wooden box
multipurpose machine
Multi-field application
