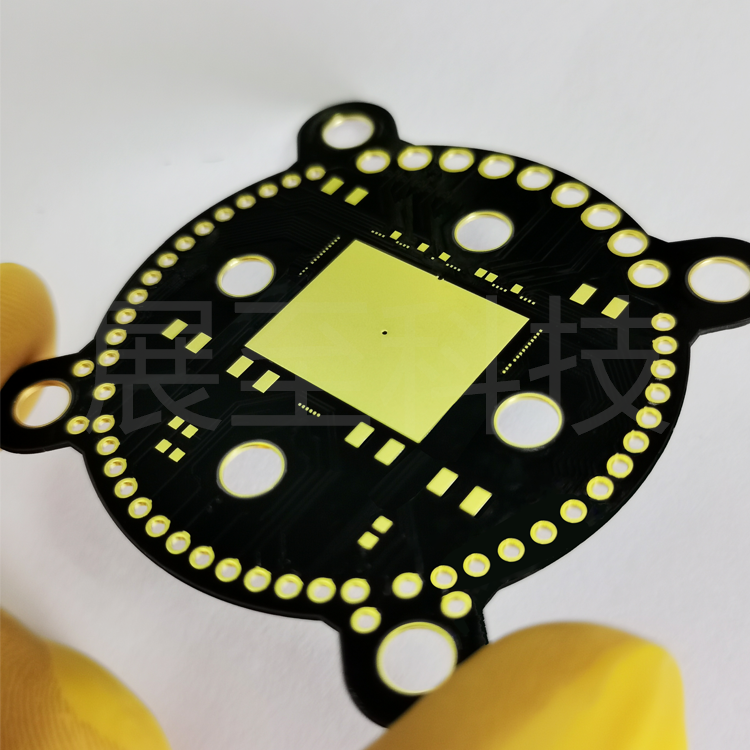

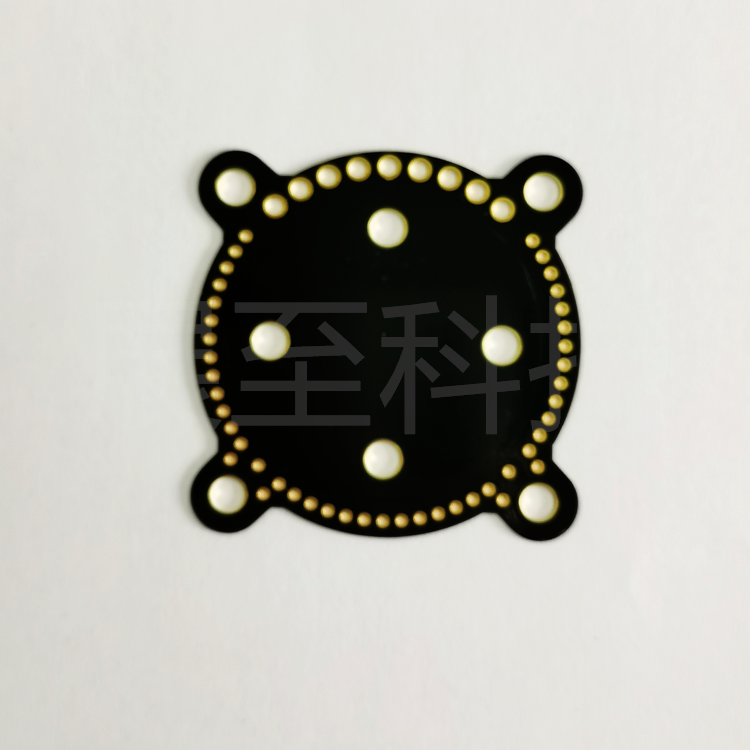

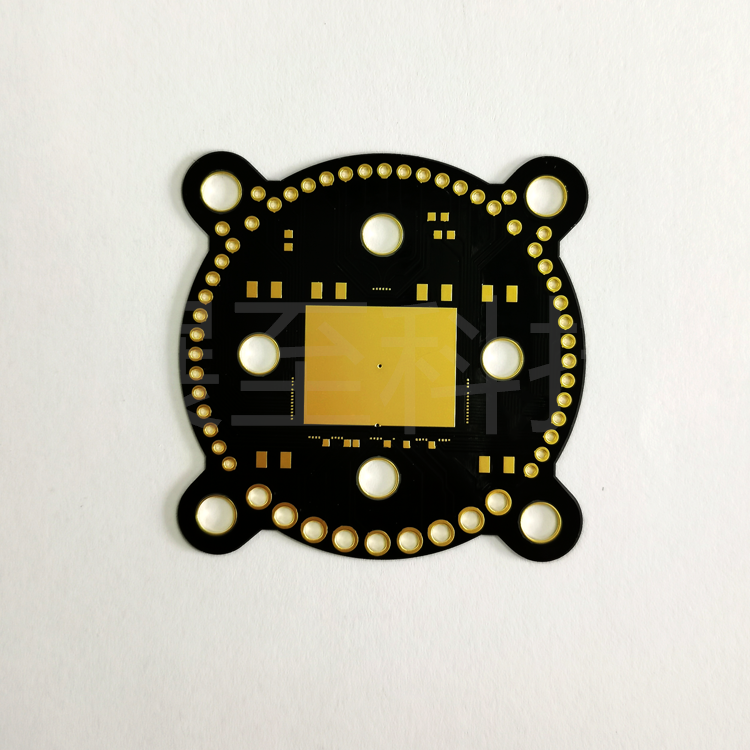

Black Aluminum Nitride Porcelain Ceramic Substrate with High Thermal Conductivity Strong Bonding Strength and High Insulation
- $0.50 /piece
- 1 piece
- Meizhou Zhanzhi Electronic Technology Co., Ltd.
- Guangdong, China
- Ms Qing Wang
PRODUCT DETAIL
| model: | 3741 | Plate thickness: | 0.127mm-3mm |
| minute. Line spacing: | 0.05mm | minute. Line width: | 0.05mm |
| Board size: | other | Base material: | aluminum nitride |
| minute. Hole size: | 0.06mm | Surface treatment: | Spray tin, immersion gold |
| Copper thickness: | 0.5 micron-5mm | Place of origin: | Guangdong Province, China (Mainland) |
| type: | Ceramic PCB | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| brand: | Zhanzhi |
Product parameters
This is only part of the production data and the page cannot be loaded. If you would like more details, please contact us.
| Product parameters | |
| Material | Alumina, aluminum nitride, silicon nitride and other ceramic materials, silicon carbide, sapphire, glass and other transparent wafer materials |
| Plate thickness | 0.127mm-3mm, support customization |
| Number of layers | Single layer, single side, single and double sided |
| Copper thickness | 0.5μm-5mm |
| surface metal layer | Titanium, copper, nickel, silver, gold, palladium, tin, platinum, tungsten, etc. |
