Black tone smart window glass PDLC film
- $149.00 / 5 - 198 square meters
$141.00 / 199 - 199 square meters
$139.00 / 200 - 19999 square meters
$78.00 / >=20000 square meters - 5 square meters
- Wuhan Gani Technology Co., Ltd.
- Hubei, China
- Ms Lee Gani
PRODUCT DETAIL
| model: | Vehicle PDLC | transparency: | 83%, 88%, 90% |
| design style: | modern | port: | Shanghai/Ningbo/Shenzhen/Wuhan/Qingdao |
| haze: | ≤ 2% | Warranty: | 5 years |
| Origin: | Hubei, China | feature: | self-adhesive |
| type: | glass film | payment terms: | wire transfer |
| color: | Red, green, yellow, black, white, light gray, dark gray, etc. | Packaging Details: | PDLC window film: roll + pearl cotton + strong carton |
| Operating Voltage: | AC60V/50Hz | brand: | JANY/ OEM/ ODM |
| Supply capacity: | 85600 square meters per month | After-sales service: | online technical support, online technical support |
| energy consumption: | ≤5W/㎡ | size: | custom |
| Surface treatment: | Embossed, Frosted/Etched, Opaque | Project solution ability: | others |
| Storage: | 25±10℃ ventilated and dry condition | application: | Automobiles, hotels, commercial, residential, banks, hotels, etc., office buildings |
| Key words: | PDLC smart film | Package preview: | |
| Function: | decoration, privacy |
self-adhesivePDLC automotive smart film
Features

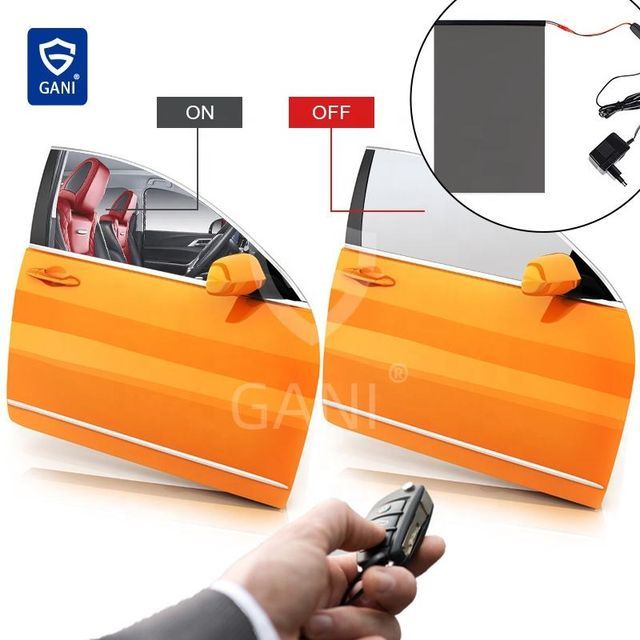

1. Effect - transparent when booting, opaque when shutting down
2. Heat insulation - block the sun's visible light, 99% UVR, 82% IRR
3. Indoor application - room partition, breaking the fixed space and improving privacy.

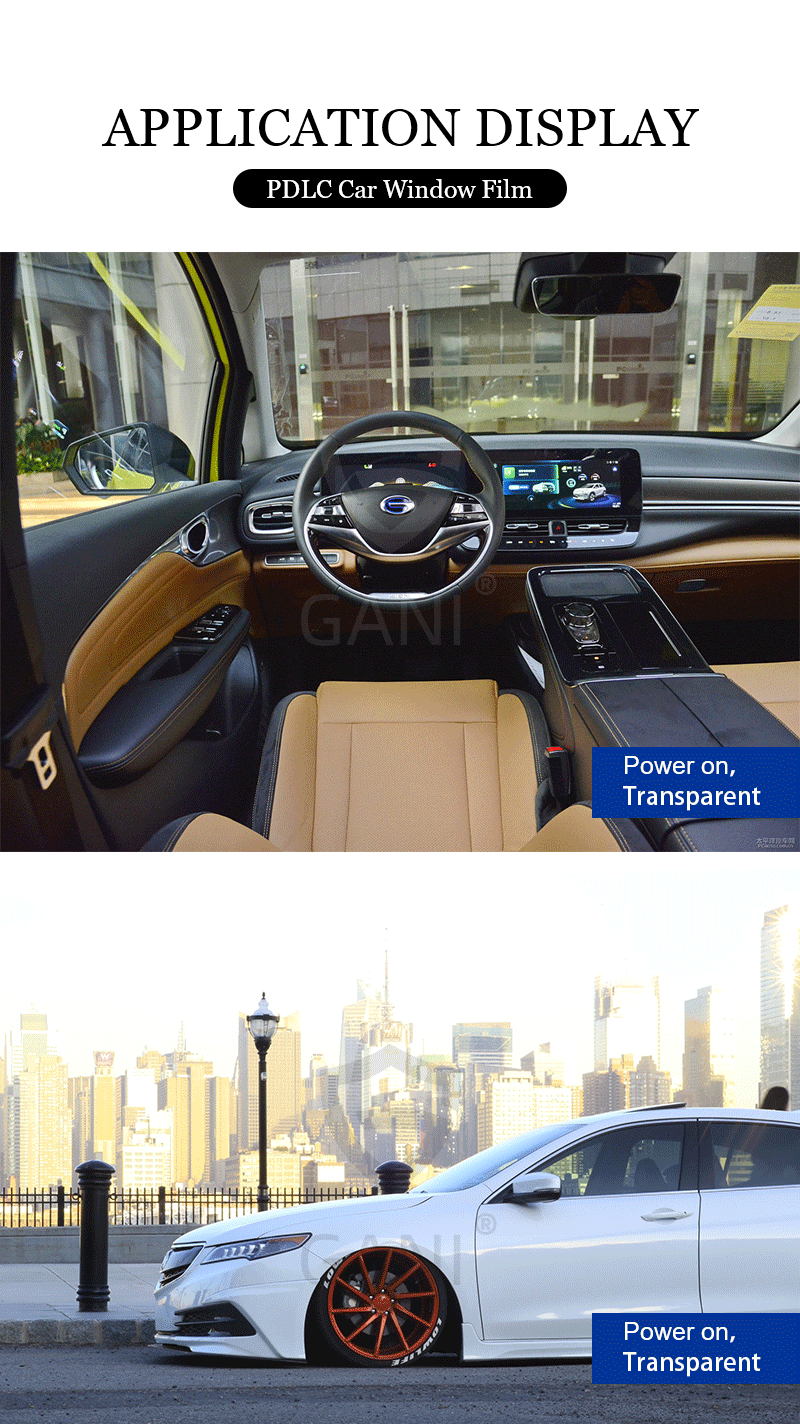

4. More applications - automobiles, office buildings, shopping malls, hotels, banks, homes, etc.
5. Customization - color, size, VLT, texture, logo, etc.
2. Heat insulation - block the sun's visible light, 99% UVR, 82% IRR
3. Indoor application - room partition, breaking the fixed space and improving privacy.
4. More applications - automobiles, office buildings, shopping malls, hotels, banks, homes, etc.
5. Customization - color, size, VLT, texture, logo, etc.

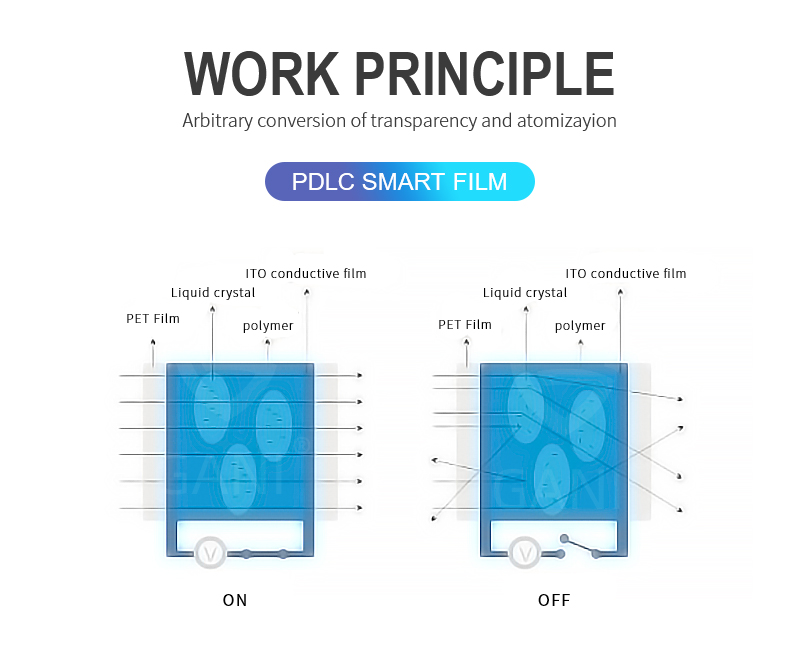

Product principle:
PDLC car film is a multi-layer composite structure composed of two layers of PET-ITO conductive film and an intermediate PDLC liquid crystal film, in which the liquid crystal film is mainly composed of liquid crystal droplets and a polymer outer layer. In the energized state, two PET-ITO conductive films are used as planar electrodes, so that the liquid crystal droplets are arranged in an orderly manner perpendicular to the film surface. transparent. When the power is off, the liquid crystal molecules inside are randomly arranged, and the refractive index of the liquid crystal is lower than that of the polymer outside, and it is milky white, that is, opaque.
PDLC automotive smart film | ||||||
thing | model | Specification | ||||
optical properties | Visible light transmittance | exist | ≥ 64% | |||
leave | ≥ 59% | |||||
Parallel transmittance | exist | ≥ 64% | ||||
leave | ≤ 6% | |||||
haze | exist | ≤ 2% | ||||
leave | ≥ 93% | |||||
angle of view | exist | ≥160° | ||||
Internal Rate of Return | leave | ≥ 99% | ||||
ultraviolet light | leave | ≥ 82% | ||||

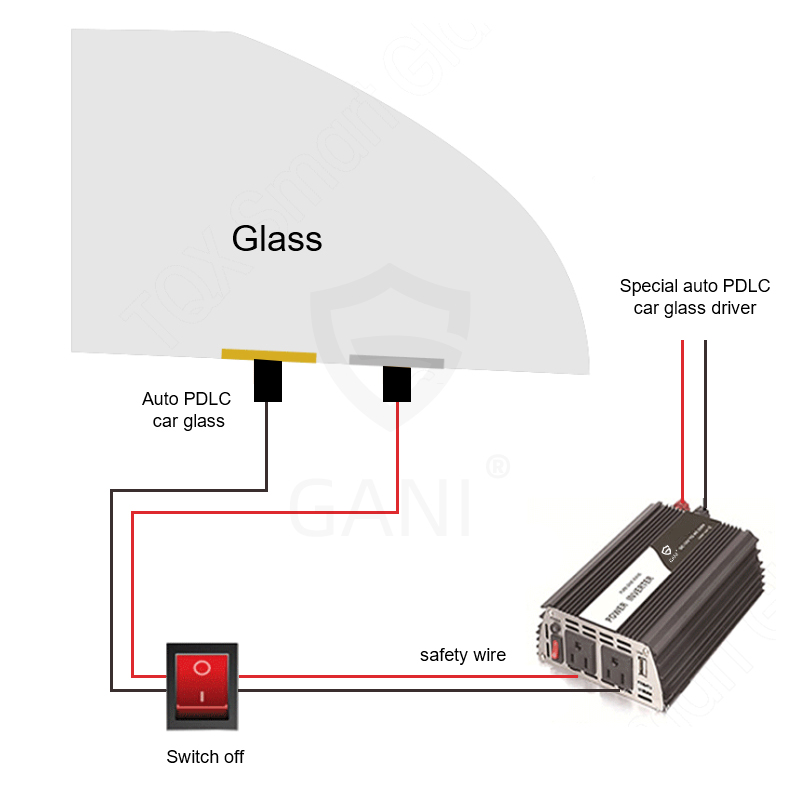

Electrical parameters | Operating Voltage | exist | 60V | |||
Response time | off-on | ≤ 30ms | ||||
Response time | switch | ≤ 200 milliseconds | ||||
Operating parameters | -30℃～95℃ | |||||
Switching times | >2 million | |||||
service life | 10~15 years | |||||
