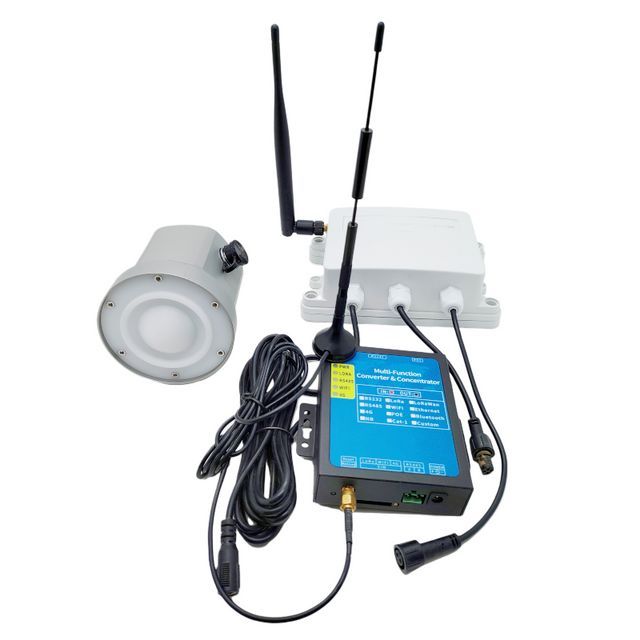

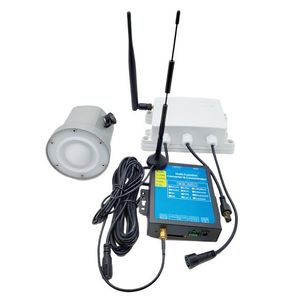

CE Doppler RD-300S-RTU MODBUS OPEN CHANNEL WATER LEVEL SENSOR RADAR
- $627.00 / 1 - 9 pieces
$620.00 / 10 - 99 pieces
$610.00 / >=100 pieces - 1 piece
- Honde Technology Co., Ltd.
- Beijing, China
- Mr Marvin Li
PRODUCT DETAIL
| Place of origin: | Beijing China | brand: | Hundtek |
| Application 1: | Open channel water level monitoring | payment terms: | Western Union, Wire Transfer, MoneyGram, PayPal |
| type: | Variable area water flow meter | Application 4: | Urban pipe network water level monitoring |
| port: | Tianjin Xingang | Minimum order quantity: | 1 |
| Warranty: | Normally 1 year, 1 year | Maximum range: | 80m |
| Wireless output: | GPRS/4G/WIFI/LORA/LORAWAN | Customization support: | OEM, ODM, software |
| product name: | radar water level sensor | Supply capacity: | 1000 pieces per month |
| Key words: | Radar type | Application 3: | Natural river water level monitoring |
| model: | RD-300S-01 | Packaging details: | 1 unit/box |
| Package preview: | Application 2: | Water tank level monitoring |
Product Description
Measurement parameters | ||||||
product name | radar water level gauge | |||||
Flow measurement system | ||||||
Measurement principle | Radar planar microstrip array antenna CW + PCR | |||||
operating mode | Manual, automatic, telemetry | |||||
Applicable environment | 24 hours, rainy days | |||||
range of working temperature | -30℃~+80℃ | |||||
Operating Voltage | 7~32VDC | |||||
Relative humidity range | 20%~80% | |||||
Storage temperature range | -30℃~80℃ | |||||
Working current | 12VDC input, working mode: ≤10mA Standby mode: ≤0.5mA | |||||
Lightning protection level | 15KV | |||||
physical size | Diameter 73*64 (mm) | |||||
weight | 300g | |||||
Protection level | IP68 | |||||
radar water level gauge | ||||||
Water level measurement range | 0.01~7.0m | |||||
Water level measurement accuracy | ±2mm | |||||
water level radar frequency | 60GHz | |||||
Measurement blind area | 10mm | |||||
Antenna angle | 8° | |||||
data transmission system | ||||||
Data transfer type | RS485/ RS232, 4~20mA | |||||
Setting software | Yes | |||||
4G remote terminal equipment | Integration (optional) | |||||
lola | Integration (optional) | |||||
Remote parameter setting and remote upgrade | Integration (optional) | |||||
Application scenarios | ||||||
Application scenarios | -Channel water level monitoring | |||||
-Irrigation area-open channel water level monitoring | ||||||
-Measure flow with standard weirs and troughs (such as Parsell troughs) | ||||||
-Reservoir water level monitoring | ||||||
-Monitoring of natural river water levels | ||||||
-Underground pipe network water level monitoring | ||||||
-Urban flood level monitoring | ||||||

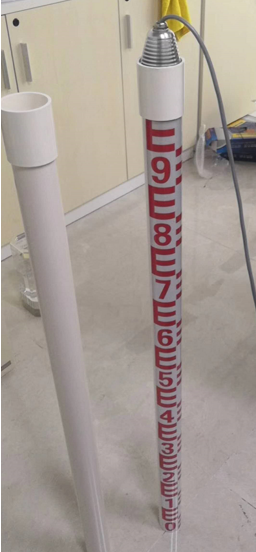

-Electronic water level gauge | ||||||

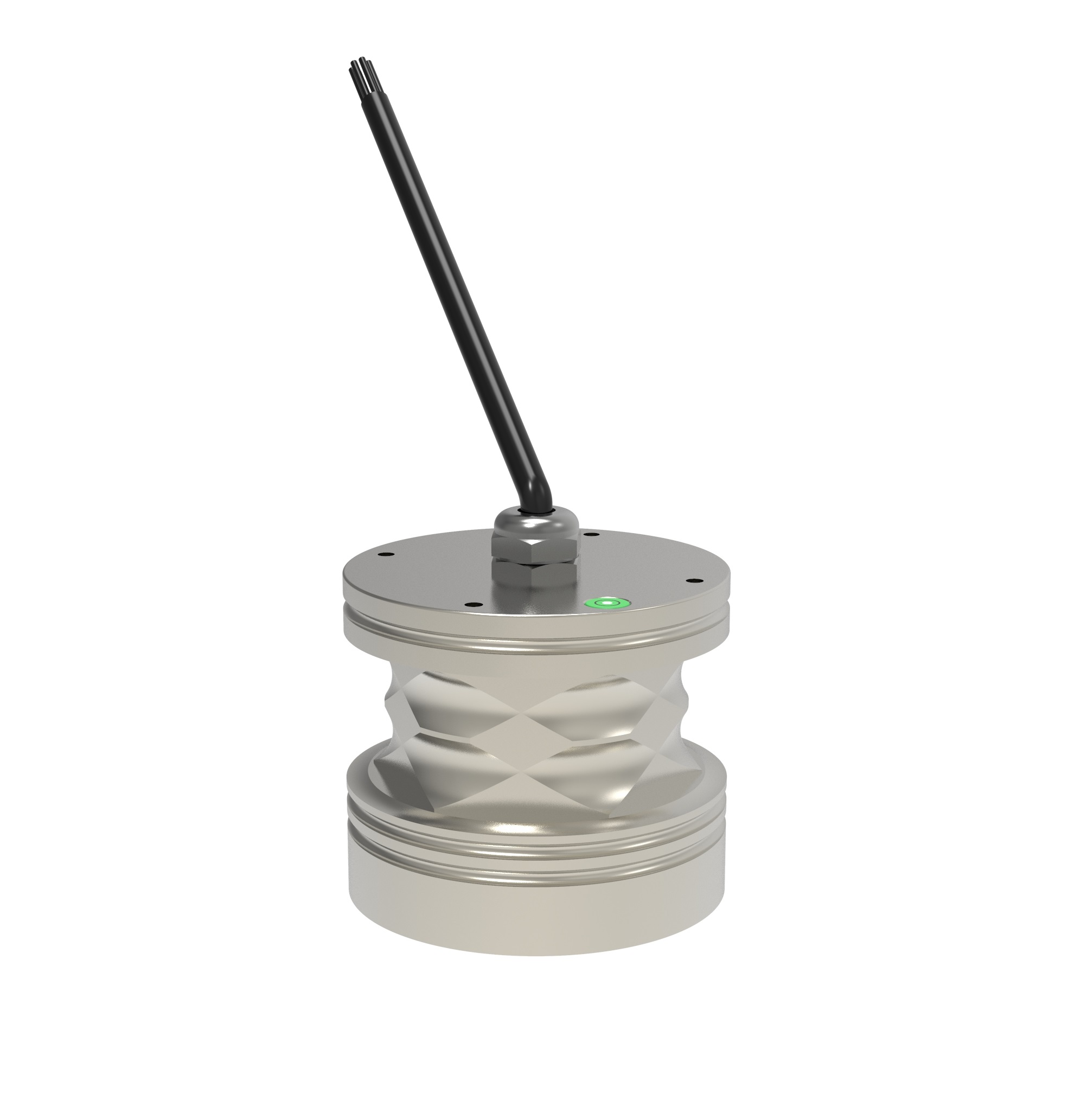

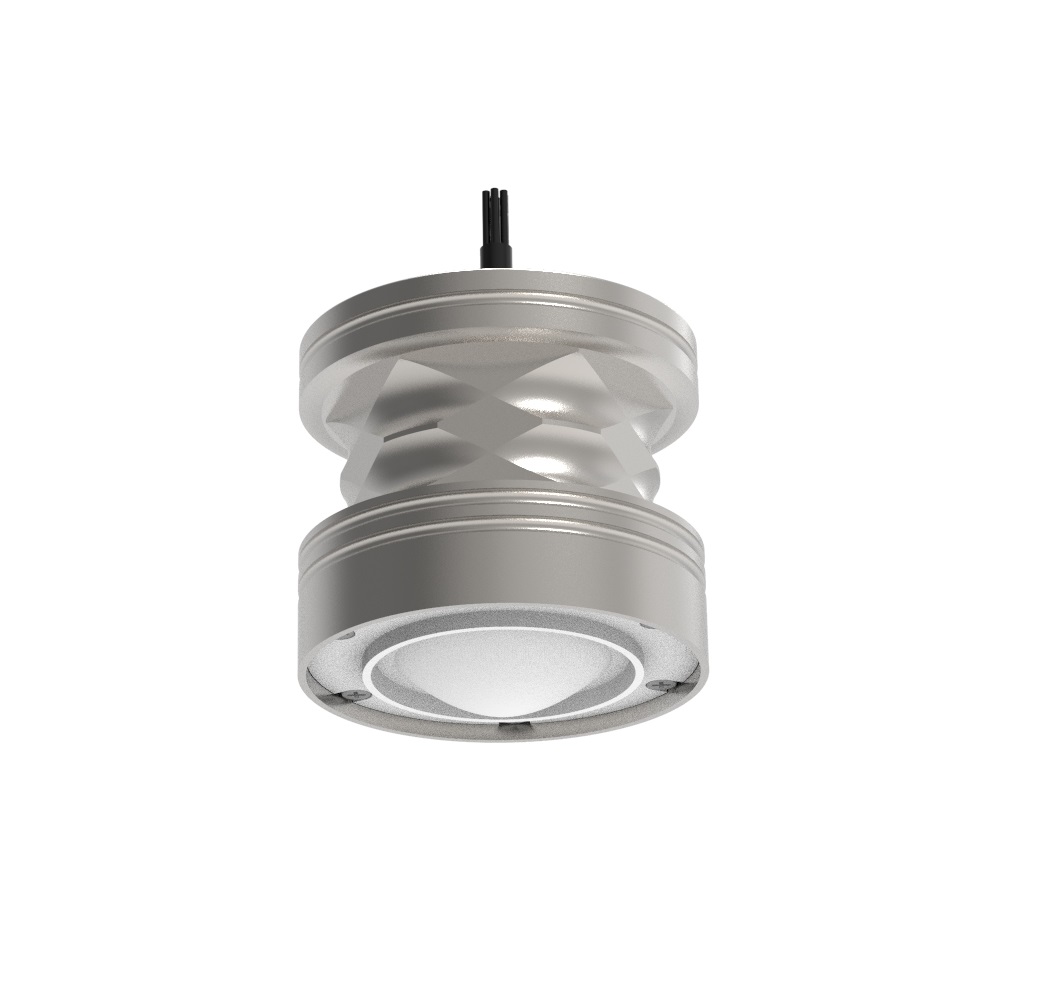

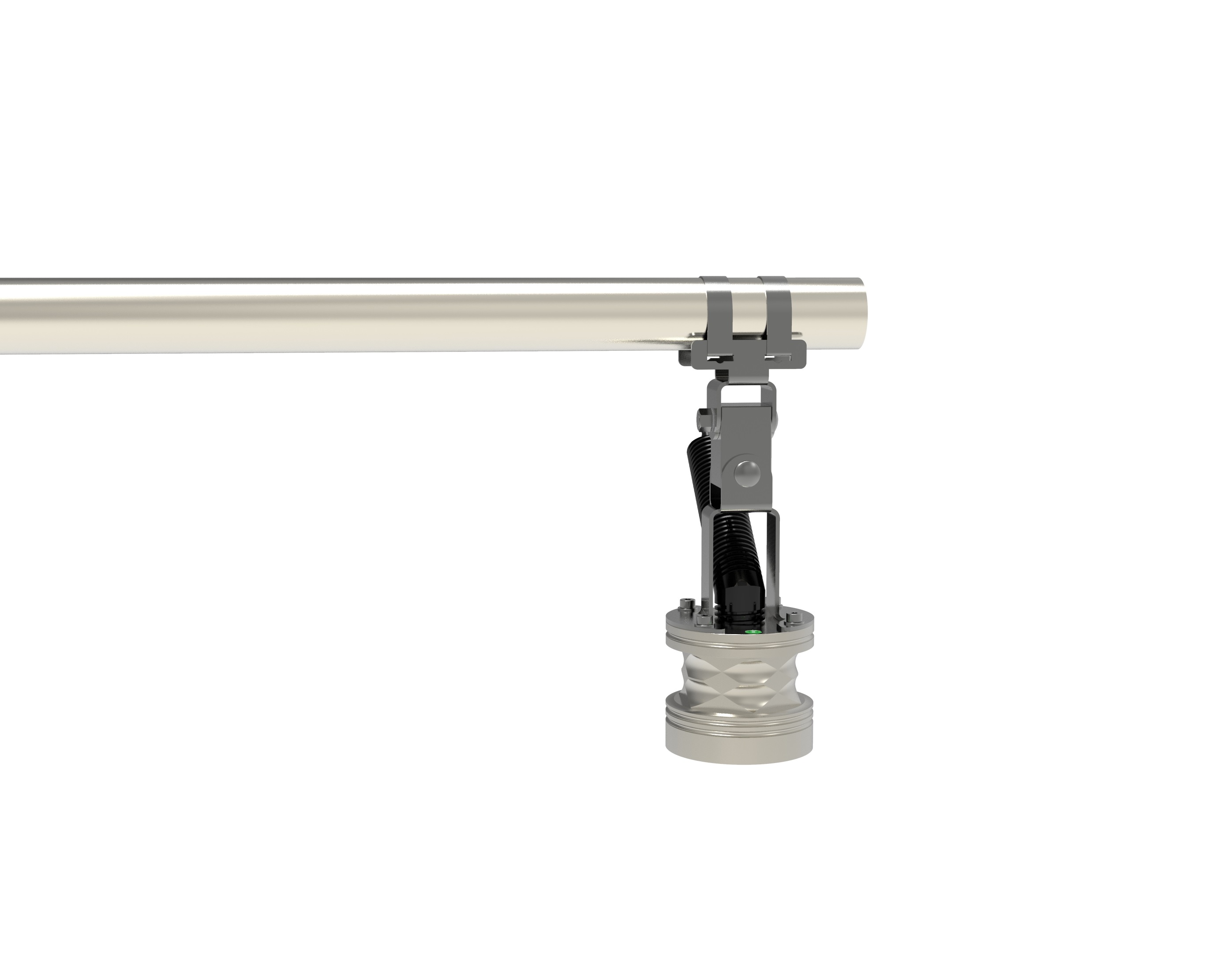

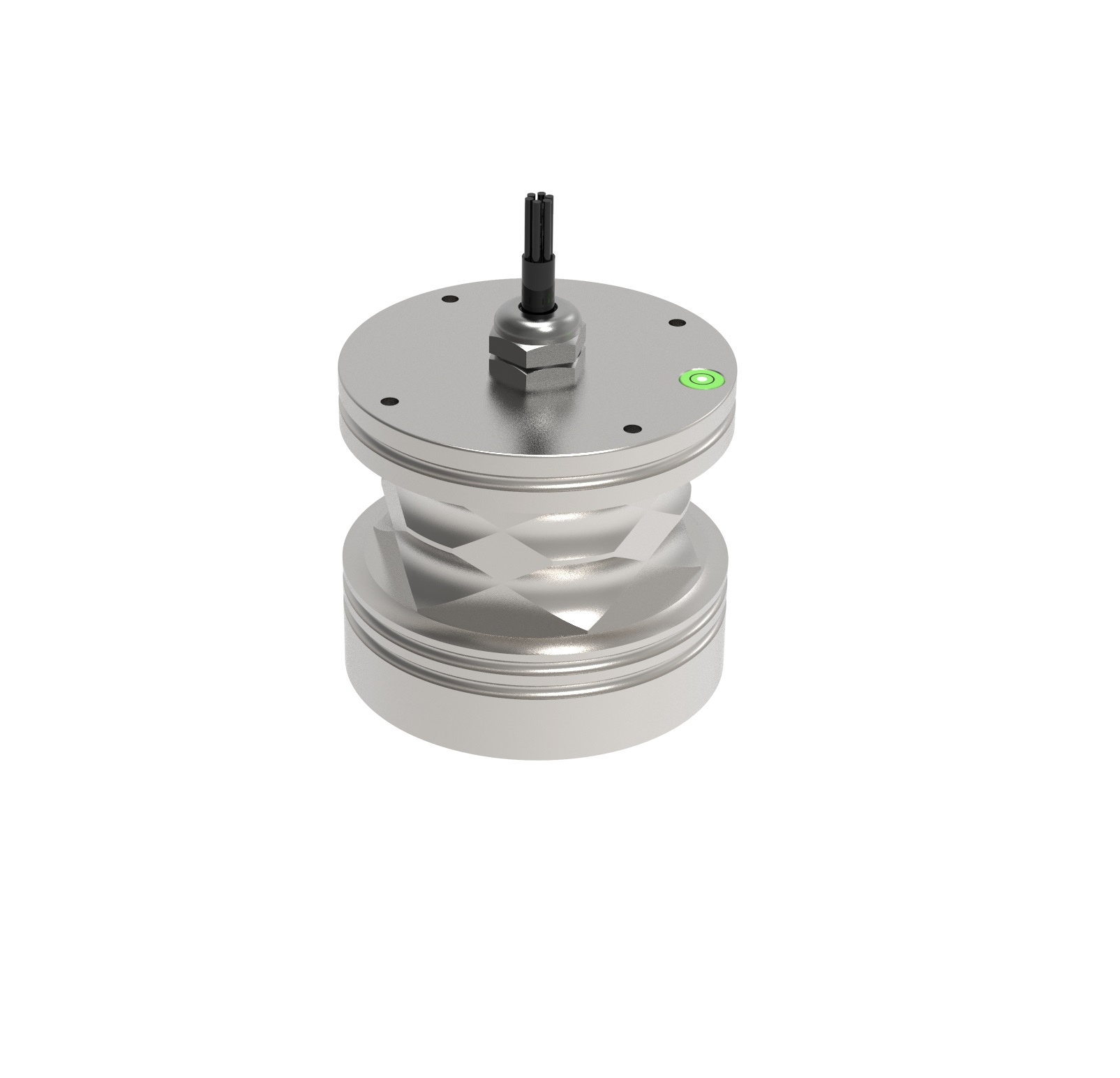

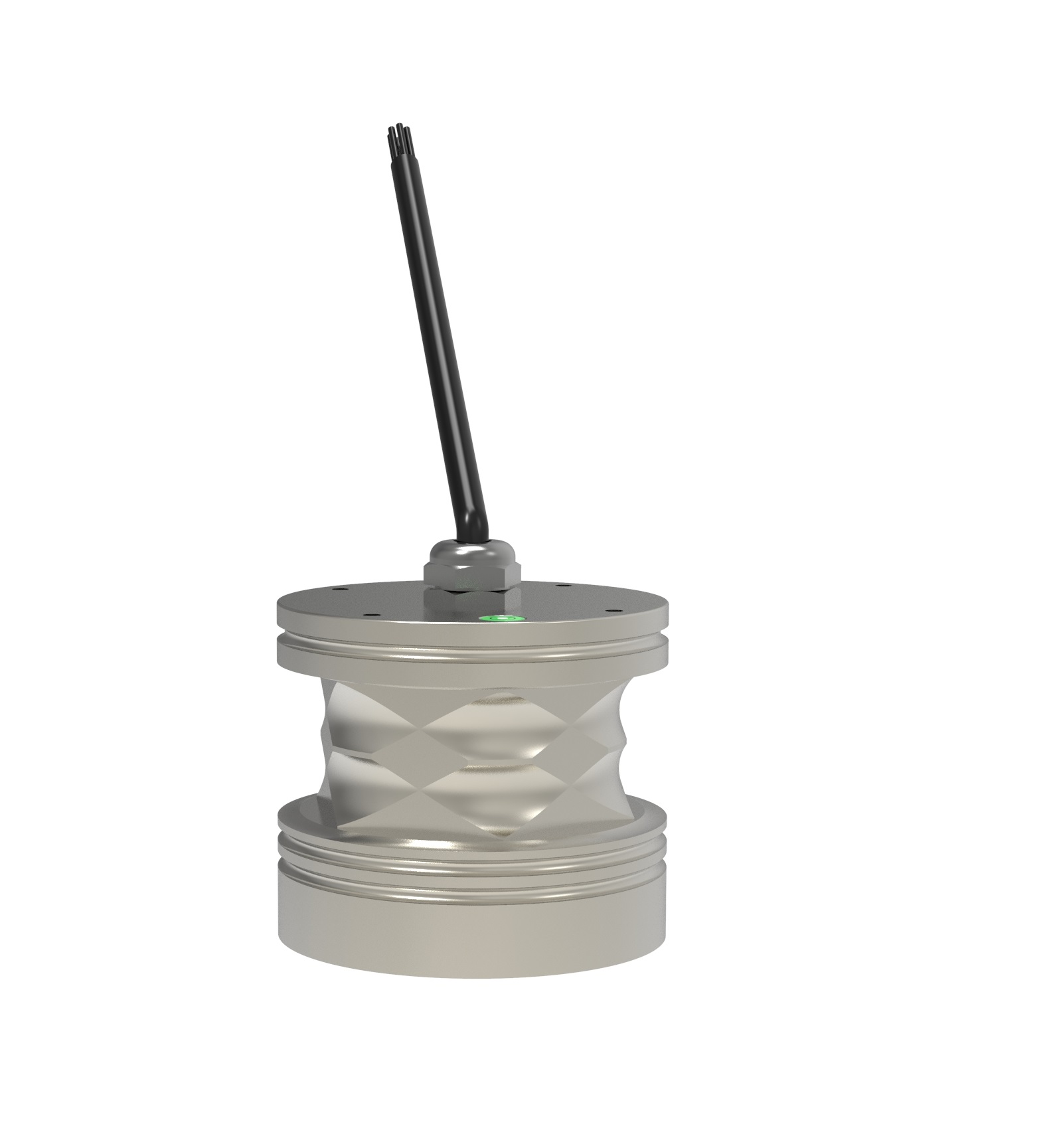

detailed image
Applications

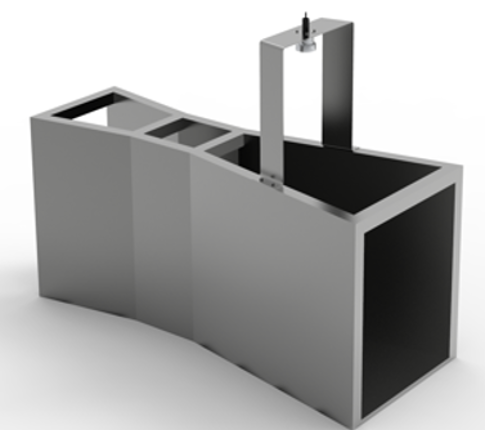

Used with standard weirs and troughs (such as Parsell troughs) to measure flow

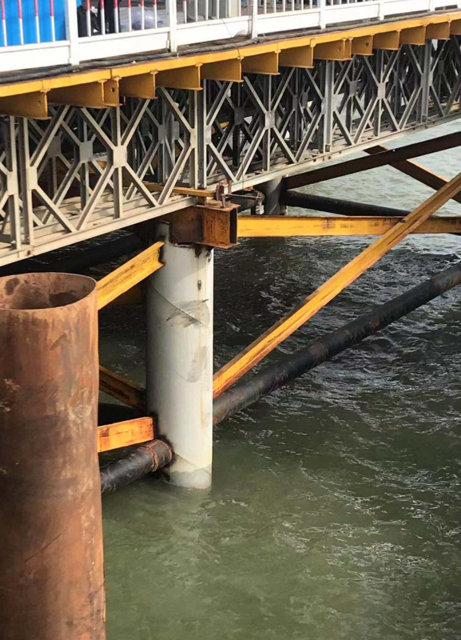

Natural river water level monitoring

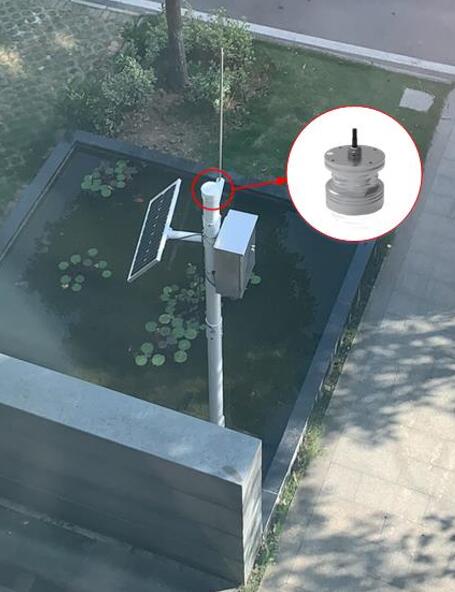

Water tank level monitoring
Urban waterlogging level monitoring
Electronic water meter
