CHANKO sensor high quality Proximity Photoelectric Fiber Optic Amplifier Capacitive Light Curtain
- $6.54 / >=10 pieces
- 10 pieces
- Shanghai Changjiang Electric Equipment Group Co., Ltd.
- Zhejiang, China
- Ms Juna Zhu
| Material: | Case: ABS, standard cable (black) PVC; | Output: | Digital Sensor; |
| Output Type: | NPN PNP; | output: | NPN / PNP; |
| Package Preview: | ; | Theory: | Optical sensor; |
| Description: | sensor; | Port: | Shanghai/Ningbo; |
| Supply Ability: | 10000 Pieces per Week; | Place of Origin: | Zhejiang, China; |
| Usage: | Ray Sensor; | Brand Name: | CHANKO; |
| Payment Terms: | L/C,T/T,Western Union; | Weight: | About 65g; |
| Voltage - Supply: | 10-30VDC; |

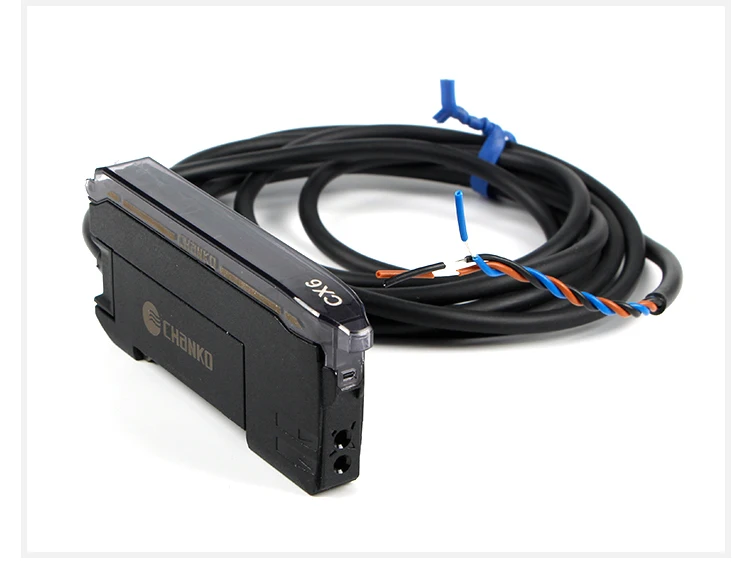

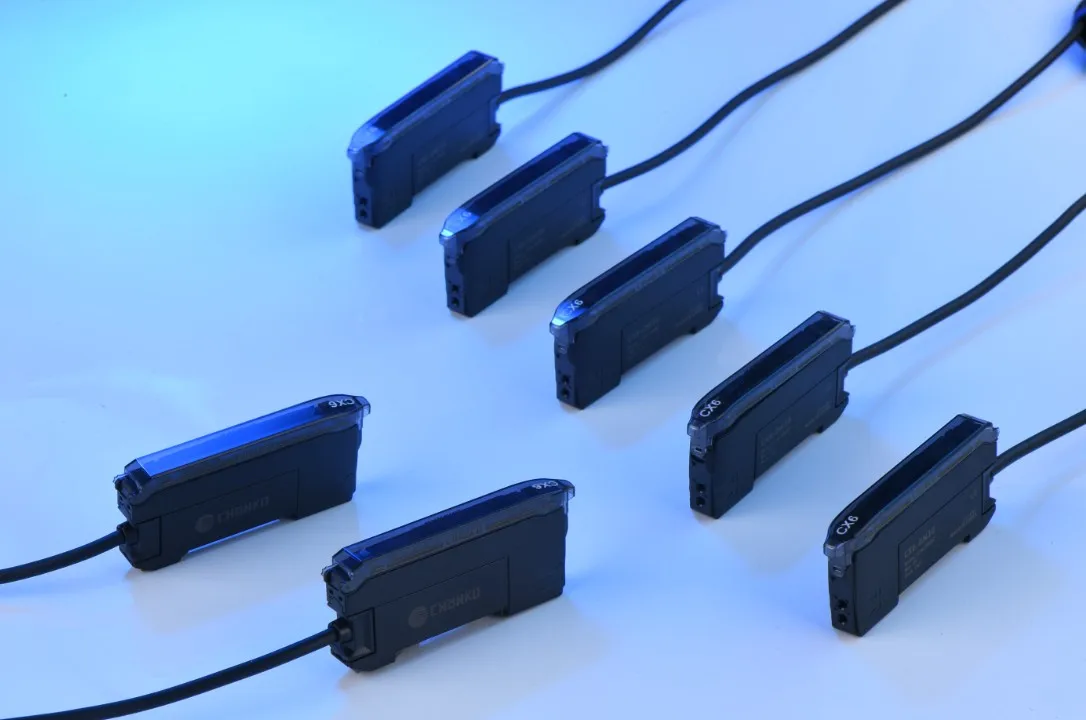

| Series | Fiber optic sensor | |

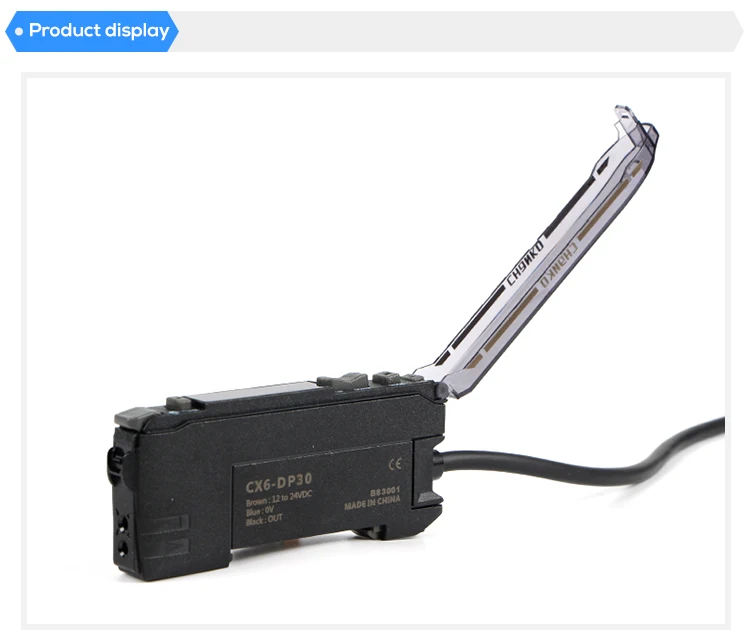

| Type | NPN | CX6-DN30 |
| PNP | CX6-DP30 | |
| Light Source | Red 4 element light emitting diode (625nm) | |
| SupplyVoltage | DC12~24V ±10% fluctuation (P-P) < 10% | |
| Action Mode | Light ON / Dark ON | |
| Output Mode | NPN / PNP | |
| Response Time | Super High Speed(SHS) | Action / Reset:200μs |
| High Speed (HS) | Action / Reset:350μs | |
| Standard (STND) | Action / Reset :3ms | |
| High Precision(GIGA) | Action / Reset:18ms | |
| Protection Circuit | Power supply reverse connection protection, output short circuit protection, output reverse connection protection, power surge protection | |
| Power Consumption | Normal Mode | Less than 720mW (Consumption current below 30mA at supply voltage of 24V / current less than 60mA at supply voltage at 12V) |
| Withstand Voltage | AC1000V 50/60Hz 1min | |
| Insulation Resistance | ≥ 20MΩ | |
| Vibration Resistance | 10~50Hz double-amplitude 0.7mm or 50m/S2 1.5h in X,Y,Z directions | |
| Impact Resistance | 150m/S2 3 times in X,Y,Z directions | |
| Ambient Humidity | 25~85%RH (No dew) | |
| Operating Temperature Range | 0~55℃ (No dew) | |
| External Light | Filament lamp:2000 lx Sunshine:10000 lx | |
| Protection Level | Lead-out type: IEC standard IP50 | |
| Set Of Prevent Mutual Interference | Ultra-high Speed Mode (SHS) | 0 Set |
| High Speed Mode (HS) | 30 Sets | |
| Standard Mode(STND) | 30 Sets | |
| High-precision Mode (GIGA) | 30 Sets | |
| Connection Mode | 2 m PVC cable | |
| Weight | About 65g | |
| Material | Case: ABS, standard cable (black) PVC | |
How and how long can I get a sample to check your quality? Can I expect to get the sample?
After price confirmation, you can require for samples to check our quality. Then after you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-5 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.
Can you do the design for us?
Yes. Send us high resolution images, your Logo and text and tell us how you would like to arrange them, We will send you finished files for confirmation.
What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Normally we have enough stock about standard products, delivery can be made within 1~2 days once order confirmed, if our stock is not enough, production time is about 2~3 weeks.
Do you have inspection procedures for sensor?
100% self-inspection before packing.
Can I have a visit to your factory before the order?
Welcome! Our factory address: No. 376, Xunye Road, Sheshan Town, Songjiang District, Shanghai, China.
