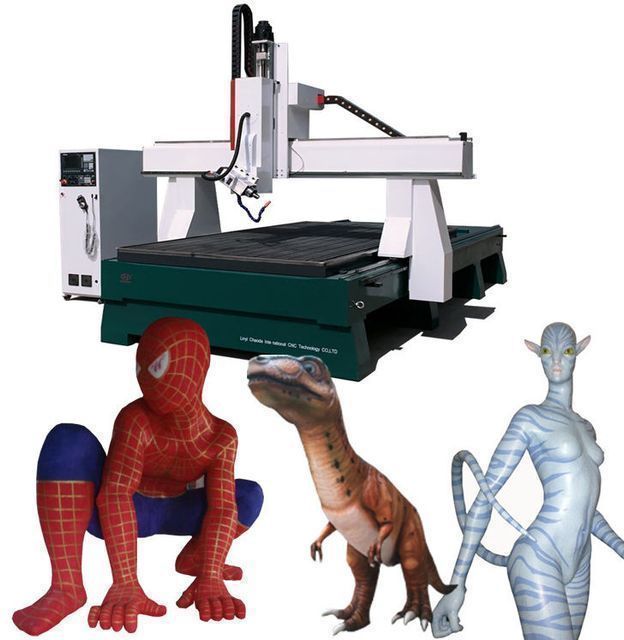

CNC 3d foam cutting machine with rotary and large scanner to make 3d statue sculptures
- $1.00 /set
- 1 set
- Linyi Chaoda International Cnc Technology Co., Ltd.
- Shandong, China
- Ms Anna zheng
| Bed structure: | heavy steel structure | Applicable industries: | Home use, restaurants, print shops, food and beverage stores, construction, hotels, farms, building supplies stores, manufacturing plants, food and beverage plants, energy and mining, clothing stores, advertising agencies, food stores, retail, machinery repair shops |
| Packaging Details: | Wrapped with a protective film and then secured in the container with a wire | brand: | oversized |
| Year: | 2014 | Origin: | Shandong China |
| Certification: | CE, TUV, SGS | port: | Qingdao or other Chinese ports |
| weight: | 3500KG | Oil system: | automatically |
| Health status: | new | Drive System: | Japanese YASKAWA servo motor and driver |
| Dimensions (L*W*H): | 2.3m*4.5m*2.1m | After-sales service provided: | On-site installation, commissioning and training, online support, video technical support |
| XYZ workspace: | 1500x3000x500mm | Workbench: | Aluminum T-slot |
| Warranty: | 1 year | Product Category: | foam carving |
| Control System: | Wei Hong | Supply capacity: | 300 sets OEM per day |
| Rotation size: | Diameter 1000mm, length 2500mm | options: | 3D scanner |
| strength: | 9KW | Spindle power: | 9kw air-cooled |
| Voltage: | 380v,50-60HZ, 3Ph | payment terms: | L/C, T/T, Cash |
CNC 3d foam cutting machine with big rotary and scanner to make 3d statue sculpture
Our products include 3-axis, 4-axis, 5-axis and 5+1-axis CNC routers
As well as 3D scanners, hot wire foam cutters, laser machines and plasma cutters
We provide more than CNC machine tools!
Also the best solution for your specific project!

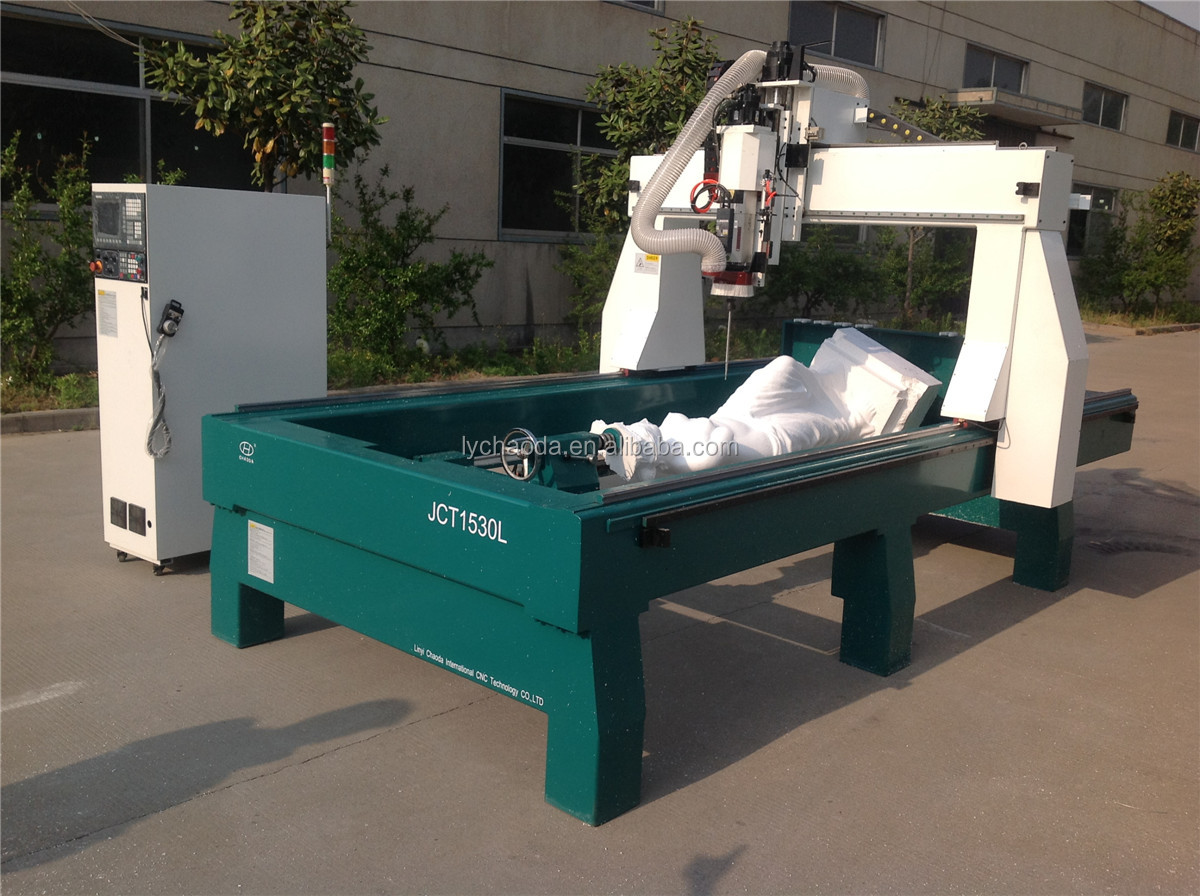

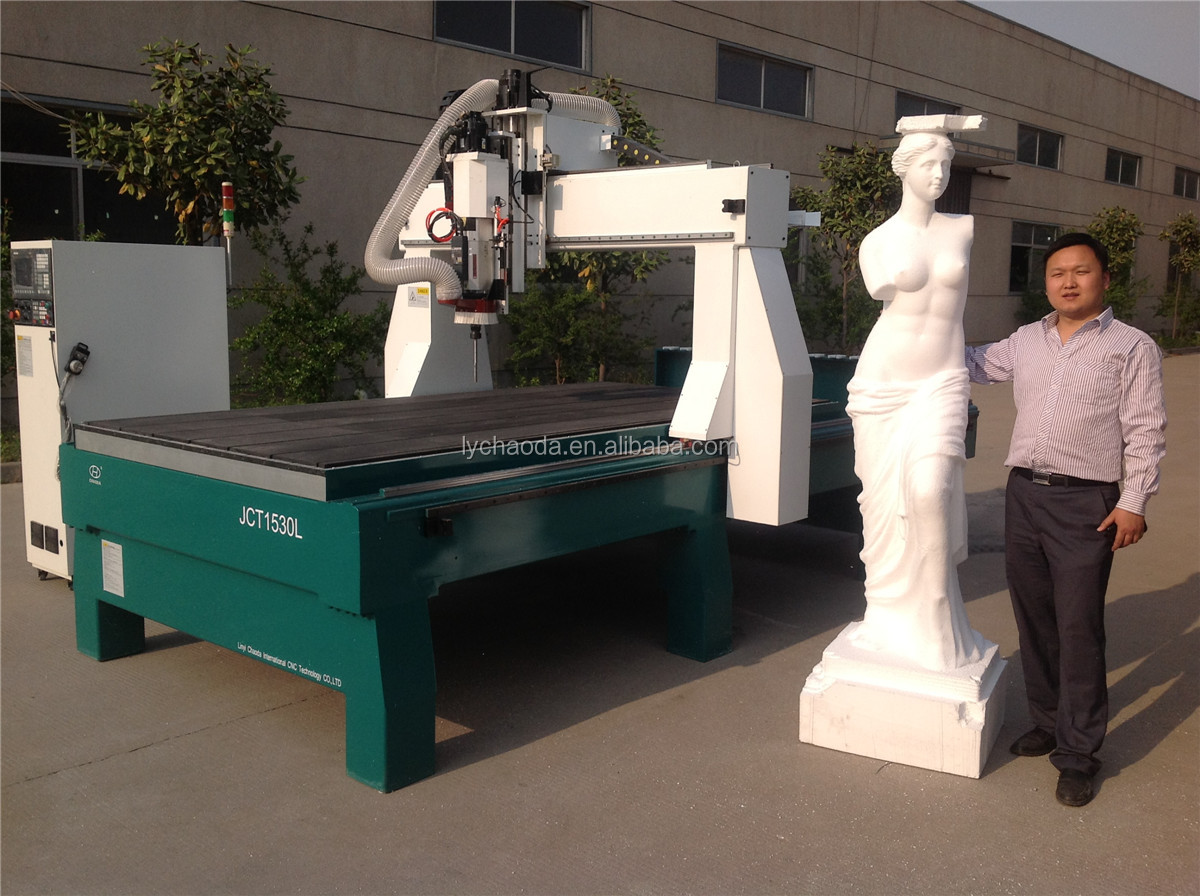

Model JCT1530L
Machine Features
a) All machine parts adopt high configuration and top quality
All over the world, machines are built for high performance and durability.
b) The machine has a large rotating device, which can process different kinds of
3d sculptures, statues, columns.
c) The machine has a flat worktable, which can process flat materials.
Technical Parameters
| Plane working size | 1500*3000*500mm |
| Rotate working size | Diameter 1000mm, length 2500mm |
| Bed structure | T-shaped extrusion, thick steel frame |
| table | Removable, T-slot with clamp |
| X structure | Rack and pinion, linear square rail |
| Y-shaped structure | Rack and pinion, linear square rail |
| Z structure | Ball screw, linear square rail |
| repositioning accuracy | ±0.05mm |
| maximum. fast travel | 0-60000mm/min |
| maximum. Speed of work | 0-30000mm/min |
| Spindle power | 9kw air-cooled tool change spindle |
| Tool magazine | Linear automatic tool changer, 8 tool capacity |
| Operating mode | Japanese YASKAWA servo motor and driver |
| operating system | 4 axis Ncstudio with handwheel |
| command code | G code (*uoo,*nc,*mmg,*plt) |
| Operating Voltage | Three-phase AC380V 50Hz |
| Operation | Temperature: 0°C~45°C Relative humidity: 30%~75% |

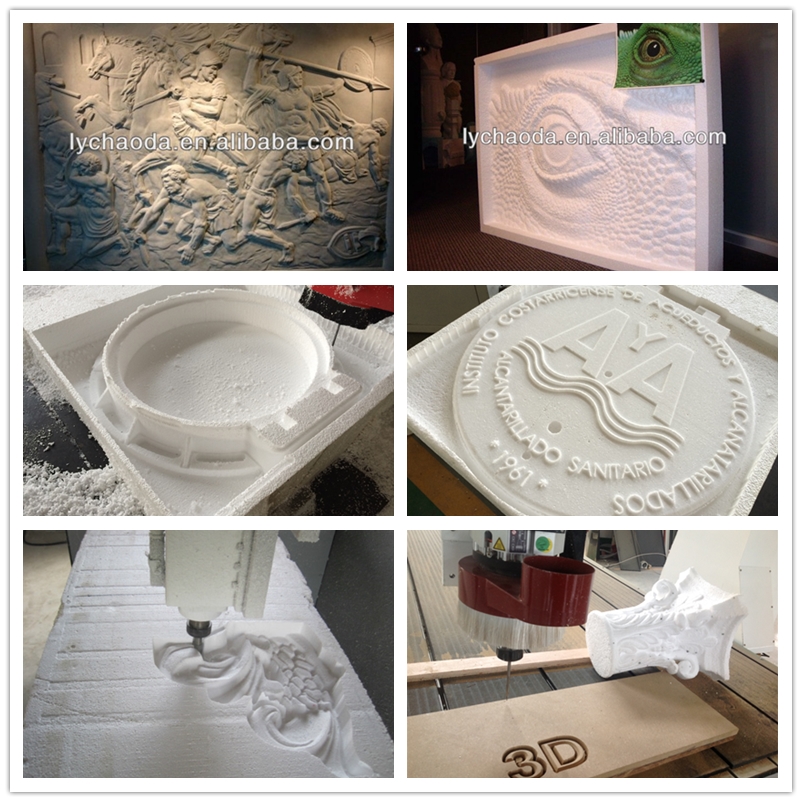

product sample
It can handle many materials such as foam, wood, MDF, composite panels, Alucobond,
PVC, rigid plastic, acrylic sheet, glass, plexiglass, aluminum sheet, etc.
>> Products made of flat panels

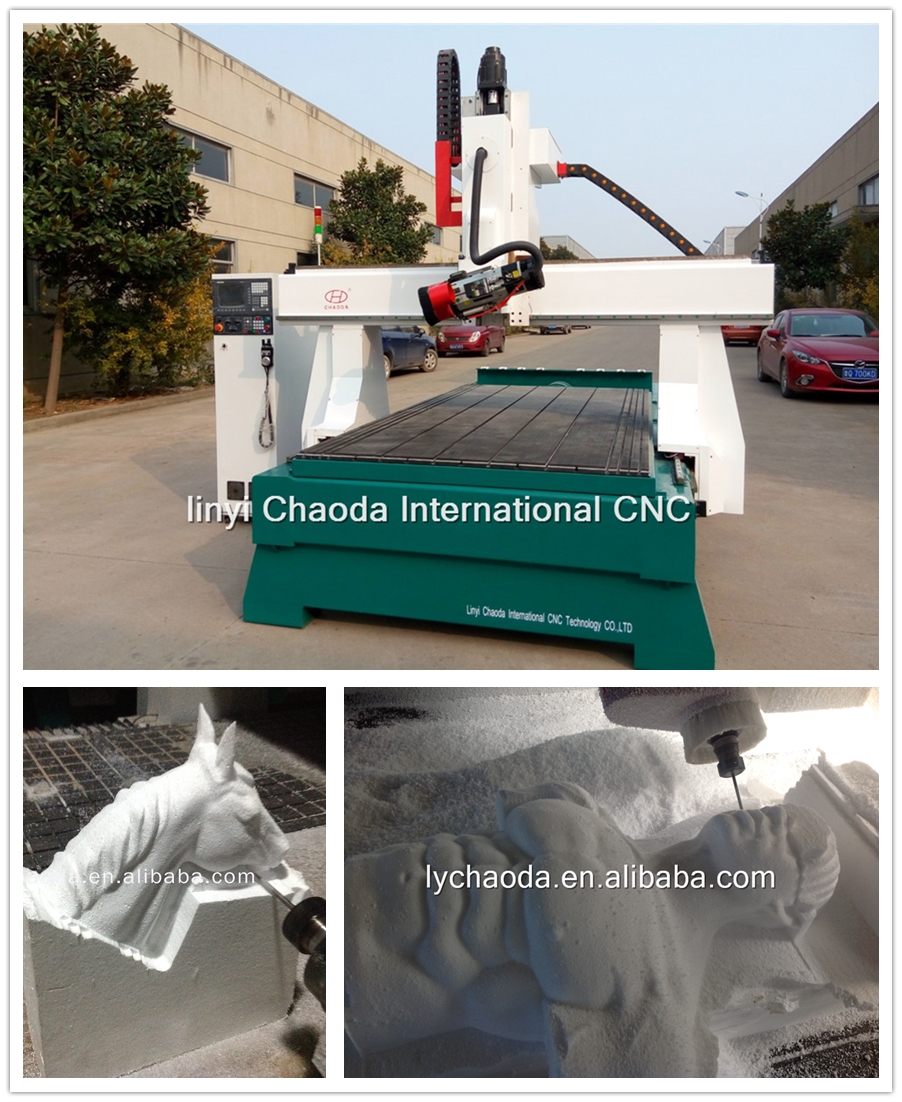

>> Products manufactured by rotary devices
Related Machines You May Like
>> with rotating spindle

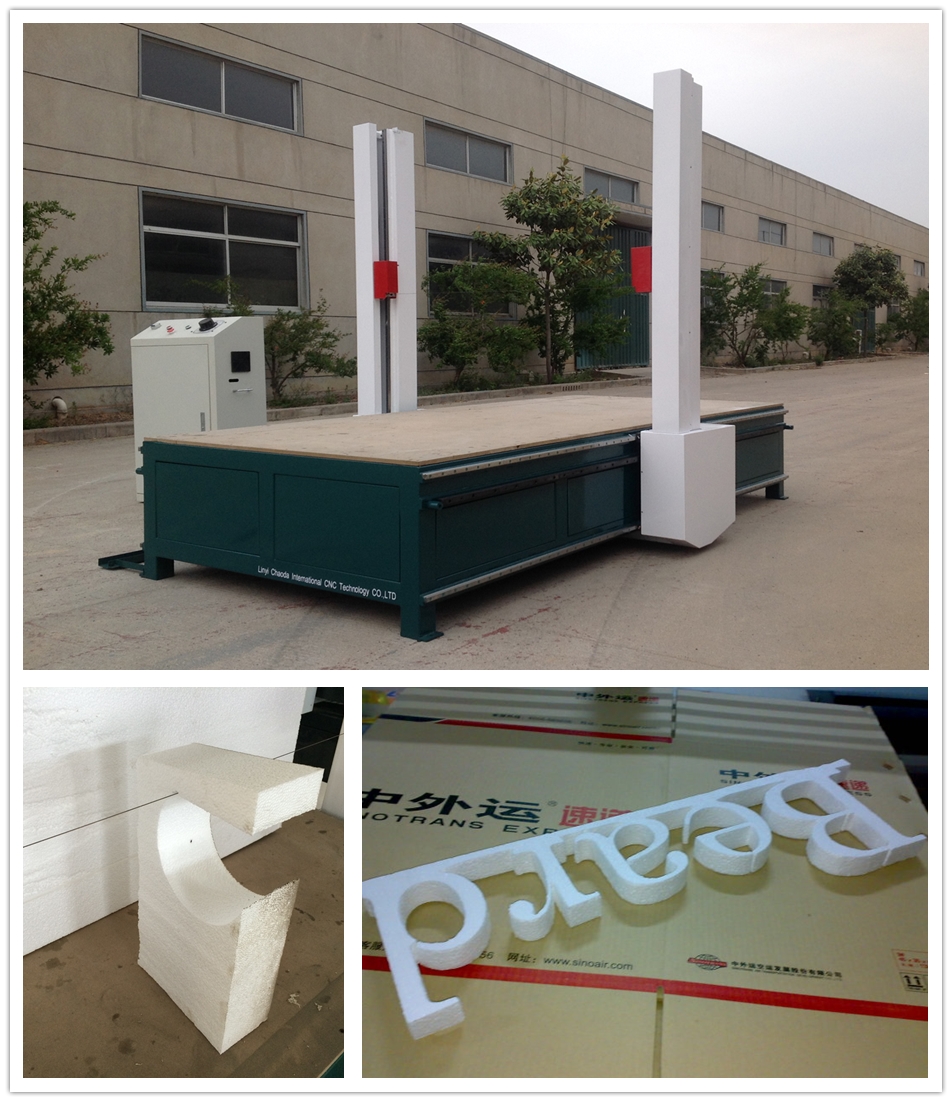

>> Hot Wire Foam Cutting Machine

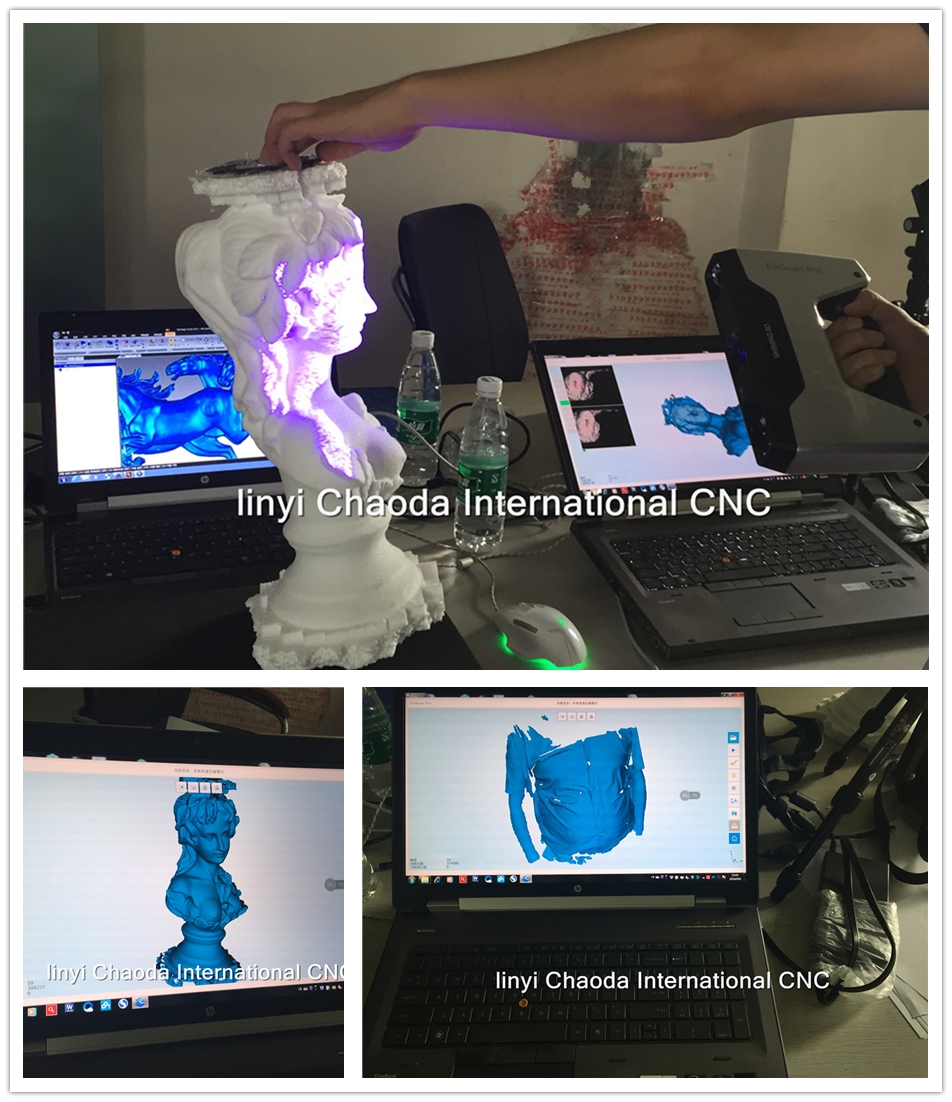

>> Handheld 3D Scanner

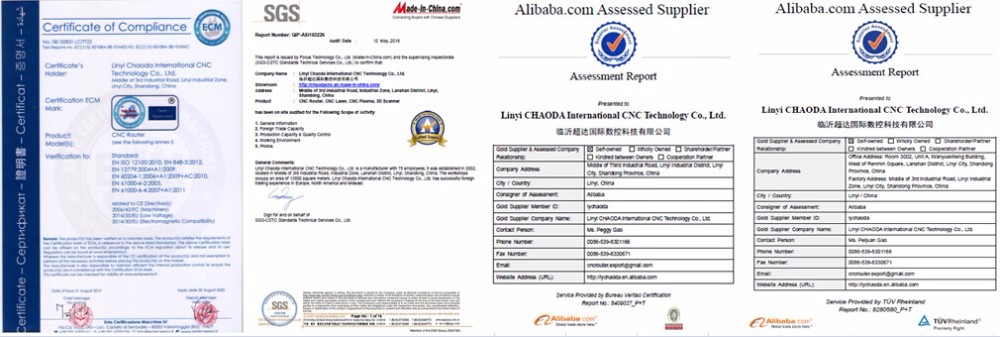

Product certificates (CE, BV, TUV, SGS)
Customer visit training

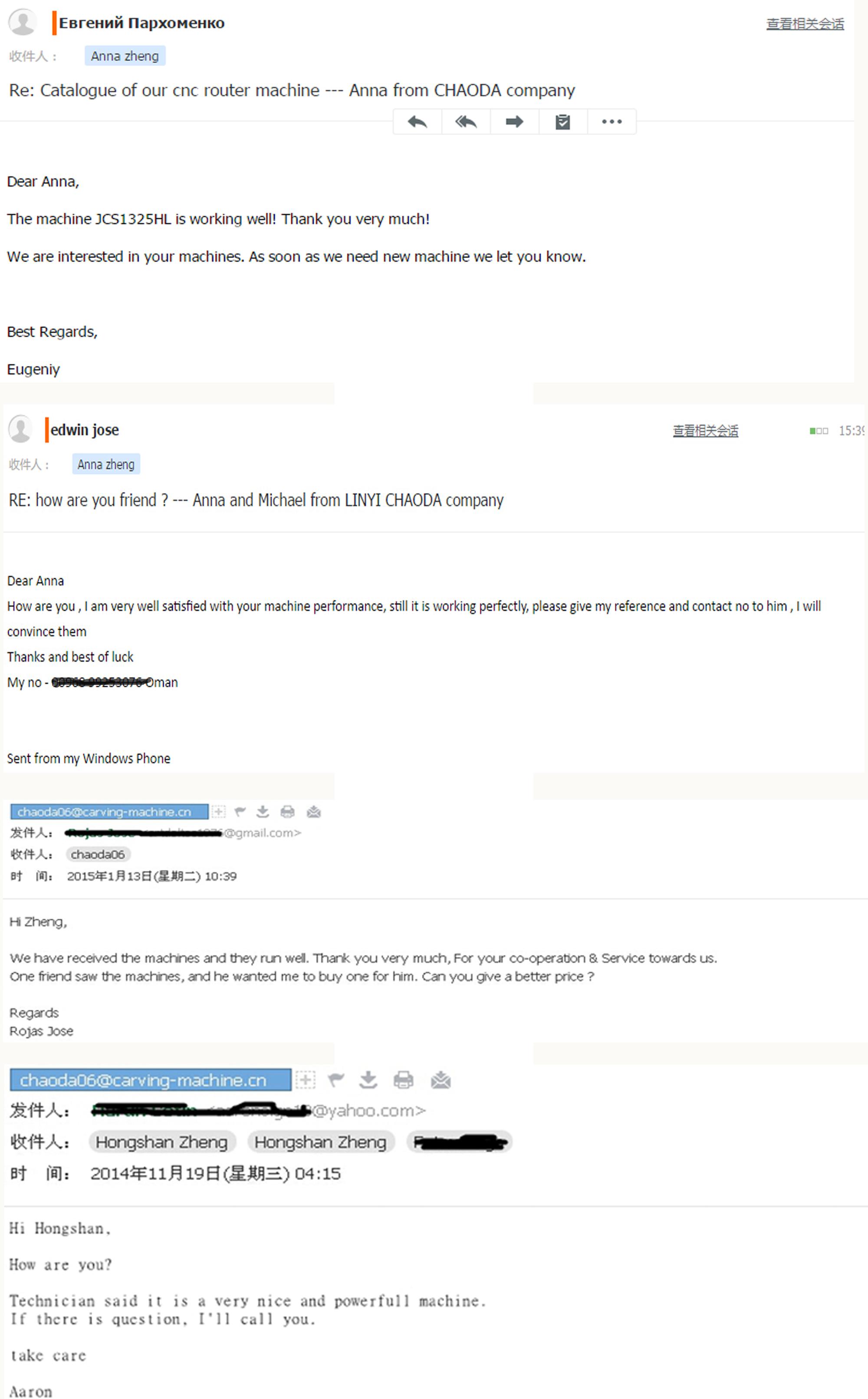

Customer Feedback

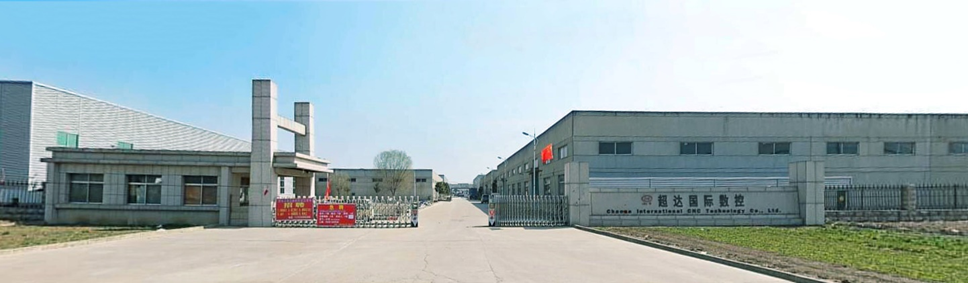

company information
Our factory was established in 2002, covering an area of 40000 square meters.we have experienced and
Committed to mechanical research, development, production,
and after-sales service. Our machines have won praises from customers all over the world
Good reputation in this field.
