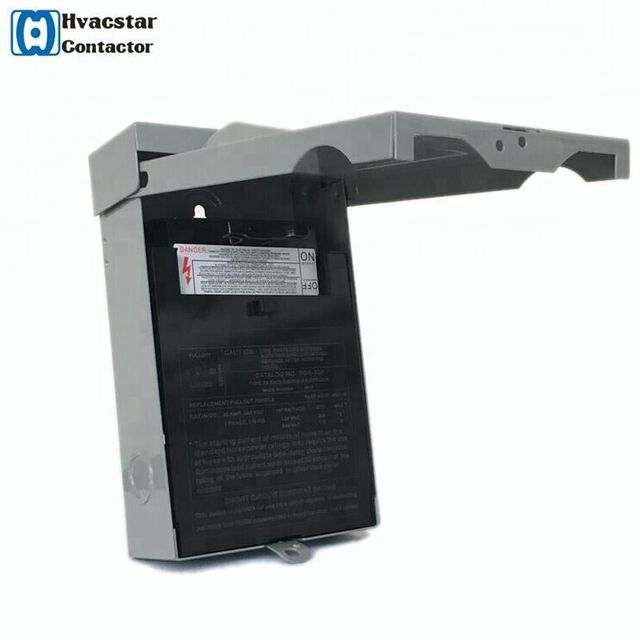

CUL Pull Out Switch Isolation Box Fuseless Outdoor Use Safety Switch
- $4.75 / >=10 pieces
- 10 pieces
- Mingguang Hecheng Electrical Co., Ltd.
- Zhejiang, China
- Ms macy yu
| model: | PDS-60A without fuse | maximum. current: | 60A |
| other service: | OEM | stage: | one phase three phase |
| port: | Shanghai or Ningbo | Symmetrical Disruption Rating: | 10,000 A rms |
| maximum. Voltage: | 120V/240V | application: | Air conditioner/heat pump/water heater |
| color: | grey | Certification: | CUL listed |
| Packaging Details: | 10 pcs/inner box, 200 pcs/pack, plastic wrap or carton | Certification: | Ministry of Culture |
| brand: | Hvacstar or OEM | Material: | steel |
| feature: | waterproof | place of origin; place of origin: | Zhejiang, China |
| payment terms: | L/C,D/P,D/A,T/T | Supply capacity: | 50,000 pieces per month |
| delivery time: | 15 days after deposit | type: | 3R |

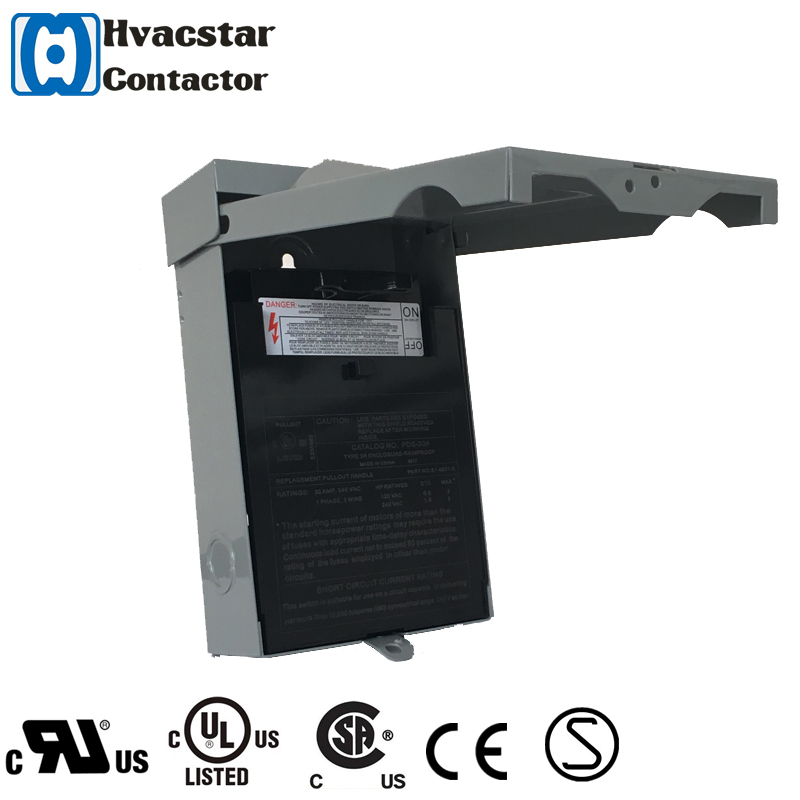

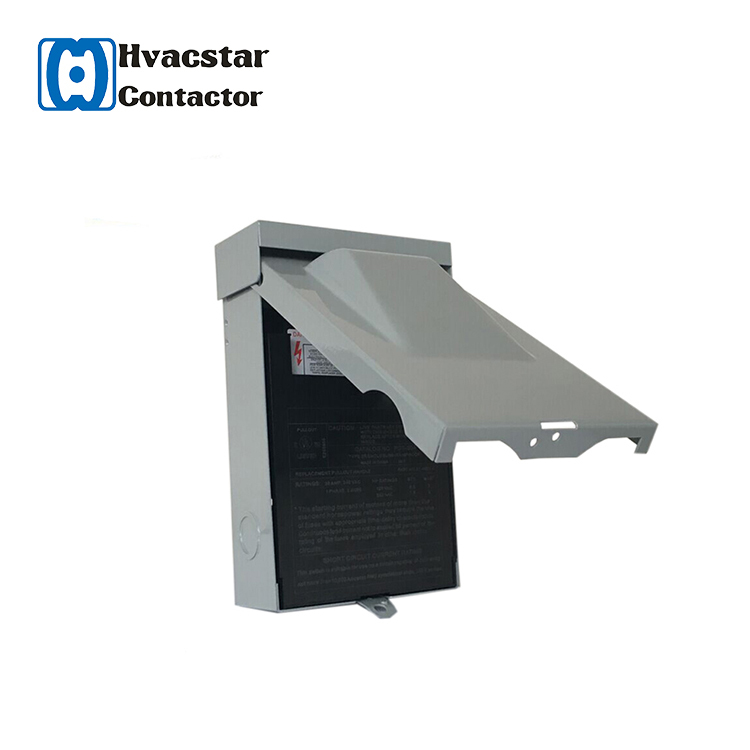

CUL Pull Out Switch Isolation Box Fuseless Outdoor Use Safety Switch
Product Details:
Pull out handle provides on/off control.
• Pull-out handle conveniently stores in the compartment in the OFF position, helping to prevent misalignment of the handle.
• The protective cover cannot be removed until the handle is pulled out and the power is disconnected.
| Disconnect type | model | put up | Main Amplifier Ratings |
Wire Size Range Aluminum/Copper, 60° or 75°C |
Maximum horsepower rating | |
| 120VAC | 240VAC | |||||
| Non-fuse pull out | PDS-60AN | Galvanized steel | 60 | #14-3 | 3 | 10 |
| PCDS-60AN | non-metal | 60 | #14-2 | 3 | 10 | |
| Fusing out | PDS-60A | Galvanized steel | 60 | #14-3 | 3 | 10 |
| PDS-30A | Galvanized steel | 30 | #14-3 | 1/2 | 3 | |
| PCDS-60A | non-metal | 60 | #14-2 | 3 | 10 | |
| PCDS-30A | non-metal | 30 | #14-2 | 1/2 | ||
Applications
The purpose of the A/C disconnect is to provide a visible solution to prevent unauthorized persons from being harmed by the A/C (air conditioning) system circuit after the homeowner has been away from the home for a period of time, they will lock the A/C disconnect. Away, they are installed outdoors, NEMA 3R rainproof.
