Cable Pulling Socks Mesh Grips Wire Cable Grips TGK type
- $10.00 /piece
- 1 piece
- Shanghai Liqi Rigging Co., Ltd.
- Shanghai, China
- Ms Grace Li
PRODUCT DETAIL
| Place of Origin: | Jiangsu China; | Packaging Detail: | Carton; |
| Model Number: | TGK; | Type: | Multi-Strand; |
| Port: | Shanghai; | Size Range: | 18-320mm; |
| Mesh Length: | 540-2200mm; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Breaking Load: | 2000-20000kgs; | Supply Ability: | 999999999 Piece/Pieces per Month; |
| Package Preview: | ; | Material: | Hot Dip Galvanized; |
| Total Length: | 766-2450mm; | Brand Name: | Liqi; |
| Breaking: | 19.6-196KN; |

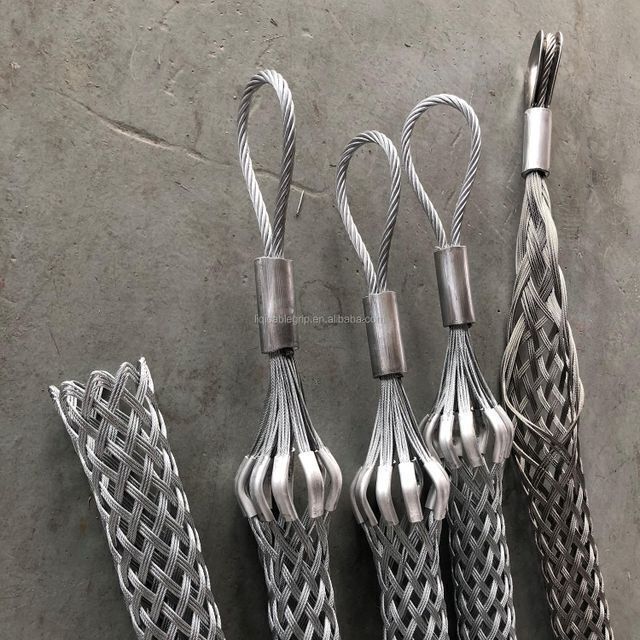

Product Description
Suitable for dragging on cable head,use hot dip galvanized steel wire rope,single layer,multi layer, multi strand sompound,cable used on heavy load.
| Model | Sizes Range (mm) | Mesh Length (mm) | Total Length (mm) | Breaking (KN) | Strength (KG) |
| TGK-18 | 13-18 | 540 | 766 | 19.6 | 2000 |
| TGK-25 | 18-25 | 800 | 1020 | 24.5 | 2500 |
| TGK-37 | 25-37 | 850 | 1140 | 34.3 | 3500 |
| TGK-50 | 37-50 | 900 | 1194 | 58.8 | 6000 |
| TGK-63 | 50-63 | 920 | 1220 | 78.4 | 8000 |
| TGK-75 | 63-75 | 920 | 1220 | 78.4 | 8000 |
| TGK-88 | 75-88 | 920 | 1270 | 88.2 | 9000 |
| TGK-101 | 88-101 | 1100 | 1420 | 107.8 | 11000 |
| TGK-114 | 101-114 | 1200 | 1560 | 117.6 | 12000 |
| TGK-127 | 115-127 | 1350 | 1750 | 132.3 | 13500 |
| TGK-152 | 124-152 | 1500 | 1960 | 147 | 15000 |
| TGK-180 | 153-180 | 1850 | 2300 | 196 | 20000 |
| TGK-230 | 180-230 | 1950 | 2300 | 196 | 20000 |
| TGK-280 | 230-280 | 2000 | 2350 | 196 | 20000 |
| TGK-320 | 280-320 | 2200 | 2450 | 196 | 20000 |

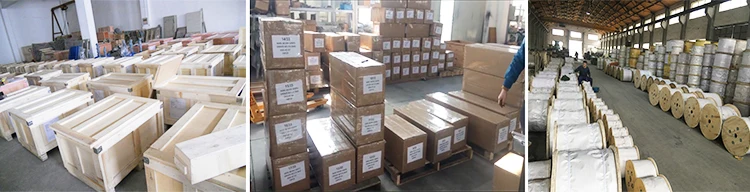

Packaging & Shipping
Related Products

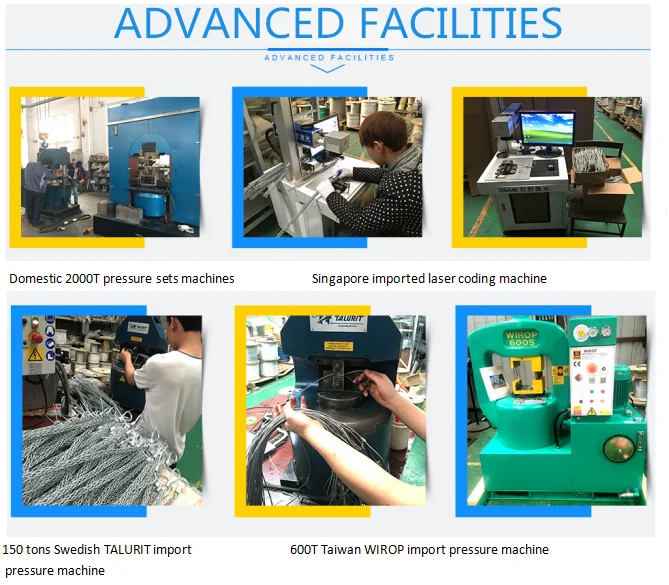

Company equipment

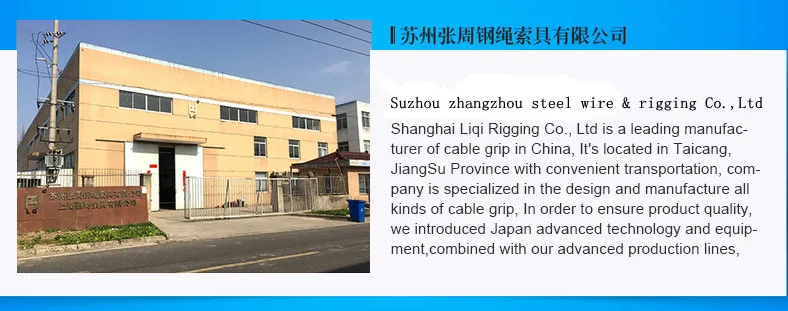

Company Information

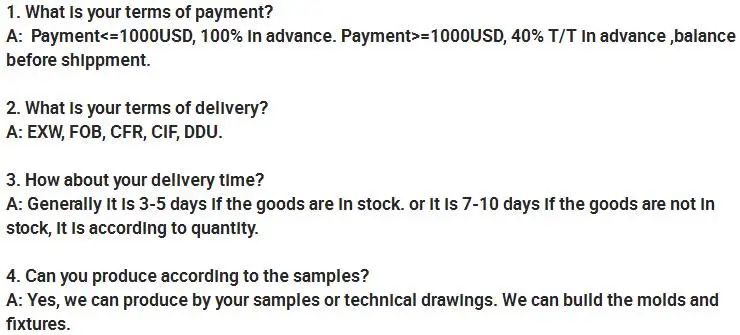

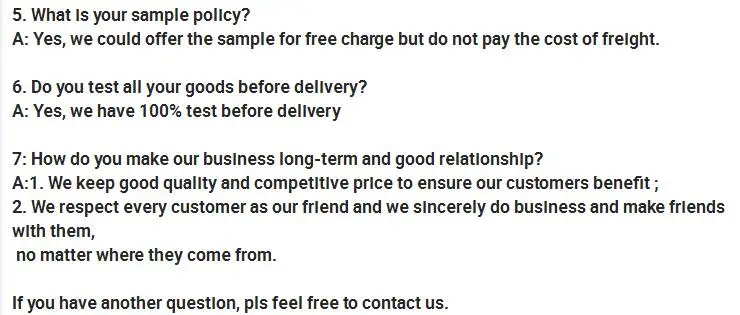

FAQ
