PRODUCT DETAIL
Origin:China Shanghaipayment terms:letter of credit
strength:60Wbrand:brake
noise:56 decibelsCustomizable items:original design manufacturer
Maximum Roof Weight:65 kgPackage preview:
Supply capacity:50000 sets per yeargross weight:Actuator 1.5kg*2=3kg
application:Caravan/Camperport:Shanghai Port
Maximum lifting height:1000mmProtection class:IP67/IP69K
Maximum lifting speed:8 mm/sMaterial:304 stainless steel

Cartuator Electric Roof Lift System X01

Product Description

The Cartuator Electric Roof Lift System X01 is specially designed for campervans. The maximum roof weight can reach 65 kg. The maximum lifting height can reach 1000 mm The lifting height, load capacity and cam size can be customized.

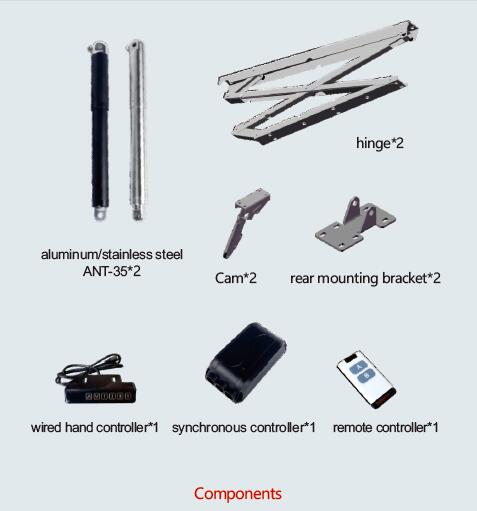

Included parts:

Aluminum/Stainless Steel ANT-35*2, Cam*2, Rear Mounting Bracket*2, Hinge*2, Wired Hand Controller*1, Synchronous Controller*1, Remote Controller*1

Maximum Roof Weight:65 kg

Maximum lifting height:1000mm

Maximum lifting speed:8 mm/s

Installation size:Length 715mm * Width 60mm * Height 75mm

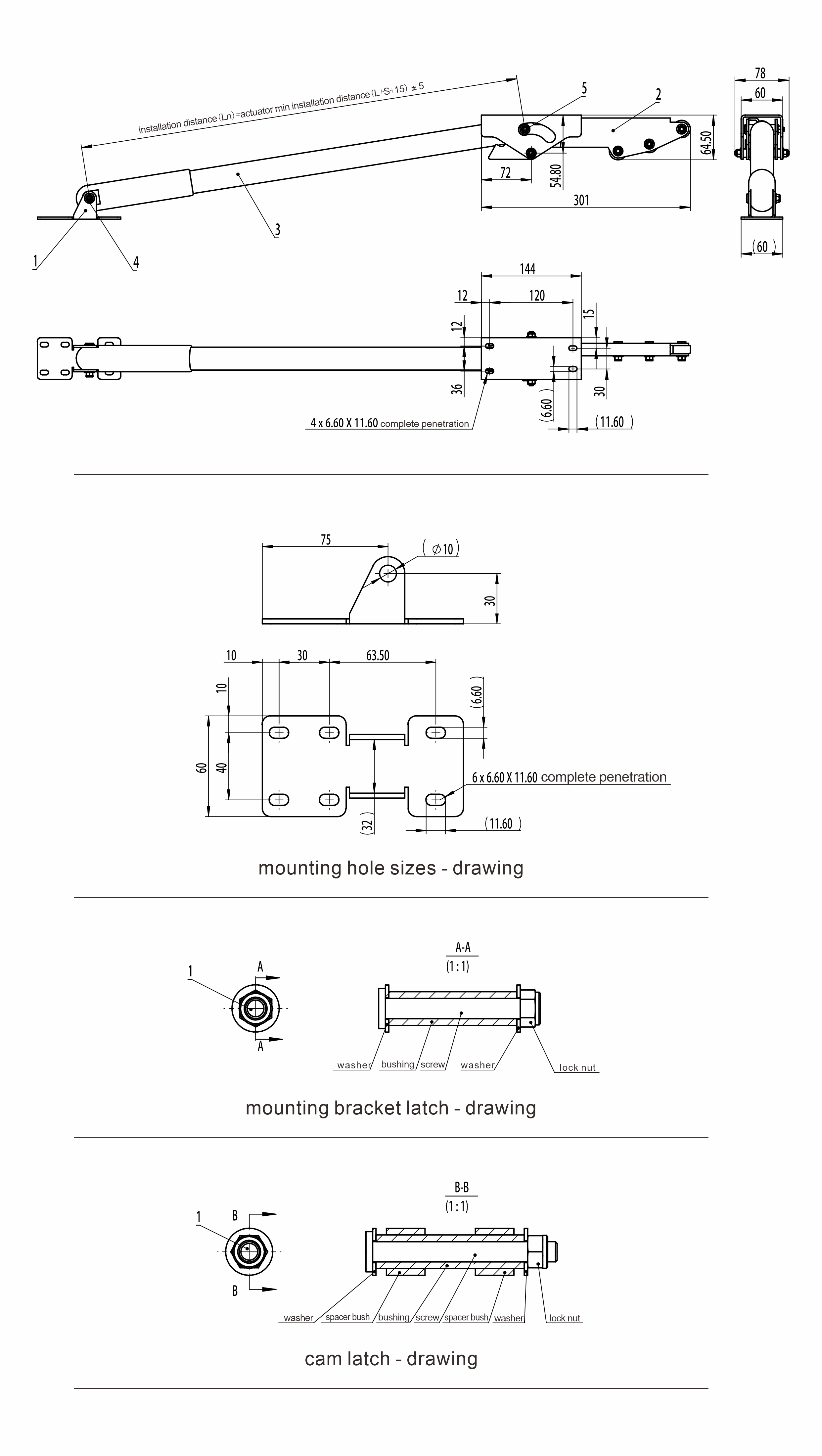

installation method:look at the picture

gross weight:Actuator 1.5kg*2=3kg

Bracket, cam, etc. 1.2kg*2=2.4kg

The total weight is about 5.4kg

Customizable items:Lifting height, carrying capacity, cam size

Applicable campers:Volkswagen T-Series, Fiat, Renault, Ford, Mercedes-Benz

Accessories

refer to



Packaging and Shipping
