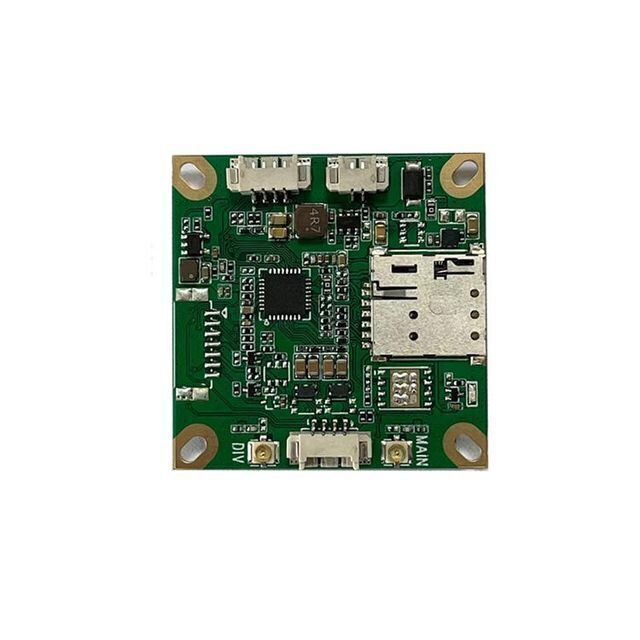

Cat1 Cat4 Wireless IOT Module for Smart Meter
- $13.50 / 1 - 999 pieces
$12.00 / 1000 - 4999 pieces
$11.00 / >=5000 pieces - 1 piece
- Shenzhen Jumping-Spider Technology Co., Ltd.
- Guangdong, China
- Ms Susie Liu
PRODUCT DETAIL
| Dimensions: | 51mm*38mm*1.0mm; | Place of Origin: | Guangdong China; |
| Weight: | 15g; | Type: | 2/2.5/3/4G Module; |
| Protocol: | 802.11b/g/n; | Brand Name: | Jspider; |
| Power: | 12V/1A-24V/1A; | Function: | 2G/3G/4G; |
| Transmission Rate: | Max. 150Mpbs; | Model Number: | AF880; |
| Interface: | MiniPCIE; | Supply Ability: | 500000 Piece/Pieces per Month; |
| Payment Terms: | L/C,Western Union,T/T,MoneyGram,Paypal; | Chipset: | ZTE7520V3; |
| Port: | shekou; | Product name: | 4G Wifi Module; |
| Keywords: | Iot Module Lora Wireless Module; | Application: | 4G Camera, DVR, Routers, Other IOT products; |
| CPU: | ZTE; |
Product Description
Module Usage Application Example:

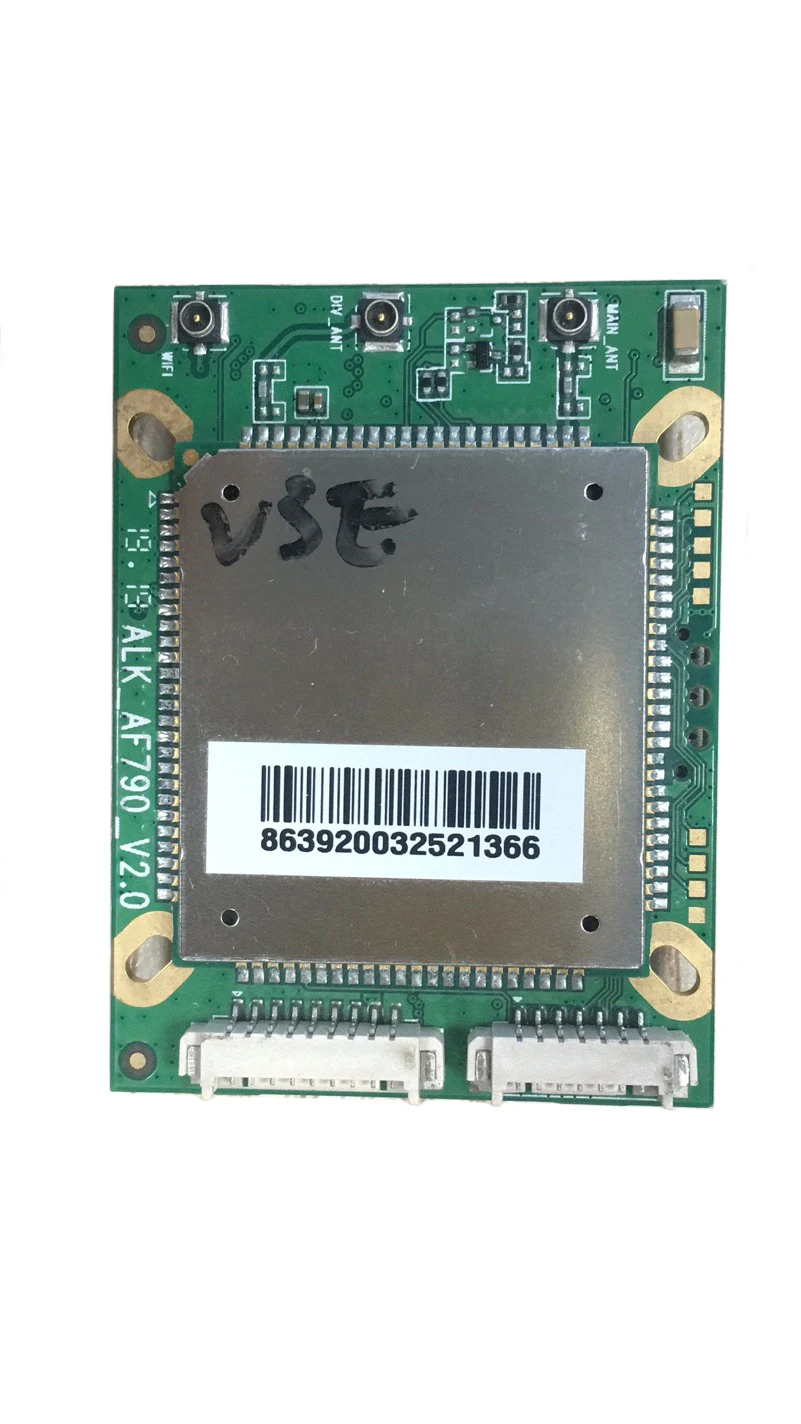

| Module -AF790 | |
| Model | AF790 |
| Main chip set | ZX297520V3 |
| WIFI chip set | RTL8189 |
| Network Type | FDD-LTE, TDD-LTE, WCDMA/HSPA+ |
| TD-SCDMA, GSM/GPRS/EDGE | |
| Frequency Scope | LTE B1/B2/B3/B4/B5/B7B8/B12/B13/B17/B25/B26/ B38/B39/B40/B41(optional) |
| TD-SCDMA B34/B39 | |
| WCDMA B1/B2/B4/B5/B8 (optional) | |
| GSM/GPRS/EDGE 850/900/1800/1900(optional) | |
| Data Rate | LTE FDD/TDD (Cat. 4) DL 150Mbps, UL 50Mbps |
| 3G HSPA+ DL 21Mbps, UL 5.76Mbps | |
| 3G TD-SCDMA DL 2.8Mbps, UL 2.2Mbps | |
| Support System | Windows XP,Windows Vista,Windows 7,Windows 8/8.1 |
| MAC OS X 10.7+ | |
| Ethernet network | A RJ45 interface, 10/100M adaptive, Support WLAN |
| USIM/SIM | Micro SIM card slot |
| SD Card | Support Micro SD memory extension, 32GB in max |
| LED | 2G/3G/4G signal indicator light, WIFI status indicator lamp |
| Power supply mode | DC 12V |
| Power | Input voltage: 12V/1A |
| maximum power consumption: < 2.5W | |
| WIFI Standard | Protocol: 802.11 b/g/n, up to 72Mbps |
| WIFI Frequency | 2412 MHz-2472 MHz |
| WIFI Security mode | Open, WPA-PSK, WPA2-PSK |
| Operation Temperature | 0℃~55℃ |
| Operation Humidity | 10%-90% |
| Storage Temperature | -40℃~+85℃ |
| Dimensions/Weight | 51mm*38mm*1.0mm / 15g |
