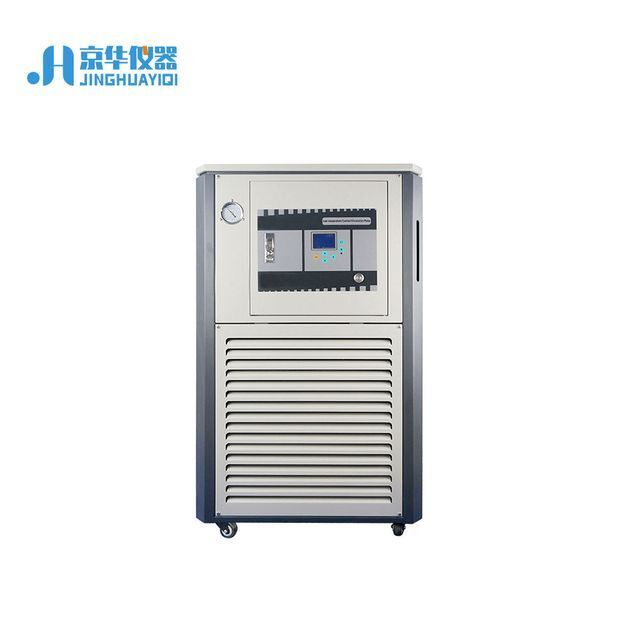

Cheap 50L lab low temperature recirculating chiller DLSB-50/40
- $2399.00 /set
- 1 set
- Gongyi Jinghua Instrument Co., Ltd.
- Henan, China
- Mr
| Type: | Air-cooled; | After Warranty Service: | Video technical support,Online support,Spare parts; |
| Voltage: | 380V/60Hz; | Cooling capacity: | 12775-650W; |
| Working Temperature Range: | -40C-RT; | Port: | Shanghai; |
| Condition: | laboratory; | Machinery Test Report: | Provided; |
| Dimension(L*W*H): | 770*850*1320mm; | Cooling type: | Chilled Cooling Water; |
| Product name: | Cheap 50L lab low temperature recirculating chiller DLSB-50/40; | Usage: | Water Chilled; |
| Local Service Location: | None; | After-sales Service Provided: | Free spare parts,Video technical support,Online support; |
| Supply Ability: | 1000 Sets per Month for lab water cooling chiller; | Place of Origin: | Henan, China; |
| Core Components: | Motor,Pressure vessel,Pump,PID; | Marketing Type: | New Product 2020; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Restaurant,Retail,Printing Shops,Construction works ,Energy & Mining,Advertising Company,Lab; |
| Warranty: | 1 Year; | Video outgoing-inspection: | Provided; |
| Compressor power: | 2.2~30kw; | Certification: | ce; |
| Brand Name: | Jinghua; | Power: | 8100W; |
| Warranty of core components: | 1 Year; | Weight: | 157kg; |
| Function: | Controller; | Temperature range: | -40C-RT; |
| Showroom Location: | United States; | Evaporator type: | Stainless Steel Shell Tube; |
| Application: | Industrial Cooling Solutions; | Refrigerant: | R404A; |
| Key Selling Points: | Sustainable; | Packaging Detail: | Packaging Style: Standard Export Wooden Case Quantity: 1set/carton Gross Dimmension:820*720*1320mm Gross Weight:190Kg; |
Cheap 50L lab low temperature recirculating chiller DLSB-50/40
| Recirculating chiller | ||||
| Model | DLSB-50/40 | DLSB-50/80 | DLSB-100/40 | DLSB-100/80 |
| Volume | 17L | 35L | ||
| Load temperature | RT~-40℃ | RT~-80℃ | RT~-40℃ | RT~-80℃ |
| Cooling capacity | 12775-650W | 15330-550W | 15750-550W | 17750-1100W |
| Flow | 0~35/ PLC control | 0~43/ PLC control | ||
| Lift | 12m | 20m | ||
| Voltage | 380V | |||
| Cooling current | 11A | 20A | 11A | 20A |
| Heating current | 12A | 18A | 12A | 18A |
| Colling power | 5500W | 10800W | 5600W | 11000W |
| Heating power | 6000W | 9000W | ||
| Compressor | Tecumseh/ Dafoss/ Emerson-copeland /Bitzer | |||
| Circulation pump | Jinghua magnetic circulation pump/ German imported magnetic cirulation pump | |||
| Expansion valve | Thermal expansion valve/ electronic expansion valve | |||

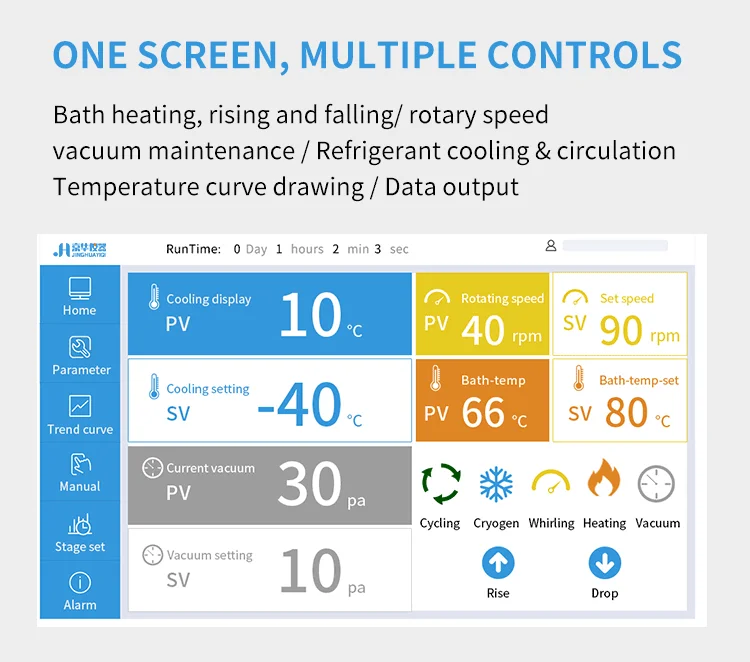

| Operation panel | 7-inch color touch screen, temperature curve display and record | |||
| Control system | Feedforward PID, model-free self-building tree algorithm, PLC controller | |||
| Temp-control | PLC control of equipment outlet temperature and material temperature | |||

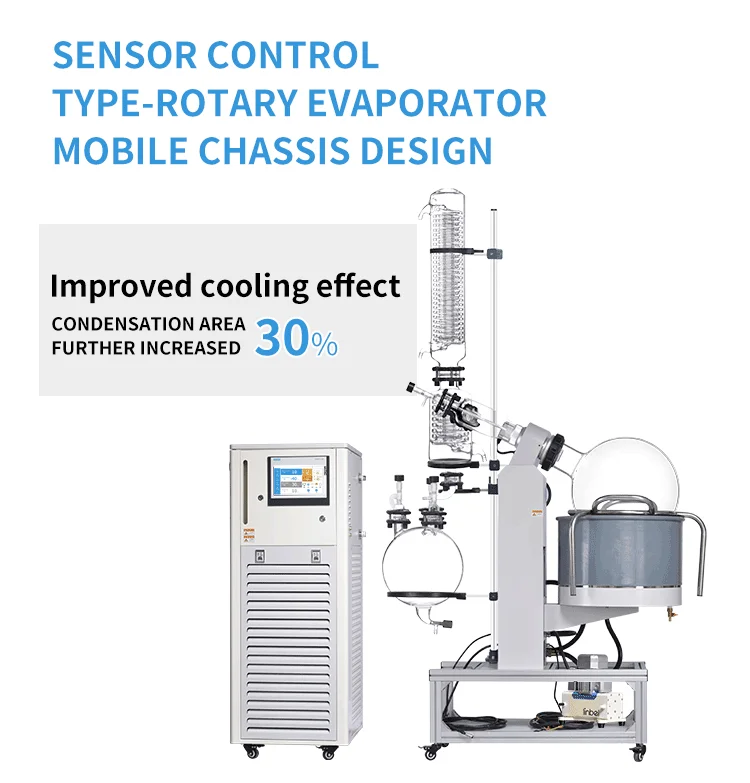

| Rotary evaporator | ||||
| Model | R1005 | R1010 | R1020 | R1050 |
| Ambient temperature | 5~35℃ | |||
| Host speed regulation | Stepless speed regulation | |||
| Rotating speed | 10~140rpm | 20~130rpm | 20~110rpm | |
| Rotating motor | 40W | 250W | ||
| Temperature control | RT~99℃ | |||
| Voltage | 220V/50~60Hz | 220V/380V/50~60Hz | ||
| Rotating bottle | 5/6L ∅50 | 10L ∅125 | 20L ∅125 | 50l ∅125 |
| Collection bottle | 3L | 5L | 10L | 20L |
| Evaporation capacity |
Water≥2 Alcohol≥4 |
Water≥3.2 Alcohol≥6.5 |
Water≥5 Alcohol≥11 |
Water≥9 Alcohol≥19 |
| Bath size | ∅300*170mm | ∅350*220mm | ∅450*260mm | ∅550*320mm |
| Lifting function | Electric( Automactic) Lifting | |||
| Lifting Height | 0~150mm | 0~160mm | 0~190mm | 0~180mm |
| Motor power | 1650W | 3300W | 4300W |
6500W(220V) 8000W(380V) |

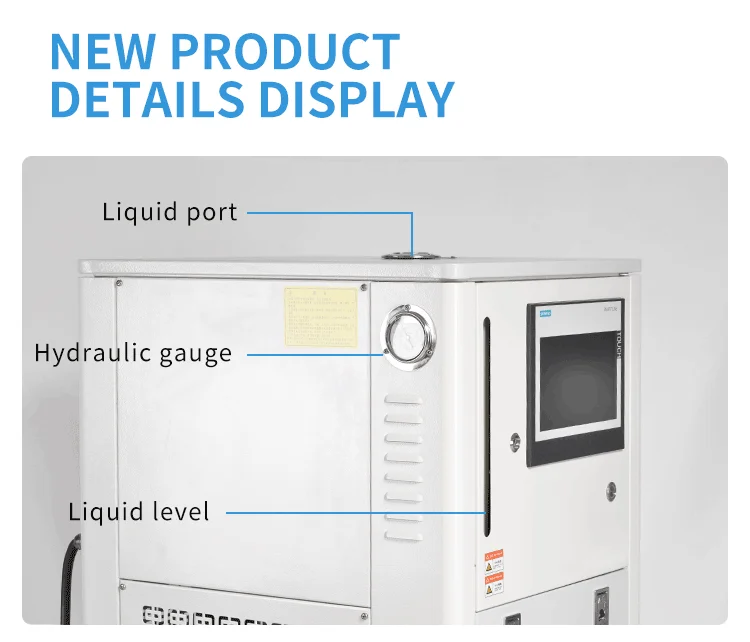

There is a liquid injection port on the top, a closed circulation system and a plate heat exchanger are adopted' the hydraulic gauge and liquid level display can directly read the value when adding refrigerant to prevent the refrigerant from overflowing.
Gongyi Jinghua Instrument Co., Ltd. is a high-tech company which has internationally advanced R&D, production and sales ability. Workshop is equipped with modern production lines and world's leading production equipment and computer-controlled monitoring system.our products are low temperature cooling liquid circulating pump, high and low temperature circulation tank, rotary evaporator, glass reactor and low temperature reaction vessel.Integrity management has always been our strategy, with advanced technology to reduce costs and be rewarded high-performing. So we look forward to working with you to bring you the best results.
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
