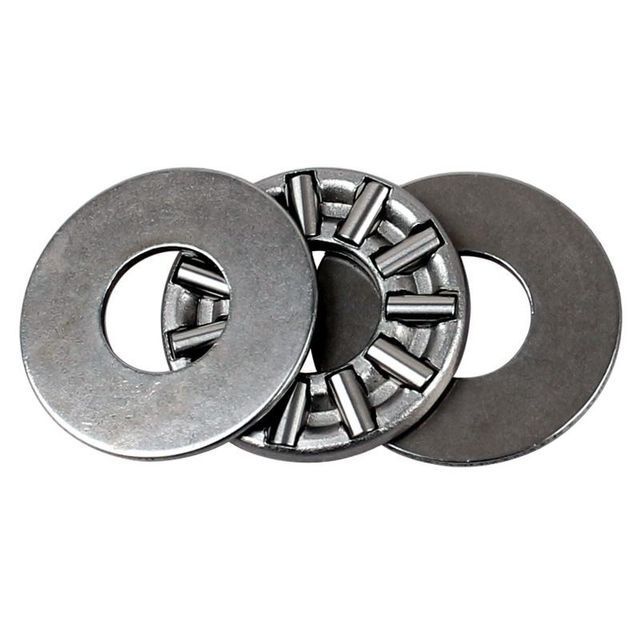

China Bearing Manufacturer AXK 0821 TN Thrust Needle Roller Bearing

PRODUCT DETAIL
Origin:Jiangsu, Chinavibration:V1 V2 V3 V4
Accuracy class:P6type:roller
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPalRows:singer
Outer diameter:21 mmMaterial:GCr15
Packaging Details:Singer bag or as your requestApplicable industries:Manufacturing plants, machine repair shops, food and beverage plants, printing plants, energy and mining
port:Shanghai; NingboSupply capacity:10000 pieces per month
port:Shanghai; NingboSeal type:Open
the inside diameter of:8 mmproduct name:China Bearing Manufacturer AXK 0821 TN Thrust Needle Roller Bearing
Rows:single rowbrand:suma
model:AXK 0821 Tennesseestructure:thrust
delivery time:7-10 daysapplication:car
width:2 mm

China Bearing Manufacturer AXK 0821 TN Thrust Needle Roller Bearing

Product Description



data sheet

thing AXK Thrust Needle Roller Bearings
Material Chrome steel, carbon steel, stainless steel
Cage material nylon, steel, brass
the inside diameter of 8 mm
outer diameter 21 mm
width 2 mm
application Automobiles, motorcycles, compressors, agricultural machinery and textile machinery, etc.
ensure 1 year
delivery time 7-10 days



Different size for your reference

axis bearing Dimensions (mm) Basic load rating (N) Limiting speed(rpm) width
diameter. type (G)
(mm)   The original Inside outside width Dynamic stationary grease Oil
type DC1 direct current Dw.
4 AXK 0414 Tennessee   4 14 2 4100 7900 14000 5500 0.7
5 AXK 0515 tons   5 15 2 4000 8500 13000 4800 0.8
6 AXK 0619 Tennessee   6 19 2 6000 12000 12000 4200 1
8 AXK 0821 Tennessee   8 twenty one 2 7100 13500 11000 4000 2
10 AXK 1024   10 twenty four 2 7800 24000 9500 3600 3
12 AXK 1226   12 26 2 8200 26700 7200 3200 3
15 AXK 1528   15 28 2 9500 33000 6500 3000 4
17 Ax 1730   17 30 2 10200 36500 5500 2800 4
20 Ax 2035   20 35 2 11000 43000 5000 2600 5
25 Ax 2542   25 42 2 12500 538000 4500 2300 7
30 Ax 3047   30 47 2 14000 656000 4100 2100 8
35 Ax 3552   35 52 2 15500 770000 3700 2000 10
40 AXK 4060   40 60 3 25000 1100000 3200 1900 16
45 AXK 4565   45 65 3 25800 1250000 3000 1700 18
50 AXK 5070   50 70 3 27600 1370000 2800 1600 20
55 AXK 5578   55 78 3 35000 1950000 2600 1500 28
60 AXK 6085   60 85 3 38600 2400000 2500 1100 33
65 AXK 6590   65 Post-90s 3 41000 2580000 2400 1000 35
70 AXK 7095   70 95 4 50000 2670000 2100 950 60
75 AXK 75100   75 100 4 51000 2750000 1900 900 61
80 AXK 80105   80 105 4 52400 2850000 1800 870 63
85 AXK 85110   85 110 4 54000 3000000 1700 850 67
Post-90s AXK 90120   Post-90s 120 4 66000 4100000 1580 800 86
100 AXK 100135   100 135 4 76000 5570000 1400 770 104
110 AXK 110145   110 145 4 82000 6000000 1300 740 122
120 AXK 120155   120 155 4 84800 6620000 1200 700 131
130 AXK 130170   130 170 5 110000 9300000 1100 660 205
140 AXK 140180   140 180 5 115000 9100000 1000 620 219
150 AXK 150190   150 190 5 118000 9600000 950 580 232
160 AXK 160200   160 200 5 125000 10000000 900 500 246

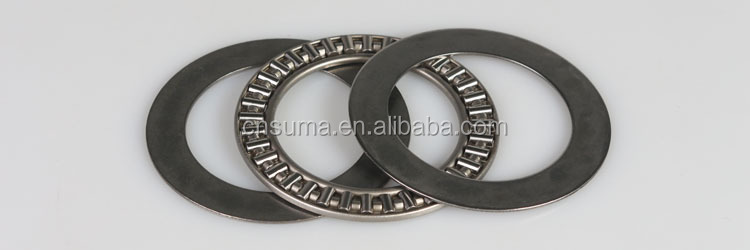

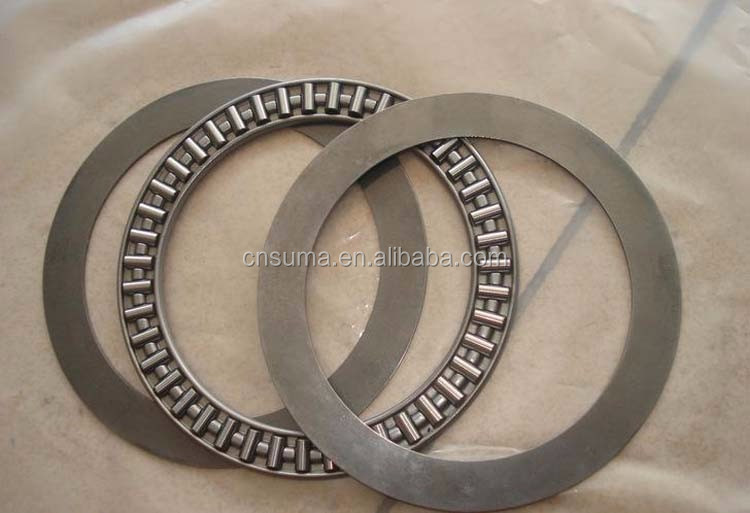

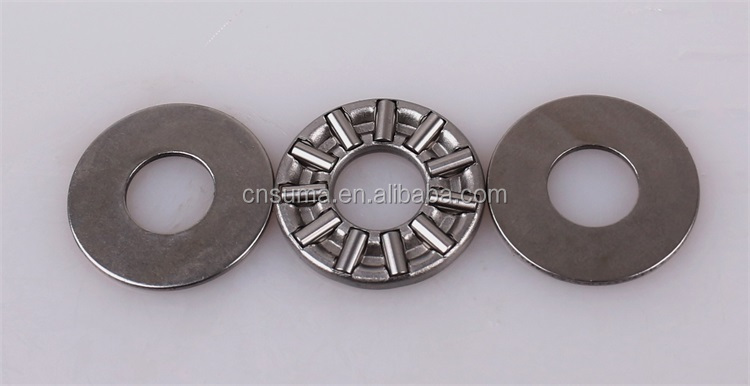

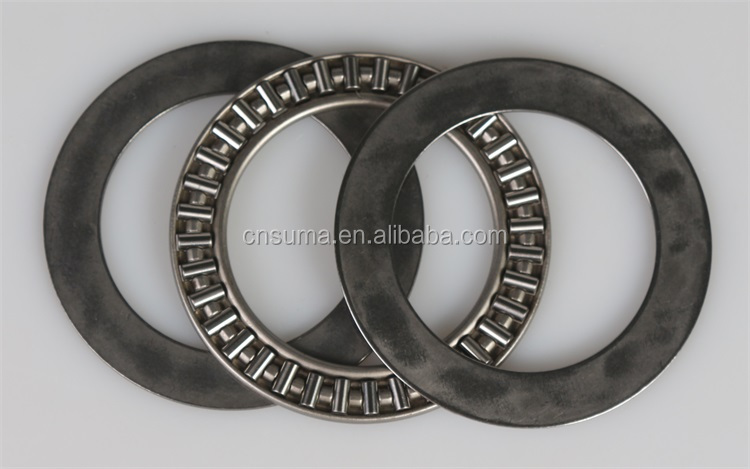

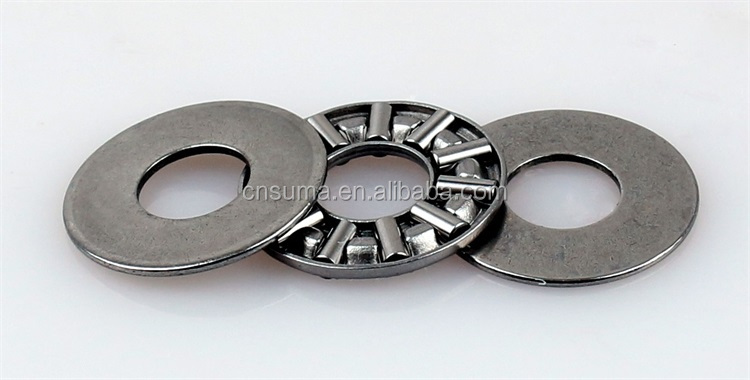

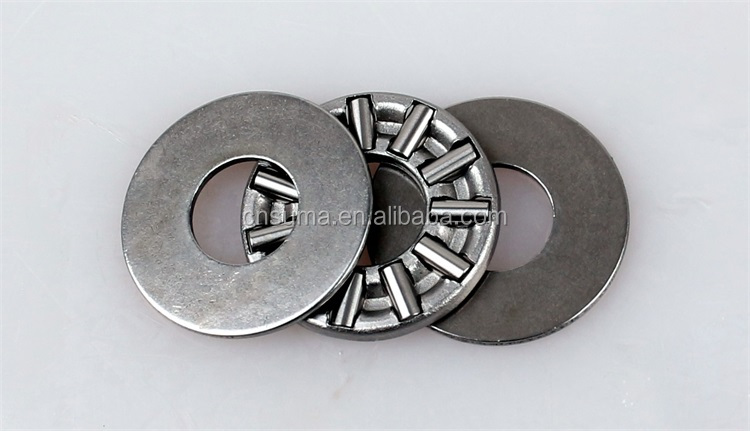

detailed image





Package
