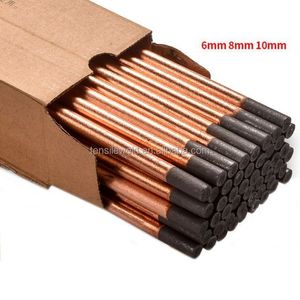

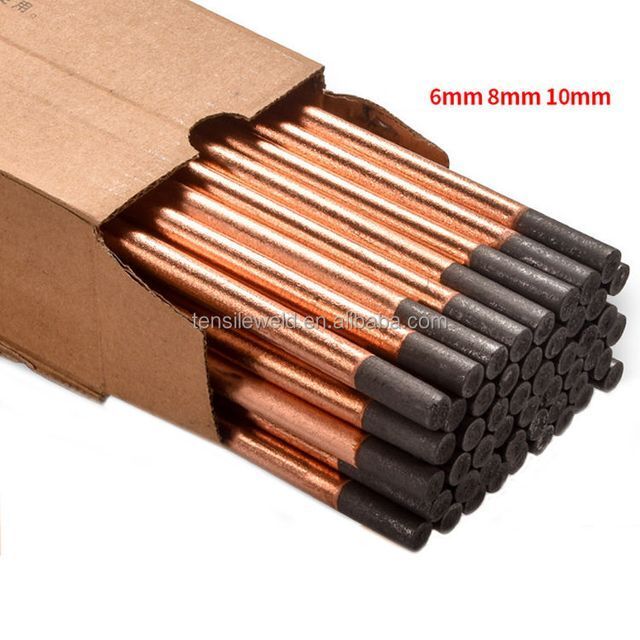

China Good Price Arc Air Gouging rods Copper Coated Carbon Electrode gouding rod for sale
- $0.21 / 2000 - 4999 pieces
$0.19 / 5000 - 9999 pieces
$0.10 / 10000 - 19999 pieces
$0.07 / >=20000 pieces - 2000 pieces
- Qingdao Tensileweld Welding Consumables Co., Ltd.
- Shandong, China
- Mr Teo Wang
PRODUCT DETAIL
| Standard: | Medium Duty/Max.600AMAP; | Operating Current: | DC 150~1600A; |
| Material: | Graphite; | Customized support: | OEM; |
| OEM: | Accept OEM; | Package Preview: | ; |
| Application1: | Welding Carbon Steel Materials, Welding Carbon Steel Materials; | Product Name: | Arc Air Gouging Carbon; |
| Brand Name: | Tensileweld/OEM; | Keyword: | Gouging Welding Rod; |
| Application: | Welding Carbon Steel Materials; | Supply Ability: | 50000 Pieces per Year Free sample is available; |
| Warranty: | 3 Month; | Package: | Carton / Pallet; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal; | Type: | 4 DC 305 5 DC 305 6.0 DC 305; |
| Place of Origin: | Shandong, China; | Certification: | ISO 9001:2015 CE; |
| Welding Current: | International Standard; | Packaging Detail: | Our factory can customize the color, specification and size of products according to your requirements, and the packing box can customize logo and style according to your requirements.Seaworthy Pallet or Customize, Good Looking Packaging to Make Your Brands Famous.; |
| Operating Temperature: | Standard Temperature; | Packing: | 10pcs/box; |
| Model Number: | Normal Model; | Color: | Golden Yellow; |
| Port: | Qingdao,China; |
Product Details

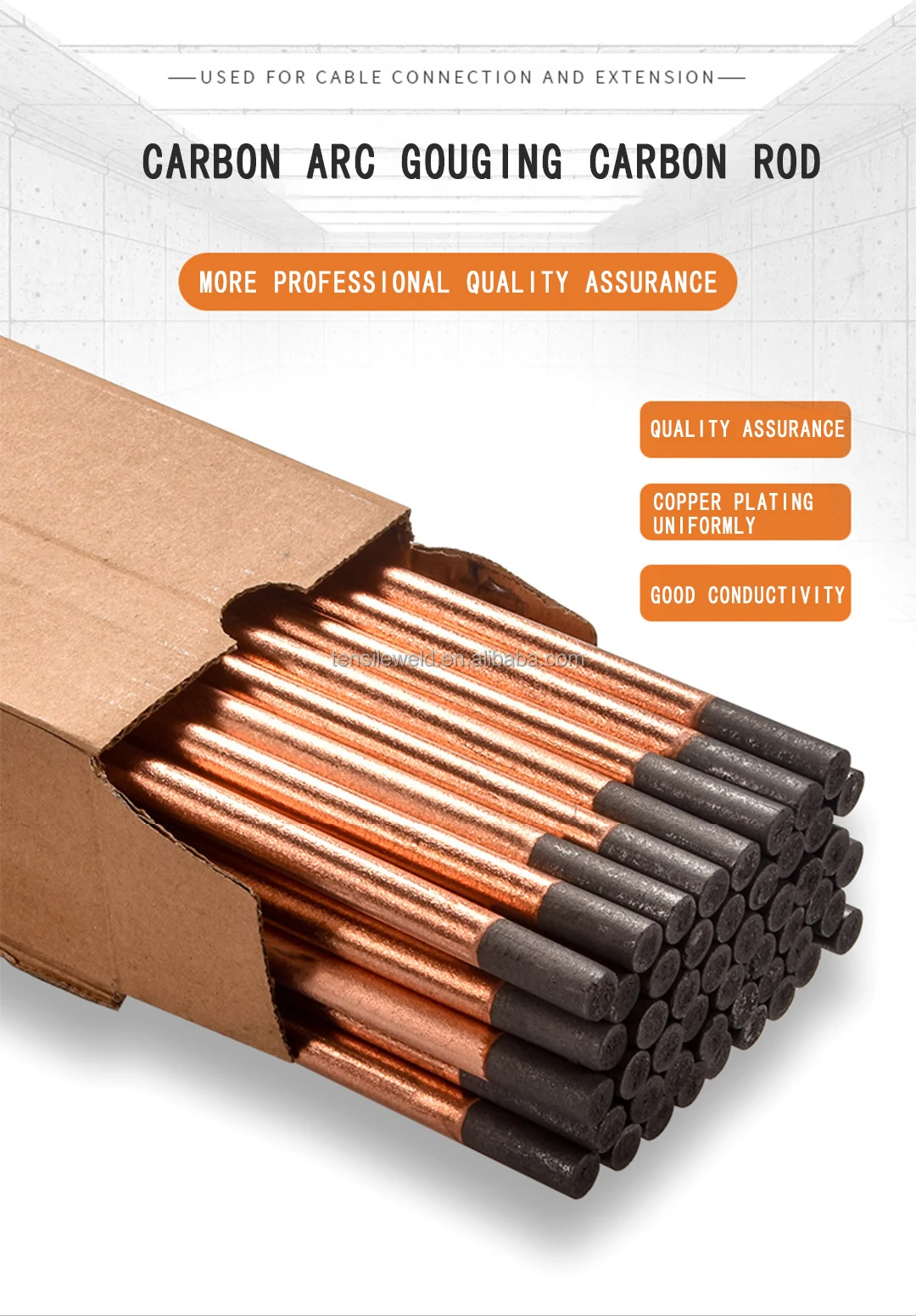

Gouging Welding Rod Electrode Round Pointed Jointed Flat Cutting Copper Coated Carbon Arc Fiber DC for Electrical Stimulation
Gouging Welding Rod can be used for cutting, welding defects removing, macking holes, welding inspection, and removing over-welded parts. The merits of Gouging Welding Rod are low consumptive and electrically resistant, and the stability of the products by using selected raw materials.
Gouging Welding Electrode / Rod -- Round / Pointed / Cutting Gouging Carbon Electrode
Product technology: the product is graphite as raw material, asphalt is binder; using hot extrusion molding process, high
temperature Calcined and plated.
Product use: This product series is widely used in shipbuilding industry, boiler and pressure vessel manufacturing, casting, steel Industry, battery production, light industrial machinery, chemical machinery manufacturing.
Product performance: This product series can be used for cutting, shovel, punching, and cleaning of "burning mouth" welding repair. except
In addition to the planing of low carbon steel and cast steel, it can also plan stainless steel, pure steel and other metals.
Product advantages: This product has the advantages of easy operation, strong applicability, good process effect and low price. Etc.
temperature Calcined and plated.
Product use: This product series is widely used in shipbuilding industry, boiler and pressure vessel manufacturing, casting, steel Industry, battery production, light industrial machinery, chemical machinery manufacturing.
Product performance: This product series can be used for cutting, shovel, punching, and cleaning of "burning mouth" welding repair. except
In addition to the planing of low carbon steel and cast steel, it can also plan stainless steel, pure steel and other metals.
Product advantages: This product has the advantages of easy operation, strong applicability, good process effect and low price. Etc.
Details Images
Instructions for use: 1. The carbon rod must be kept dry and can be used after being dampened.
2. When used for DC power supply, the carbon rod is connected to the positive pole of the power supply, and the working pole is connected
3. The compressed air pressure is maintained at 0.5-1.6MPa.
4. The arc distance between the carbon rod and the workpiece is about 3mm, and the carbon rod exposure fixture is about 100mm.
5. The carbon rod is at an angle of 45° to the workpiece and is cut along the tangential (or straight) direction.
6. The carbon rod must be well ventilated when used. Operate at the operating current.
Gouging Welding Electrode / Rod -- Carbon Graphite Electrode
Pointed Gouging Carbon
Round gouging Carbon made from mixing carbon and graphite with a binder, of low electrical resistance, coated with a controlled thickness of copper can be used for cutting, welding defects removing, making holes, welding inspection, and removing over-welded.
MODEL | NOMNAL DIMENSIONS | STANDARD CURRENT(Amp) | SHAPE | ||
(mm) | (inch) | ||||
B504 | 4.0x305(355) | 5/32x12(14) | 150～200 | Round Poinnted Smooth | |
B505 | 5.0x305(355) | 3/16x12(14) | 200～250 | ||
B506 | 6.0x305(355) | 15/64x12(14) | 300～350 | ||
B506.5 | 605x305 | 1/4x12 | 320～370 | ||
B507 | 7.0x355 | 9/32x14 | 350～400 | ||
B508 | 8.0x305(355) | 5/16x12(14) | 400～450 | ||
B510 | 10.0x305(355) | 3/8x12(14) | 500～550 | ||
B512 | 12.0x305(355) | 15/32x12(14) | 750～800 | ||
B513 | 13.0x305(355) | 1/2x12(14) | 800～900 | ||
B516 | 16.0x355 | 5/8x14 | 950～1100 | ||
B519 | 19.0x355(510) | 3/4x14(20) | 1100～1300 | ||
Gouging Welding Electrode / Rod -- Rectangular / Flat Gouging Carbon Electrode
Rectangular Gouging Carbons
Rectangular Gouging Carbons make rectangular grooves and remove weld reinforcements. Used for removing weld defects and over-welded parts. The shape of rectangular prevents over removing of materials by excessive arc concentrating.
MODEL | NOMNAL DIMENSIONS | STANDARD CURRENT(Amp) | SHAPE | ||
(mm) | (inch) | ||||
B5412 | 4x12x305(355) | 5/32x12(14) | 150～200 | Round Poinnted Smooth | |
B5510 | 5x10x305(355) | 3/16x12(14) | 200～250 | ||
B5512 | 5x12x305(355) | 15/64x12(14) | 300～350 | ||
B5515 | 5x15x305(355) | 1/4x12 | 320～370 | ||
B5518 | 5x18x305(355) | 9/32x14 | 350～400 | ||
B5520 | 5x20x355 | 3/8x12(14) | 500～550 | ||
B5525 | 5x25x355 | 15/32x12(14) | 750～800 | ||
Gouging Welding Electrode / Rod -- Jointed Gouging Carbon Electrode
Jointed Gouging Carbons
Jointed Gouging Carbons work without stub loss, furnished with a female socket and a matching male tang. Used to achieve high quality gouges and increase production in automatic units.
MODEL | NOMNAL DIMENSIONS | STANDARD CURRENT(Amp) | SHAPE | ||
(mm) | (inch) | ||||
B510J | 10.0x430 | 3/8x17 | 600～650 | Jointed Groove Center-Lathed | |
B512J | 12.0x430 | 15/32x17 | 750～800 | ||
B513J | 13.0x355(430) | 1/2x4(17) | 800～900 | ||
B516J | 16.0x355(430) | 5/8x14(17) | 1000～1100 | ||
B519J | 19.0x355(430) | 3/4x14(17) | 1100～1200 | ||
NOMNAL DIMENSIONS | Inner Box | Carbon | |||||
(mm) | (inch) | Pieces per box | Qty(PCS) | G.W.(PCS) | |||
B504 | 4x355 | 5/32x14 | 100 | 4000 | 33 | ||
B505 | 5x355 | 3/16x14 | 100 | 2000 | 25 | ||
B506 | 6x355 | 15/64x14 | 100 | 1500 | 28 | ||
B507 | 7x355 | 9/32x14 | 50 | 1500 | 29 | ||
B508 | 8x355 | 5/16x14 | 50 | 1000 | 29 | ||
B510 | 10x355 | 3/8x14 | 25 | 500 | 21 | ||
B512 | 12x355 | 15/32x14 | 25 | 500 | 33 | ||
B513 | 13x355 | 251/2x14 | 25 | 400 | 36 | ||
Certifications
Our factory manufactures gouging carbon rods. Due to excellent quality and stable performance of our products, we have not only successfully obtained ISO 9001 quality management system certificate, but also got the approval from the Classification Society of China(CCS), Deutsche Bahn AG(DB), Conformity with European(CE), American Bureau of Shipping(ABS) and American Welding Society(AWS).
Packing & Delivery
Packing - Gouging Welding Rod Electrode:
50 pcs per carton box packing
Then On Seaworthy Pallet
****Or Customize!!
Delivery: 15 days after confirm order
Our Service
Equipment & Products process

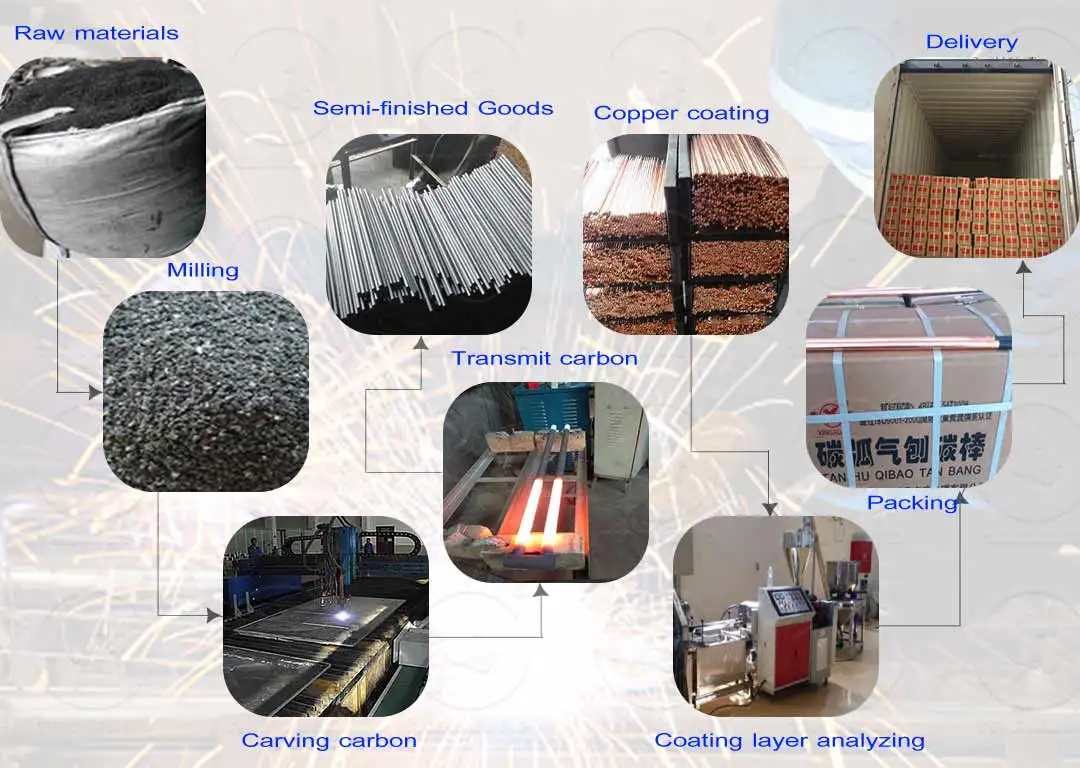

The manufacturing process of Gouging Carbon Electrodes are as follows;
Raw materials-> Milling-> Kneading-> Extruding-> Baking-> Edge preparation-> Joints machining-> Copper coating-> Coating layer analyzing-> Inspection-> Packing-> Delivery
Our Factory
At a most famous gouging electrodes manufacturer of world from china and global source supplier ,we have an own export right and two factories,for air arc carbon cutting, can directly export our 60% goods to more than 37 foreign countries and territories.
We have a sale capacity around 5000000 pcs per month.Give customer lowest quote and best quality for gouging rods.At present,we are a regular supplier of gouging rods. ISO9001-2015 QUALITY ITEM company, we currently supply ESAB,LINCOIN,arc air, Carbografite OEM brand etc.our quality almost equal to past Taiwan Panasonic carbons
Electric. We will constantly promote our product and service to further meet customers requirement.
Meanwhile ,we are selling the following grade length with firs-class quality: 305mm.330mm,350mm,400mm,430mm,455mm,510mm,other length is available. By the way,we supply the free agency service on welding and cutting materials,welding machines and hardware tools which you demand.
