China factory cheap OEM all specification pump stator winding lamination
- $3.00 / 50 - 999 pieces
$2.80 / >=1000 pieces - 50 pieces
- Fujian Viking Industry Co., Ltd.
- Fujian, China
- Mr Ruan
PRODUCT DETAIL
| Packaging Details: | Wooden case as your request. | Slot: | custom made |
| MOQ: | 100PCS | model: | S1 |
| Certification: | ce | Material: | Silicon steel |
| Warranty: | 3 months - 1 year | Package: | Carton + wooden box |
| Supply capacity: | 1,000,000 pieces per month | process: | Cold rolled/strip |
| place of origin; place of origin: | Fujian China | brand: | viking flow |
| payment terms: | Western Union, T/T | Color Gold: | nature |
| technology: | Cold rolled silicon steel | Package preview: | |
| port: | FOB Fuzhou | Model: | 63#/71#/80#/90# |

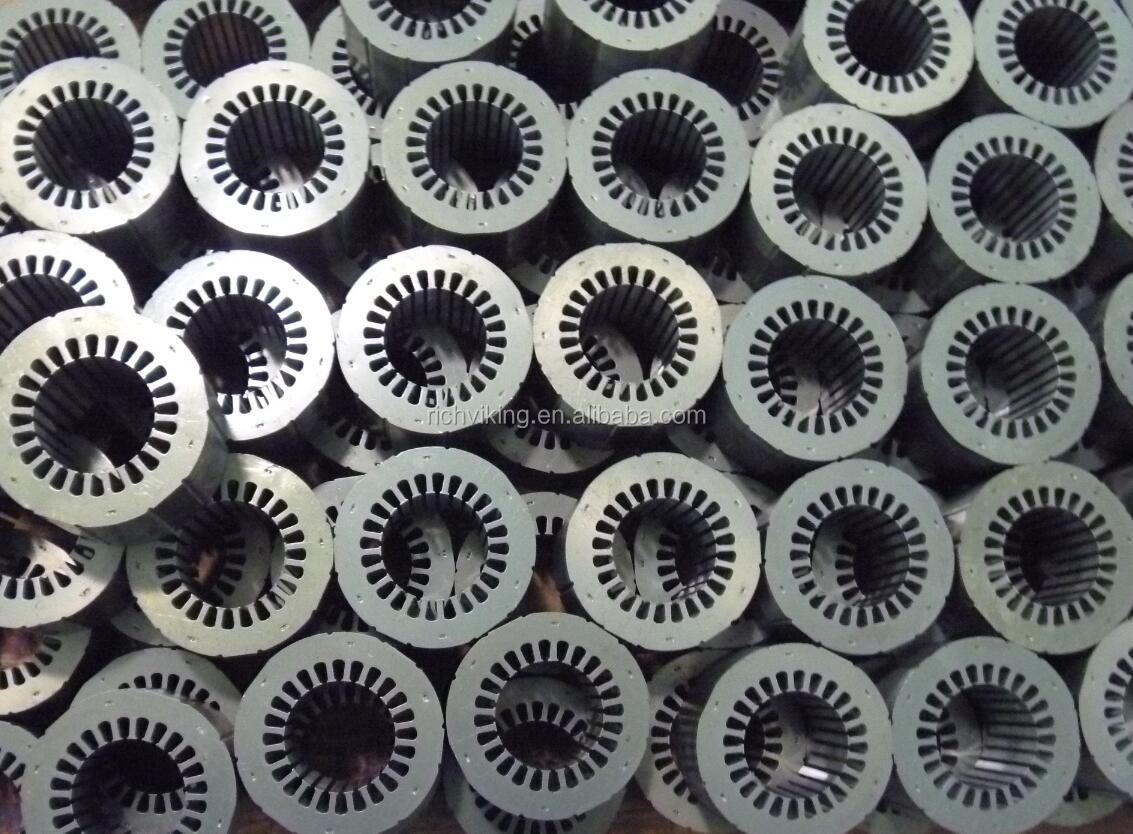

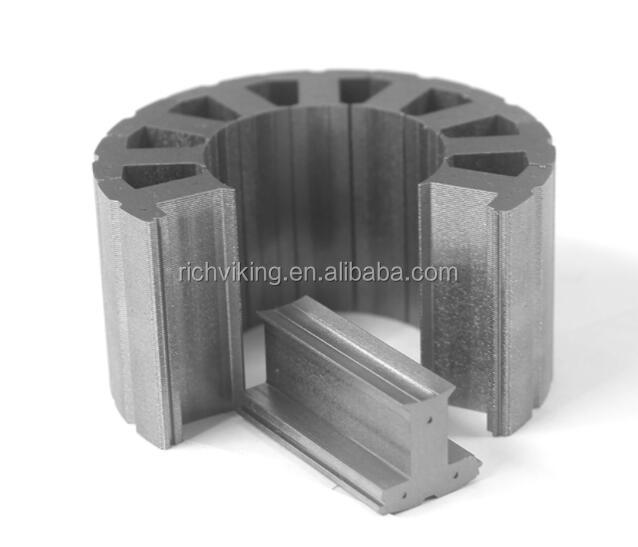

| application: | stator | product name: | Stator core laminations |
Product Description
Slots, number of pieces, size need to be customized
In order to let you know our quality, we are willing to provide free samples, but based on the freight collected.

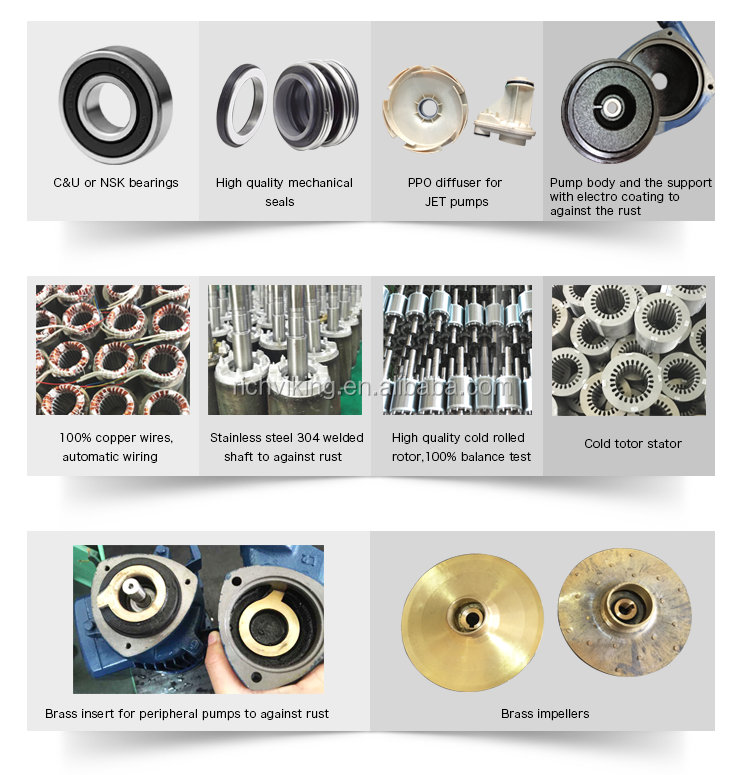

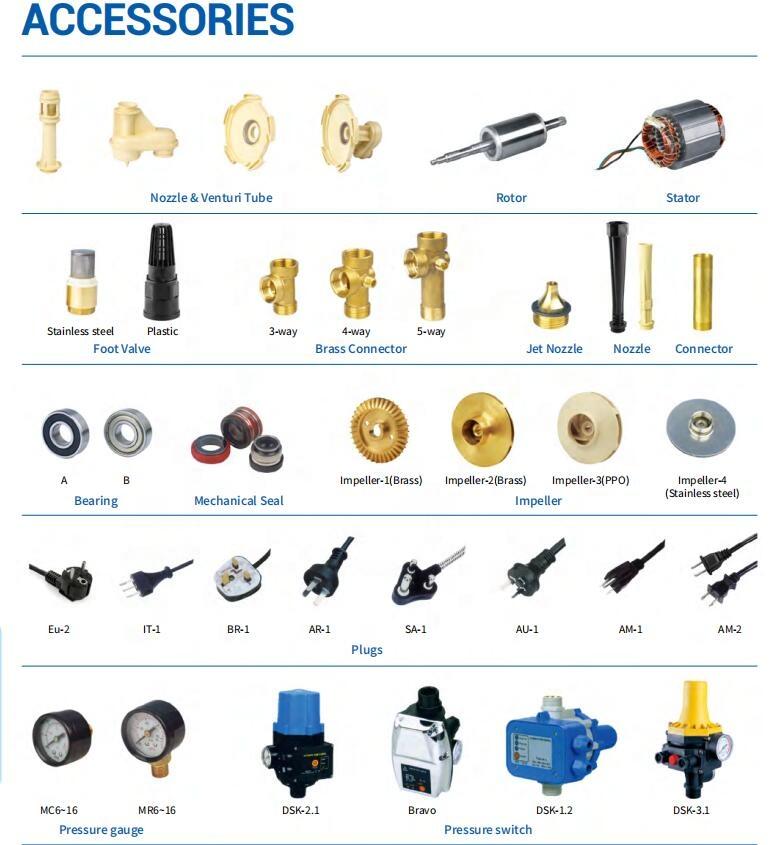

Viking has multiple accessories manufacturers, we provide the best service and price, the least quantity and the most punctual delivery time.
In order to let you know our quality, we are willing to provide free samples, but based on the freight collected.
Viking has multiple accessories manufacturers, we provide the best service and price, the least quantity and the most punctual delivery time.
Material: | Silicon steel sheet | |
Applies to: | pump/generator | |

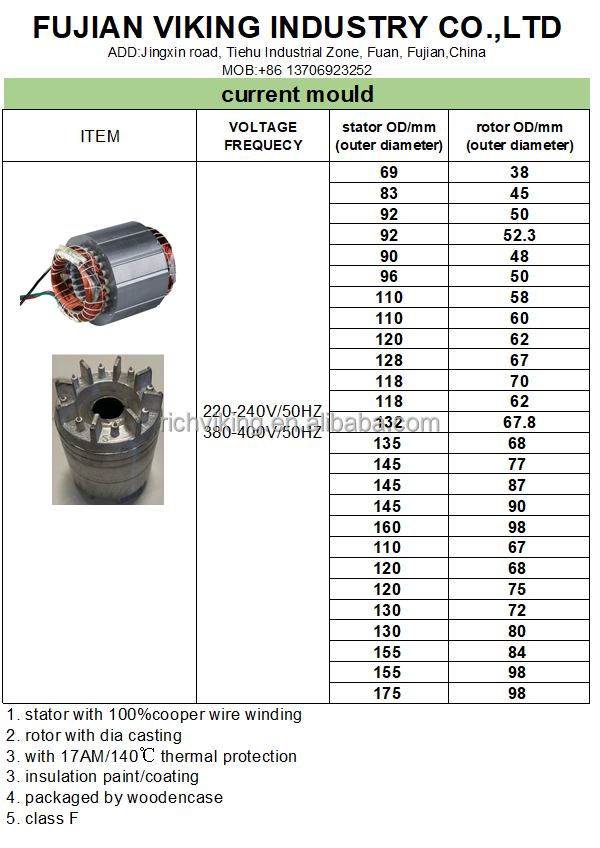

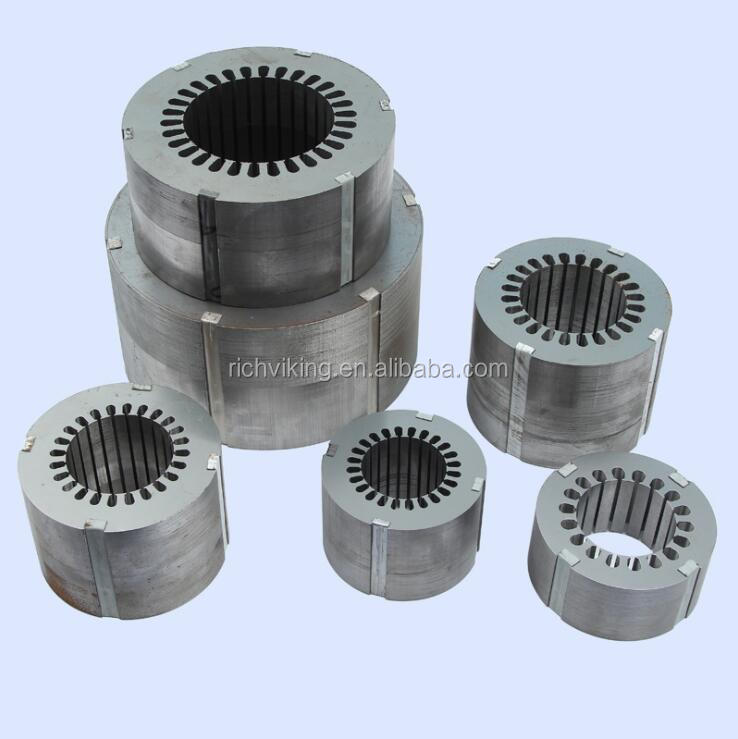

63# / outer diameter: 90MM | ||
71# / outer diameter: 110MM | ||
80#/outer diameter: 128MM | ||
90#/outer diameter 145MM | ||
MOQ: | 100PCS | |
The price varies according to the size, please tell us your needs, we will quote the lowest price according to your size requirements. | ||
Working principle of the stator

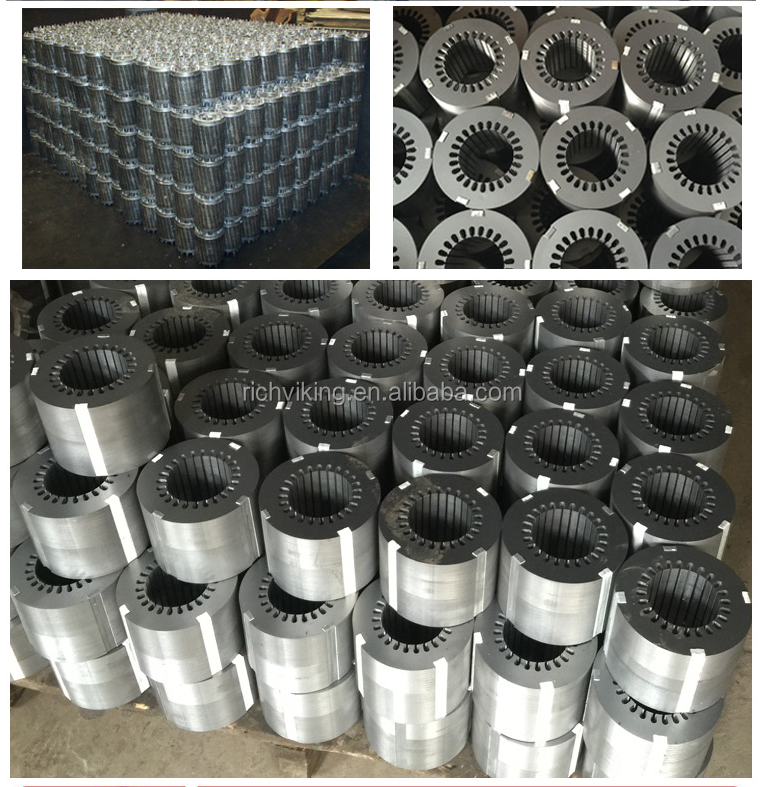

High-speed precision stamping, automatic self-riveting and self-fastening, one-time processing in place, precision molds, equipped with inner and outer guide posts, tungsten steel edging, 3 million regular maintenance to ensure stable quality.

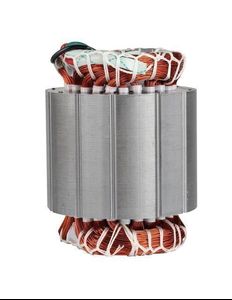

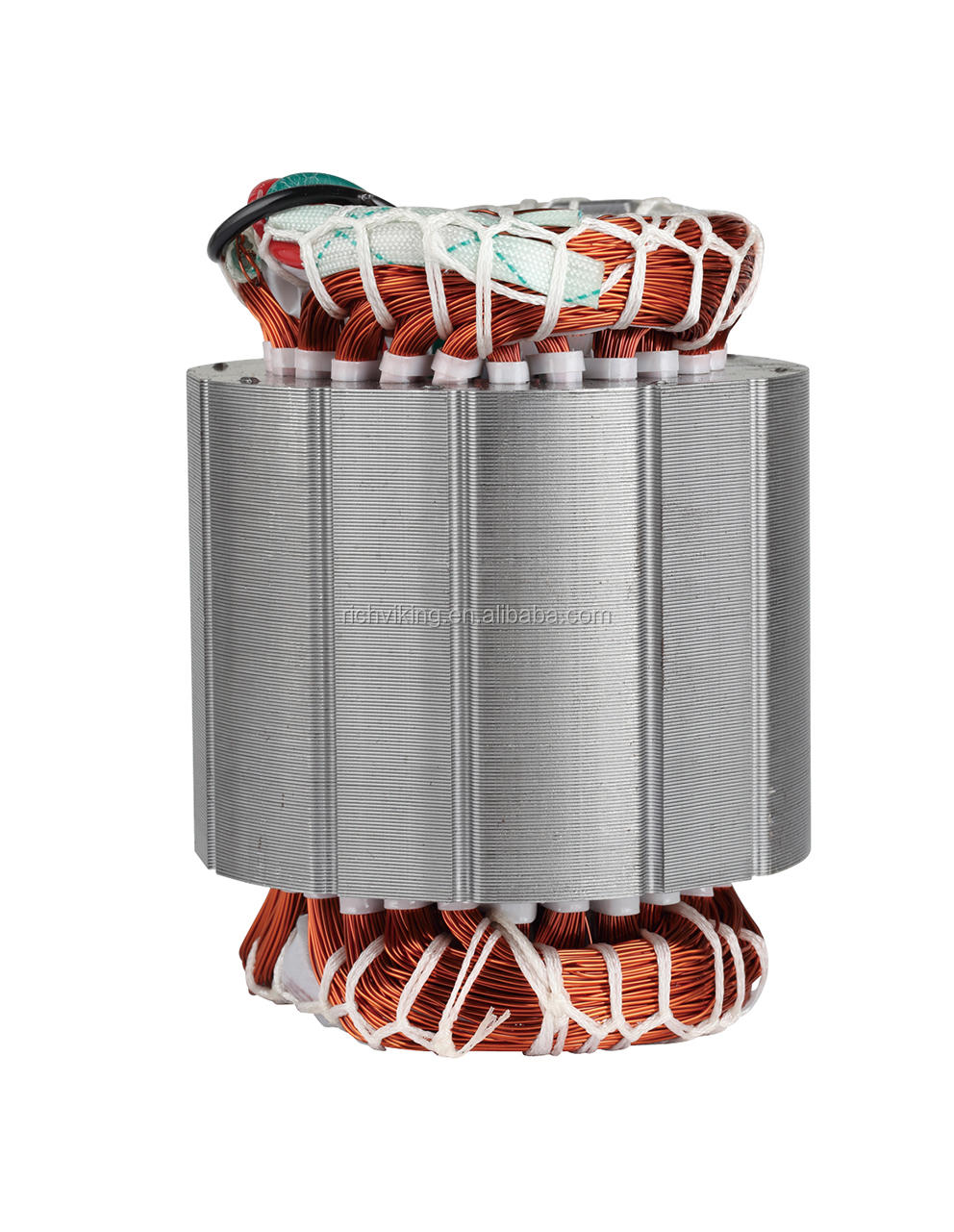

The stator is the static part of the motor stator. It is composed of three parts: the stator core and the stator winding frame. The stator is fixed by the stator core coil and other structures of the bracket, this part of the frame is used for the fixed iron core of the suspended generator, the bracket carries the full weight of the rotating parts; the iron core is part of the magnetic circuit of the generator. The coils form the electrical circuit of the generator.

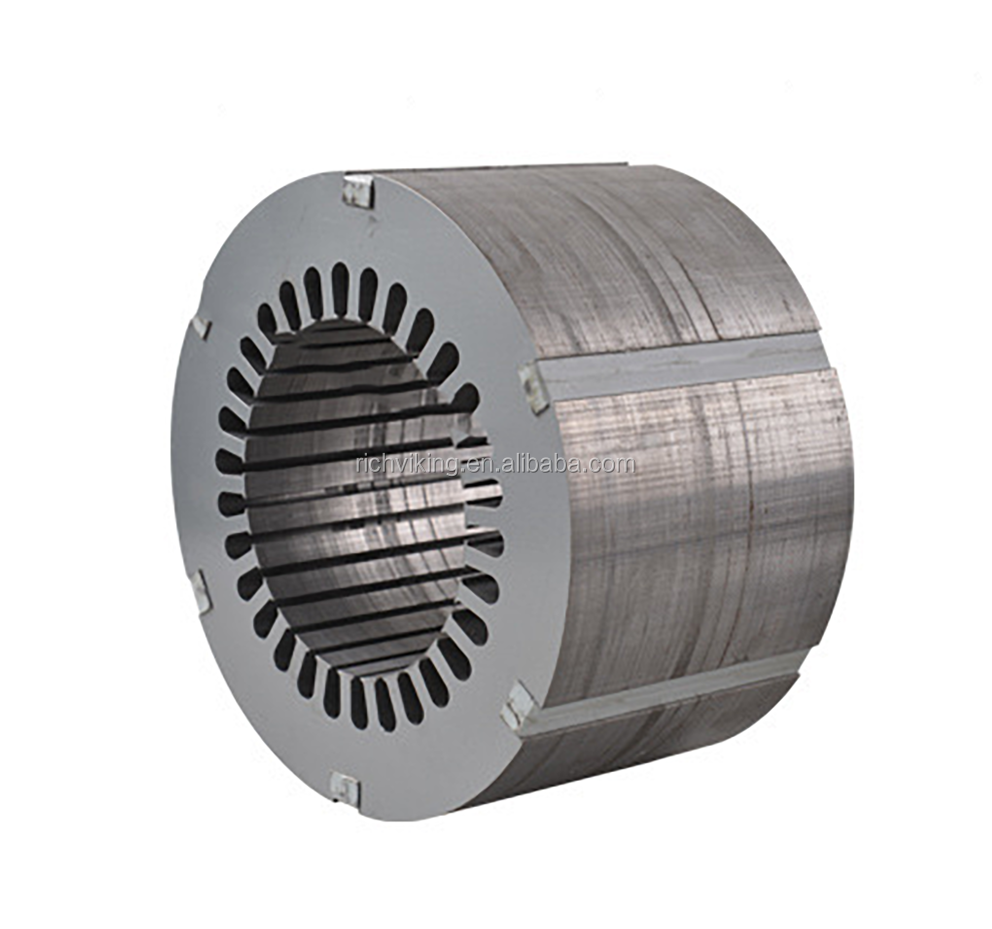

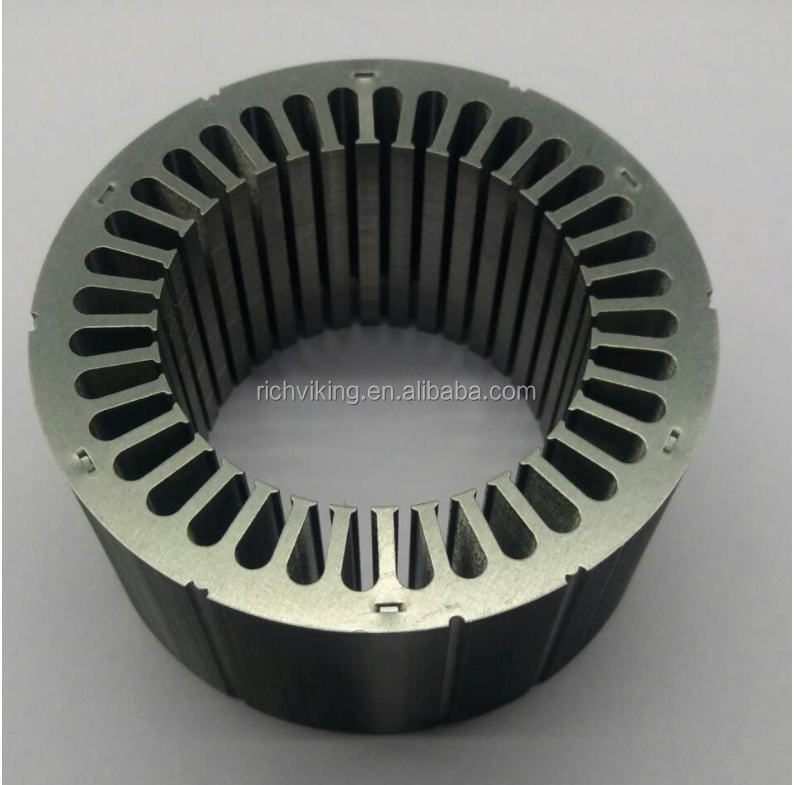

Stator core: The stator core is the main magnetic circuit of the stator. Together with the stator winding installation and fixed parts, the stator core is composed of fan blanking, ventilation, slots, tooth pressure plates, tension bolts, positioning rods and other components.
