Coil cutting machine with cut line length 3-12x2200mm
- $121800.00 / 1 - 1 sets
$121300.00 / >=2 sets - 1 set
- Jiangsu Bronx Machinery Co., Ltd.
- Jiangsu, China
- Ms River Chu
| Warranty: | 1 year | Dimensions (L*W*H): | 30x10x2.5m |
| After-sales service provided3: | free spare parts | After warranty service 3: | On-site maintenance and repair services |
| Cutting width (mm): | 400 - 1800 | Supply capacity: | 3 sets per month |
| Core component warranty: | 1 year | After-sales service provided: | On-site installation, commissioning and training |
| Coil weight (T): | 20 | Marketing Type: | normal product |
| After warranty service: | Video Technical Support | After-sales service provided4: | Video Technical Support |
| port: | Shanghai | Video shipment inspection: | if |
| rated power: | 50 Hz | Package preview: | |
| Health status: | new | After warranty service 2: | spare parts |
| Core components: | Programmable Controllers | After warranty service 1: | online support |
| Cutting speed (m/min): | 0 - 25 | place of origin; place of origin: | Jiangsu, China |
| Applicable industries: | Construction engineering, building material stores, machinery repair shops, manufacturing plants | Main selling points: | high productivity |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Mechanical test report: | if |
| Material Thickness (mm): | 1 - 8 | Leveling accuracy (±mm/m): | 1.5±mm/m |
| After-sales service provided2: | online support | Local service location: | not any |
| Showroom location: | not any | After-sales service provided1: | On-site maintenance and repair services |
| Voltage: | 380v | brand: | bronx |
| Packaging Details: | Plastic film seaworthy packaging. | weight: | 80 |
performance and structure

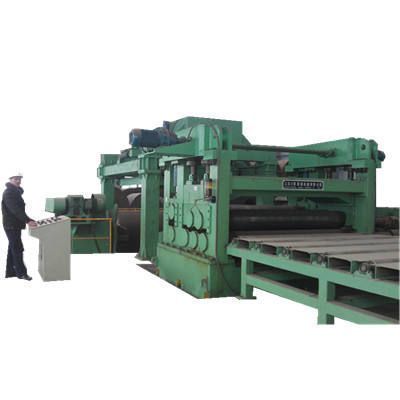

The cross cutting line is used to obtain flat plates from steel coils after 7-8 processes.
The bus is controlled by CNC.
After the operator puts the coil on the loading cart, the following procedure will be completed automatically.
A touch screen on the console will allow the operator to enter the required parameters.
The bus operation is convenient.
Such a production line usually includes the following working procedures:
1. Unloading truck (optional)
2. Uncoiler
3. Shovel pressing device
4. Correction facilities
5. Pinch
6. Leveling (four-high structure)
7. Fixed length
8. Shearing
9. Stacking (optional)
10. Electric control system
11. Hydraulic control system
quality assurance:
1. Our factory has decades of experience in the production of metal coil and plate processing machinery.
We have a professional engineer team to provide technical support.
More than 30 years of actual installation and testing experience have ensured the good operation of the machine.
2. Our quality control department tracks every procedure during machine manufacturing to guarantee qualified final output.
3. The electrical and hydraulic components used on our machines are all famous brand products with long-term cooperation in China.
They can work stably and have a long service life.
Coil Thickness | 1-8mm |
Coil Width | 400-1800mm |
Coil weight | up to 20 tons |
Line speed | 0-25m/min |
Flatness Tolerance | ≤±1.5mm/m2 (no defect board) |
Length Tolerance | ≤±1.5mm/2000mm (no defect and no oil film on the plate) |

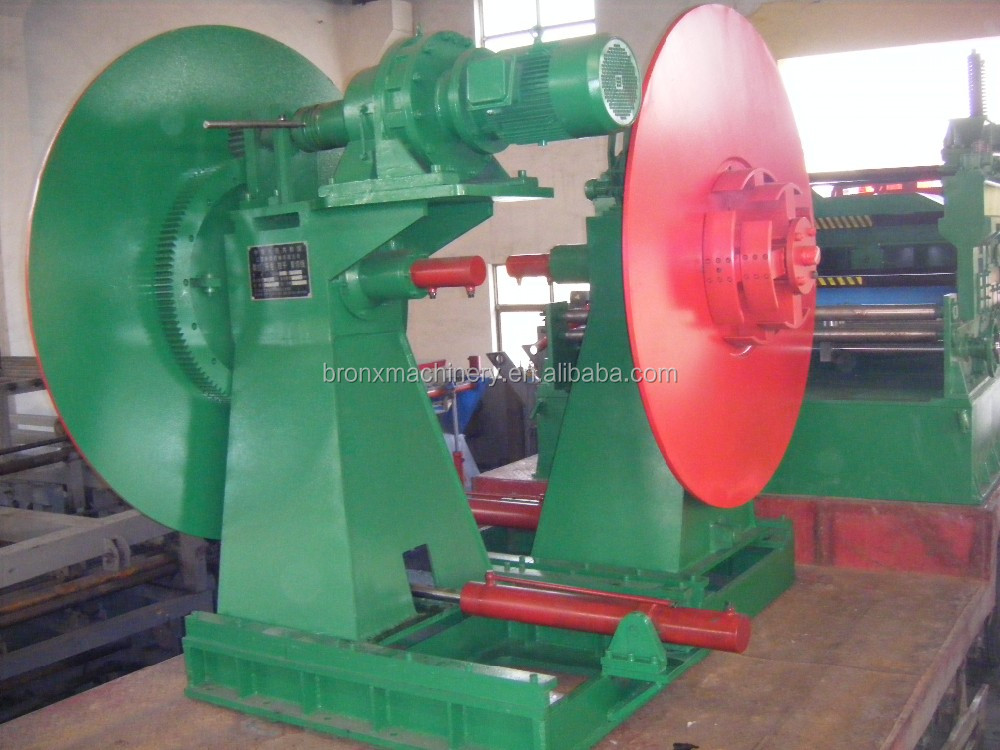

Uncoiler

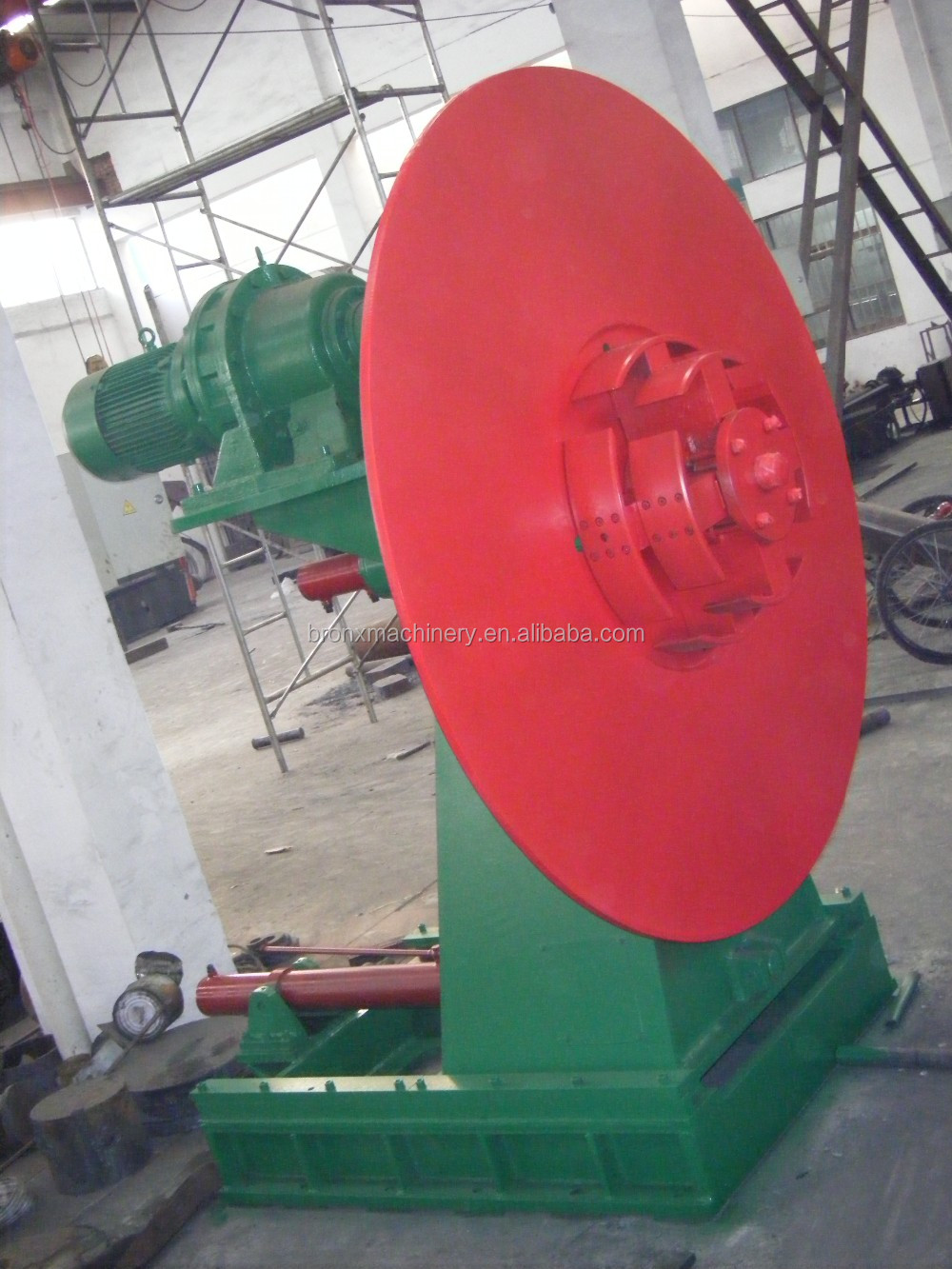

This uncoiler section is used to unwind the coils.
For coils with a thickness of 6-25mm, an uncoiler with a symmetrical structure is generally used.
This structure can hold up to 30 tons of coils.

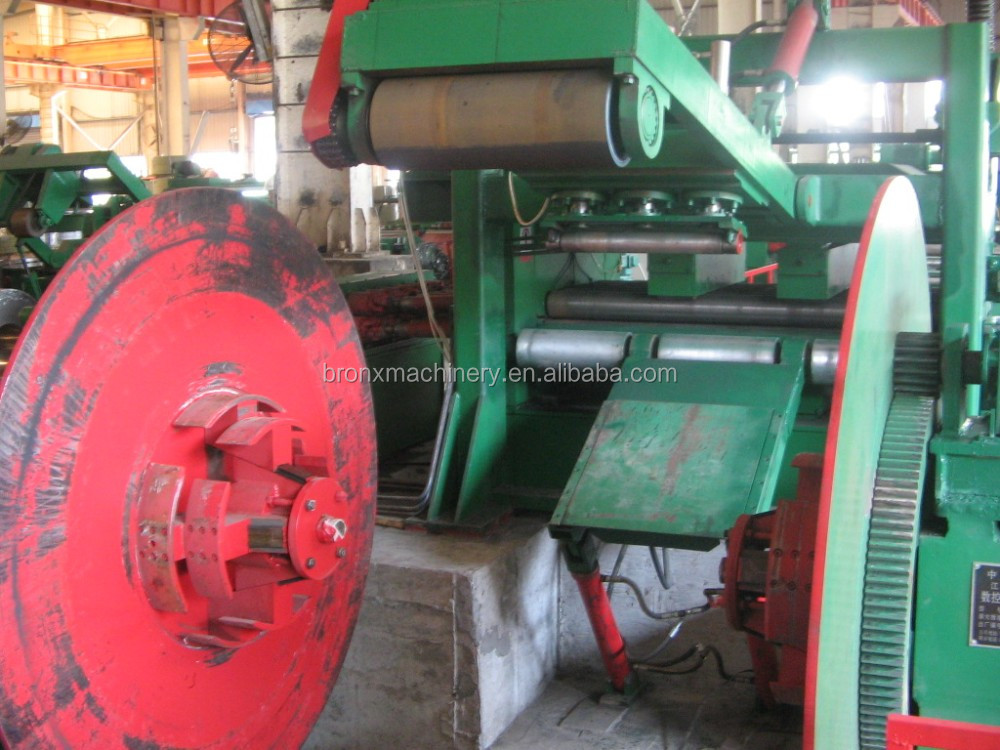

Press shovel device
This device is used to smoothly guide the head of the coil into the pinch roller.

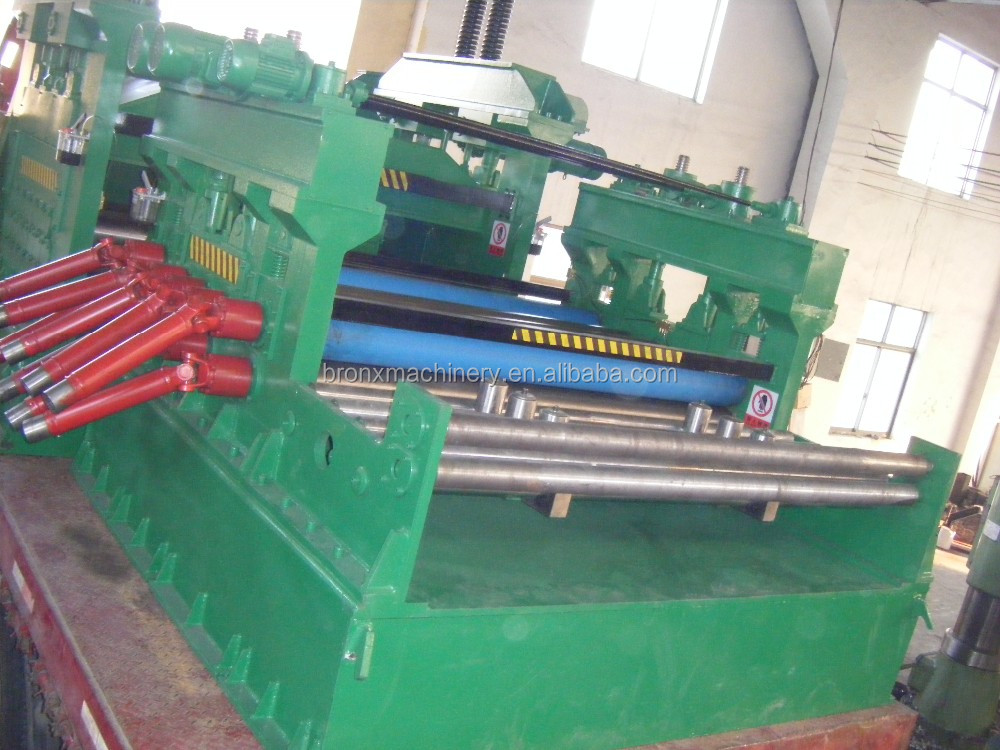

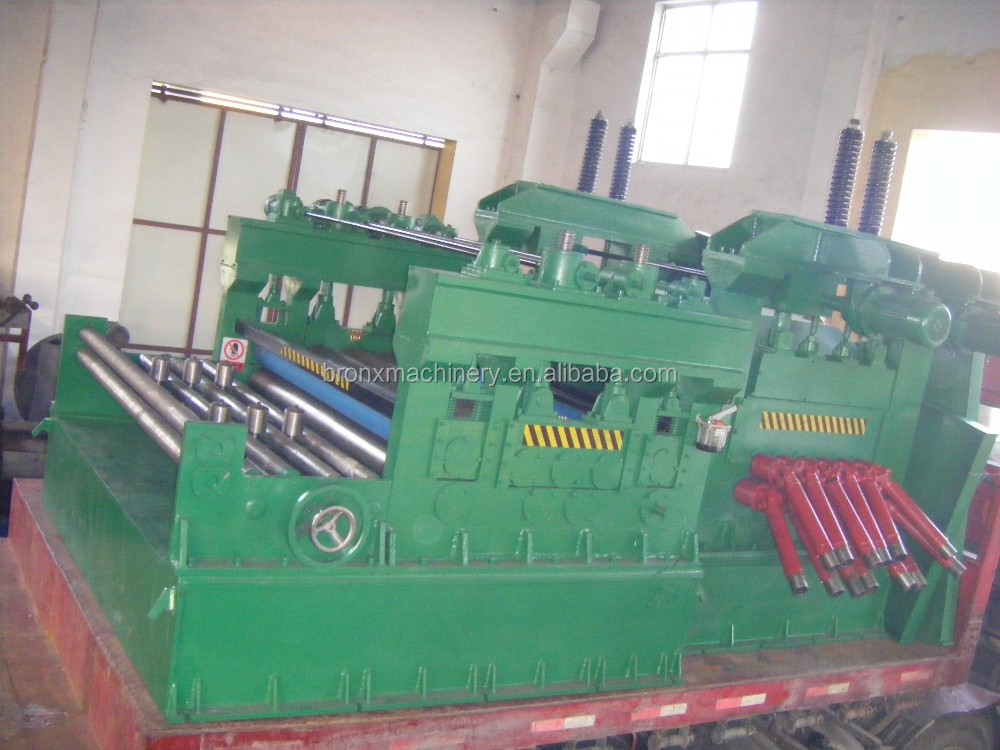

Two pinch leveling machine
There is a pair of pressing rollers in front of the leveling machine.
The leveling machine is a four-high structure with a total of 5 idlers (3 upper and 2 lower).
This part of the machine can flatten the coil from the uncoiler and send the coil to the shearing machine to obtain the required length of the sheet.

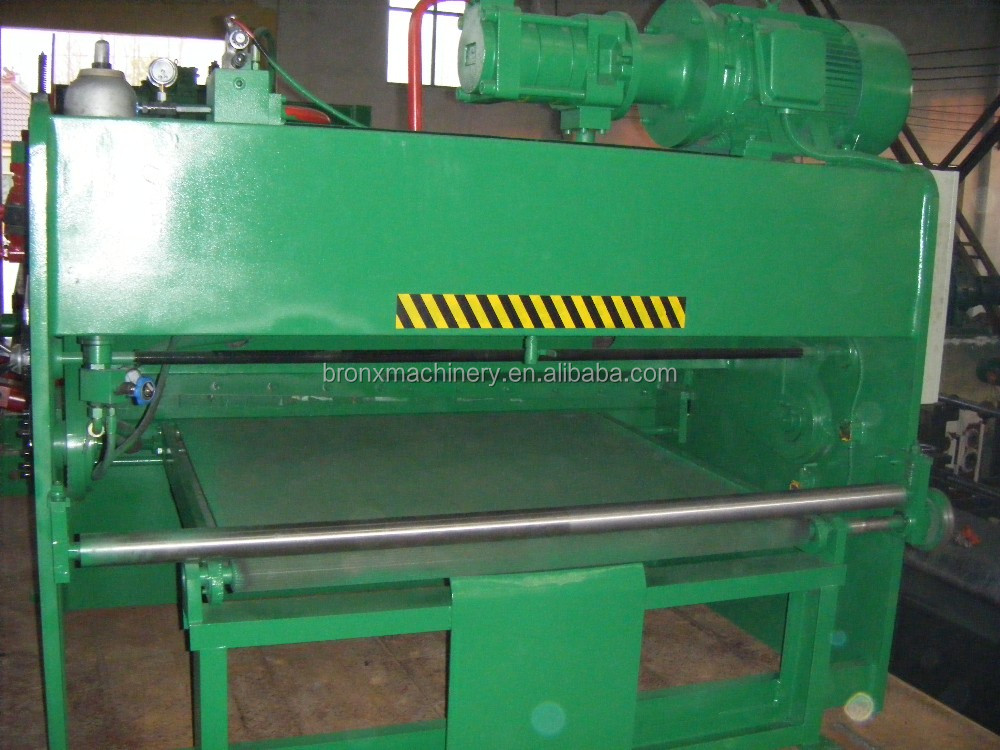

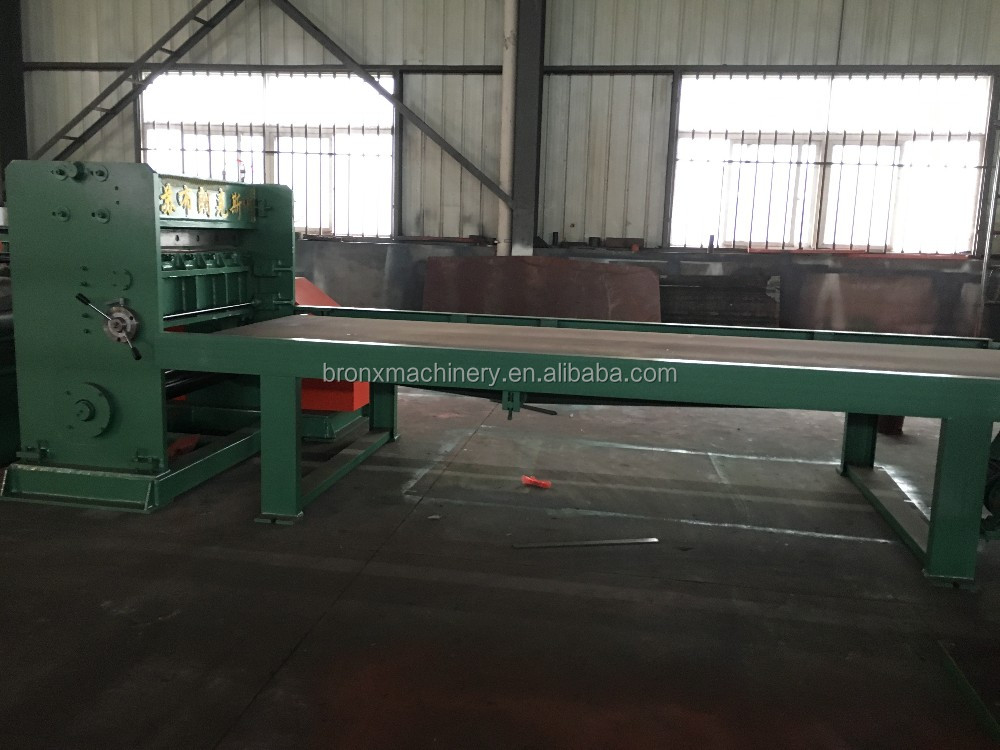

Shearing machine
After passing through the fixed-length device, the shearing machine can cut the steel coil into the required length.
So customers can finally get plates, such as 1m, 2m, 3m, 4m, 5m, 6m, etc.
All numbers can be input into PLC, and the whole machine runs automatically.

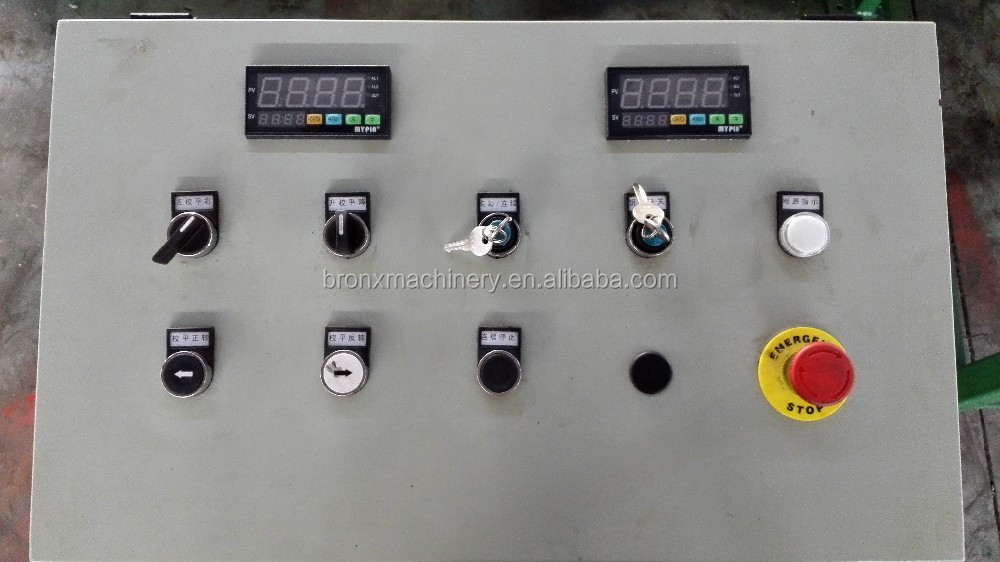

control table
This control table structure is designed by our engineers. Really smart and practical.
The PLC and all control buttons are in the table.
Operators can input numbers according to actual needs, press the start button, and the bus will work.
(1) What is your advantage?
A1: Over 20 years manufacturing and R&D experience, we are professional and humane.
A2: Since we are a manufacturer, not a trading company, we can provide excellent pre-sales and after-sales services on time.
A3: Production efficiency: 3-4 lines per month
(2) Do you have after-sales support?
A: Yes, we have a professional installation and testing team of 15 people. And will serve you during the life of the machine. Any problem, please feel free to contact us, we will solve it as soon as possible.
(3) How to visit your company?
A: Our factory is located in Hai'an city near Shanghai. There are many direct flights from Shanghai to Hai'an. Only 3 hours by bus.
