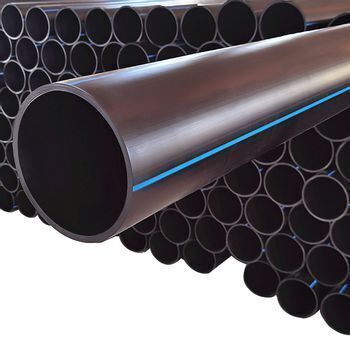

Comfortable hpde hdpe pipe
- $0.07 / 500 - 4999 meters
$0.06 / 5000 - 49999 meters
$0.05 / >=50000 meters - 500 meters
- Shanghai Ruihe Enterprise Group Co., Ltd.
- Shanghai, China
- Ms Amanda Zeng
PRODUCT DETAIL
| Feature: | Durable; | Packaging Detail: | hdpe irrigating tube : standard exported packing for Comfortable hpde hdpe pipe; |
| Item: | Cable Hdpe 40mm Silicone Duct Hot-sale hdpe pipe; | Length: | 5.8m;6m,12m according customer's requirement; |
| Installation cost: | Lower; | Standard: | ISO 4427,AS/NZS4130,DIN 8074,ISO 4427,AS/NZS4130,DIN 8074; |
| Package Preview: | ; | Single gross weight: | 0.739 KG; |
| Single package size: | 60X10X10 cm; | Pressure: | 0.32Mpa to 2.5Mpa; |
| Color: | Black; | Selling Units: | Single item; |
| Model Number: | HDPE Pipe; | Life span: | More than 50 years; |
| Processing Service: | Moulding; | Material: | Polythylene,PE; |
| Usage: | Watering Irrigation; | Specification: | PN3.2~PN25; |
| Thickness: | 2.0~90.2mm; | Place of Origin: | Shanghai China; |
| Brand Name: | REHOME; |
Customized all size of PPR pipe and HDPE pipe
Welcome to Rehome
Professional PPR pipe/ HDPE pipe manufacture
we are sincerely recruit agents from all over the world.
Comfortable hpde hdpe pipe
Product Details
I.Details:
| Items | Hdpe pipe |
| Material | Polythylene |
| Size | 16 ~ 1200 mm |
| Color | Black |
| Connection | Welding |
| Pressure | PN5,PN6,PN8,PN10,PN12.5,PN16,PN20,PN25 |
| Standard | ISO4427,AS/NZS4130,DIN 8074 |
II.Advantage:
(1) Good environmental suitability.
(2) Excellent chemical resistance , long service life.
(3) The inside pipe wall is extremely smooth and difficult to leave over dirt.
(4) Connected by welding , leakage prohibit.
III.Specification:
| Spec(mm) | Nominal Pressure | |||||||
| PN5 | PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 | PN25 | |
| Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | |
| 16 | 2.0 | 2.3 | ||||||
| 20 | 2.0 | 2.3 | 3.0 | |||||
| 25 | 2.0 | 2.3 | 3.0 | 3.5 | ||||
| 32 | 2.0 | 2.4 | 3.0 | 3.6 | 4.4 | |||
| 40 | 2.0 | 2.4 | 3.0 | 3.7 | 4.5 | 5.5 | ||
| 50 | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 | 5.6 | 6.9 | |
| 63 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 | 8.6 | |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 | 10.3 | |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 | 12.3 | |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | 12.3 | 15.1 | |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 | 14.0 | 17.1 | |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | 15.7 | 19.2 | |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 | 21.9 | |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | 20.1 | 24.6 | |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 | 27.4 | |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 | 30.8 | |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 | 34.2 | |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 | 38.3 | |
| 315 | 9.7 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 | 35.2 | 43.1 |
| 355 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | 39.7 | 48.5 |
| 400 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 | 54.7 |
| 450 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 | 61.5 |
| 500 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 | |
| 560 | 17.2 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 | |
| 630 | 19.3 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 | 70.3 | |
| 710 | 21.8 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 | |
| 800 | 24.5 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 | |
| 900 | 27.6 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | ||
| 1000 | 30.6 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 | ||
| 1200 | 36.7 | 45.9 | 57.2 | 67.9 | 88.2 | |||
