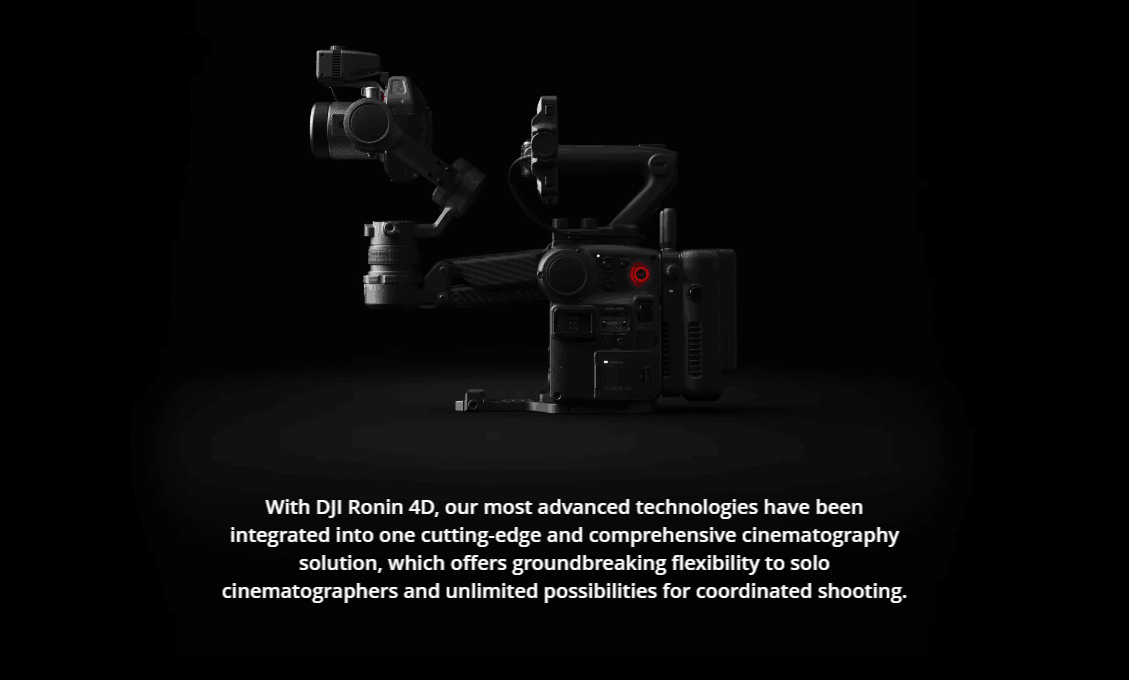

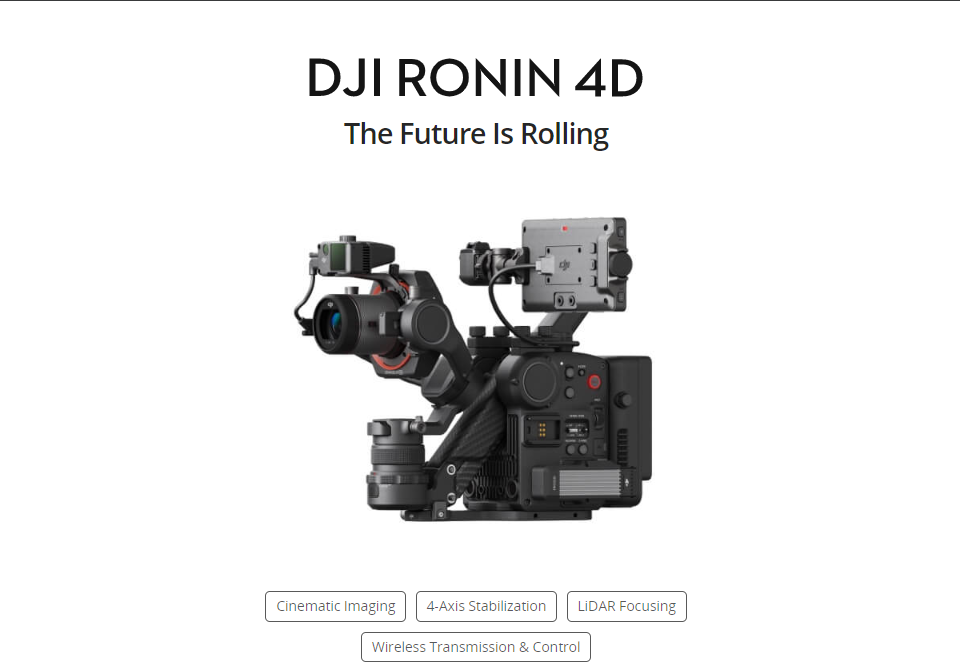

DJI Ronin 4D-6K DJI Ronin 4D-8K wireless transmission four-axis anti-shake lidar focusing full-frame gimbal camera

hint:
1. If the buyer does not request a specific express/logistics company before we ship, we will ship according to the default delivery channel.

2. We can send the goods to the buyer's address, excluding customs clearance and tax/duty services in the destination country.

3. We do not accept returns or refunds if it is not the product itself.

Glasses
general
Main body size (length × width × height)
235×115×160mm

Dimensions (L×W×H)
309×290×277 mm

Gimbal weight
About. 1.04 kg

body weight
About. 1.45 kg

gross weight
About. 4.67 kg (with all modules installed, excluding lens and memory card)

longest working time
About. 150 minutes

Smart function
ActiveTrack Pro, autofocus (supports face/body recognition and framing of any subject)

Storage temperature
-20° to 60° C (-4° to 140° F)
Operating temperature
-10° to 40° C (14° to 104° F)

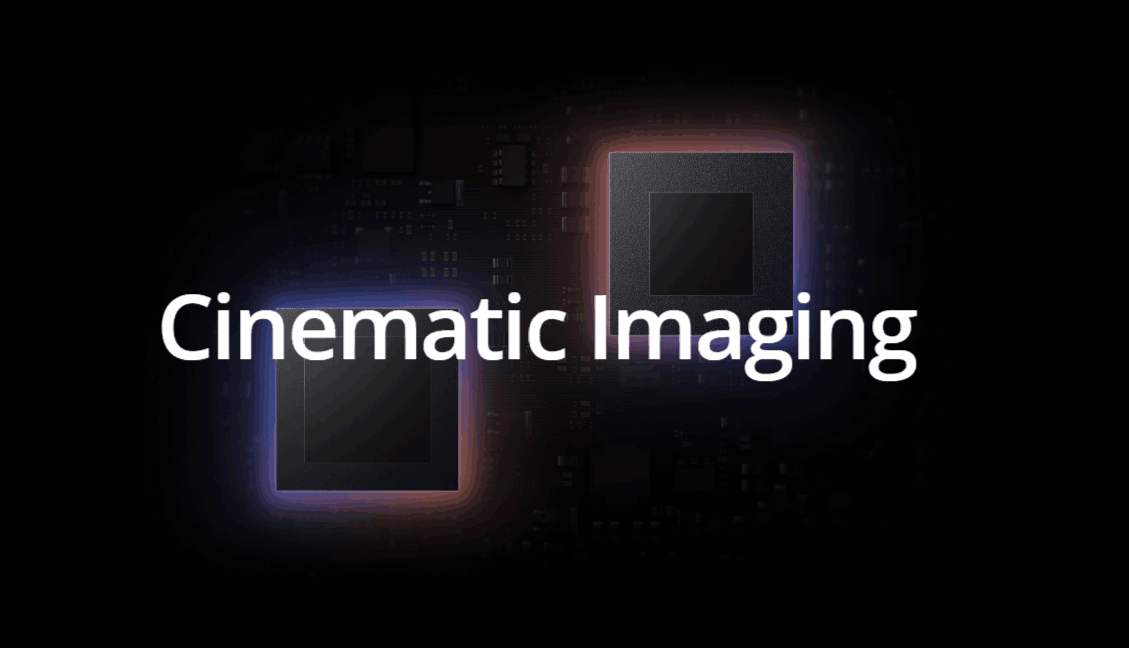

camera
Sensor size:
35mm full-frame CMOS image sensor

Base lens mount:
DX mount, and supports other mount units

Supported lens mounts:
DL Mount (Standard), M Mount, and E Mount

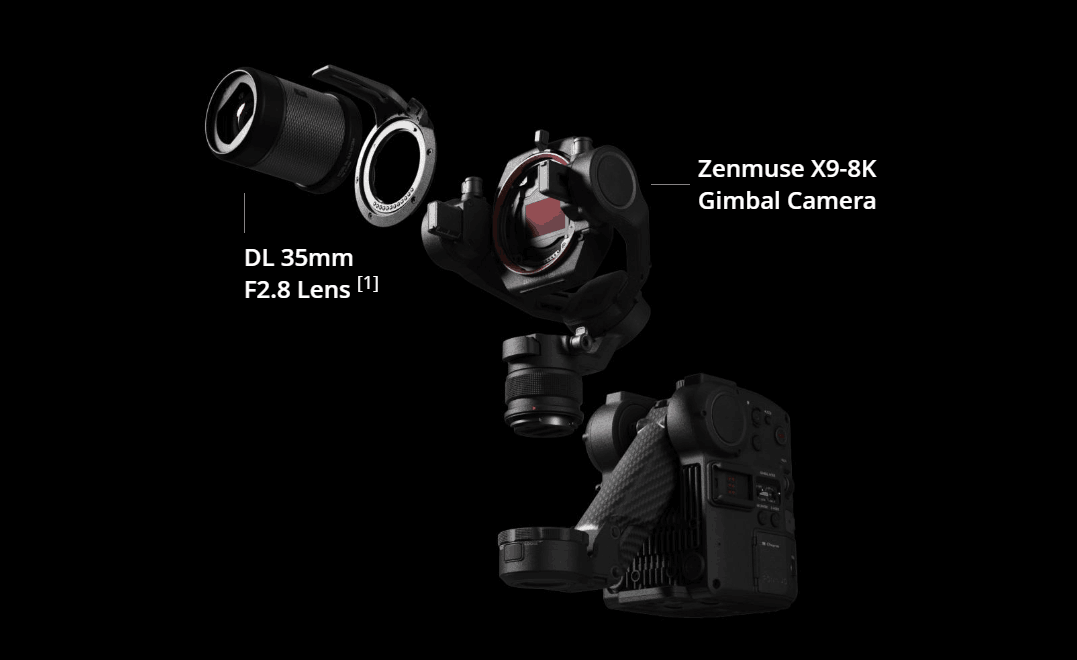

DL lenses:
DJI DL 24mm F2.8 LS ASPH
DJI DL 35mm F2.8 LS ASPH
DJI DL 50mm F2.8 LS ASPH

Dynamic Range:
14+ stops

White Balance:
Manual 2,000-11,000 Kelvin and tone adjustment, AWB support

Gamma:
D-Log, Rec.709, HLG

EI range:
X9-8K: EI 200-12800, dual native ISO 800/4000
X9-6K: EI 200-12800, dual native ISO 800/5000

Shutter speed:
Electronic rolling shutter 1/24s-1/8000s
ND

Built-in 9-stop ND filter:
Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)

Focus Control:
Autofocus, Manual focus, Auto​​Manual focus

X9-6K Maximum Bit Rate:
6008×3168, 48fps
Raw 3.4Gbps

X9-8K Maximum Bit Rate:
8192×4320, 60fps
Raw 3.95Gbps
Supported file systems:
exFAT

Recording format:
Apple ProRes RAW HQ/Apple ProRes RAW
Apple ProRes 422 HQ/Apple ProRes 422
H.264 (4:2:0 10-bit)

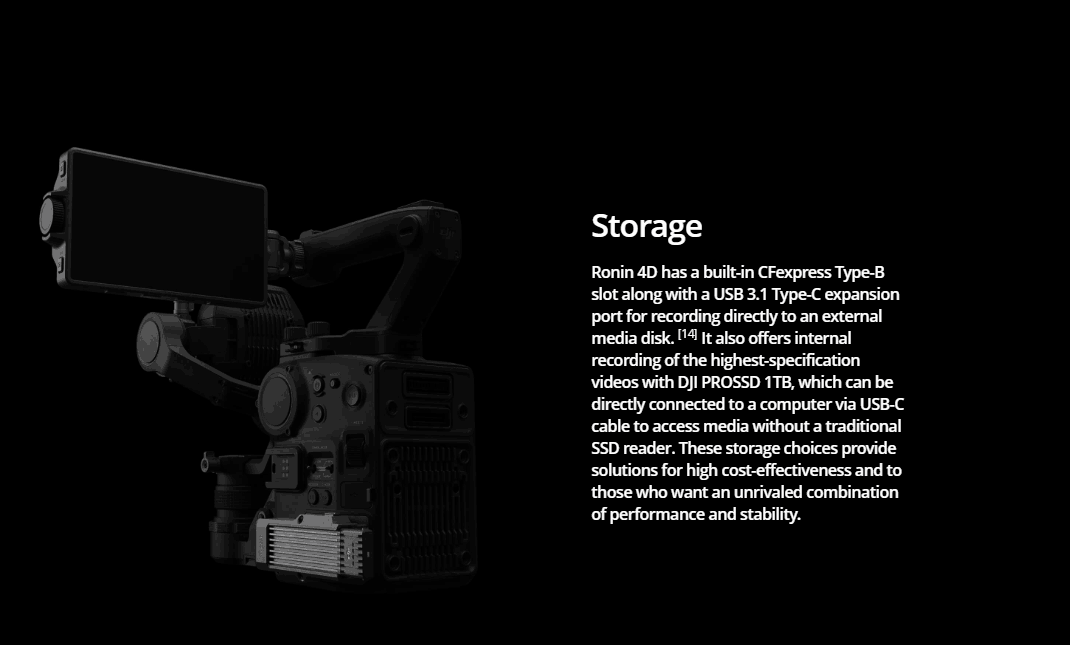

Storage medium:
DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD

DJI PROSSD 1TB Recording Format:
Unlimited recording formats

CFexpress 2.0 Type B recording format:
ProRes 422 Headquarters:
6K: 23.976/24/25/29.97/30fps
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps

H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
USB-C SSD recording format[6]
ProRes 422 Headquarters:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

Built-in Microphone:
Built-in 2-channel stereo

audio format:
LPCM 2 channels, 24-bit 48kHz

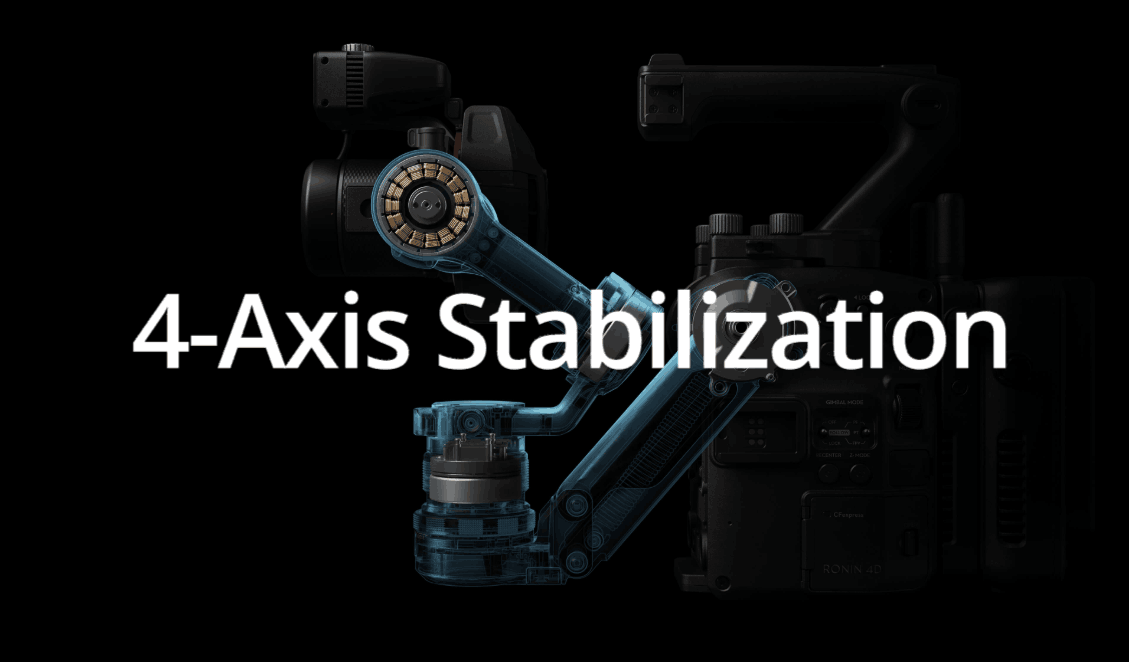

PTZ

Mechanical range
Pan: ±330°
Tilt: -75° to 175°
Roll: -90° to 230°
Z-axis range: about 130mm

controllable range
Pan: ±285°
Tilt: -55° to +155°
Roll: ±35°

Maximum control speed (°/s)
DJI Master Wheels or DJI Force Pro:
Tilt: 360°/sec
Roll: 360°/sec
Pan: 360°/s
Ronin 4D handle:
Tilt: 120°/s
Roll: 120°/s
Pan: 120°/s

Maximum Z-axis payload
2000g (including 1040g gimbal)

Angular vibration range
±0.01°

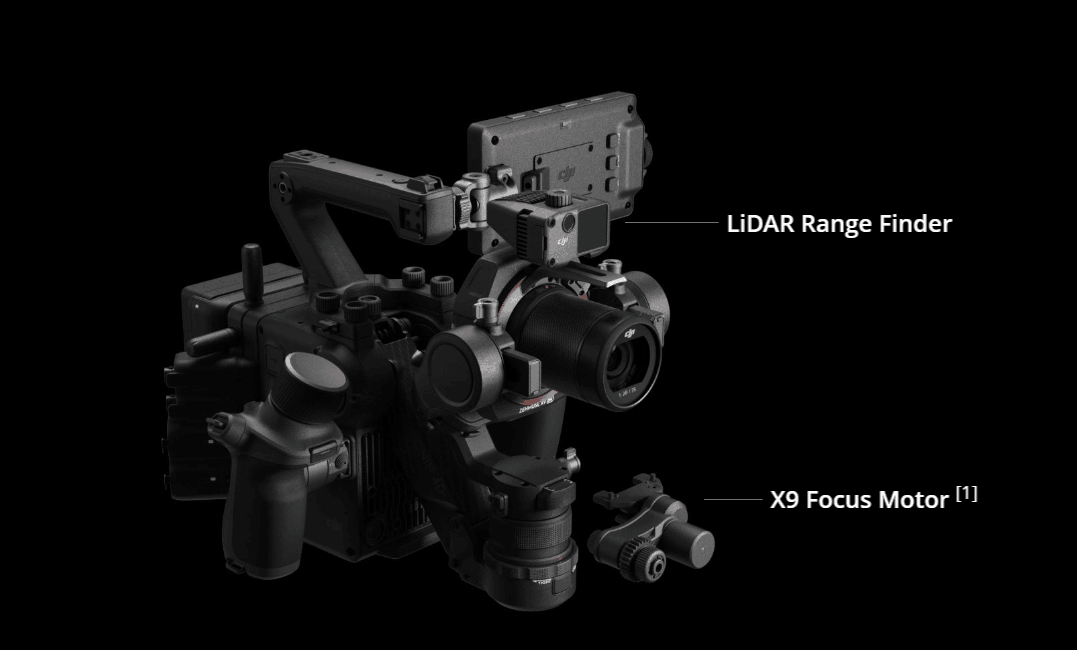

Lidar rangefinder

Weight: 88 grams

Dimensions (L×W×H): 71×47×34 mm

Operating Temperature: -10° to 40° C (14° to 104° F)

Lidar ranging accuracy:
0.3-1m (±1%)
1-10m (±1.5%)

Field of View:
30cm to 3m @>18% Reflectivity 60°(horizontal)×45°(vertical)
30cm to 10m @>18% Reflectivity 60°(horizontal)×7°(vertical)

Security Level:
Class 1 (IEC 60825-1:2014) (eye safety)

Operating environment:
Use in environments with diffuse surfaces (>10% such as walls, trees, people, etc.)
Do not use in foggy environments or aim it at or through glass surfaces.
Laser wavelength: 940 nm

Single pulse width:
Two pulses are fired in the loop: 5ns and 33.4ns.
Maximum laser power: 6 W

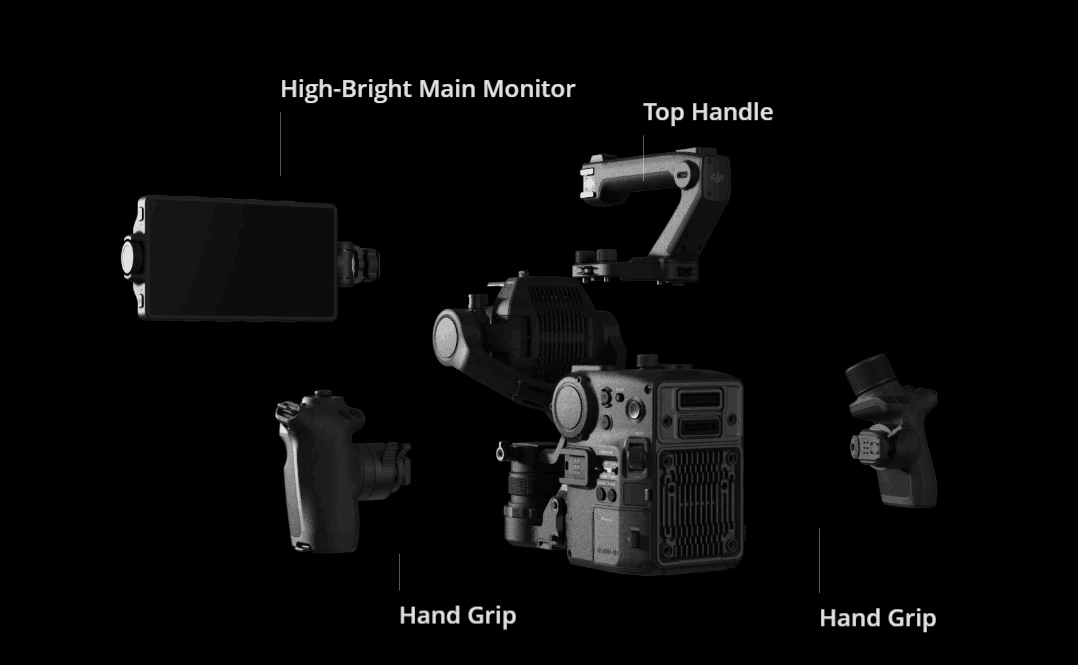

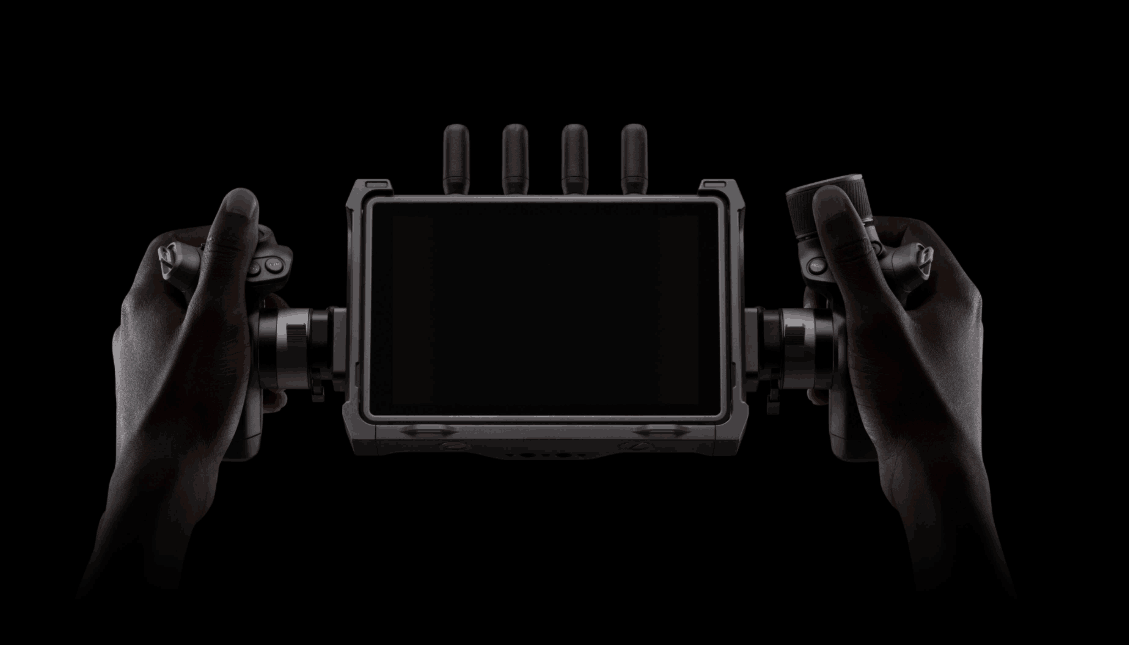

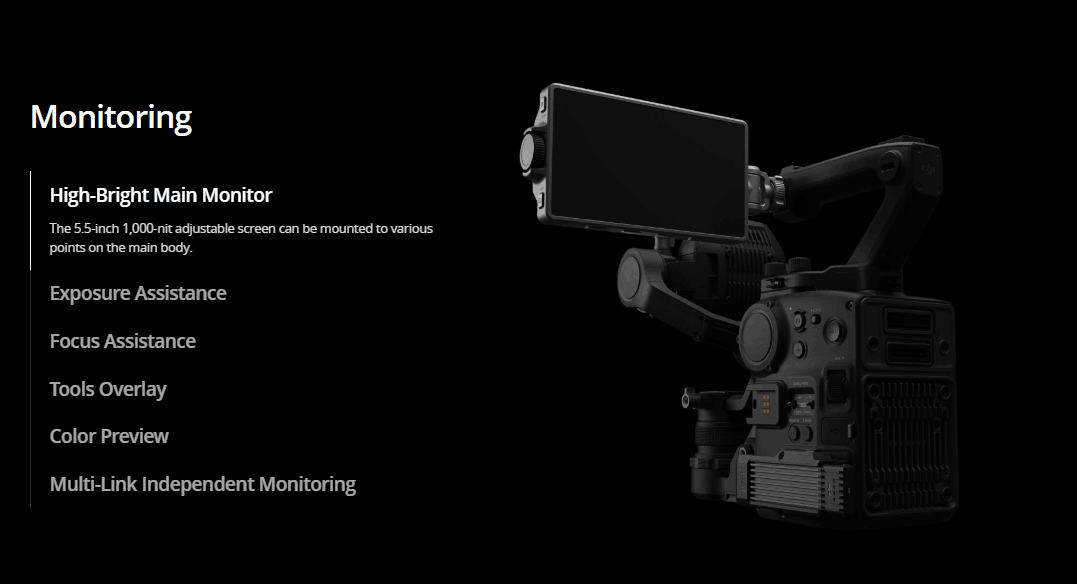

main monitor
screen size:
5.5 inches (diagonal)

Resolution:
1920×1080

Refresh rate:
60 Hz
Maximum Brightness:
1000 cd/m²

Screen:
Rotating LCD touch screen

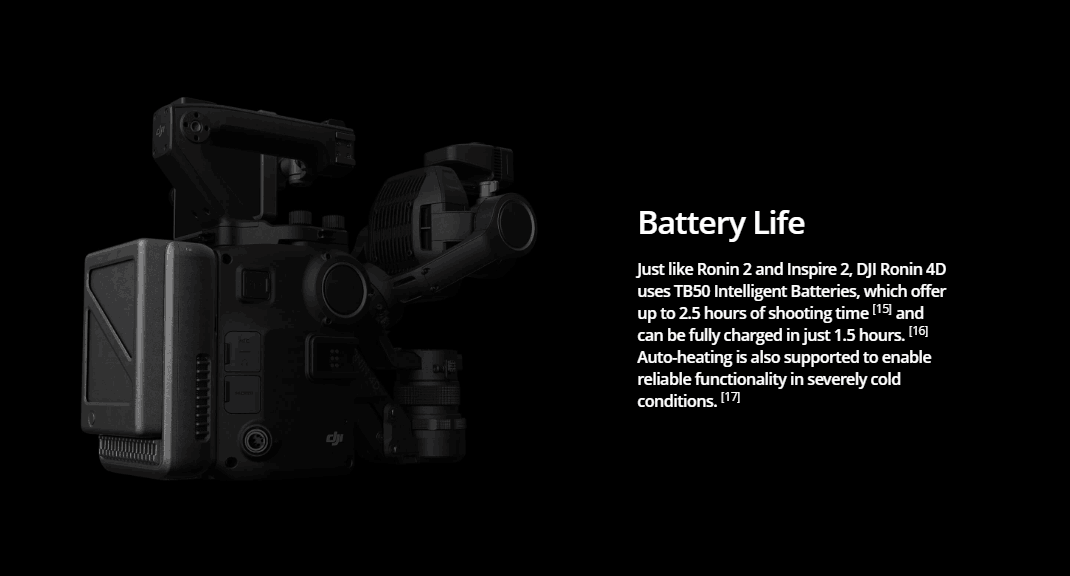

Battery
Battery Type: TB50 Smart Battery
Capacity: 4280mAh

Energy: 97.58 Wh

Voltage: 22.8 V

Maximum charging voltage: 26.1 V

Maximum charging power: 180 W

Charging temperature range:
5° to 40° C (41° to 104° F)

Charging time:
About. 1.5 hours (with standard 86W power adapter)

DJI Ronin 4D-6K Samples

DJI Ronin 4D-8K Samples

DJI Ronin 4D-6K

DJI Ronin 4D-8K
