DPP 140 Automatic Medicine Capsule Tablet Pill Blister Packaging Packer Packing Machine Hot Sale
- $10800.00 / 1 - 2 sets
$10500.00 / 3 - 4 sets
$10200.00 / 5 - 7 sets
$9800.00 / >=8 sets - 1 set
- Hangzhou Shengde Machinery Co., Ltd.
- Zhejiang, China
- Ms SED Machinery
PRODUCT DETAIL
| Automatic Grade: | Automatic; | Showroom Location: | None; |
| Package Preview: | ; | Usage: | Medicine Blister Packing Machine; |
| Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Pharmaceutical; | Type: | Blister Packaging Machine; |
| Voltage: | 380V 50HZ; | Warranty: | 1 Year; |
| Production Capacity: | 15-45 cutting/min; | Driven Type: | Electric; |
| Certification: | ISO CE; | Max.Forming Area and Depth: | 140*110*15mm; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Brand Name: | SED; |
| Video outgoing-inspection: | Provided; | Port: | Ningbo/Shanghai, China; |
| After-sales Service Provided: | Video technical support,Online support; | Condition: | New; |
| Machinery Test Report: | Provided; | Warranty of core components: | 1 Year; |
| Marketing Type: | Ordinary Product; | Local Service Location: | None; |
| Adjustable Pulling Length: | 30-120mm; | PVC Packaging Material: | (0.15-0.4)*160*(Dia.350)mm; |
| PTP Packaging Material: | (0.02-0.15)*160*(Dia.350)mm; | Place of Origin: | Zhejiang, China; |
| Application: | Food,Medical,Chemical; | Model: | DPP-140A; |
| Core Components: | PLC,Engine,Motor; | Name: | Automatic Capsule Tablet Pill Blister Packaging; |
| After Warranty Service: | Video technical support,Online support,Spare parts; | Dimension(L*W*H): | 2400*650*1450mm; |
| Weight: | 800; | Packaging Detail: | Export standard packing; |
| Key Selling Points: | High Productivity; | Keyword: | Blister Packer; |
| Supply Ability: | 30 Sets per Month; |

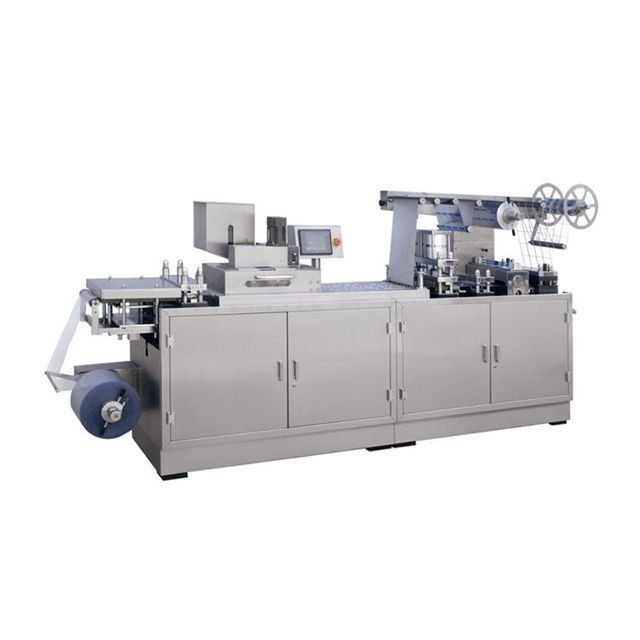

Machine Description
This automatic blister packaging machine has a flat structure and has the functions of pressing, forming, and mesh heat sealing. The machine stroke range is adjustable, the body is small, and the operation is convenient. It is widely used in the laboratory preparation room of small pharmaceutical factories and hospital research institutes. It is suitable for the aluminum-aluminum, aluminum-plastic, paper-plastic composite sealing packaging of capsules, tablets, pills, honey, candy, and other granular, liquid, paste, and irregular shaped products in the pharmaceutical, health care, food, cosmetics, and other industries.
Product Paramenters
Model | DPP-140A | DPP-250A | DPP-350A | ||
Cutting Frequency | 15-45cutting/min | 15-45cutting/min | 15-45cutting/min | ||
Max. Forming Area and Depth | 140*110*15mm | 250*120*15mm | 350*130*15mm | ||
Adjustable Scope of Travel | 30-120mm | 30-130mm | 30-140mm | ||
Packaging material ID.75mm | PVC(mm) | (0.15-0.4)×160×(Φ350) | (0.15-0.4)×260×(Φ400) | (0.15-0.6)×350×(Φ400) | |
PTP(mm) | (0.02-0.15)×160×(Φ350) | (0.02-0.15)×260×(Φ400) | (0.02-0.15)×350×(Φ400) | ||
Power | 380V 50Hz 5.5k | 380V 50Hz 8kw | 380V 50Hz 9.5kw | ||
Air Compression (self-prepared) | 0.6-0.8Mpa≥0.4m³/min | 0.6-0.8Mpa≥0.45m³/min | 0.6-0.8Mpa≥0.6m³/min | ||
Recycle Water or Circulating Water Consumption | 40-80L/h | 40-80L/h | 60-100L/h | ||
Overall Dimension (L*W*H) | 2400*650*1450mm | 2900*750*1600mm | 3650*850*1700mm | ||
Dimension of Each Part | Front | 1350*650*1250mm | 1500*750*1600mm | 1850*850*1700mm | |
Back | 1050*650*1450mm | 1400*750*1450mm | 1800*850*1650mm | ||
Weight | About 800kg | About 1200kg | About 2000kg | ||
Main Features
1- The traction length is adjustable. The mold is fixed by the positioning groove, which is easy to change the mold. It heats the PVC through a heating plate and forms it by compressed air frothing.
2- The speed is controlled by the inverter. Using the man-machine interface and PLC controller. Adopt a universal feeder for feeding.
3- It has the functions of easy-cut line embossing, batch number embossing, and rewinding of waste packaging materials.
4- It uses a stepping motor to accurately control the traction length and save packaging materials.
5- When the machine stops, the heating mold will automatically separate, which helps protect the packaging material from the heating mold.
