DZF6020 0.9ft Small Laboratory Closed Loop HBO System Vacuum Dryer
- $380.00 /piece
- 1 piece
- Guangzhou Maite Technology Co., Ltd.
- Guangdong, China
- Ms Daisy Lee
| Classification: | laboratory drying equipment | Material: | cold rolled steel plate |
| exhibit: | Digital Display | color: | white |
| size: | small | Voltage: | 110V/220V/240V |
| Packaging Details: | Wooden packing | Supply capacity: | 100 pieces per week |
| brand: | mt | place of origin; place of origin: | Guangdong, China |
| port: | Guangzhou | Internal volume: | 25L |
| payment terms: | Wire Transfer, Western Union | Package: | wooden box |
| product name: | Vacuum drying oven | temperature range: | Live +10-200 |
| temperature. scope: | 50-200℃ | model: | dzf6020 |

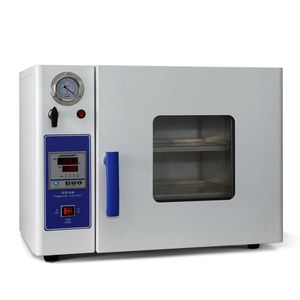

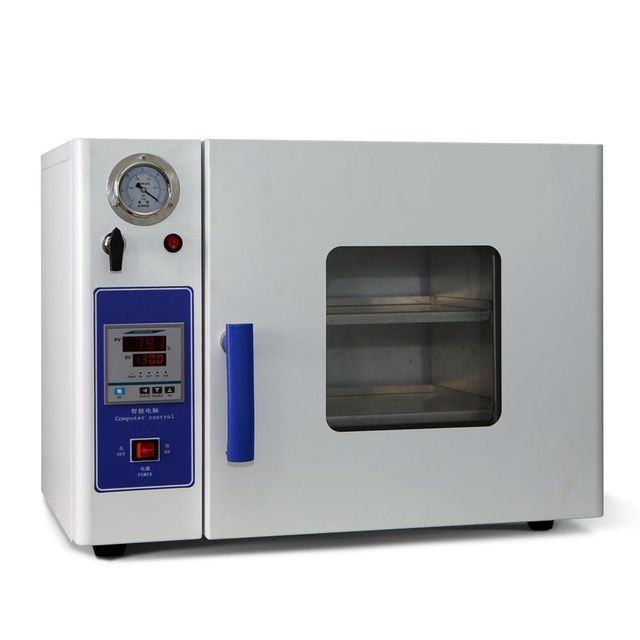

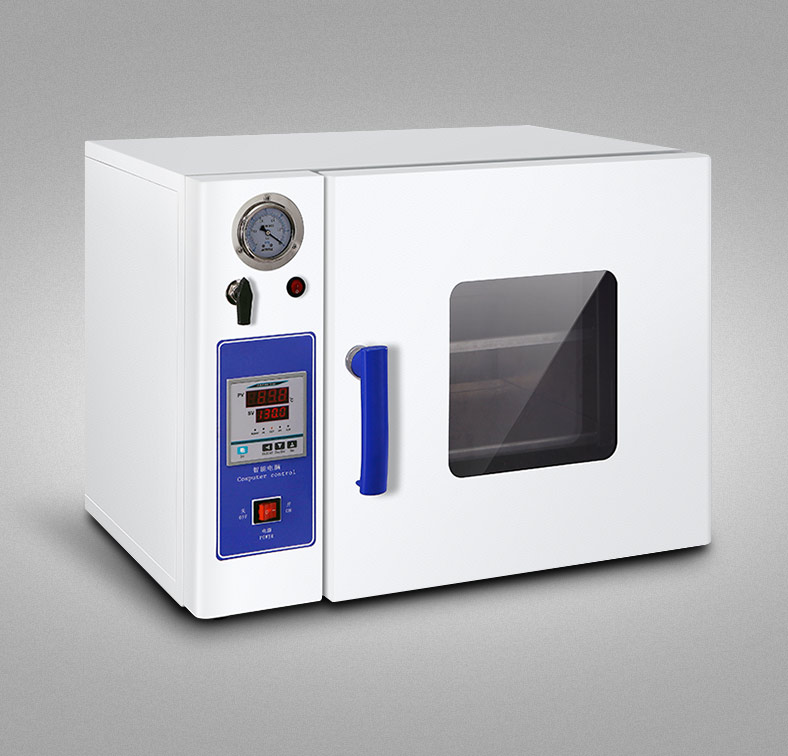

0.9 cuft Small Laboratory Closed Loop System Vacuum Oven
DZF series:
Vacuum drying ovens are widely used in powder drying and baking in biochemical, chemical, pharmaceutical, healthcare, agricultural research, environmental protection and other research applications, as well as in the disinfection and sterilization of glass containers used. It is especially suitable for drying heat-sensitive, easily decomposed, and easily oxidized articles with complex components, and achieves fast and efficient drying.
Various complex mechanical parts or other porous samples are cleaned by vacuum drying and then completely dried without leaving any residue.

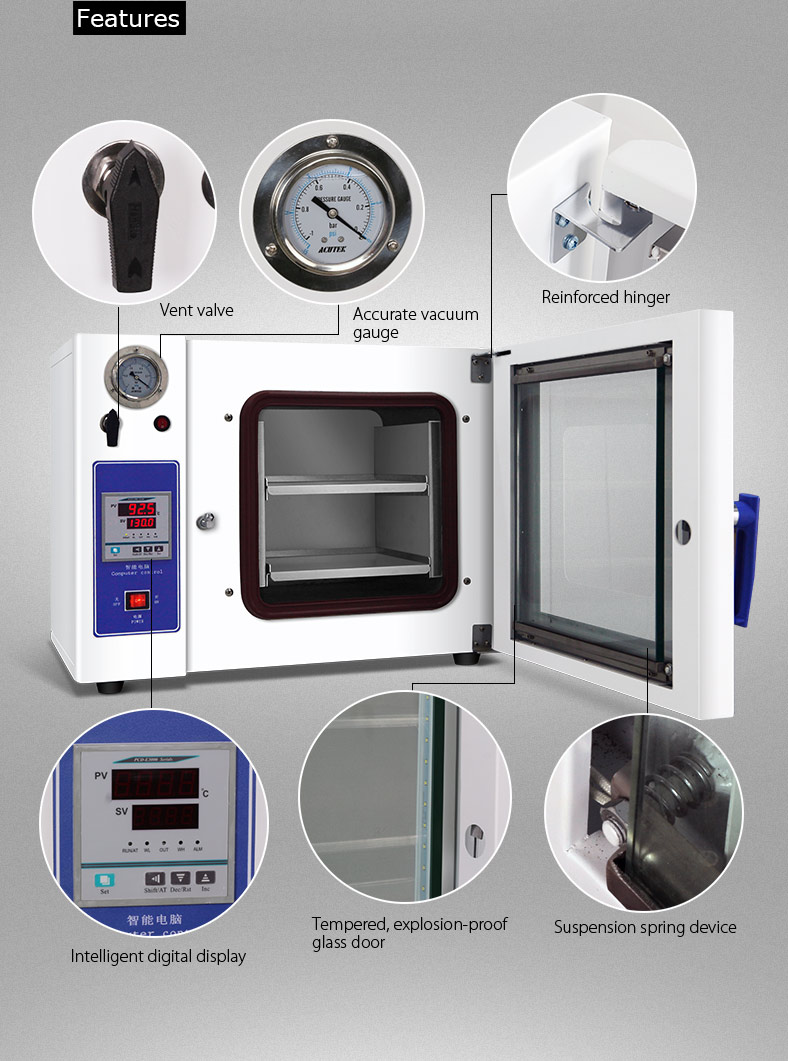

feature:
The inner cavity adopts streamline arc design, the outer cavity adopts cold-rolled steel plate, and the surface adopts electrostatic spraying.
The inner pot is made of stainless steel or cold-rolled material, and the corners are semi-circular for easy cleaning.
The tightness of the oven door can be adjusted by the customer.
The overall shape of the silicone rubber door seal ensures the high vacuum of the oven, the control panel is controlled by a microcomputer, and the solenoid valve controls the vacuum valve switch.
With time and over-temperature alarm function, the door is double-glazed, and the items inside can be seen.
technical parameter:
Model | Voltage (five) | temperature scope (°C) | accuracy (°C) | degree of vacuum | Power (kW) | Internal dimensions (mm) (H*W*D) | Dimensions (mm) (H*W*D) | Package dimensions (mm) (H*W*D) | net weight tons (kg) | Shipping weight (Kilogram) |
DZF-6020(S) | 220 | 50~200 | ±0.5 | <133 | 0.9 | 280×300×300 | 450×635×465 | 570*720*545 | 42.5 | 52.5 |
DZF-6050(S) | 1.4 | 400×415×350 | 570×750×515 | 690*830*600 | 65 | 75 | ||||
DZF-6090(S) | 2.4 | 485×440×425 | 620×780×600 | 102 | 112 |
