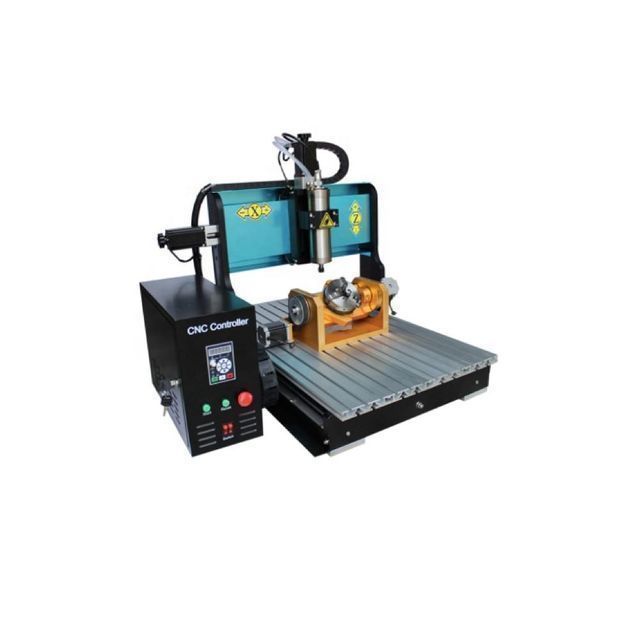

Desktop CNC Router for Master Pattern Making
- $1000.00 /set
- 1 set
- Shenzhen Kaitexin Industry Co., Ltd.
- Guangdong, China
- Ms Lisa Zheng
| Showroom location: | not any | Core components: | PLC, engine, bearing, motor, gear |
| place of origin; place of origin: | China | Spindle power (kW): | 1.5 |
| Packaging Details: | Glued wooden box | Key words: | mold making |
| product name: | Desktop CNC Router for Mold Making | Spindle speed range (rpm): | 3000 - 5000 rpm |
| State of health: | new | application: | Hard materials, 3C accessories, precision molds, precision electrodes, medical industry |
| Video shipment inspection: | if | power supply: | 220v /380v 50-60HZ |
| Positioning accuracy (mm): | 0.02 mm | Repeatability (X/Y/Z) (mm): | 300/400/90 |
| port: | China's main ports | Weight (kg): | 60 |
| Warranty: | 1 year | Mechanical test report: | if |
| CNC or not: | CNC | payment terms: | L/C, D/P, T/T |
| Marketing Type: | normal product | Main selling points: | multifunctional |
| Core component warranty: | 1 year |
|
Applicable: Suitable for metal, plastic, woodworking, jade, seal industries, Processing range: cutting, engraving, engraving, punching, deburring, water removal, nameplate engraving, slot milling.
feature:
Frame material: aluminum alloy Screw: TBI SFU1605 ball head Track: chrome-plated shaft + linear bearing (surface hardened 61 HRC) Control system: Mach3/parallel (USB) port Working speed m/min: 4000 (engraving: 50~3500) Repeat positioning: 0.02mm, max. Command code: G code (tap, nc, ncc, text) Input voltage: AC220V/AC110V Options: A-axis and tailstock, water tank
|
|
USB interface One key to return to the origin. Origin limit protection function, Intermittent engraving function, keep the origin to continue engraving when engraving is powered off; retain the origin for continuing engraving the next day. Intermittent engraving function, continue engraving at any point. The engraving speed is fast, the performance is stable, and the precision is high. Great compatibility, suitable for XP, Win7 32-bit, Win7, Win8, Win 1064-bit, desktop computers, laptops, etc.
|
||
|
|
3020 |
3040 |
6040 |
6090 |
|
Dimensions/Width/Height, mm |
540*440*460 |
660*540*460 |
900*650*590 |
1250*900*640 |
|
WorkbenchL/W, mm |
450*240 |
570*360 |
840*480 |
1150*720*20 |
|
Working area X/Y/Z, mm |
200*300*80 |
300*400*90 |
400*600*100 |
600*900*110 |
|
Spindle motor, W |
300/600/800/1500 |
300/600/800/1500 |
800/1500/2200 |
800/1500/2200 |
|
speed control |
300W/600W DC converter; 800W/1500W/2200W AC inverter |
|||
|
cool down |
300W/600W: air cooling; 800W/1500W/2200W water cooling |
|||
|
Collet type |
300W/600W/800W: ER11 1/8"(3.175mm), 6mm collet; 2200W: ER20 6mm and 1/2" collet |
|||
|
Stepper Motor, Type 57 |
300W/600W: 3.5A; 800W1500W: 4A |
800W: 4A; 1500W/2200W: 5.6A |
||
|
Engraving speed |
50-3500mm/min |
|||
|
Engraving precision |
300W/600W: 0.05mm; 800W/1500W/220W: 0.03mm |
|||
|
Spindle speed |
300W/600W: 13000 rpm; 800W/1500W/220W: 24000 rpm |
|||
|
Package, length*width*height, cm |
54*41*42 |
65*52*44 |
94*67*43 |
122*86*43 |
|
Package weight, kg |
30/30/35/45 |
37/39/45/46 |
76/78/80 |
128/130/132 |
