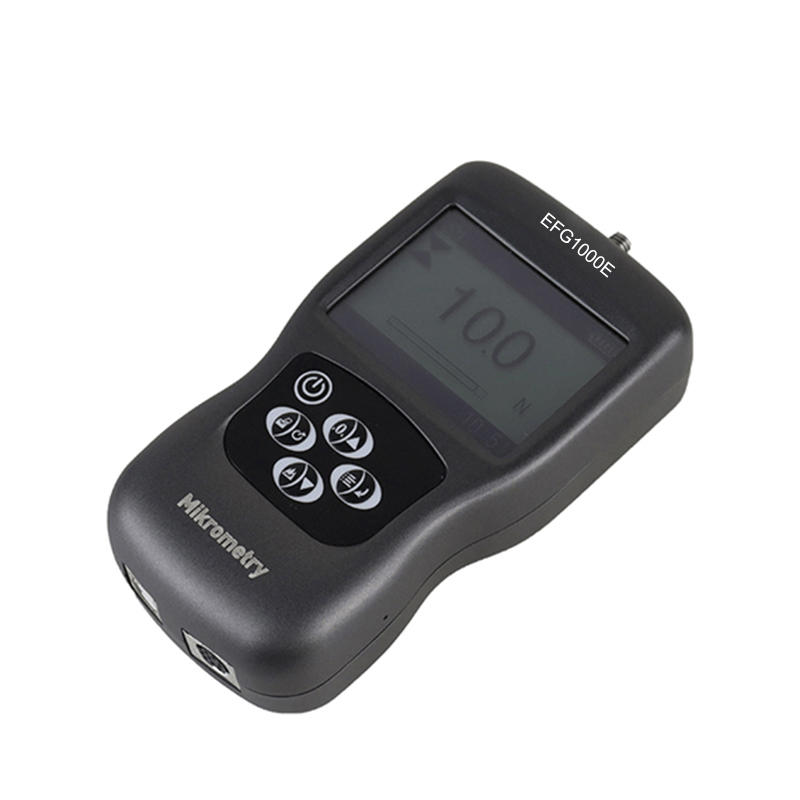

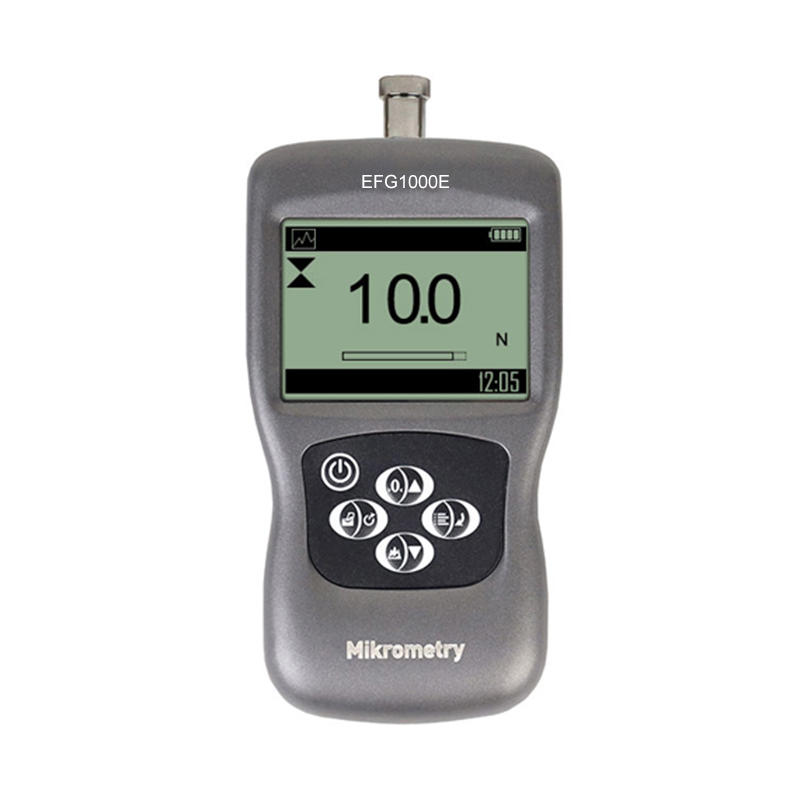

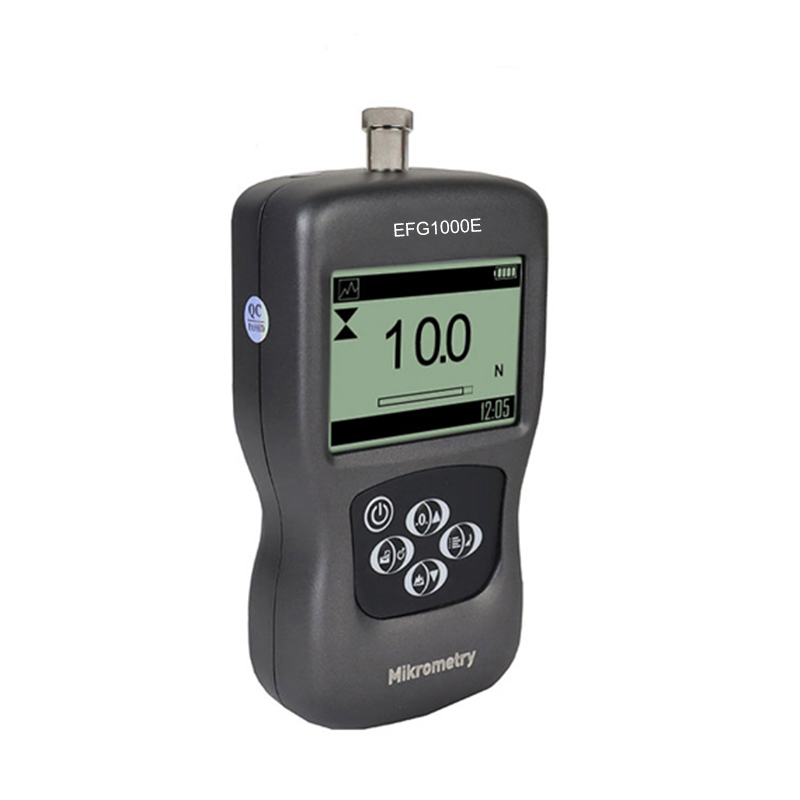

Digital Backlight Display 1000N Dynamometer Metal Case Tension Meter Tester Push Pull Load Physical Measuring Instrument Tool
- $208.00 / 1 - 5 units
$192.00 / >=6 units - 1 unit
- Mikrometry instruments limited
- Guangdong, China
- Ms Amanda Li
PRODUCT DETAIL
| Data sampling rate: | up to 1KHz | brand: | Microscopic measurement |
| Warranty: | 1 year | model: | EFG1000E |
| Measurement mode: | Tracks, Peaks, Presets | payment terms: | Letter of Credit, T/T, MoneyGram, PayPal |
| Supply capacity: | 1000 pieces per month | place of origin; place of origin: | Guangdong, China |
| size: | 150*73*35mm | product name: | Digital force gauge EFG1000E |
| Custom Support: | OEM | exhibit: | 160X128 dot matrix LCD with backlight |
| port: | Shenzhen | unit: | N, gf, kgf, of, bf |
| weight: | 0.45 kg | Certification: | Chief Executive |
| communicate: | USB or RS-232 | type: | Portable Digital Dynamometer Dynamometer |
| memory: | 500 pieces of data |
feature
Small digital dynamometerSmall size, high precision, easy operation, easy to carry. widely
Used in electronics, high and low voltage electrical appliances, hardware, auto parts, lighters and ignition systems, lamps
Industrial, mechanical, textile and other industries for pulling or pushing force testing, insertion force or pulling force and destructive testing
experience. This digital dynamometer is a new generation of tension and compression measuring instruments.
Used in electronics, high and low voltage electrical appliances, hardware, auto parts, lighters and ignition systems, lamps
Industrial, mechanical, textile and other industries for pulling or pushing force testing, insertion force or pulling force and destructive testing
experience. This digital dynamometer is a new generation of tension and compression measuring instruments.
feature:
Durable Metal Housing
Reverse display settings
Mechanical overload protection
Includes calibration certificate
Charger with optional US/Euro/UK plug
USB or RS232 communication interface, convenient for communication with PLC
Support low battery alarm
Accuracy: ± 0.3% FS
Sampling rate: up to 1KHz
Durable Metal Housing
Reverse display settings
Mechanical overload protection
Includes calibration certificate
Charger with optional US/Euro/UK plug
USB or RS232 communication interface, convenient for communication with PLC
Support low battery alarm
Accuracy: ± 0.3% FS
Sampling rate: up to 1KHz
role model | Capacity/Resolution | ||||||||
n | kilogram force | Pound force | ozif | girlfriend | |||||
EFG10E | 10/0.01 | 1/0.001 | 2.2/0.001 | 35/0.01 | 1000/1 | ||||
EFG50E | 50/0.01 | 5/0.001 | 11/0.01 | 180/0.1 | 5000/1 | ||||
EFG100E | 100/0.1 | 10/0.01 | 22/0.01 | 350/0.1 | - | ||||
EFG500E | 500/0.1 | 50/0.01 | 110/0.1 | 1800/1 | - | ||||
EFG1000E | 1000/1 | 100/0.01 | 220/0.1 | 3500/1 | - | ||||
Product Description
accuracy | ± 0.3% of full scale |
optional unit | N, gf, kgf, ozf and lbf |
exhibit | 160*128 dot matrix LCD screen (2.8 inch) with LED backlight |
overload capacity | 150% of FS (LCD flickering over 110%) |
Overload protection | Overload protection mechanism to prevent damage |
Measurement mode | Track, Peak, Preset Peak |
Data sampling rate | 1KHz |
Display update rate | 10 times/sec |
memory | 500 pieces of data |
set point | Programmable upper and lower limits |
battery indicator | Display flashes battery icon when battery is low |
strength | 3.6VDC 400mAH NiMH rechargeable battery |
Battery Life | About. 7 hours per charge |
Charger/Adapter | Universal USB/BM charger, input: 110~240VAC |
temperature effect | <0.03% FS/°C |

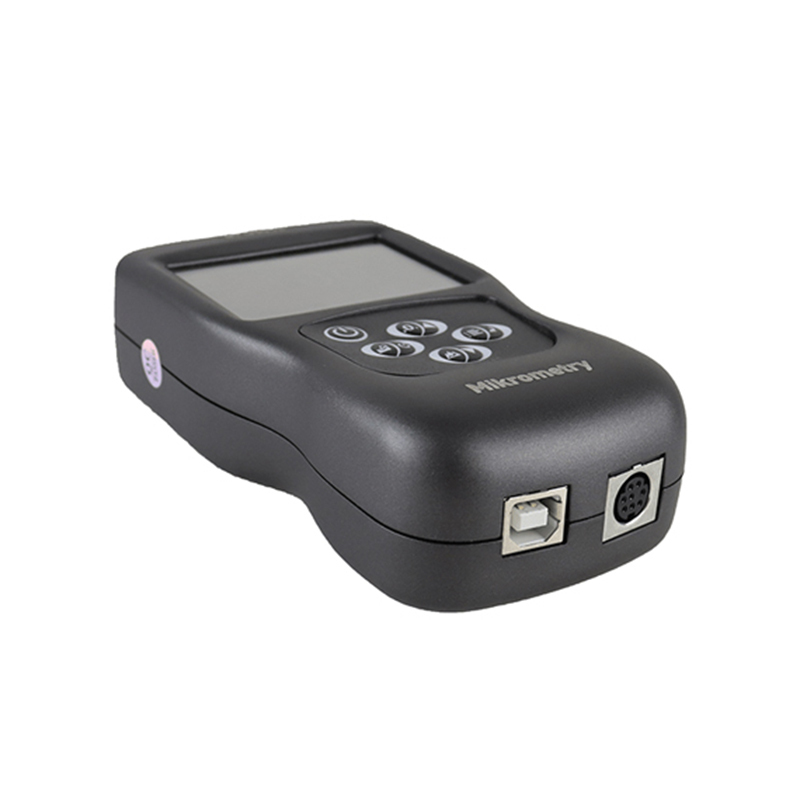

communicate | USB or RS-232 |
software | Free software for USB communication |
output | RS-232, "at" set point output, "under or over" set point output |
Operating environment | Temperature: -10 to 40°C |
Relative Humidity: 20 to 80% | |
storage environment | Temperature: -20 to +50°C |
Relative Humidity: 5 to 90% | |
aspect | 150*72*33mm |
weight: | 0.45 kg (1 lb) |

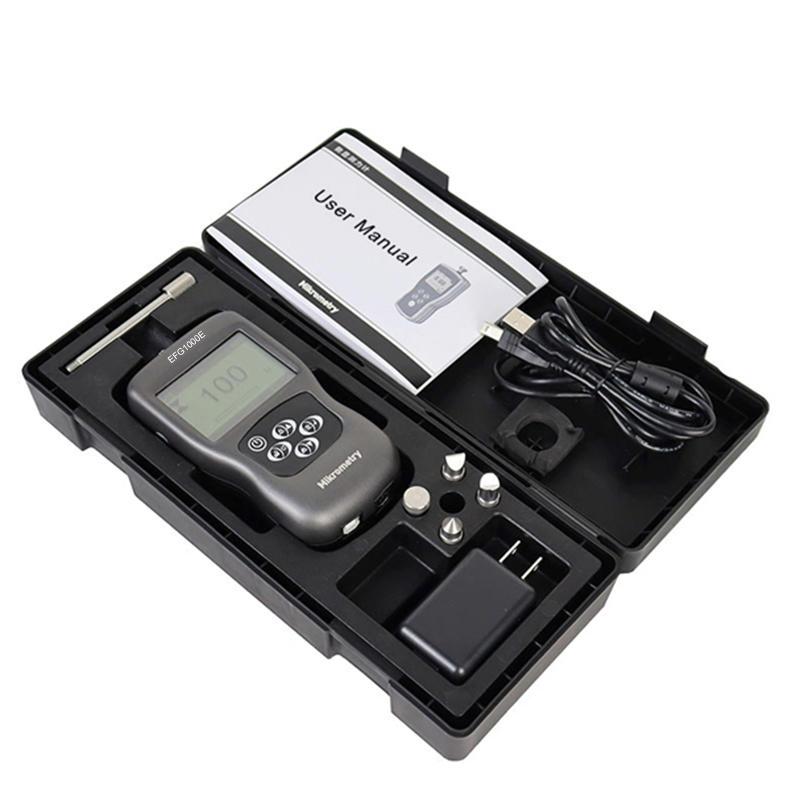

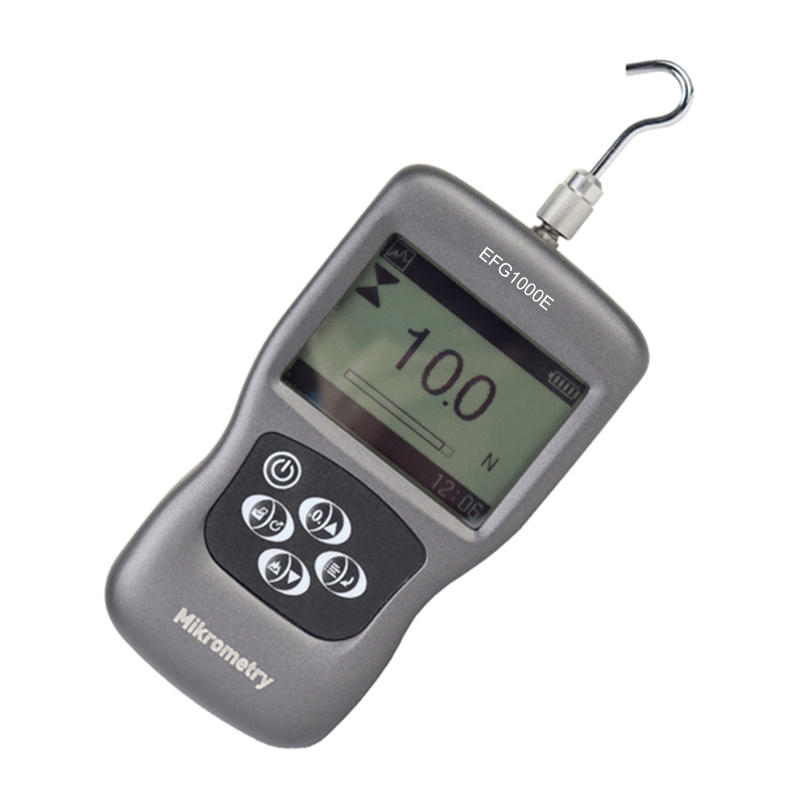

Accessories | AC adapter/charger, 6 accessories: hook, flat head, tapered head, chisel head, notched head, extension shaft |
Options | Micro Printer, Measurement Adapter, EST-FG1M1 Test Bench, EST-FG2V Motorized Test Bench, EST-FG2H Motorized Test Bench, Ergonomics measurement kit. |
